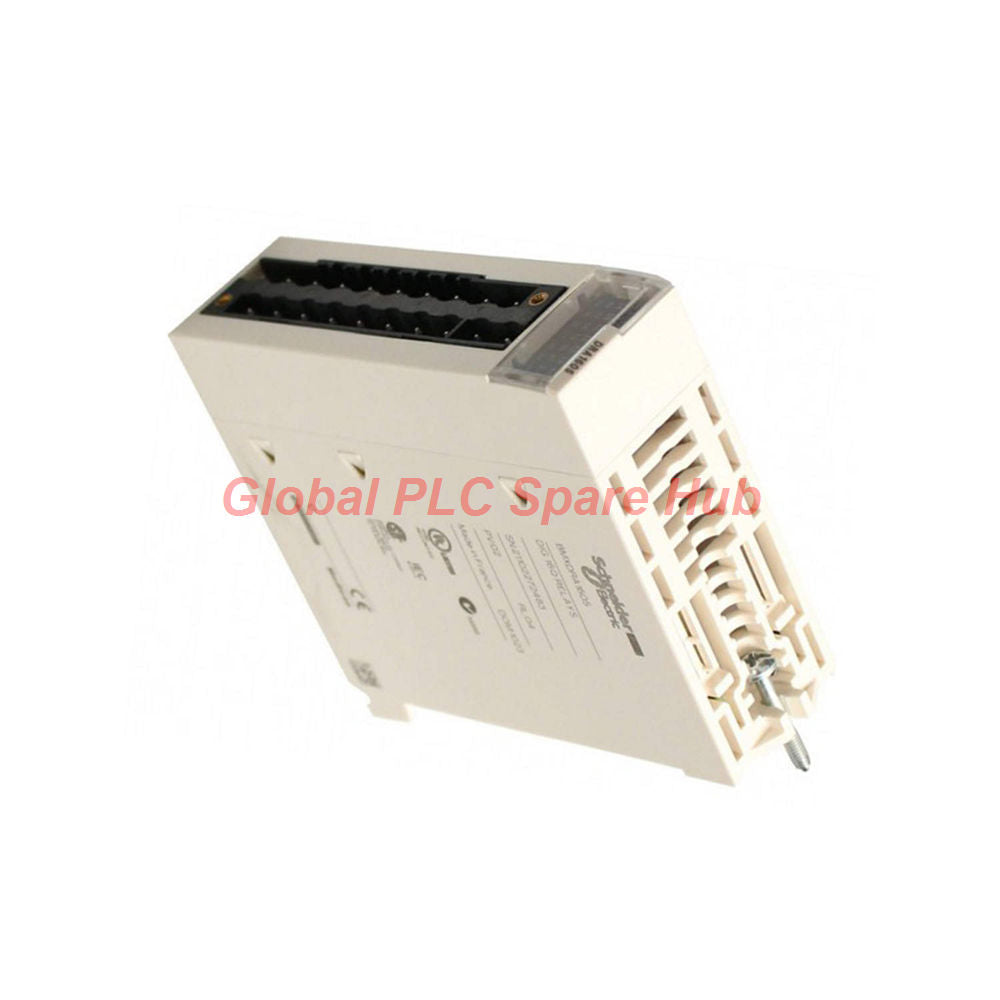

BMXDRA1605 Schneider Modicon X80: 16-Point Relay Output Module

BMXDRA1605 Schneider Modicon X80: 16-Point Relay Output Module Performance

The BMXDRA1605 is a high-reliability discrete output module designed for the Modicon X80 platform. This module provides 16 Normally Open (NO) relay outputs, engineered for robust industrial control across a voltage range of 24V to 240V AC and 24V to 48V DC. It serves as an essential interface for heavy-duty automation systems, offering superior electrical isolation and high-density switching capabilities.

Technical Specifications

• Module Type: 16-Point Discrete Relay Output
• Voltage Range: 24–48V DC (19–60V) / 24–240V AC (19–264V)
• Thermal Current: 2A conventional free air thermal current
• Response Time: < 8 ms activation; < 10 ms deactivation
• Reliability: MTBF rated at 2,100,000 hours
• Power Consumption: 3W max dissipation; 100mA at 3.3V DC draw
• Operating Temperature: 0°C to 60°C
• Protection Rating: IP20

Diagnostics and Operational Integrity

Engineers can maintain peak system uptime using the BMXDRA1605 diagnostic suite. The front panel features a dedicated green RUN LED, a red ERR LED, and a red I/O fault indicator. Each of the 16 channels is equipped with an individual green status LED, allowing for immediate identification of localized circuit states and simplified troubleshooting during maintenance cycles.

Global PLC Spare HUB's Insight

The BMXDRA1605 is a critical component for bridging control logic with physical actuators. In our experience, it excels in environments where galvanic isolation is required between the PLC and field devices. It is perfectly suited for controlling contactors, solenoid valves, and signaling beacons in water treatment, packaging lines, and HVAC systems.

Logistics and Quality Assurance

• Dispatch Time: Orders are processed and shipped within 24-48 hours
• Shipping Partners: Reliable global transit via FedEx, UPS, or DHL
• Warranty: Every BMXDRA1605 unit is covered by a 12-month quality assurance guarantee

Expert Frequently Asked Questions

Q: How can I maximize the lifecycle of the relay contacts?
A: For inductive DC loads, install a discharge diode. For AC loads, utilize an RC circuit or ZNO surge limiter to suppress arcing and maintain contact longevity through the full 300,000-cycle rating.

Q: Can I use this module for low-level signal switching?
A: Yes, the module supports a minimum switching current of 1 mA at 5V DC, though it is purpose-built to handle higher-voltage industrial loads effectively.

Q: What does the red I/O LED on the module indicate?
A: A red I/O LED signals a hardware or configuration mismatch, typically indicating a fault in the connection with the backplane or an internal power circuit irregularity.

Q: Is it possible to mix different voltage loads on one module?
A: Yes, the BMXDRA1605 offers flexible load distribution. Always ensure you apply the correct external protection (fuses/diodes) specific to the load type connected to each individual channel.

Q: Why is proper fuse selection critical for this model?
A: Using one fast-blow fuse per channel or group is essential to prevent contact welding during short-circuit events, ensuring the long-term integrity of the module and the connected field devices.

Technical Selection Guide

• Ensure your mounting environment adheres to the 0-60°C temperature range.
• For applications above 2000m, strictly apply the required derating factor to output performance.
• Verify that your field cabling length and impedance align with the module's 2A thermal current limit.
