BMEP584040 Schneider Modicon M580 Ethernet PLC CPU In Stock

Overview

The Schneider Electric BMEP584040 standalone processor module is the high-performance core of the Modicon M580 ePAC system architecture. Engineered with an integrated 16 MB program memory and 2048 kB data RAM, this advanced CPU handles complex continuous processing and hybrid automation control tasks with processing speeds up to 40 Kinst/ms. The BMEP584040 features native Ethernet connectivity directly on the backplane, allowing seamless coordination of 16 remote I/O (RIO) drops across X80 and Quantum racks alongside 64 distributed equipment nodes. Built-in Achilles Level 2 cybersecurity compliance, IPsec protocols, and an embedded firewall ensure complete network integrity for modern Industry 4.0 infrastructures.

Technical Specifications

System Architecture & Connectivity

• Executes 1 cyclic/periodic master task, 1 periodic fast task, 2 auxiliary tasks, and up to 128 event-driven tasks.
• Supports up to 4 optional Ethernet communication modules and 16 AS-Interface master modules on local racks.
• Integrates native RIO Scanner and DIO Scanner services across double Ethernet device networks.
• Accommodates up to 144 application-specific channels including HART, SSI encoders, motion, and precise time stamping.

Target Applications & System Compatibility

• Large-scale water and wastewater treatment plants requiring extensive RIO drop control.
• Mining, metals, and minerals processing lines with mixed X80 and legacy Quantum I/O rack integration.
• Oil & Gas pumping and distribution manifolds operating in Class I Division 2 hazardous locations.
• High-speed packaging, power generation control, and pharmaceutical batch manufacturing systems.

Diagnostic LED Indicators & Fault Management

• RUN LED (Green): Indicates active processing state and valid application execution.
• ERR LED (Red): Signals internal processor hardware or system kernel faults.
• I/O LED (Red): Identifies active fault states on local or remote rack I/O channels.
• DL LED (Green): Illuminates during active application logic downloads.
• BACKUP LED (Red): Highlights flash memory card errors or CPU flash copy corruption.
• ETH MS / Eth NS LEDs (Dual Green/Red): Provide real-time status for Ethernet configuration and network link activity.

Warranty, Packaging & Global Express Logistics

• Warranty Terms: Covered by an extensive 12-Month Quality Guarantee.
• Fast Shipping: Orders are processed and dispatched within 24 to 48 hours.
• Carrier Delivery: Express global air transport via FedEx, UPS, or DHL.

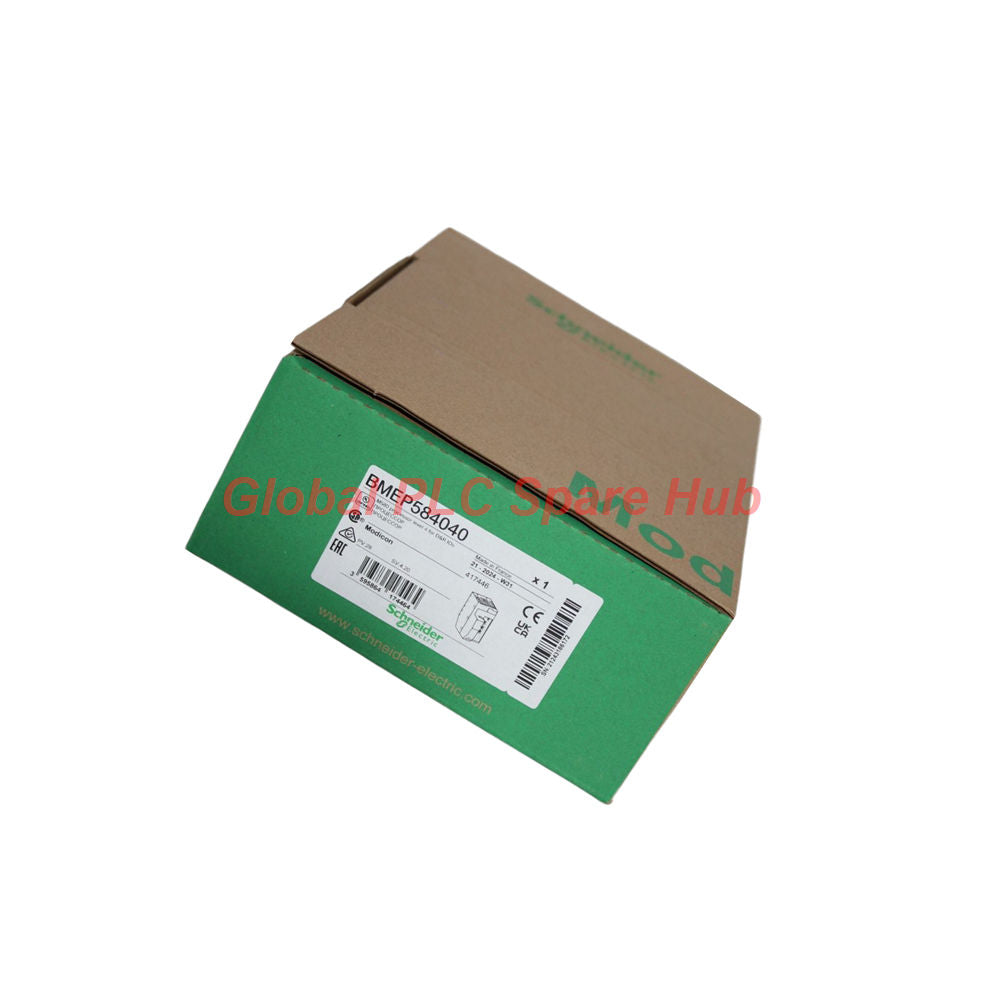

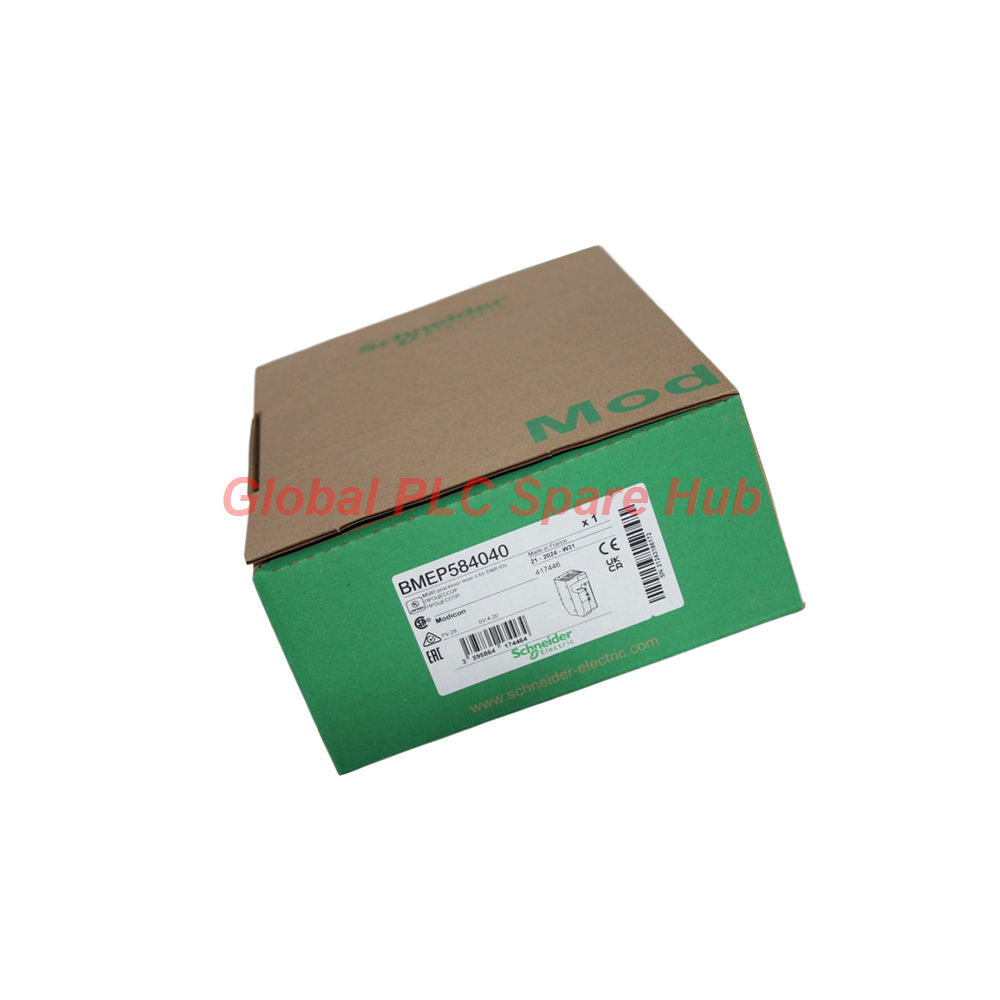

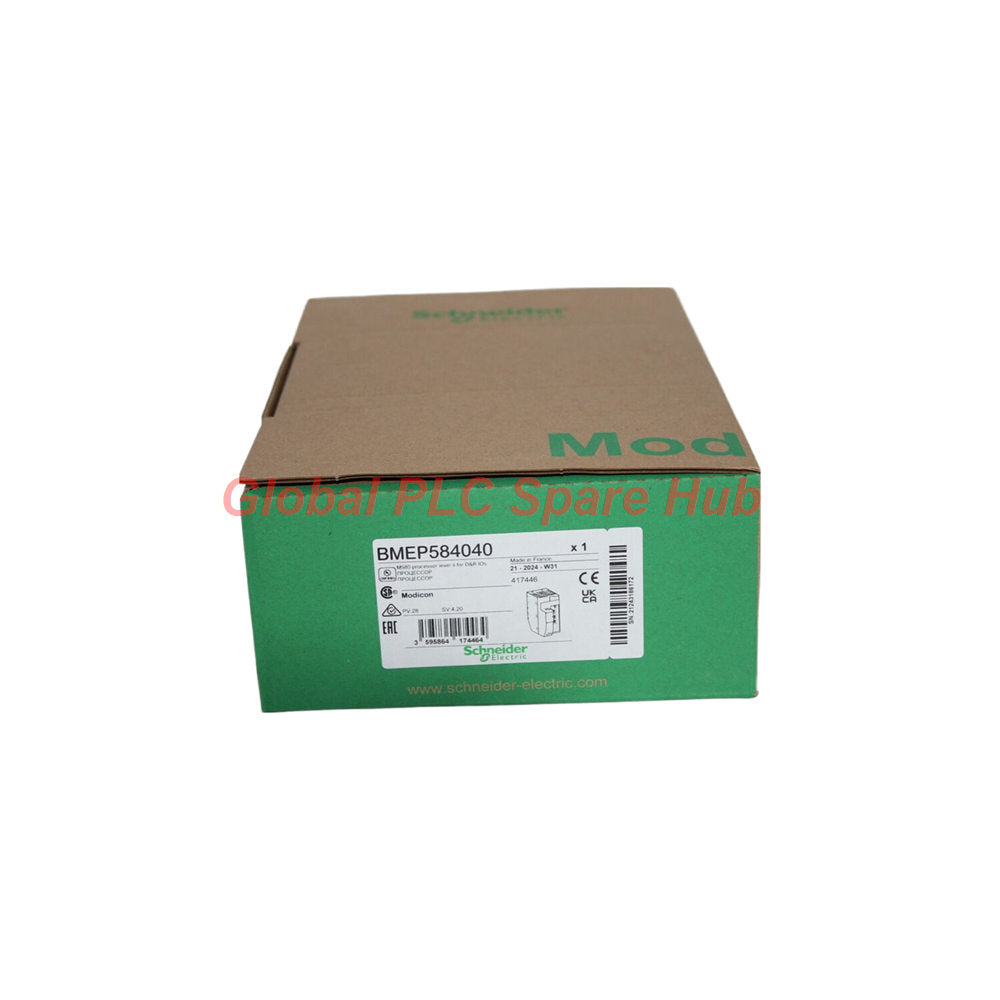

• Factory Packaging: Sealed in original factory anti-static packaging with custom protective padding.

Engineering Selection & Integration Guide

When selecting the BMEP584040 for plant upgrades, verify that your network node count does not exceed 16 RIO drops and 64 Distributed Equipment (DIO) devices. If your application demands higher capacity or CPU redundancy (Hot Standby), evaluate the BMEH584040 processor variant instead. The BMEP584040 provides a seamless migration path for installations modernizing legacy Quantum racks while leveraging modern X80 Ethernet backplanes without replacing field wiring infrastructure.

Global PLC Spare HUB's Insight & Field Experience

During large-scale plant modernizations, commissioning teams often run into network traffic bottlenecks when combining RIO and DIO streams on unmanaged switches. The BMEP584040 resolves this by utilizing separate internal Ethernet MAC layers for service and device network ports. In a recent refinery upgrade, our site engineers achieved sub-10 millisecond Deterministic I/O scan cycles by isolating the RIO drop ring on the dedicated device ports while routing SCADA telemetry through the CPU service port. Additionally, always verify that security port hardening settings match your network firewall rules before locked firmware deployments to prevent accidental service port lockouts.

Frequently Asked Questions (FAQ)

What is the maximum program memory available on the BMEP584040 module?

This processor features 16 MB of integrated application RAM alongside 2048 kB data RAM and 4 GB expandable flash storage.

Can this processor manage both X80 and Quantum remote drops simultaneously?

Yes, it supports up to 16 remote I/O drops across both Ethernet X80 and legacy Quantum I/O rack architectures.

What cybersecurity protocols are embedded into the processor hardware?

The unit features Achilles certification, IPSec, Syslog support, TLS, embedded firewall protection, and port hardening features.

Field Experience: What causes the ETH NS LED to flash red after connecting a new RIO drop?

A flashing red ETH NS LED typically indicates an IP address conflict or an unconfigured drop device on the Ethernet RIO ring.

Field Experience: How do I recover from a BACKUP LED fault during a project download?

Format or reseat the SD memory card, verify physical write-protection switches, and retry the project transfer via the dedicated USB mini-B port.
