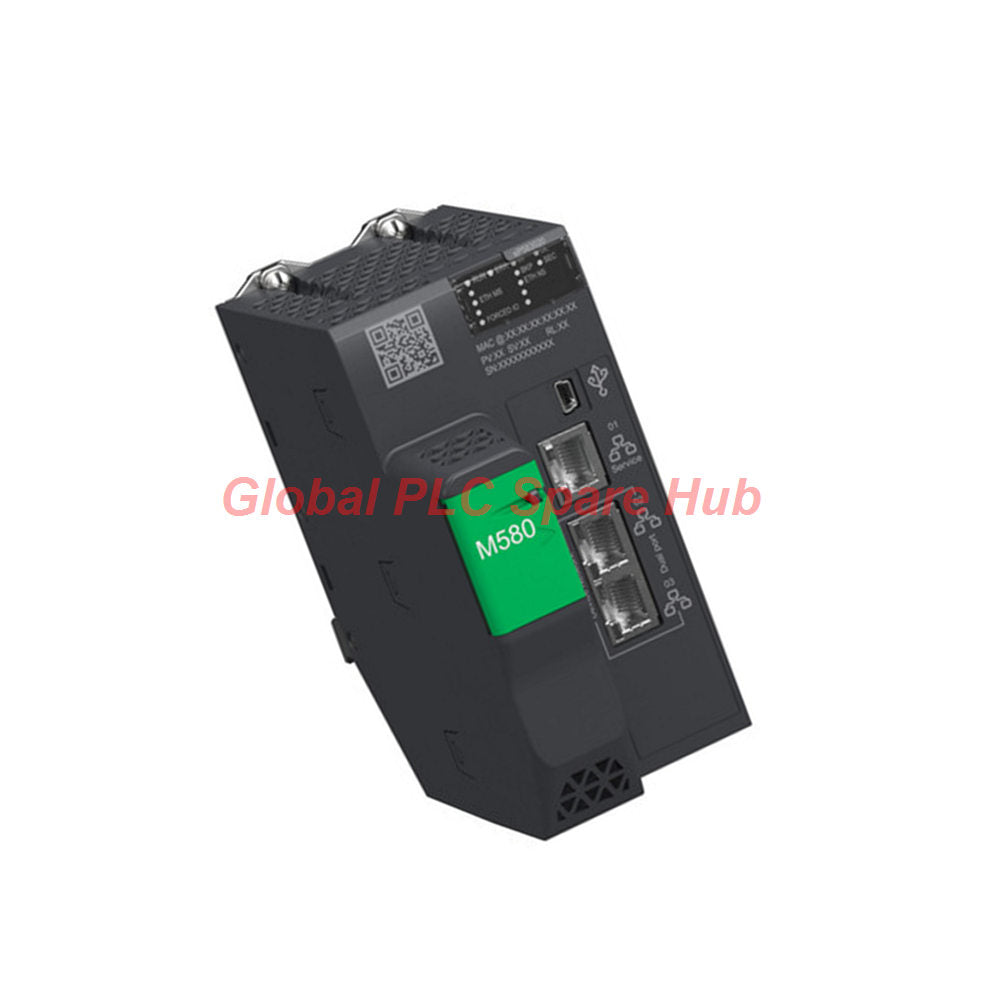

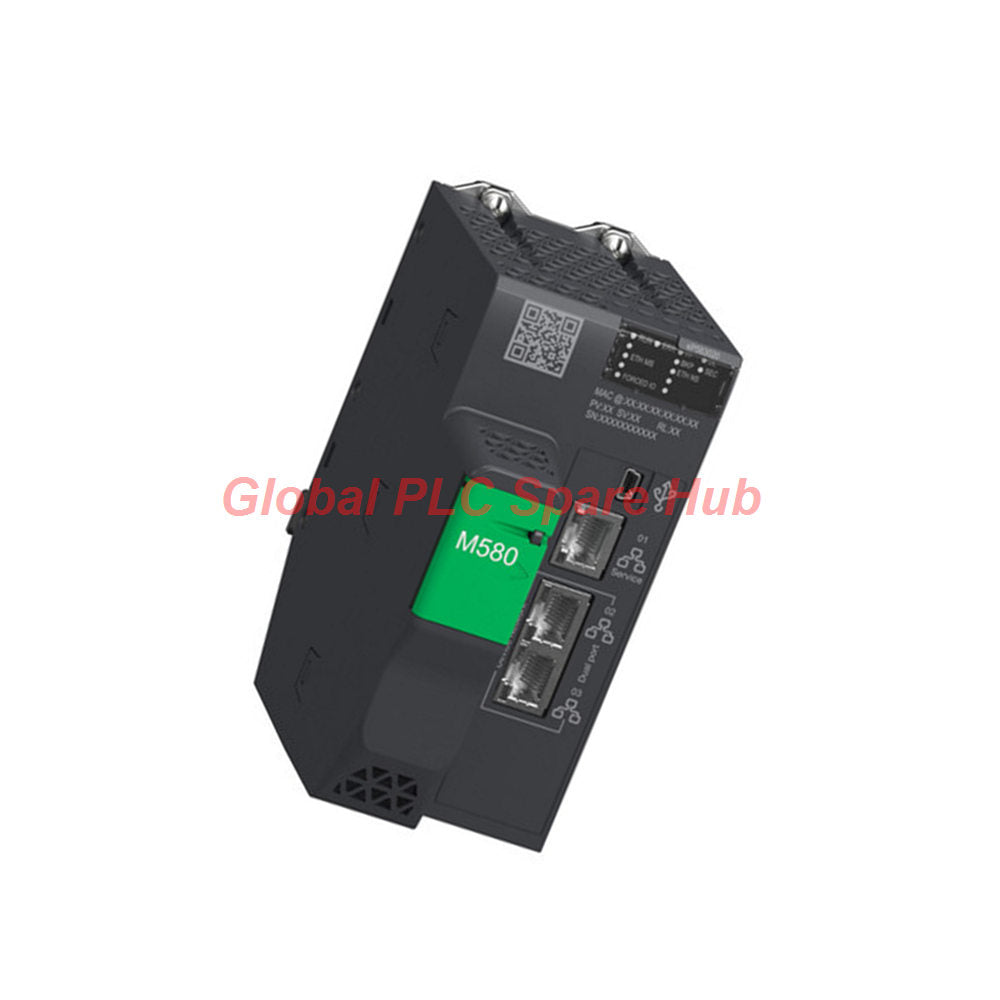

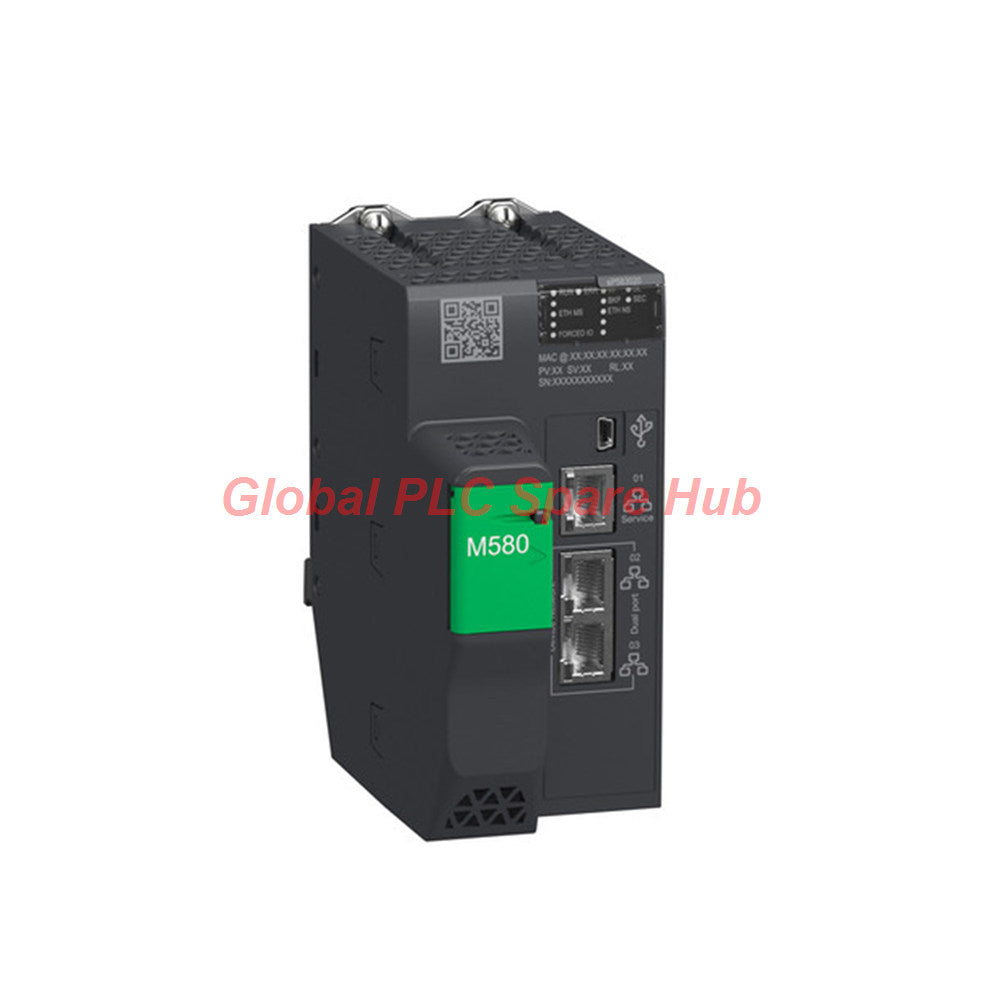

BMEP583020 Schneider Modicon M580 Processor Module 12MB

High-Performance Industrial Intelligence with BMEP583020

The BMEP583020 is a high-performance standalone processor from the Schneider Electric Modicon M580 platform.

It combines deterministic control, cybersecurity, large memory capacity, and high-density I/O support for demanding automation systems.

Designed for modern Industry 4.0 architectures, this processor delivers reliable performance for continuous process and discrete manufacturing applications.

Core Engineering Advantages

Engineering Capability	Customer Value
12 MB Program Memory	Supports large automation projects with complex logic.
Integrated Ethernet Architecture	Simplifies controller and network integration.
Built-in Cybersecurity	Improves protection against industrial cyber threats.
Large Local I/O Capacity	Supports high-density automation systems.
Fast Instruction Processing	Reduces control cycle execution time.
Expandable Storage	Provides additional application and data capacity.

Technical Specifications

Brand	Schneider Electric
Model	BMEP583020
Series	Modicon M580
Module Type	Standalone Processor Module
Program Memory	12 MB Integrated RAM
Data Memory	1024 KB
System Memory	10 KB
Expandable Storage	4 GB Flash Data Storage
Instruction Performance	40 Kinst/ms Boolean; 30 Kinst/ms Mixed Logic
Maximum Local Racks	8
Maximum Digital I/O	3072 Points
Maximum Analog I/O	768 Channels
Distributed Devices	128
Integrated Ports	1 Service Ethernet, 2 Ethernet Device Ports, USB Mini-B
Supported Technologies	Motion, HART, SSI, Serial, Counter, Process Control, Accurate Time Stamping
Cybersecurity	Achilles Certified, IPSec, HTTPS, Embedded Firewall, TLS, Syslog, Audit Trail
Current Consumption	295 mA @ 24 VDC
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% Non-condensing
Protection Rating	IP20
MTBF	775,000 Hours
Operating Altitude	0–2000 m (5000 m with derating)
Weight	0.849 kg

Certification & Compliance

• CE
• UL
• CSA
• RCM
• EAC
• Merchant Navy Approval
• IEC 61131-2
• IEC 61010-2-201
• IEC 61850-3
• EN/IEC 61000-6-5

Recommended Industrial Applications

• Distributed control systems (DCS)
• Oil and gas facilities
• Power generation plants
• Chemical processing
• Water and wastewater treatment
• Mining automation
• Steel manufacturing
• Food and beverage production
• High-speed packaging lines
• Smart manufacturing systems

Diagnostic & Maintenance Capabilities

Feature	Engineering Benefit
RUN LED	Confirms processor execution status.
ERR LED	Identifies processor or system faults.
I/O LED	Detects field module abnormalities.
DL LED	Indicates application download progress.
BACKUP LED	Monitors flash memory status.
Ethernet MS / NS LEDs	Displays network communication health.

Global PLC Spare HUB's Insight

Large process facilities often experience communication bottlenecks before CPU resources become fully utilized.

During a refinery modernization project, engineers initially focused on increasing processor performance. Network diagnostics later revealed excessive unmanaged Ethernet traffic between distributed stations. After optimizing the Ethernet topology and enabling secure segmented communication, controller scan stability improved significantly without hardware replacement.

Our engineering recommendation is to evaluate network architecture, application structure, and I/O distribution together rather than considering processor specifications alone.

Installation Recommendations

• Install the processor inside a ventilated control cabinet.
• Separate Ethernet cables from high-voltage wiring.
• Implement industrial grounding according to IEC standards.
• Enable cybersecurity functions before commissioning.
• Maintain spare processing capacity for future expansion.

Compatibility Overview

• Compatible with Schneider Electric Modicon M580 platforms.
• Supports Ethernet-based distributed automation architectures.
• Works with local and distributed I/O systems.
• Supports advanced process control applications.
• Suitable for Industry 4.0 digital manufacturing projects.

Packaging, Shipping & Warranty

Package Includes	1 × BMEP583020 Processor Module
Packaging	Industrial anti-static packaging with reinforced protective materials.
Warranty	12-Month Warranty
Shipping Partners	FedEx, UPS, DHL
Dispatch Time	Orders normally ship within 24–48 hours.

Professional FAQ

How should engineers estimate processor capacity during project planning?

Calculate total I/O count, communication load, event tasks, and future expansion before selecting processor performance.

Why is built-in cybersecurity valuable in industrial PLC systems?

Integrated security features reduce unauthorized access risks and strengthen compliance with modern industrial cybersecurity standards.

What engineering practice improves Ethernet communication reliability?

Use managed industrial switches, segmented VLANs, synchronized network clocks, and redundant communication paths whenever possible.

How can technicians identify communication issues during commissioning?

Review Ethernet status LEDs, controller diagnostics, network logs, and switch statistics before replacing hardware components.

What factors should buyers evaluate before selecting the BMEP583020 processor?

Consider future expansion, required communication modules, cybersecurity requirements, application complexity, distributed architecture, and expected system lifecycle.

Why Choose BMEP583020?

• Designed for large-scale industrial automation projects.
• Supports high-density distributed control architectures.
• Provides enterprise-level cybersecurity functions.
• Offers excellent processing performance with scalable memory.
• Delivers dependable long-term operation for mission-critical applications.
