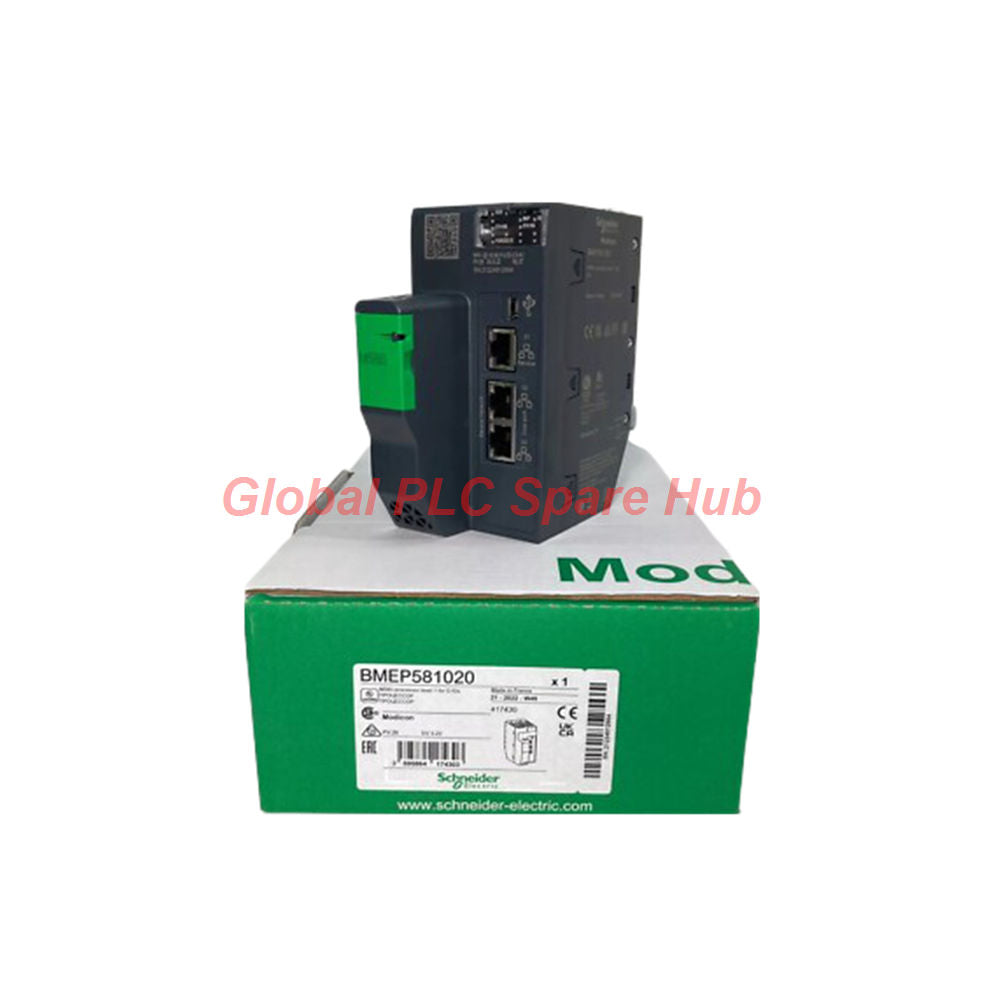

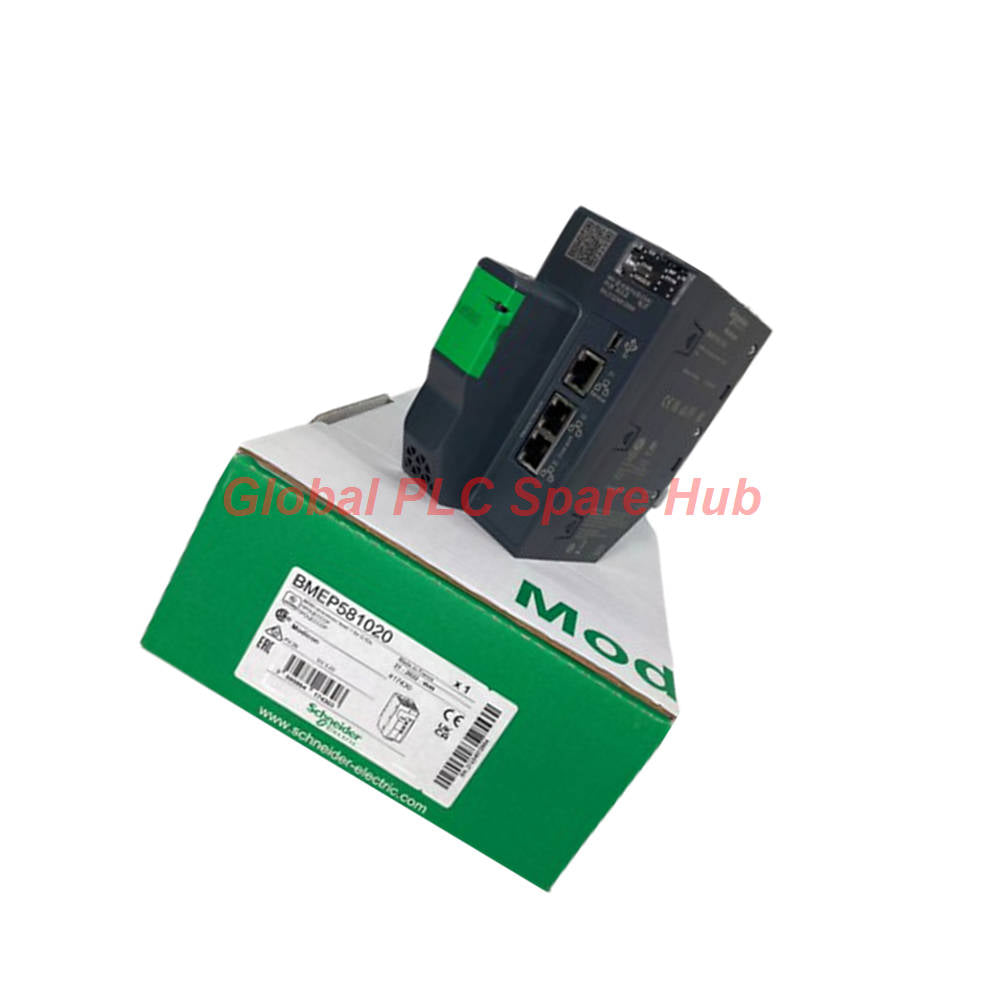

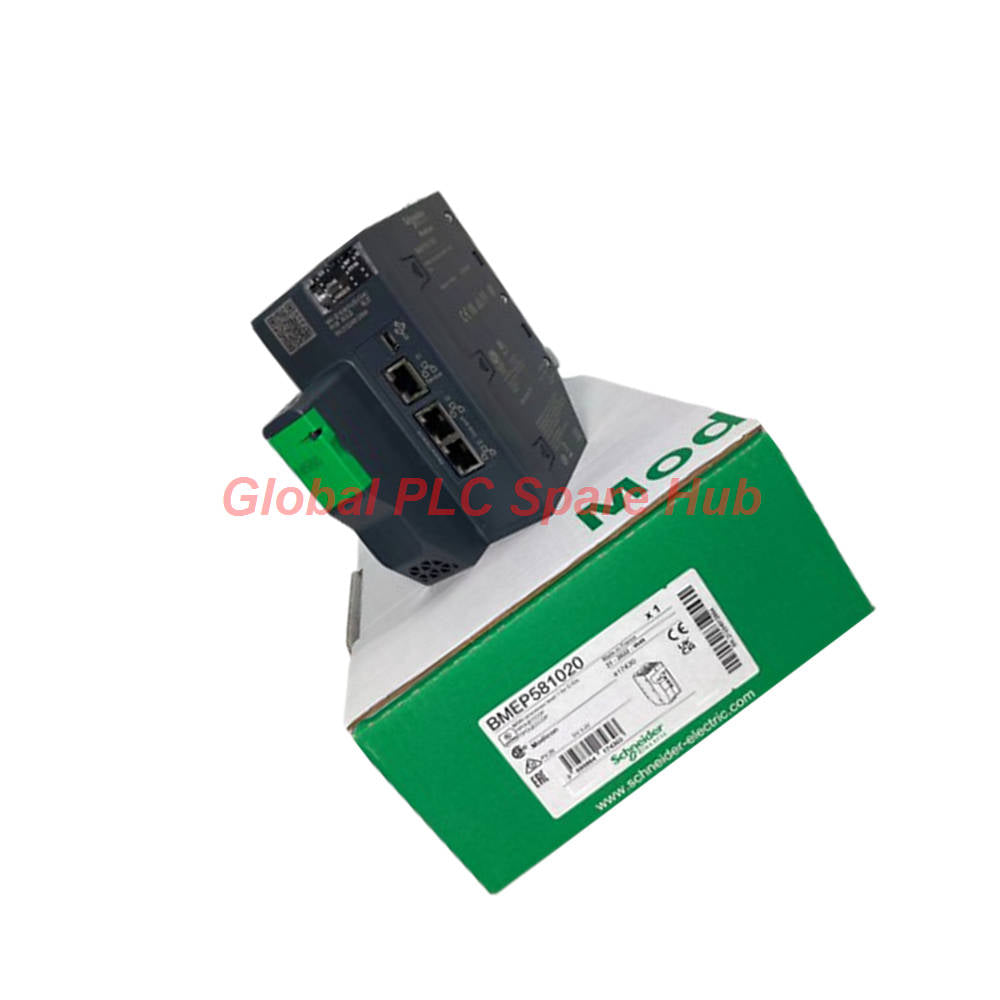

BMEP581020 Schneider Modicon M580 Processor Module
Manufacturer: Schneider Electric
Product No.: BMEP581020
Condition： In stock
Product Type: Processor Module
Product Origin: DE
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Advanced Ethernet PLC Processing Platform for Modicon M580 Automation
The BMEP581020 is a Schneider Electric Modicon M580 Processor Module designed for high-performance industrial control applications.
This standalone processor provides secure Ethernet communication, large I/O capacity, and deterministic PLC execution.
It integrates 4MB application memory and supports complex automation architectures with distributed field devices.
The processor manages local racks, Ethernet equipment, motion applications, and advanced process control functions.
Its cybersecurity features support modern industrial networks requiring secure data exchange.
Product Overview
| Category | Specification |
|---|---|
| Brand | Schneider Electric |
| Automation Platform | Modicon M580 |
| Model | BMEP581020 |
| Product Type | Standalone Processor Module |
| Processor Function | Ethernet PLC CPU Controller |
| Memory Class | 4MB Application Processor |
Core Technical Specifications
| Parameter | Technical Data |
|---|---|
| Product Range | Modicon M580 |
| Processor Type | Standalone CPU Module |
| Local Rack Quantity | 4 Racks |
| Local Digital I/O Capacity | 1024 Channels |
| Local Analog I/O Capacity | 256 Channels |
| Application-Specific Channels | 36 Local Rack Channels |
| Distributed Equipment Support | 64 Ethernet Devices |
| Ethernet Service Port | 1 Ethernet TCP/IP Service Port |
| Ethernet Device Network | 2 Ethernet TCP/IP Ports |
| USB Interface | Mini-B USB |
| Program Memory | 4MB Integrated RAM |
| Data Memory | 384kB Integrated RAM |
| Flash Storage | 4GB Expandable Data Storage |
| System Memory | 10kB |
| Processing Speed | Up to 40K instructions/ms |
| Power Consumption | 270mA at 24VDC |
| MTBF | 775000 Hours |
| Weight | 0.849kg |
Application and Control Capability
- Motion control for synchronized machine operations.
- High-speed counter functions for industrial measurement.
- HART communication for intelligent field devices.
- SSI encoder integration for precise positioning systems.
- Serial communication for legacy equipment connection.
- Process control loops for continuous automation.
- Programmable control channels for customized applications.
Memory and Task Management Architecture
| Function | Capacity |
|---|---|
| Fast Periodic Task | 1 |
| Auxiliary Tasks | 2 |
| Master Cyclic Task | 1 |
| Event Tasks | 64 |
Cybersecurity Protection Features
The BMEP581020 includes industrial cybersecurity functions for connected automation environments.
- Achilles certified protection.
- Denial-of-service prevention.
- IPSec secure communication.
- SNMP logging support.
- Syslog protocol integration.
- Transport Layer Security.
- Audit trail recording.
- Embedded firewall.
- Firmware signature verification.
- Password protection.
- HTTPS secure access.
- Security event logging.
Suitable Equipment and Industrial Systems
- Large-scale manufacturing production lines
- Process automation systems
- Energy management platforms
- Water treatment facilities
- Oil and gas automation systems
- Transportation infrastructure
- Machine coordination systems
- Distributed Ethernet control networks
Typical Application Scenarios
| Industry | Deployment Example |
|---|---|
| Automotive Manufacturing | Multi-station production control |
| Energy | Secure process monitoring |
| Chemical Industry | Continuous process regulation |
| Water Infrastructure | Remote equipment management |
| Industrial Automation | Ethernet-based distributed control |
Global PLC Spare HUB Review
The BMEP581020 provides a strong balance between processing capability, Ethernet connectivity, and system scalability.
Field engineers often select this processor for M580 projects requiring large I/O networks and secure communication.
A typical installation example includes a manufacturing line using multiple remote Ethernet devices while maintaining centralized PLC control.
The large task capacity helps manage complex automation programs with multiple execution priorities.
During commissioning, engineers usually verify Ethernet status LEDs, application memory, and distributed device communication.
Global PLC Spare HUB's Insight
Modern industrial systems require both performance and cybersecurity.
The M580 architecture supports digital transformation projects by combining deterministic control with secure networking.
For retrofit applications, engineers can migrate advanced automation functions while keeping existing field devices.
Diagnostic and Maintenance Capability
- RUN status monitoring through LED indicators.
- Processor fault detection through ERR indicator.
- I/O module fault indication.
- Ethernet communication status monitoring.
- Memory backup fault detection.
- Download progress indication.
- Security event logging.
- Network diagnostic support.
Environmental Performance
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% Without Condensation |
| Operating Altitude | Up to 2000m, higher altitude with derating |
| Protection Degree | IP20 |
| Vibration Resistance | 3gn |
| Shock Resistance | 30gn |
Certifications and Standards
- CE Certification
- UL Certification
- CSA Certification
- RCM Certification
- EAC Certification
- IEC 61131-2 Compliance
- IEC 61010-2-201 Compliance
- IACS E10 Compliance
- Hazardous Location Class I Division 2
Package Contents
- BMEP581020 Modicon M580 Processor Module
- Industrial protective packaging
- Product identification label
- Quality inspection before shipment
Shipping & Warranty
| Service | Details |
|---|---|
| Shipping Method | FedEx / UPS / DHL |
| Dispatch Time | 24-48 Hours |
| Packaging | Anti-static Industrial Packaging |
| Warranty | 12 Months |
| Technical Support | Engineering Assistance Available |
Professional FAQ
Q1. Why choose BMEP581020 instead of a smaller PLC processor?
This processor supports larger I/O capacity, Ethernet networks, and complex application structures.
It fits projects requiring future expansion and advanced communication.
Q2. How does cybersecurity improve system reliability?
Security functions reduce unauthorized access risks and protect industrial communication.
This is important for connected production environments.
Q3. What should engineers evaluate before upgrading to M580?
Review rack compatibility, Ethernet architecture, application requirements, and field device communication.
A complete migration plan improves project efficiency.
Q4. Which applications benefit from the 64 Ethernet device capacity?
Large factories and process plants with distributed equipment can use this capability effectively.
It simplifies centralized monitoring and control.
Q5. What maintenance practice helps extend processor service life?
Regularly review diagnostics, backup application data, and monitor environmental conditions.
Preventive maintenance reduces unexpected system interruptions.
Engineering Selection Guide
- Select the BMEP581020 for Modicon M580 high-performance PLC applications.
- Choose this processor for large Ethernet automation networks.
- Recommended for secure industrial communication environments.
- Suitable for complex process and motion control systems.
- Ideal for scalable automation modernization projects.
The Schneider Electric BMEP581020 Modicon M580 Processor Module delivers secure Ethernet control, powerful processing, and scalable architecture for advanced industrial automation systems.
