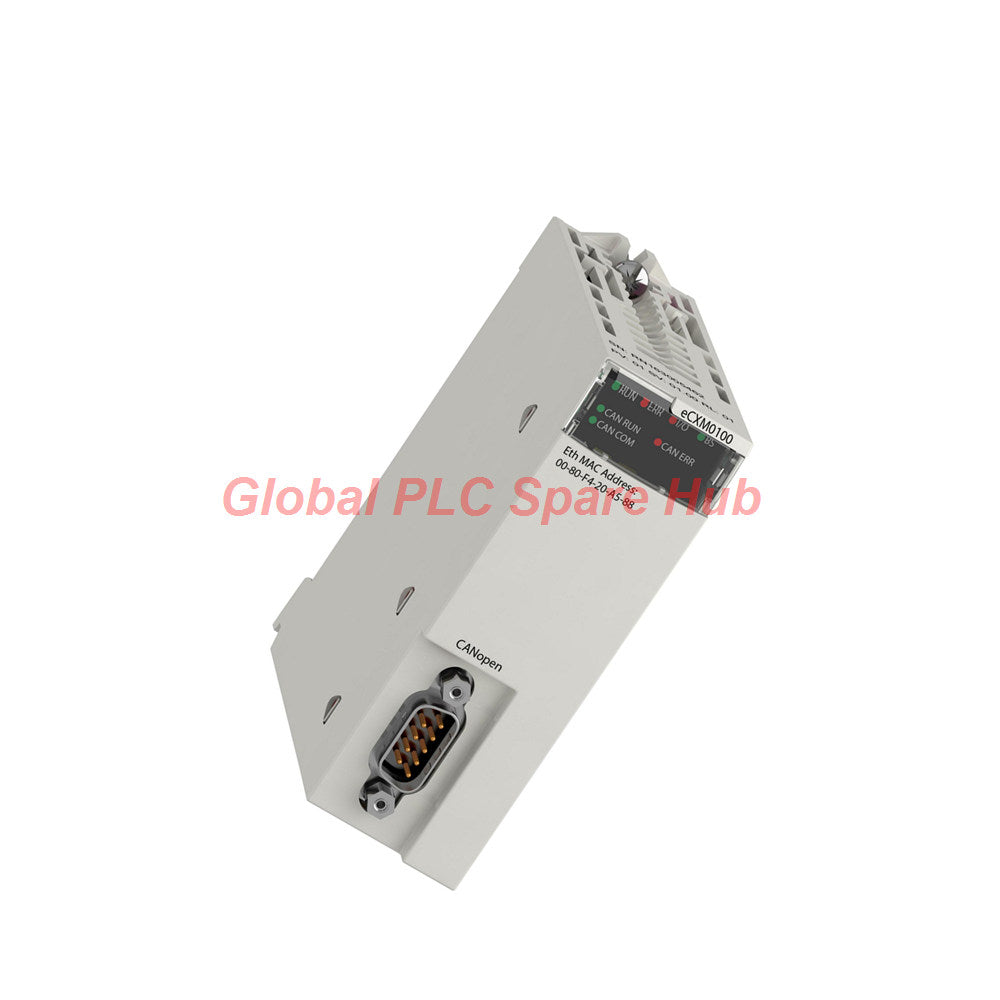

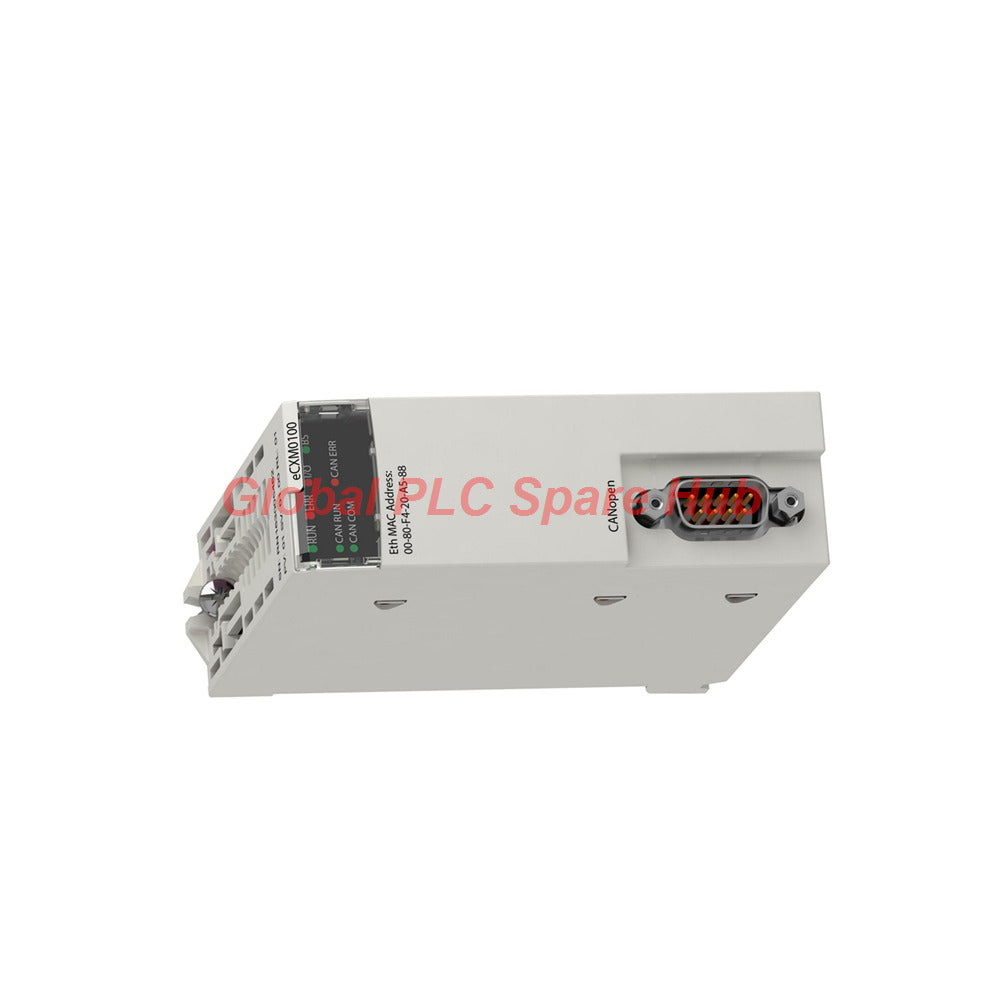

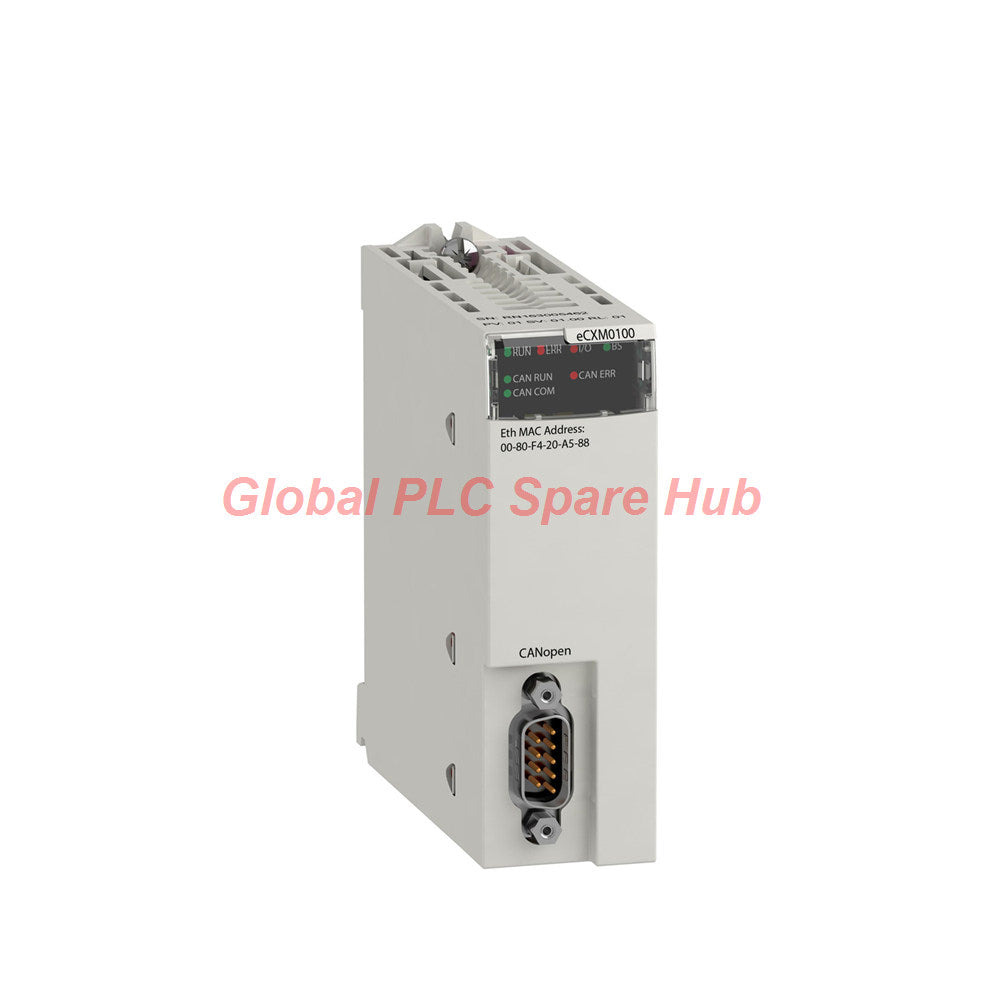

BMECXM0100 Schneider Modicon X80 CANopen Module

Engineering Overview & Global PLC Spare HUB's Insight

Industrial fieldbus integration in high-performance PAC architectures requires deterministic communication modules capable of supporting extensive device networks over flexible topology lengths. The BMECXM0100 CANopen communication module, engineered for the Modicon X80 series, provides robust open industrial fieldbus connectivity designed for seamless interoperability with M580 PLC systems. Utilizing a standard DB9 physical interface and CSMA/CA access control, it handles up to 63 server devices efficiently.

Global PLC Spare HUB's Insight: During complex machine networking and distributed skid retrofits, automation engineers frequently rely on the scalable transmission rates of the BMECXM0100—scaling from 20 kbit/s over extended 2500-meter repeater spans down to high-speed 1 Mbit/s drops—to maintain rock-solid master-slave synchronization.

Technical Performance Specifications

Installation, Cabling & Transmission Guidelines

• Topology Distance Scaling: Match your baud rate to physical run lengths—utilize 20 kbit/s for 2500m repeater networks or 500 kbit/s for 100m unrepeated segments.
• Shielded Media Mandate: Always deploy certified CANopen twisted shielded pairs cable to suppress electrical noise across industrial floors.
• Backplane Insertion Safety: Ensure standard format module installation adheres to system power-down protocols to protect internal 24V DC logic rails.

Target Equipment & Industrial Application Scenarios

• Distributed Packaging Lines: Interfacing multi-axis drives and intelligent sensors along extensive mechanical frames.
• Material Handling Conveyor Networks: Linking remote I/O drops and motor controllers back to centralized M580 processors.
• Water Treatment Facilities: Managing dispersed valve islands and flow instrumentation via open fieldbus architectures.

Advanced Diagnostics & Network Monitoring

• Protocol Compliance Verification: Built-in adherence to CiA DSP 301 V4.02 ensures predictable message handling and error frame management.
• Bus Health Tracking: Real-time monitoring of node guarding and heartbeat messages to instantly detect dropped server devices across the 63-node ceiling.
• Environmental Resilience: Designed to withstand rigorous thermal variations (-45°C to 85°C storage; 0°C to 60°C operating) and non-condensing humidity up to 95%.

Global Logistics, Fulfillment & Warranty

• Expedited Courier Dispatch: Premium international shipping via FedEx, UPS, and DHL.
• Fulfillment Window: Securely packaged (PCE unit format, 180g net weight) and dispatched within 24 to 48 hours.
• Warranty Assurance: Fully backed by a comprehensive 12-month replacement warranty from Global PLC Spare HUB.

Professional Frequently Asked Questions (FAQ)

Q: What is the maximum number of server nodes supported by the BMECXM0100 module?

A: The module supports up to 63 server devices configured within its CANopen network architecture.

Q: How does changing the transmission rate affect the maximum allowable bus length?

A: Transmission distance scales inversely with speed; for example, it supports 2500 meters at 20 kbit/s with a repeater, down to 20 meters at 1 Mbit/s without a repeater.

Q: What physical cabling medium is required for reliable communication?

A: You must use specialized CANopen twisted shielded pairs cable paired with a standard DB9 connector interface.

Q: What is the recommended purchasing guidance when adding this module to an M580 architecture?

A: Verify that your total node count stays within the 63-device limit and calculate your physical cable run to select the proper baud rate and repeater requirements.

Q: How do compliance standards like CiA DSP 301 V4.02 assist system integrators?

A: This compliance ensures standardized communication profiles, simplifying third-party device integration and diagnostic mapping in complex automation programs.
