Bently Nevada 40113-02 3300 XL Probe Connector Protector Kit

Product Overview

The Bently Nevada 40113-02 is a professional-grade Connector Protector Kit. This essential field tool protects coaxial connections on 3300 XL proximity probes and extension cables. It prevents moisture, oil, and dust from degrading weak signals.

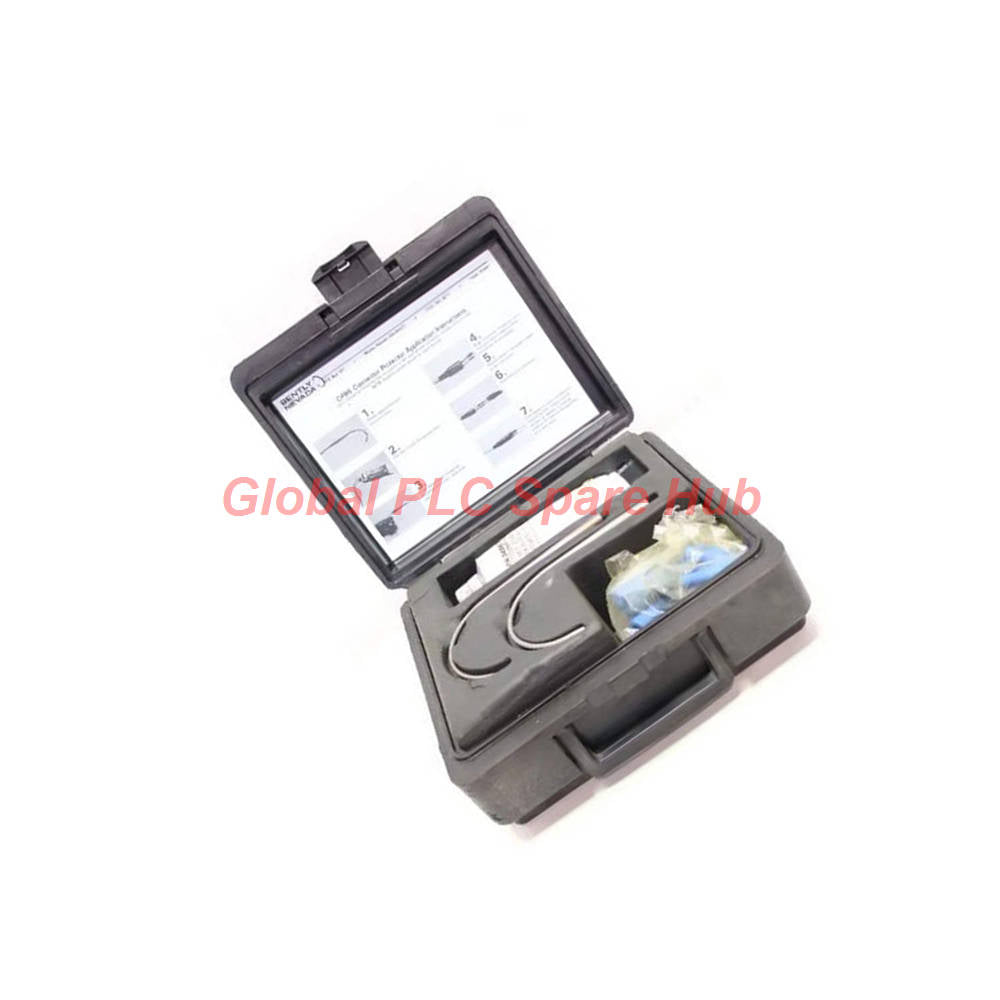

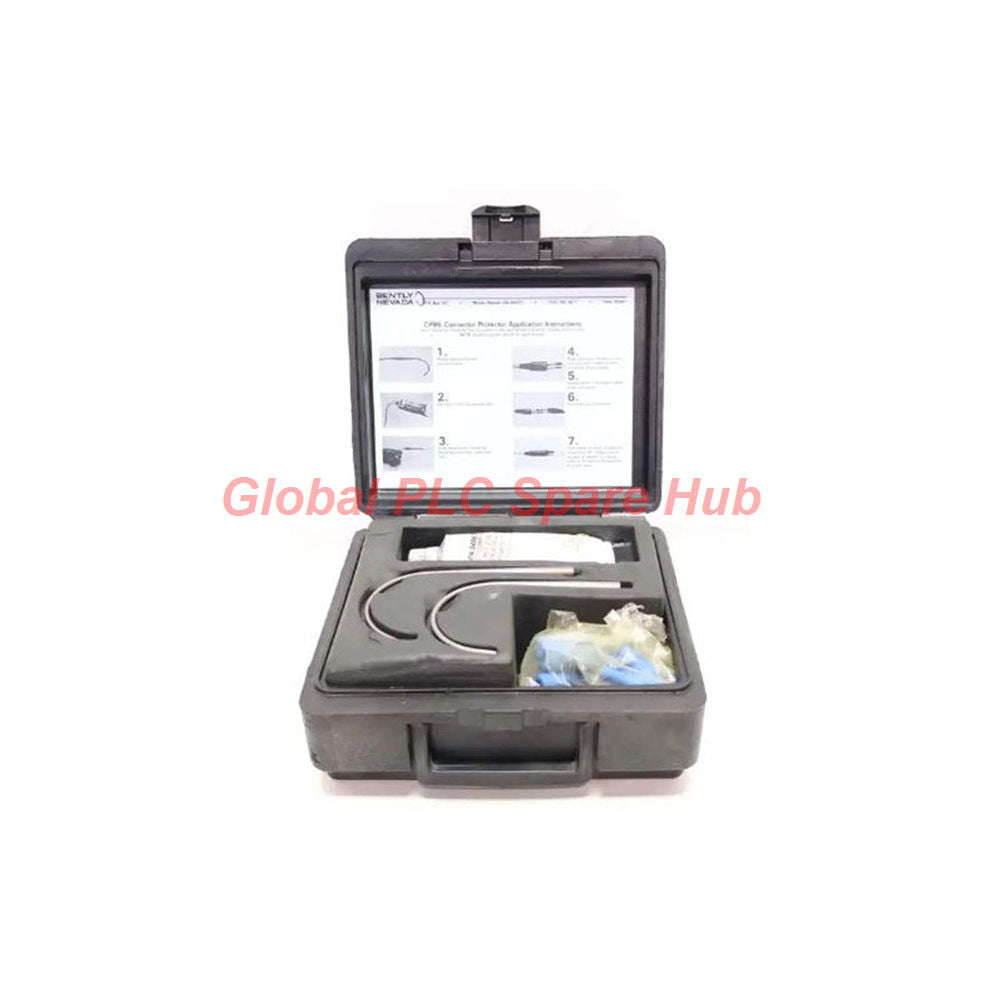

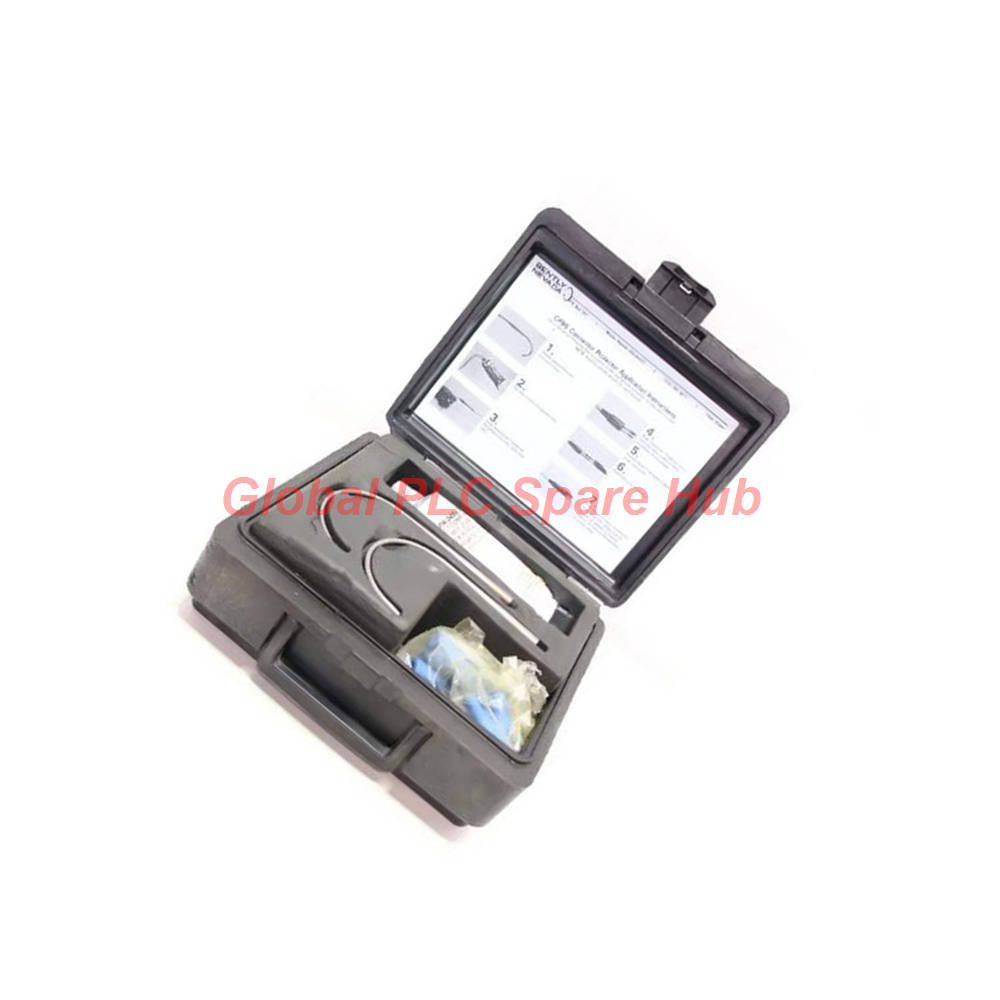

This kit optimizes system reliability in wet or harsh conditions. It provides a complete environmental barrier for proximity transducer systems. The kit contains specialized installation tools and high-quality elastomer protectors.

Technical Specifications

We classify the technical properties below using the MECE (Mutually Exclusive, Collectively Exhaustive) principle:

I. Core Identity & Electrical Performance

• Brand: Bently Nevada
• Model Number: 40113-02
• Product Series: 3300 XL Series
• Measurement Range: Not applicable (passive environmental barrier)
• Frequency Response: Supports systems from DC up to 10 kHz
• Signal Sensitivity Loss: 0% (maintains perfect electrical contact)
• Signal Linearity Distortion: None (does not interfere with eddy current loop)
• System Resolution Impact: Zero (maintains sub-micron sensor accuracy)

II. Environmental & Durability Properties

• Operating Temperature Range: -51 °C to +177 °C (-60 °F to +350 °F)
• Environmental Tolerance: IP66 minimum rating when installed properly
• Chemical Resistance: Resists hydrocarbon fluids, synthetic lubricants, and water
• Electromagnetic Interference (EMI) Protection: Guards the internal shield from grounding out

III. Mechanical & Kit Contents

• Protector Material: High-grade, oil-resistant fluoroelastomer compound
• Installation Tools: Precision-engineered curved metal installation guides
• Compatible Cable Diameters: Fits 54-ohm coaxial cables perfectly

System Compatibility & Equipment Suitability

The 40113-02 kit works seamlessly with standard proximity monitoring equipment:

• Compatible Sensors: Bently Nevada 3300 XL 5mm, 8mm, and 11mm Proximity Probes
• Compatible Cables: 3300 XL Extension Cables with coaxial connectors
• Suitable Machinery: Steam turbines, gas turbines, centrifugal compressors, generators, and large industrial pumps

Installation & Commissioning Guide

We outline the installation procedure below to ensure a perfect environmental seal:

• Clean the male and female miniature coaxial connectors using a dry, lint-free cloth.
• Place the small protector sleeve onto the extension cable using the provided installation tool.
• Apply a thin layer of the supplied silicone grease to the outer surface of the connector.
• Connect the probe and extension cable firmly until they click into place.
• Slide the connector protector over the mated connection using the curved metal tool.
• Verify that the sleeve completely covers both metal connector shoulders.

Testing, Maintenance & Diagnostics

• Inspection Interval: Check the protector condition during every scheduled outage.
• Degradation Signs: Inspect for physical tears, hardening, or severe discoloration.
• Diagnostic Capability: Eliminates intermittent signal loss caused by fluid intrusion.
• Troubleshooting Tip: A sudden jump in gap voltage often points to fluid contamination inside unprotected connectors.

Global PLC Spare HUB's Insight

Our technical team views the Bently Nevada 40113-02 as an essential field safety measure. Coaxial connections are the weakest link in any proximity sensor loop. Moisture or oil ingress shifts the loop impedance. This shift triggers false high-vibration alarms or system trips. Using this kit prevents unplanned machinery downtime. It pays for itself during the very first rainstorm or steam leak.

Shipping, Packaging & Warranty

We provide rapid logistics and robust warranties to keep your plant running smoothly:

• Packaging List: High-durability connector protectors, precision installation guide tools, professional silicone grease packet, and an official instructional datasheet.
• Shipment Handling Time: We ship orders within 24 to 48 hours.
• Courier Services: Express delivery via FedEx, DHL, and UPS.
• Warranty Period: Full 12-month replacement warranty against material defects.

Frequently Asked Questions (FAQ)

Can I reuse the individual connector protectors in the kit?

No. The elastomer sleeves stretch during the initial installation. We recommend new sleeves to ensure an airtight IP66 seal.

Do I need specialized tools to install these protectors?

Yes. The 40113-02 kit includes the exact curved metal tools required for safe installation.

How does this kit improve sensor diagnostics?

It prevents signal noise and false open-circuit faults. This ensures clean vibration data for your machinery diagnostic software.

What is the shelf life of the unused elastomer sleeves?

Store the unused sleeves in a cool, dry place away from direct sunlight. They maintain full elasticity for up to five years.

Buying & Selection Guide

Follow this technical checklist to verify your purchase:

• Confirm that you are using genuine Bently Nevada 3300 XL cables.
• Count your physical connections. Each coaxial link requires one dedicated connector protector sleeve.
• Choose this kit for humid, oily, outdoor, or washdown industrial environments.
• Verify if your maintenance crew already has the installation tools before ordering refills.
