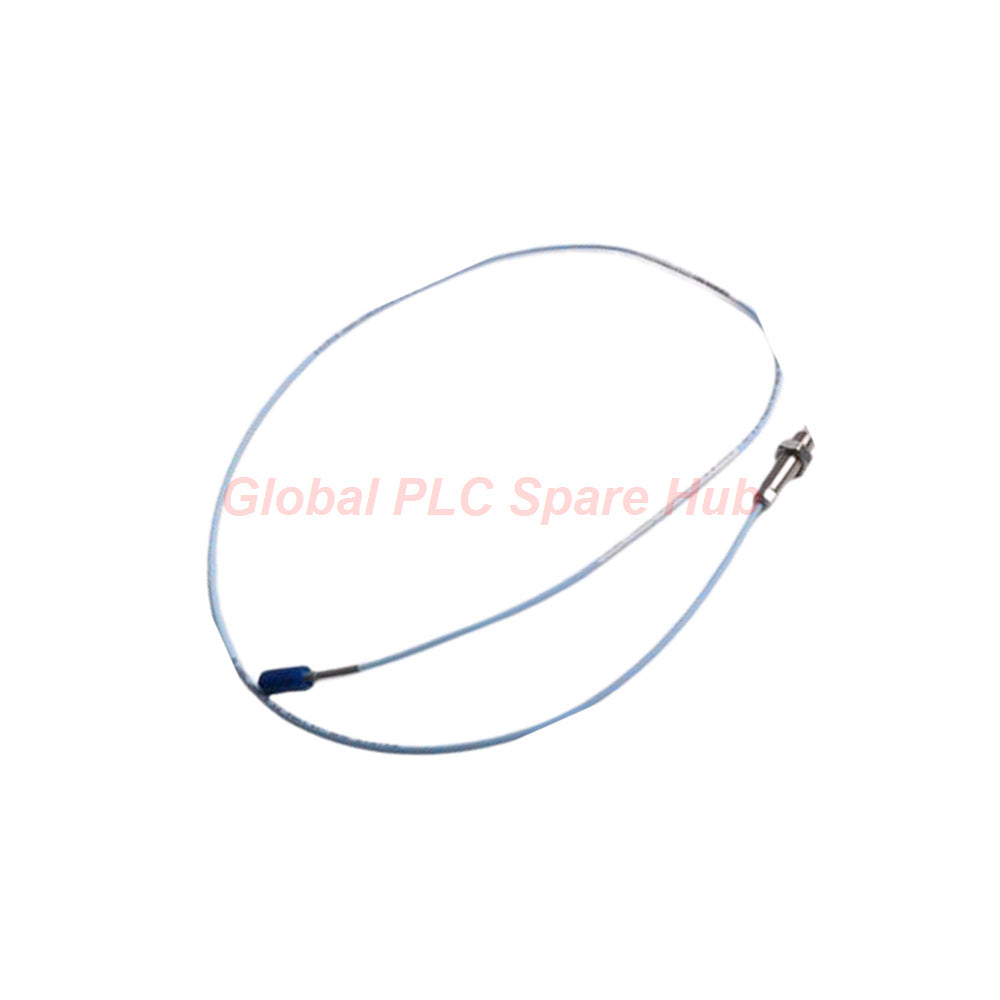

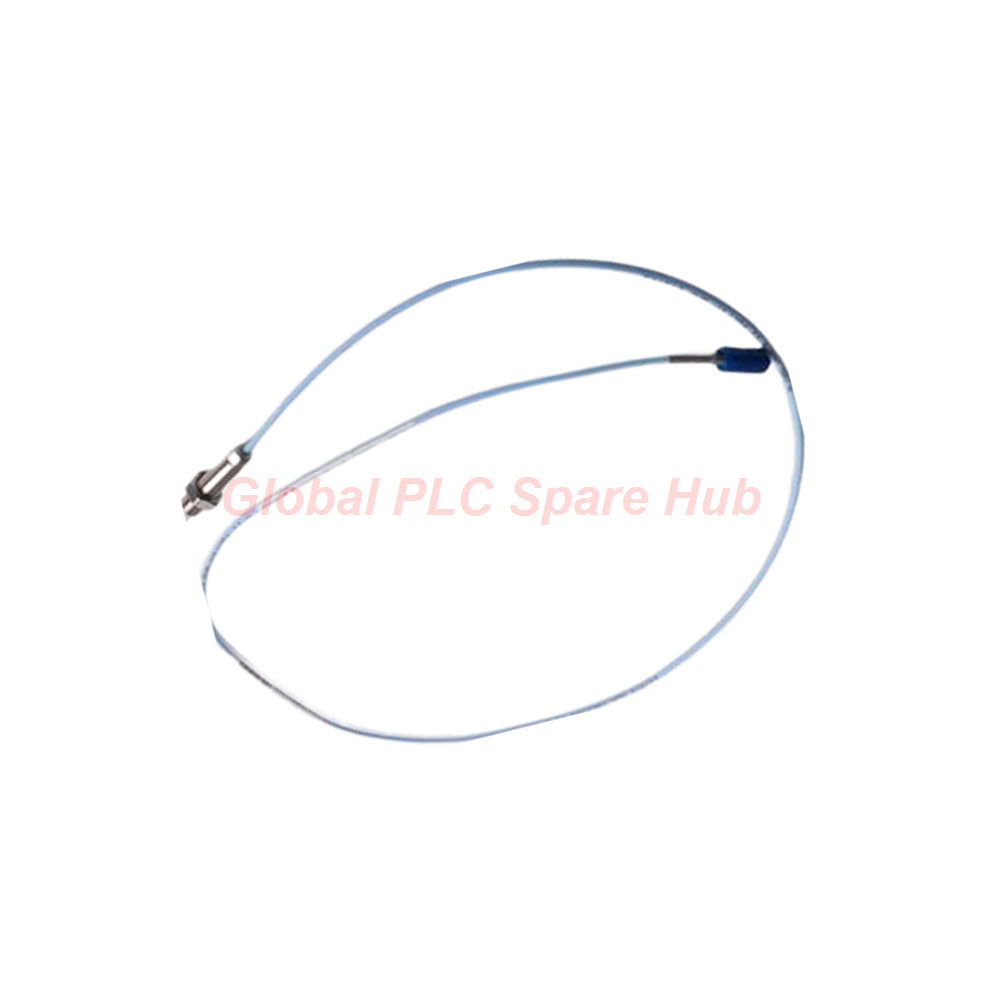

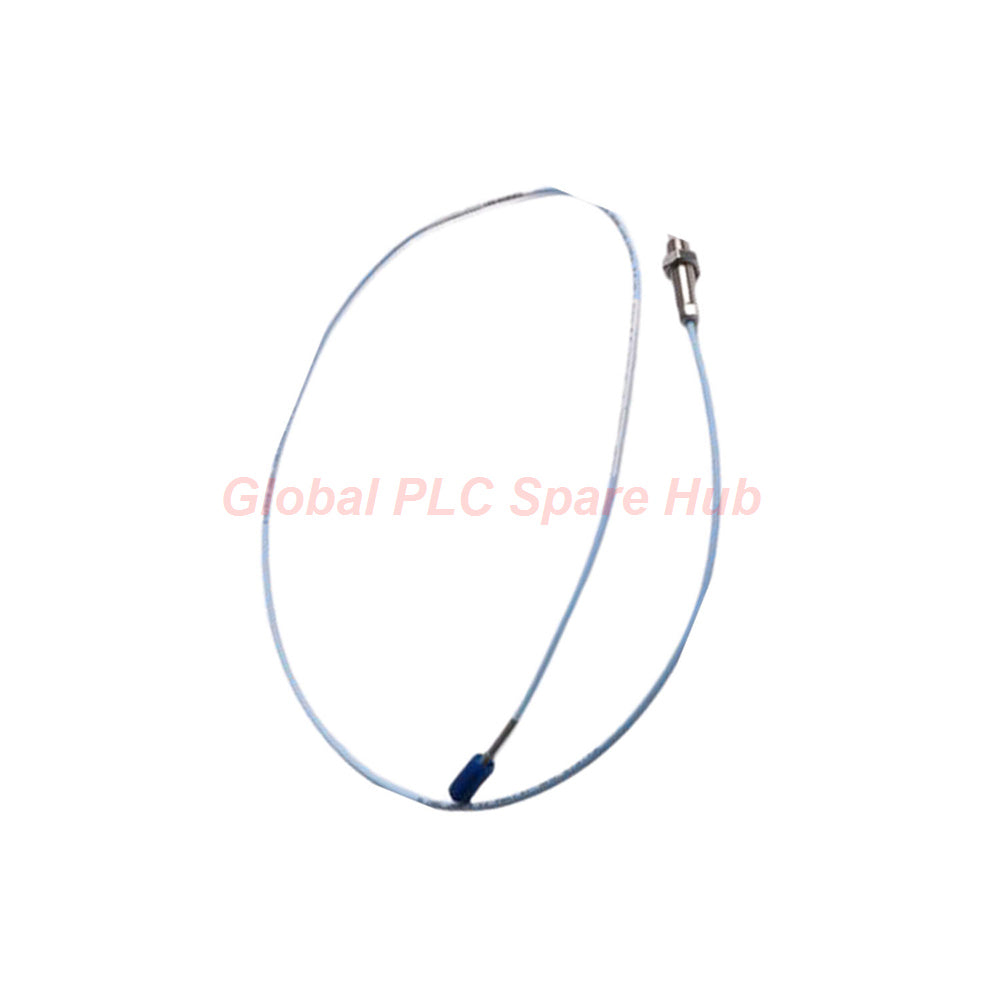

Bently Nevada 330908-12-46-05-02-00 3300 NSv Proximity Probe

Product Introduction

The 330908-12-46-05-02-00 belongs to the advanced 3300 NSv proximity probe series. Engineers design this specialized transducer system for machinery with small target areas, tight mounting spaces, or low-speed measurements. The 330908-12-46-05-02-00 model delivers highly reliable vibration and position data by measuring the distance between the probe tip and the conductive target. Industrial facilities utilize the 330908-12-46-05-02-00 within critical rotating equipment to detect mechanical anomalies before catastrophic failures occur.

Global PLC Spare HUB's Insight: During a recent turbine vibration overhaul in a petrochemical facility, our engineering team deployed the 330908-12-46-05-02-00 on a high-speed compressor shaft with limited radial clearance. Standard probes failed to capture accurate axial runout due to spatial constraints, but the compact tip design of the 330908-12-46-05-02-00 resolved signal distortion instantly. Field technicians noted that maintaining strict thread engagement limits prevented the Viton O-ring seal from degrading under continuous thermal cycles.

Technical Specifications

Installation Guidelines

• Thread the 330908-12-46-05-02-00 probe case carefully into the designated mounting hole using a 3/8-24 UNF thread profile.
• Observe the maximum thread engagement limit of 0.563 in to protect internal pressure seals.
• Apply the recommended probe case torque of 11.3 N•m (100 in•lb) during setup.
• Avoid exceeding the maximum rated torque threshold of 33.9 N•m (300 in•lb) to prevent housing deformation.
• Ensure the FEP insulated probe cable avoids sharp metallic edges and severe mechanical pinch points.
• Protect the probe tip from sustained exposure to ambient temperatures below -34°C (-30°F) prior to startup.

Commissioning and Maintenance Convenience

• Connect the miniature coaxial ClickLoc connector firmly to secure a stable signal path without specialized tooling.
• Verify probe gap voltage using a digital multimeter before starting rotating machinery.
• Inspect the Viton O-ring sealing mechanism periodically during scheduled plant turnarounds.
• Clean accessible connector threads regularly to eliminate moisture and industrial dust accumulation.

Compatibility and System Integration

• Integrate the 330908-12-46-05-02-00 directly with standard Bently Nevada 3300 NSv monitoring systems and extension cables.
• Match system components carefully according to the linear range and power supply requirements.

Certification Information

• Manufactured in the United States under strict quality control standards.
• Conforms to industrial electrical safety and mechanical durability benchmarks.

Package Contents and Warranty

• One unit of the 330908-12-46-05-02-00 probe
• Factory calibration documentation
• Comprehensive 12-month quality warranty covering operational defects

Shipping Logistics

• Available carriers include FedEx, UPS, and DHL.
• Guaranteed dispatch window within 24-48 hours upon order confirmation.

Typical Application Scenarios and Diagnostic Capabilities

• Radial vibration monitoring on small pumps, compressors, and machine tools.
• Axial position measurement in restricted bearing housings.
• Identification of shaft unbalance, mechanical looseness, and rotor rubs.

Selection Guide and Model Comparison

Global PLC Spare HUB's Insight: When engineers select proximity probes for tight spaces, matching cable options and length parameters prevents severe signal attenuation. Below is a direct technical comparison with a related configuration to guide your purchasing decision:

• Target Model: 330908-12-46-05-02-00 features a 0.5-meter cable and a 4.6-inch overall case length suitable for compact machine casing penetrations.
• Alternative Model: For installations requiring a longer cable reach, consider the 330908-12-20-70-02-00, which utilizes a 7.0-meter total length configuration for distant rack connections.

Frequently Asked Questions

Question

What is the primary function of the Viton O-ring on the 330908-12-46-05-02-00 probe?

Answer

The Viton O-ring seals differential pressure between the probe tip and the machine case, preventing media leakage in pressurized environments.

Question

How does cable length affect the performance of the 330908-12-46-05-02-00 system?

Answer

The 0.5-meter integral cable length minimizes electrical resistance and signal loss, ensuring high-frequency vibration accuracy before connecting to extension cables.

Question

What preventive steps protect the 330908-12-46-05-02-00 connector during installation?

Answer

Keep the ClickLoc connector dry and clean, and avoid twisting the coaxial cable bundle during physical tightening.

Question

Can the 330908-12-46-05-02-00 operate in high-temperature environments?

Answer

Yes, the probe withstands continuous operating temperatures up to +177°C (+351°F) safely.
