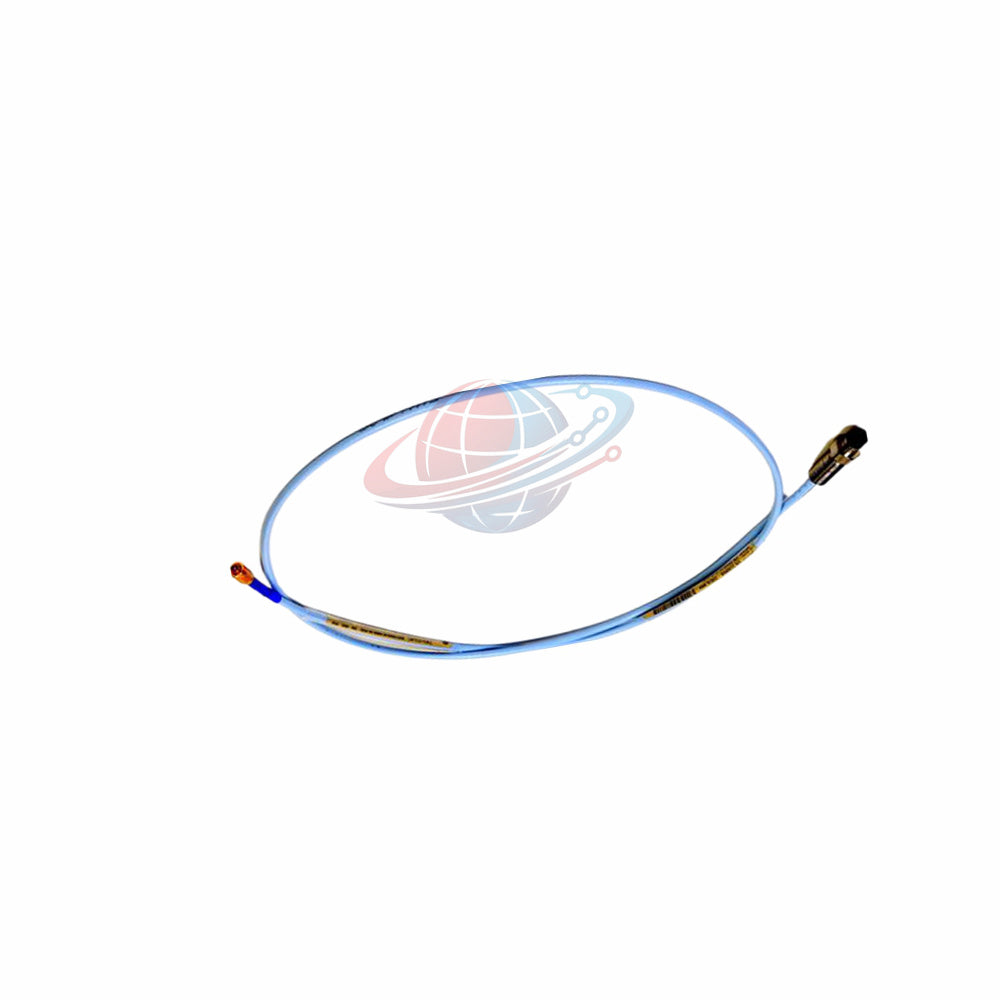

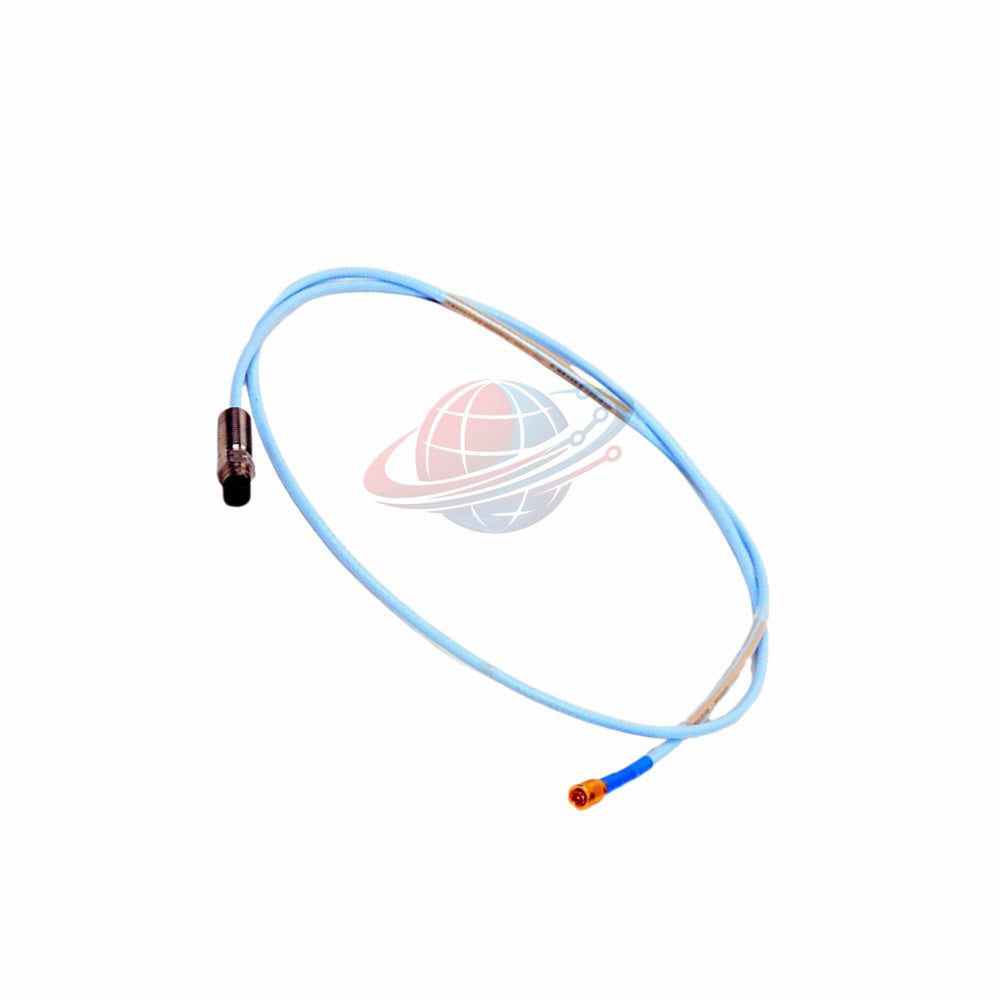

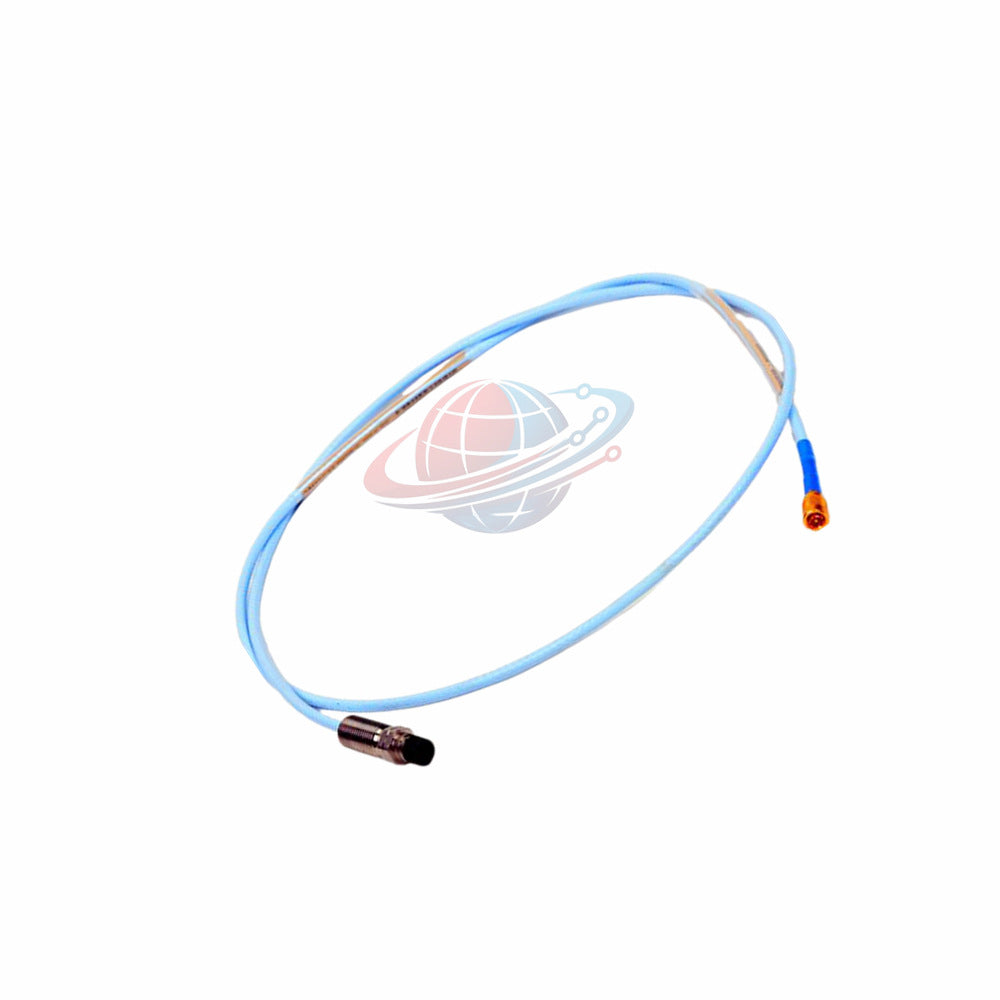

Bently Nevada 330106-05-30-30-02-00 3300 XL 8mm Reverse Mount Probe

Precision Sensing: The 330106-05-30-30-02-00 Proximity System

The 330106-05-30-30-02-00 is an industrial-grade 3300 XL 8 mm Reverse Mount Probe manufactured by Bently Nevada. Engineered for uncompromising reliability in harsh rotating machinery environments, this probe provides precise non-contact displacement measurement, essential for monitoring shaft vibration, position, and speed in critical turbomachinery.

Configuration Breakdown: 330106-05-30-30-02-00

• Base Model: 330106 (3300 XL 8 mm Reverse Mount Probe)
• Total Probe Length: 30 (3.0 meters)
• Connector Type: 02 (Miniature ClickLoc™ coaxial connector)
• Agency Approval: 00 (Not required)
• Thread Pitch: M10 x 1 (15 mm engagement)

Global PLC Spare HUB's Technical Insight

Our engineers value the 330106-05-30-30-02-00 for its stable Average Scale Factor (ASF) even in high-humidity conditions (tested to 93% humidity per IEC standards). Its PPS tip and stainless steel case provide excellent chemical resistance for oil-lubricated bearing housings. This probe is highly recommended for predictive maintenance systems on steam turbines, centrifugal compressors, and large-scale industrial fans.

Technical Comparison & Selection Guide

Selecting the correct system length is critical for cable management and signal integrity. Please compare your requirements with our alternative model below:

• 330106-05-30-05-02-BR: Choose this variant if your application requires specific agency-rated shielding configurations or a different total system reach.

Technical Advice: When replacing, ensure your extension cable connector matches the ClickLoc™ interface of the probe to prevent impedance-related signal attenuation at the junction point.

Logistics and Quality Assurance

• Quality Guarantee: Full 12-month warranty on all Bently Nevada inventory.
• Global Shipping: Priority door-to-door delivery via FedEx, UPS, or DHL.
• Dispatch Speed: Rapid processing ensures your spare parts ship within 24-48 hours.

Expert FAQ & Troubleshooting

Q: What is the risk of exposing the probe tip to sub-zero temperatures?
A: Exposing the unit to temperatures below –34°C (-30°F) may compromise the Viton® O-ring pressure seal and result in premature mechanical failure.

Q: Can this probe be used in high-pressure oil environments?
A: Yes, the probe is designed to seal differential pressure between the tip and case; however, units are not factory pressure-tested. Contact our support team if you require certified pressure testing.

Q: How do I verify if the probe is functioning correctly during operation?
A: Monitor the gap voltage output via your Bently Nevada monitoring system; a stable DC bias confirming the probe's nominal resistance (8.17 Ω ± 0.50 Ω) validates signal integrity.

Q: Is the total probe length inclusive of the extension cable?
A: No, the "Total Length" (3.0m) refers specifically to the probe itself. Always verify your total loop length includes the extension cable and proximity driver requirements.

Q: Selection Tip: Why choose the 3.0-meter option?
A: The 3.0m length is the industrial standard for most turbine housings, providing the optimal balance between cable routing flexibility and signal-to-noise ratio performance.
