Probe Architecture and Core Overview

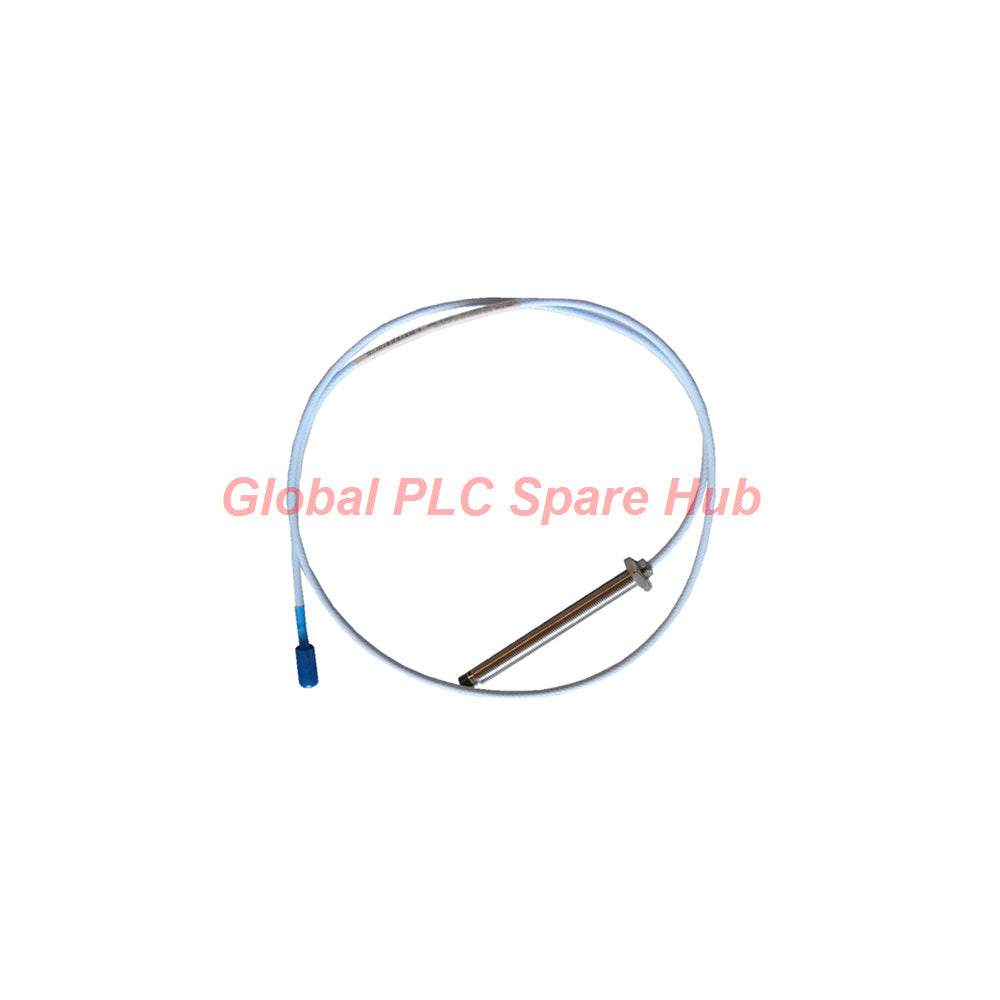

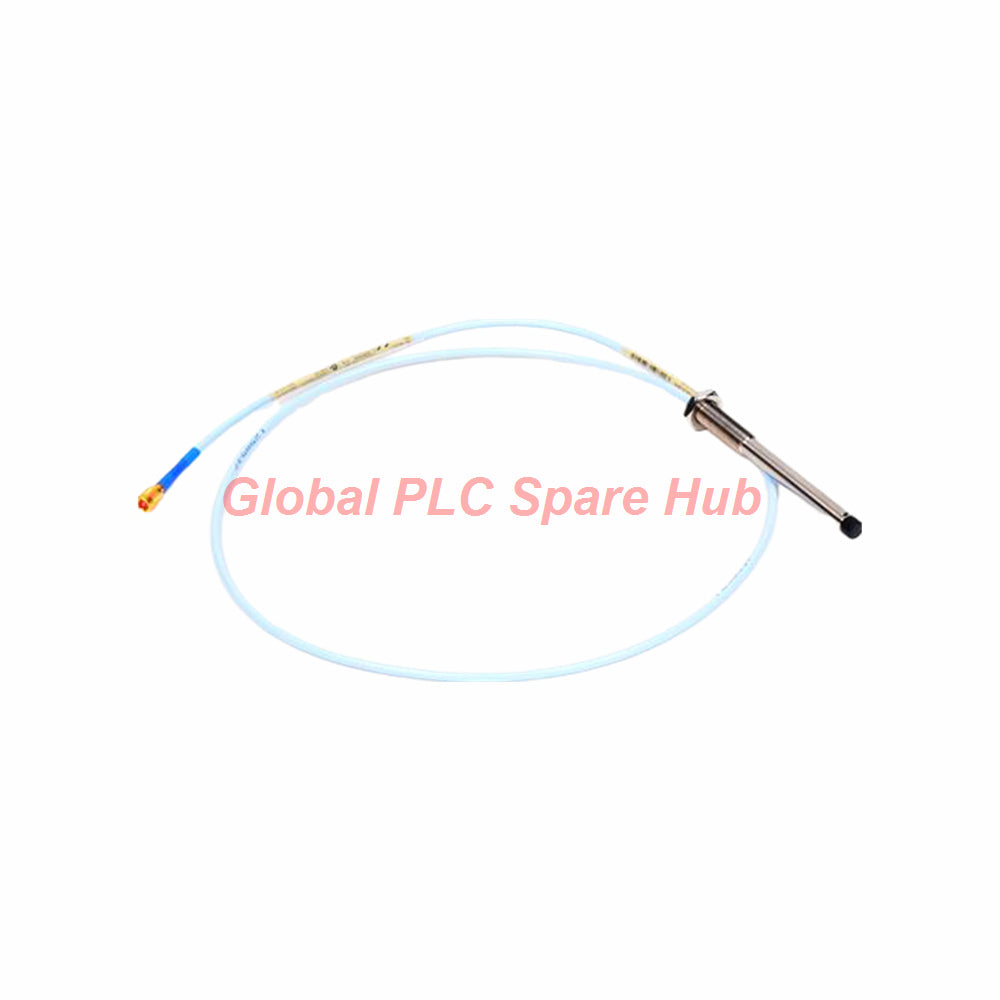

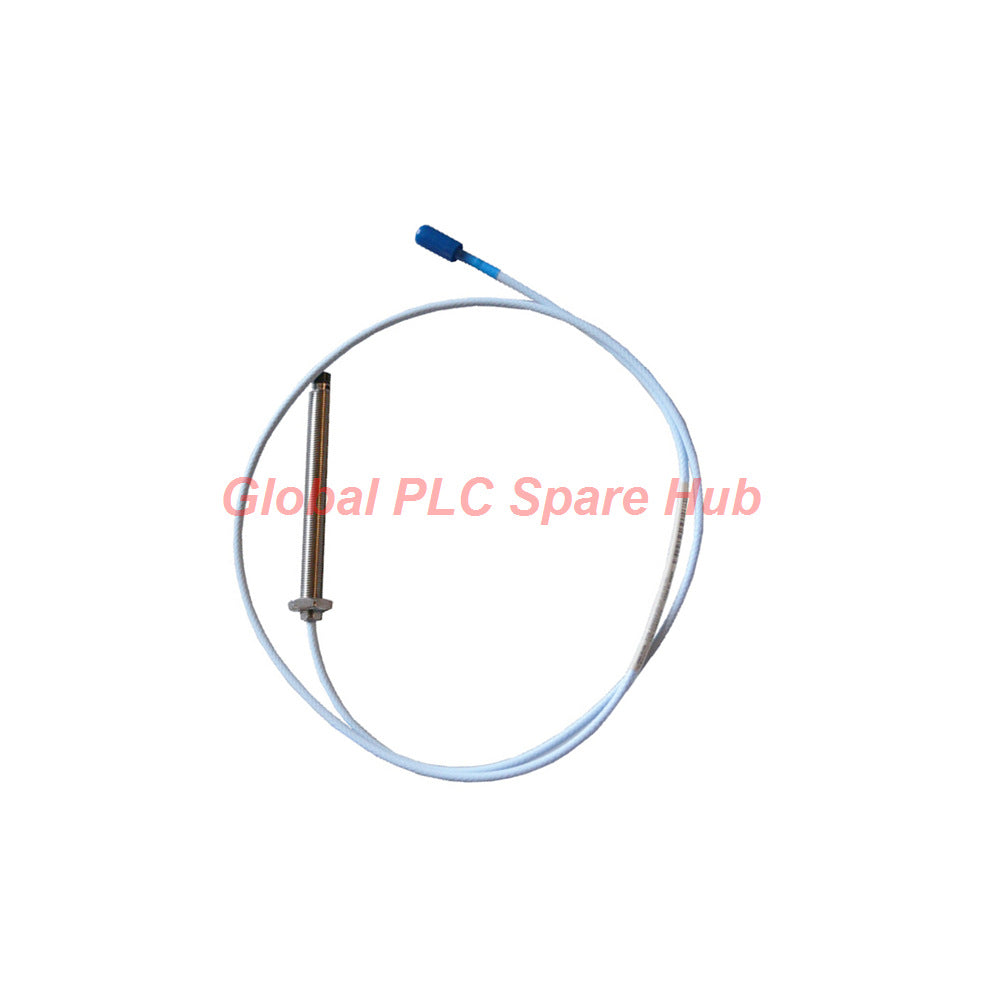

The 330103-00-07-10-02-05 is an advanced 8mm proximity probe engineered by Bently Nevada under the 3300 XL series. Designed for high-accuracy displacement and vibration telemetry, it incorporates patented TipCooler and ClickLoc connector technologies to ensure uncompromised signal fidelity. Its robust stainless steel case and PPS probe tip provide exceptional durability in harsh turbomachinery environments.

Model Configuration Breakdown

Technical Specifications & Performance Matrix

Installation and Mechanical Guidelines

• Mount the probe using standard M10x1 metric threads with a maximum thread engagement of 15 mm.
• Ensure the Viton O-ring seal is undamaged to prevent differential pressure leaks between probe tip and case.
• Avoid exposing the probe tip to temperatures below -34C during installation to prevent pressure seal degradation.
• Route field wiring away from high-voltage power conduits to minimize electromagnetic induction noise.
• Calibrate the system gap voltage precisely to -9 Vdc using a digital voltmeter prior to machine startup.

Diagnostic Capabilities and Asset Protection

Continuous monitoring of output voltage shifts allows engineers to detect rotor unbalance, shaft bow, and journal bearing wear before catastrophic failure occurs. The linear output scale factor of 7.87 mV/um (200 mV/mil) ensures precise dynamic tracking. Sudden changes in the DC gap voltage indicate mechanical rub conditions or mechanical loosening within the probe bracket assembly.

Target Equipment and Application Scenarios

• Large Steam, Gas, and Hydroelectric Turbines
• Centrifugal and Axial Process Air Compressors
• Critical Industrial Boiler Feed Pumps and High-Speed Fans
• Large Electric Motors and Generator Sets
• Gearboxes and Expander-Compressor Trains in Chemical Plants

Compliance and Hazardous Area Approvals

• ATEX and IECEx intrinsically safe classifications for Zone 0 (Ex ia IIC T5...T1 Ga).
• CSA Class I, Division 1, Groups A, B, C, D and Class I, Zone 0 hazardous locations.
• Non-incendive ratings for Class I, Division 2 and Zone 2 explosive atmospheres.

Comparative Selection Analysis

When evaluating alternative system designs, engineers frequently compare options based on cable length and unthreaded body specifications. For an alternative configuration featuring an extended 150 mm case length and 3.0-meter cable arrangement, review the 330103-03-10-15-01-00 model. While the subject model is optimized for compact machinery brackets with its 70 mm case and 1.0 m lead, the comparative option suits thicker mounting walls and extended penetration depths.

Global PLC Spare HUB Insight

Instrumentation specialists utilizing the 330103-00-07-10-02-05 observe that maintaining clean coaxial connector interfaces is vital for preventing high-frequency signal attenuation. For example, applying protective rubber boots over ClickLoc connections in oily turbine enclosures prevents moisture ingress and eliminates erratic vibration spikes on the supervisory control panel.

Logistics, Fulfillment, and Warranty

• Rapid order processing and dispatch within 24 to 48 hours of purchase confirmation.
• Secure international transport channels coordinated via FedEx, UPS, and DHL.
• Industrial-grade antistatic and shock-absorbent packaging to prevent transit damage.
• Fully backed by a comprehensive 12-month manufacturer replacement warranty.

Buying Guide and Engineering FAQ

Q: What is the primary function of the ClickLoc miniature coaxial connector?

A: It provides a secure, vibration-resistant mechanical lock while maintaining proper electrical shielding to prevent signal degradation.

Q: Why is the recommended static gap setting established at -9 Vdc?

A: It centers the probe operating point precisely in the middle of its 2.0 mm linear range to accommodate full peak-to-peak vibration excursions.

Q: Can this probe be tested for pressure sealing before field deployment?

A: Probes are not pressure tested as standard factory procedure, but custom testing can be requested for high-pressure casing penetrations.

Q: How does cable length affect overall system frequency response?

A: Field wiring extensions up to 305 meters introduce minor high-frequency signal roll-off, which must be verified against system manufacturer attenuation curves.

Q: What precautions should be taken when tightening the M10x1 probe case thread?

A: Do not exceed the 15 mm maximum thread engagement limit, and use a calibrated torque wrench to prevent stripping machine mounting holes.
