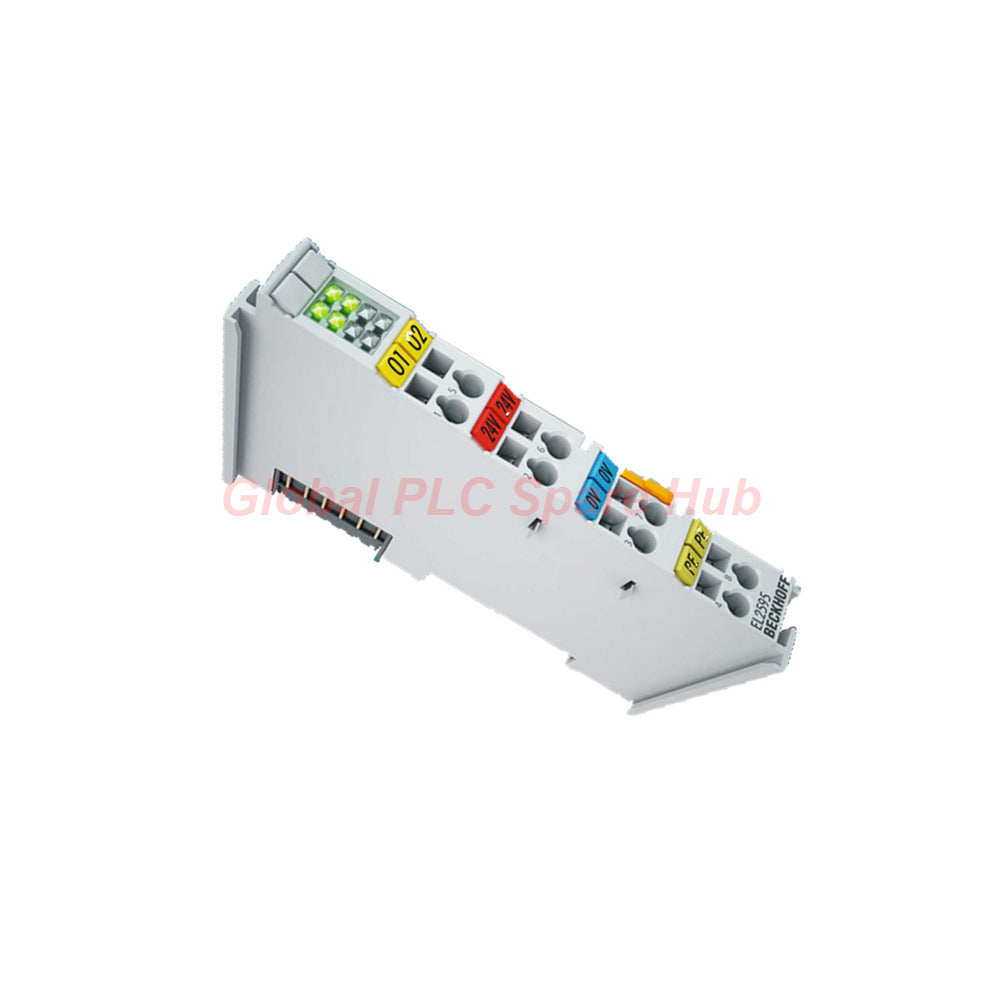

Beckhoff EL2595 EtherCAT Terminal | 1-Channel LED Controller
Manufacturer: Beckhoff
Product No.: EL2595
Condition： In stock
Product Type: EtherCAT Terminal
Product Origin: USA
Payment: T/T, Western Union
Weight: 90g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The Beckhoff EL2595 is a high-performance EtherCAT terminal designed for precise LED lighting control. It utilizes an integrated step-up/step-down power supply to maintain constant current for series-connected LEDs. This module enables rapid switching for short-term lighting pulses. It supports advanced XFC (eXtreme Fast Control) technology via distributed clocks. Engineers utilize this for both simple illumination and demanding industrial lighting tasks.
Technical Specifications
- Brand: Beckhoff
- Model: EL2595
- Series: EtherCAT Terminal
- Output Current: 300 to 700 mA (adjustable)
- Output Voltage: 2 to 48 V DC (automatic adjustment)
- Input Voltage: 24 V DC (-15%/+20%)
- Resolution: Precision digital current control
- Linearity: High-accuracy constant current source
- Frequency Response: Switching times TON/TOFF < 1 µs
- Distributed Clock Precision: << 1 µs
- Temperature Range: 0 to +55 °C (Operating)
- Environment Resilience: IP20 rating, vibration/shock resistance per EN 60068
- Interference Immunity: EMC compliant with EN 61000-6-2/6-4
- Diagnostic Capabilities: Real-time monitoring of input/output current and voltage
Installation and Compatibility
- Mounting: Standard 35 mm DIN rail installation via snap-lock.
- Connections: 2-wire technology with spring-actuated terminals for fast wiring.
- Cross-section: Supports 0.08–1.5 mm² solid or 0.14–0.75 mm² fine-stranded wires.
- System Integration: Seamlessly integrates into any EtherCAT network architecture.
- Diagnostic Feedback: Provides real-time load corridor monitoring to prevent hardware damage.
Maintenance and Compliance
- Certification: CE marked and fully tested for industrial safety.
- Warranty: Full 12-month quality guarantee on all units.
- Logistics: Global shipping via FedEx, UPS, or DHL.
- Lead Time: Fast dispatch within 24–48 hours of order confirmation.
- Packaging: Secure, static-shielded industrial packaging included.
Global PLC Spare HUB Insight
The Beckhoff EL2595 excels in high-speed machine vision lighting applications. Global PLC Spare HUB recommends this module for systems requiring microsecond-level synchronization between camera triggers and illumination pulses. It pairs perfectly with high-speed automated inspection lines and precision quality control systems.
FAQ
- What is the minimum pulse duration for this terminal?
- The EL2595 supports pulse durations as short as 1 µs for high-speed imaging.
- Can the module operate without an active EtherCAT connection?
- Yes, it supports an optional automatic operation mode if communication is interrupted.
- How do I protect the connected LEDs from failure?
- The module features a defined load corridor and switches off automatically if limits are exceeded.
- What is the best way to choose between EL2595, EL2596, and EL2564?
- Select the EL2595 for basic 1-channel lighting. Choose the EL2596 for high-precision control requirements. Use the EL2564 for RGBW voltage-mode applications.
- How do I perform basic troubleshooting on this unit?
- Utilize the real-time diagnostic data in your controller to monitor current and voltage levels for deviations.
