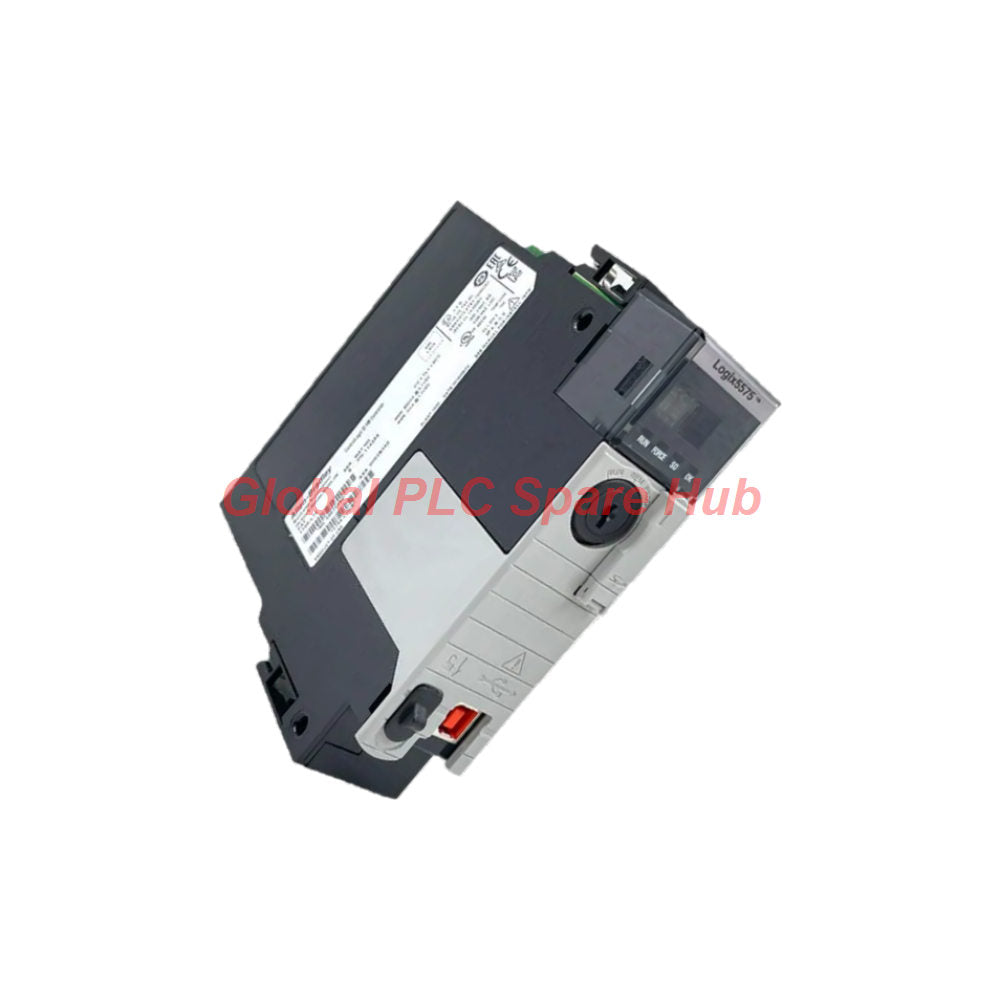

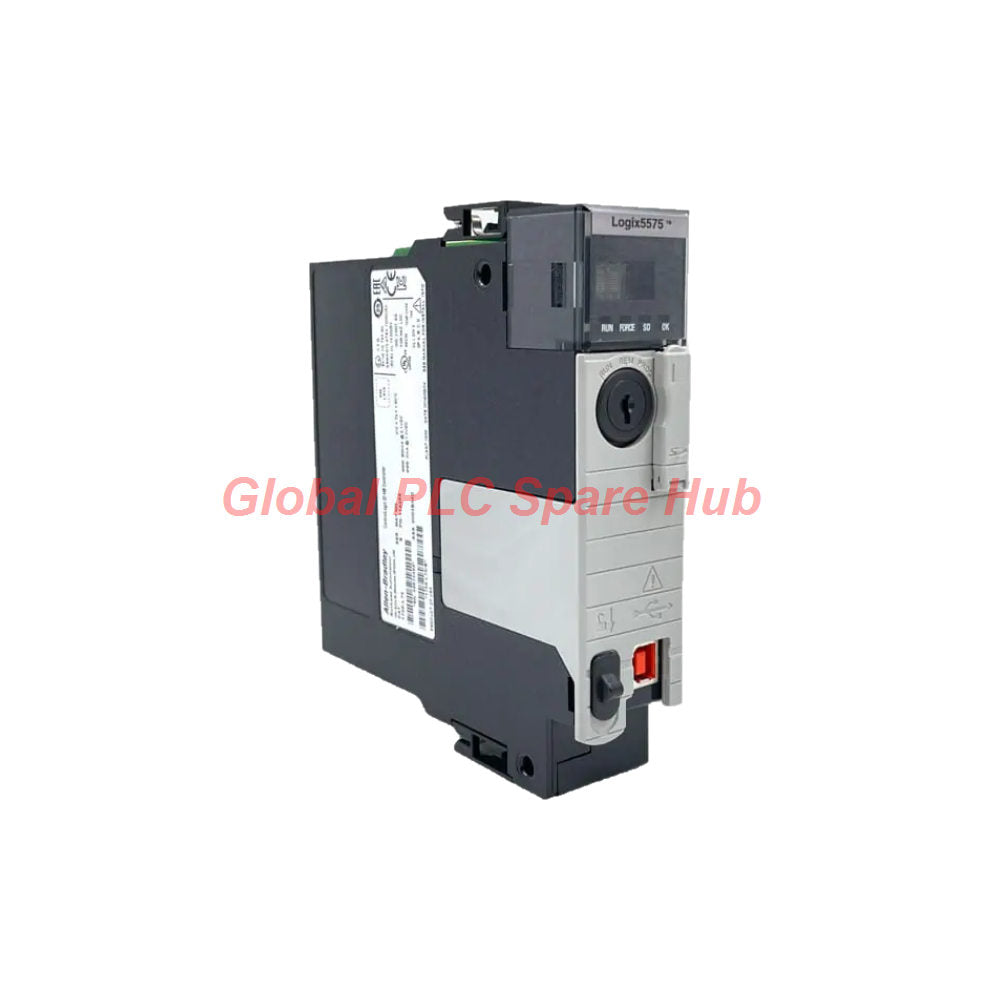

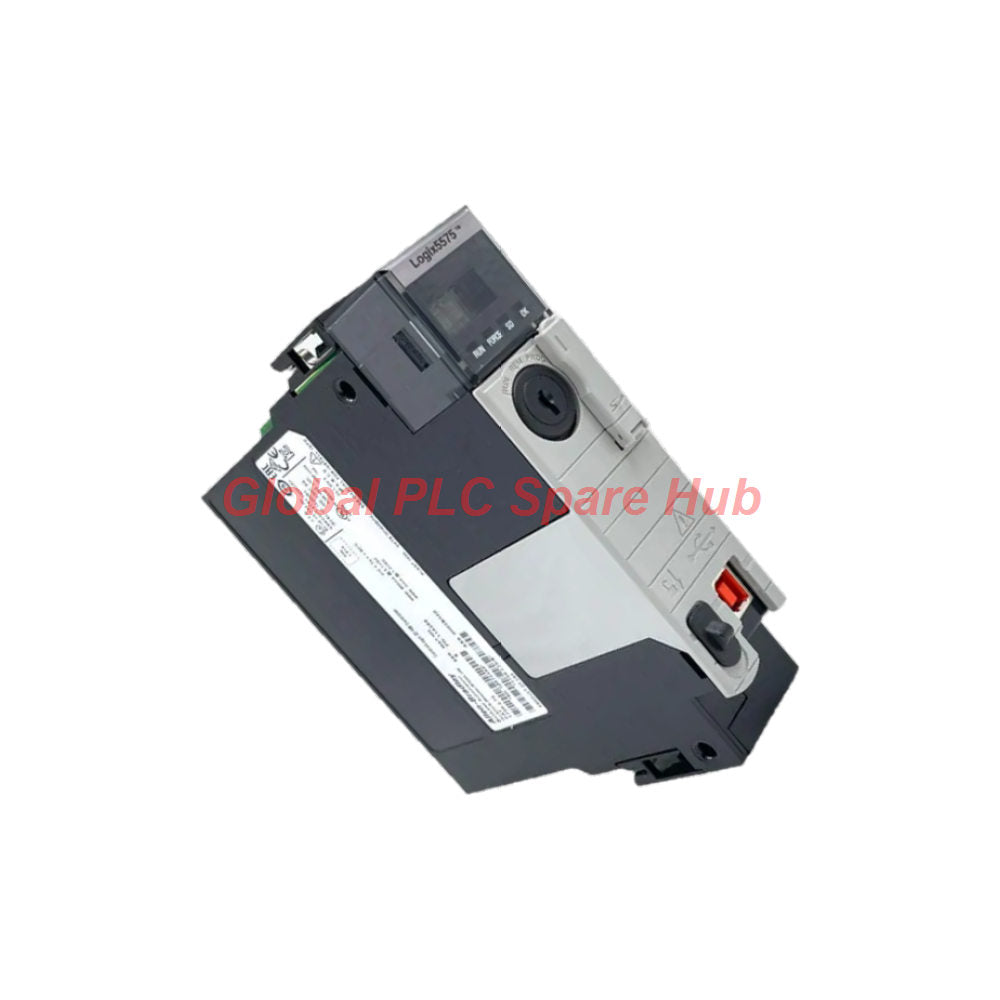

Allen-Bradley 1756-L75 ControlLogix Controller 32 MB Memory

Product Overview

The Allen-Bradley 1756-L75 is a programmable automation controller from the Rockwell Automation ControlLogix 5570 series. It executes complex control logic and coordinates distributed I/O in industrial automation systems.

The controller provides 32 MB of user memory and 0.98 MB of I/O memory. It supports multiple programming languages within the Logix platform. Engineers can develop applications using Ladder Diagram, Structured Text, Function Block Diagram, and Sequential Function Chart.

An integrated USB 2.0 port supports local programming and project downloads. The controller also supports EtherNet/IP and other communication networks through compatible communication modules.

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model: 1756-L75
• Product family: ControlLogix 5570
• Controller type: Programmable Automation Controller (PAC)
• User memory: 32 MB
• I/O memory: 0.98 MB
• Programming interface: One integrated USB port

Technical Specifications

Parameter	Specification
Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Model	1756-L75
Series	ControlLogix 5570
Module type	ControlLogix controller
User memory	32 MB
I/O memory	0.98 MB
Maximum digital I/O	128,000 points
Maximum analog I/O	4,000 points
USB interface	One USB 2.0 programming port
USB transfer rate	Up to 12 Mbps
Maximum controller connections	500
Maximum controller tasks	32
Programs per task	Up to 100
Current draw at 5.1 VDC	800 mA
Current draw at 1.2 VDC	5 mA
Power dissipation	2.5 W
Thermal dissipation	8.5 BTU/hour
Continuous isolation voltage	30 V
Operating temperature	0 to 60°C
Storage temperature	-40 to 85°C
Relative humidity	5% to 95%, noncondensing
Operating vibration	2 g at 10 to 500 Hz
Operating shock	30 g
Non-operating shock	50 g; 45 g with an SD card installed
Enclosure type	Open-style module

Engineering note: The 1756-L75 is a controller, not a measuring instrument. Measurement range, sensor sensitivity, analog resolution, and frequency response depend on the connected I/O modules and field devices.

Key Features and Control Capabilities

• High-capacity processing: The 32 MB user memory supports complex control strategies and extensive application logic.
• Flexible programming: The controller supports Ladder Diagram, Structured Text, Function Block Diagram, and Sequential Function Chart.
• Extensive I/O capacity: It supports up to 128,000 digital I/O points and 4,000 analog I/O points, subject to system configuration.
• Local programming: The built-in USB port simplifies direct connection for programming and troubleshooting.
• Nonvolatile storage: The controller supports compatible Secure Digital storage for project storage and transfer.
• Energy storage modules: Capacitor-based energy storage supports controller memory retention without a conventional battery.
• Plant integration: The controller can participate in compatible Rockwell Automation PlantPAx architectures.

Typical Industrial Applications

• Process automation: Coordinate pumps, valves, transmitters, and interlocks in chemical processing plants.
• Oil and gas: Execute equipment sequencing and process control logic in compatible automation architectures.
• Power generation: Manage auxiliary systems, equipment permissives, and alarm logic.
• Manufacturing: Coordinate production lines, material handling, and machine sequences.
• Water treatment: Control pumping stations, filtration sequences, and level-based operations.
• PlantPAx systems: Support compatible process control applications that require ControlLogix hardware.

Installation Guide

1. Verify the hardware: Confirm the catalog number, controller series, chassis type, and project requirements.
2. Check the chassis: Install the controller in a compatible 1756 ControlLogix chassis.
3. Verify the power supply: Confirm that the chassis power supply supports the complete installed module load.
4. Insert the controller: Follow Rockwell Automation installation instructions. Observe ESD precautions during handling.
5. Connect the programming cable: Use the USB interface for local configuration and project downloads.
6. Check the project: Confirm firmware compatibility, controller revision, I/O configuration, and communication settings.
7. Validate operation: Test controller status, I/O responses, interlocks, and communication before production release.

Important: Follow the applicable Rockwell Automation installation manual. Never insert or remove modules outside the permitted installation conditions.

Commissioning, Diagnostics, and Maintenance

The 1756-L75 provides diagnostic information through controller status indicators and programming software. These tools help engineers identify configuration, execution, and communication problems.

• Controller status: Check status indicators and controller fault information before changing hardware.
• Program diagnostics: Review major faults, task execution, and application logic status.
• I/O diagnostics: Inspect module status and channel-level diagnostics on compatible I/O modules.
• Communication checks: Verify network paths, module configuration, and connection status.
• Project backup: Keep a verified project file and record firmware and hardware revisions.
• Environmental checks: Inspect cabinet temperature, grounding, ventilation, and electrical noise.

Field example: A packaging line stops after a controller project change. An engineer can compare the current project with the approved backup, inspect controller fault information, and verify the affected I/O configuration before replacing hardware.

This method helps separate programming faults from communication failures and field-device problems. Always follow site change-control and machine-safety procedures.

Compatibility and Configuration Notes

• Chassis: The 1756-L75 is designed for compatible 1756 ControlLogix chassis. Confirm the exact chassis and series before installation.
• Power supplies: Select a supported 1756 power supply based on chassis compatibility and total system loading.
• Communication: EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, and SynchLink require the appropriate compatible communication hardware or system configuration.
• Programming software: Use a compatible version of Studio 5000 Logix Designer. Confirm controller firmware support before downloading a project.
• SD card: Verify the installed card type, capacity, and controller configuration before restoring or transferring projects.
• Redundancy: Do not assume that the 1756-L75 supports every ControlLogix redundancy architecture. Verify the exact controller, firmware, and redundancy requirements.
• Energy storage: Confirm the installed energy storage module type and follow the relevant replacement and handling instructions.

Listed chassis and power supply models may vary by hardware revision. Check the official compatibility documentation before finalizing a replacement.

Installation Environment and Electrical Protection

• Maintain an ambient operating temperature between 0 and 60°C.
• Keep relative humidity between 5% and 95%, without condensation.
• Provide suitable cabinet ventilation and keep heat-producing devices within their rated limits.
• Separate low-level analog wiring from high-current and switching circuits where practical.
• Use proper grounding, shielding, and cable routing to reduce electrical interference.
• Protect the controller from conductive dust, moisture, corrosive substances, and unauthorized access.

The controller does not specify sensor-level sensitivity or measurement accuracy. Those characteristics depend on the selected I/O modules and connected instruments.

Certifications and Compliance

Certification status depends on the exact catalog number, hardware revision, and installation conditions. Consult the official Rockwell Automation product documentation for applicable approvals and declarations.

Do not assume that every certification applies to every configuration. Confirm project-specific requirements before installation in hazardous or regulated locations.

Packaging and Delivery

• Product: Allen-Bradley 1756-L75 ControlLogix controller.
• Accessories: Included items depend on the confirmed supply configuration.
• Documentation: Electronic product documentation may be available from the manufacturer.
• Packaging: Protective packaging suitable for international shipment.
• Shipping methods: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch time: Typically within 24–48 hours after order confirmation for available stock.

Please confirm stock, included accessories, packaging details, and dispatch timing before placing an order. The standard package does not automatically include a chassis, power supply, communication modules, or programming cable.

Warranty and Technical Support

• Warranty period: 12 months, subject to the supplier's written warranty terms.
• Pre-shipment checks: Product identification and applicable functional checks can be confirmed before dispatch.
• Technical assistance: Support is available for model verification, compatibility checks, and installation questions.
• Shipping assistance: The team can help coordinate available international courier services.

Contact our sales team to confirm warranty coverage, testing arrangements, lead time, and shipping costs for the 1756-L75.

Global PLC Spare HUB's Insight

From a field engineering perspective, controller replacement requires more than matching the catalog number. Firmware revision, project compatibility, chassis configuration, and communication paths can all affect commissioning.

For example, a replacement controller may power up normally but fail to establish connections with configured I/O modules. The engineer should verify the controller revision, I/O tree, communication module settings, and network path before concluding that the controller is defective.

Before removing the existing controller, preserve the approved project file and record its firmware revision. Check the current fault history and system configuration. These steps reduce avoidable downtime and simplify post-installation validation.

For a replacement inquiry, provide the complete catalog number, series, firmware revision, and application details. Our team can help verify the required configuration before shipment.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Allen-Bradley 1756-L75?

The 1756-L75 executes application logic and coordinates compatible ControlLogix I/O and communication devices. It supports demanding machine and process automation applications.

2. How much memory does the 1756-L75 provide?

It provides 32 MB of user memory and 0.98 MB of I/O memory. Actual application requirements depend on the program, tags, and system configuration.

3. Can the 1756-L75 communicate directly with an EtherNet/IP network?

The controller has an integrated USB programming port. EtherNet/IP communication generally requires a compatible communication module or supported system architecture. Confirm the required hardware before installation.

4. What should engineers check when a replacement controller fails to communicate with I/O modules?

First, check controller faults, firmware compatibility, chassis configuration, and the I/O tree. Then inspect network paths, module status, and cabling. Avoid replacing additional modules before completing these checks.

5. Does the 1756-L75 measure analog signals directly?

No. The controller processes data from compatible analog I/O modules. Measurement range, resolution, accuracy, and signal response depend on the selected modules and connected field instruments.

6. What information should buyers provide when requesting a replacement?

Provide the full model number, series, firmware revision, existing chassis model, and application requirements. Photos of the nameplate can help verify the requested configuration.

7. What is the warranty period, and how quickly can the controller ship?

The offered warranty is 12 months, subject to written terms. Available stock typically dispatches within 24–48 hours after order confirmation. FedEx, UPS, and DHL options depend on the destination.

Request a Quote for Allen-Bradley 1756-L75

Looking for an Allen-Bradley 1756-L75 ControlLogix controller for a new installation or system replacement?

Contact Global PLC Spare HUB for pricing, availability, compatibility checks, and international shipping options. Send your required quantity and application details to receive a tailored quotation.
