Allen-Bradley 1756-IF16 ControlLogix 16-Channel Analog Input

Product Overview

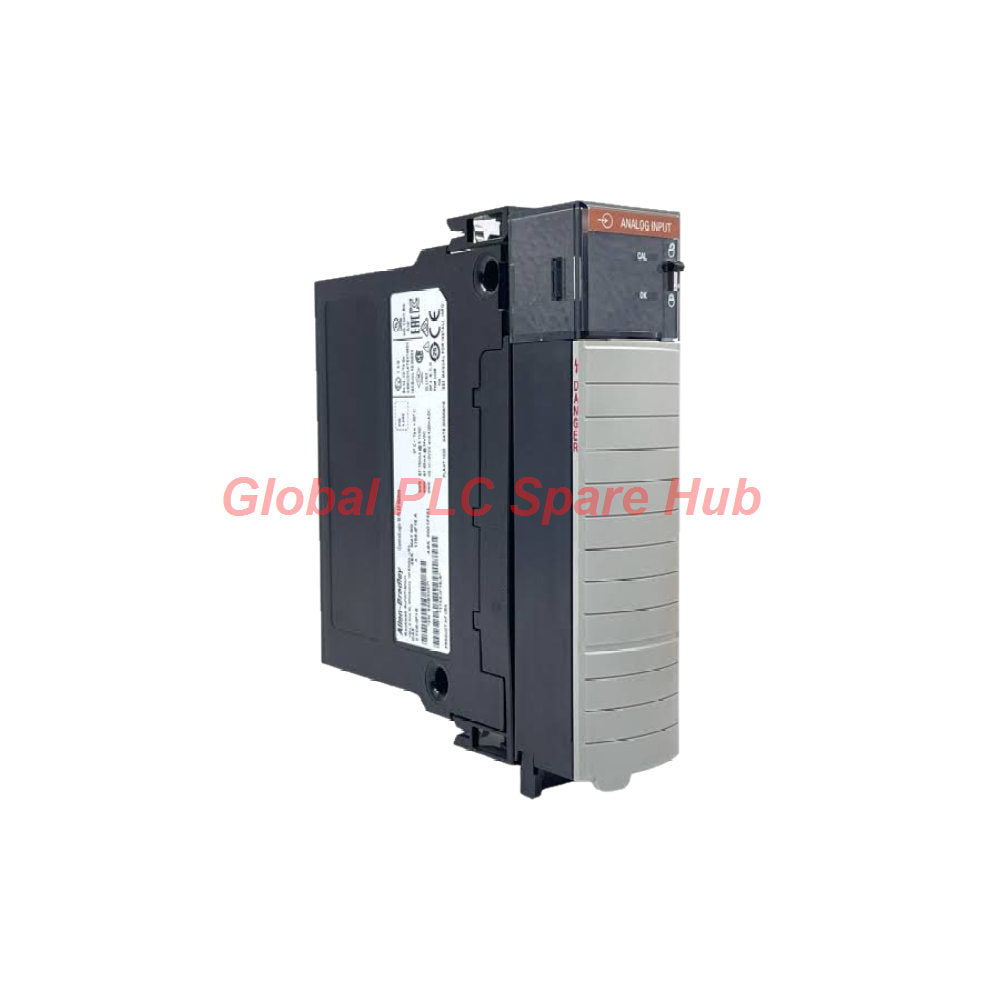

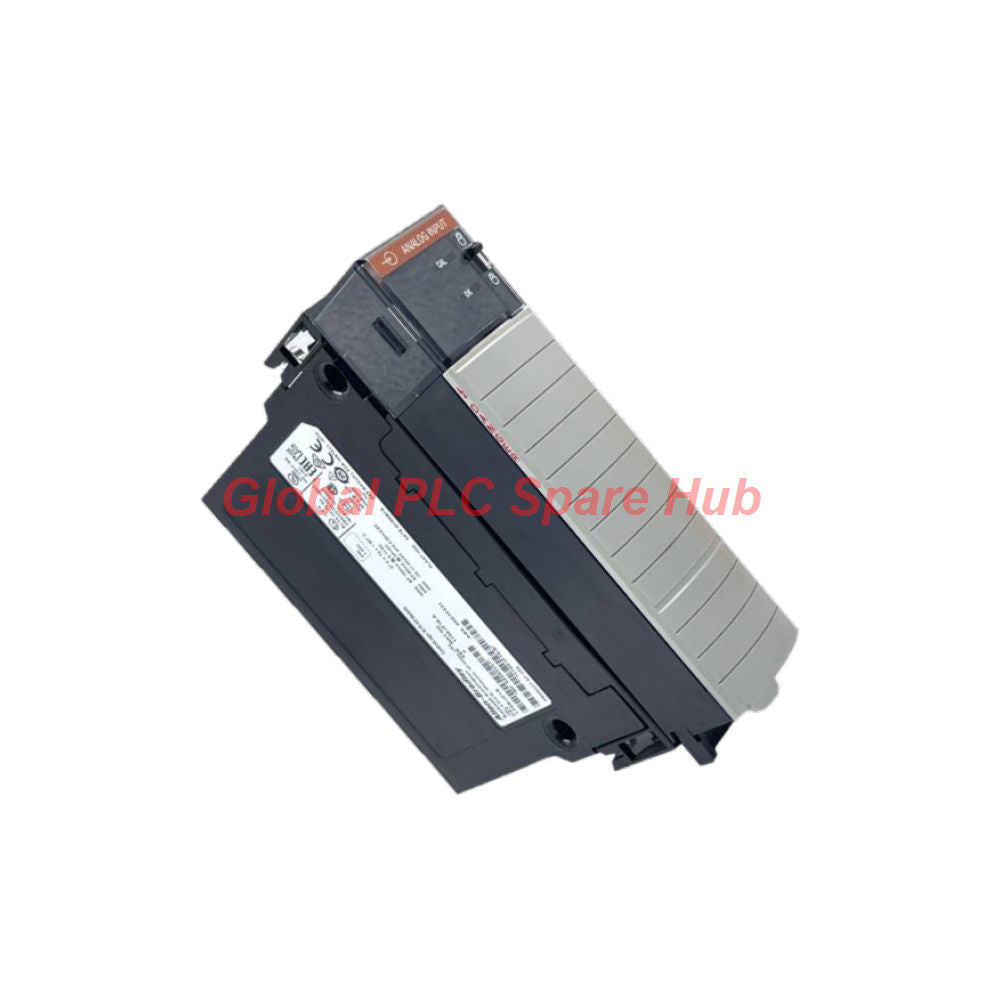

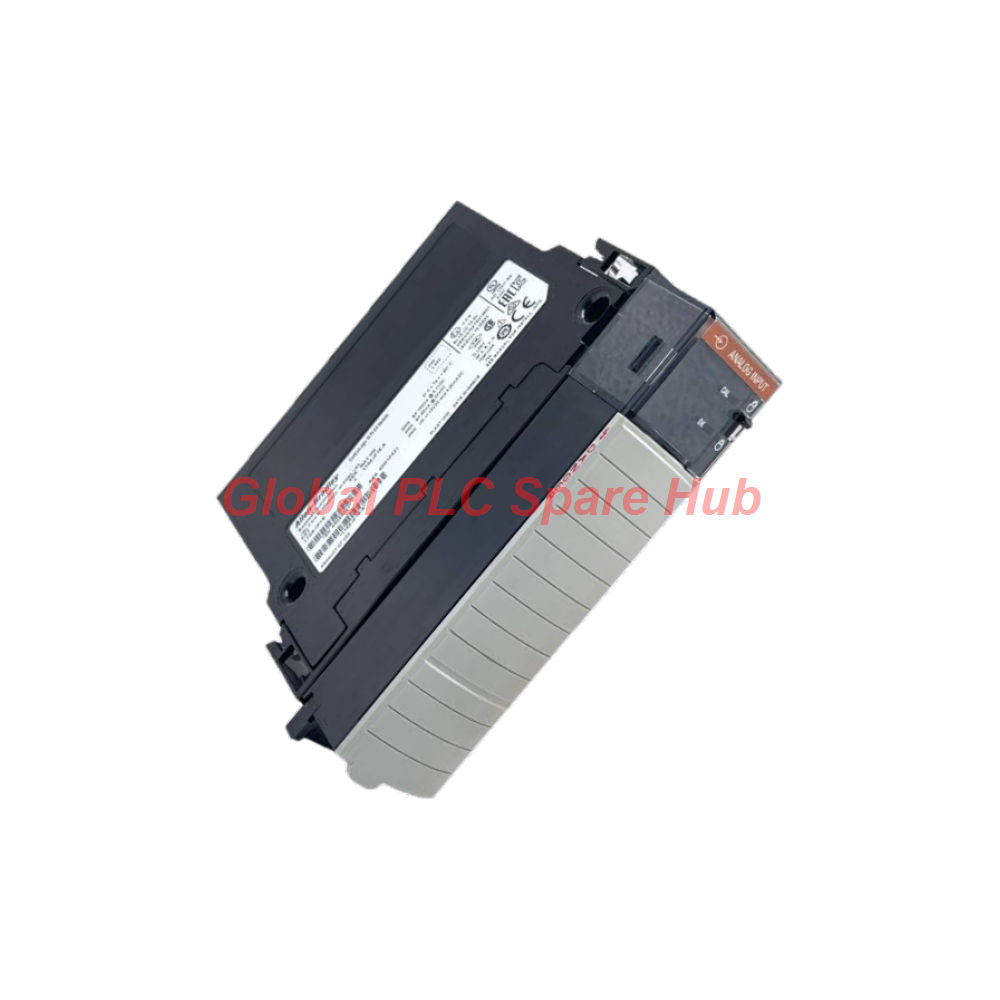

The Allen-Bradley 1756-IF16 is a 16-channel analog input module in the ControlLogix product family. It receives analog signals from compatible field instruments and transfers measurement data to the controller.

The 1756-IF16 ControlLogix analog input module supports multiple input configurations. Engineers can configure 16 single-ended inputs, 8 differential inputs, or 4 high-speed differential inputs, subject to the supported module configuration.

The module supports a current input range of 0–20 mA. Its voltage and current input characteristics help integrate compatible transmitters and measurement devices into industrial control systems.

Electronic keying helps verify module identity during installation. The single-slot design also supports integration into compatible ControlLogix chassis configurations.

Technical Specifications

Technical note: Confirm the supported input modes, wiring diagrams, and electrical limits using the official manual for the exact 1756-IF16 revision.

Core Functions and Engineering Benefits

• Multi-channel acquisition: Supports several input arrangements for compatible analog measurement applications.
• Current signal monitoring: Accepts current inputs within the specified 0–20 mA range.
• Voltage signal compatibility: The supplied specifications list voltage input impedance above 10 MΩ. Verify the supported voltage ranges in the module manual.
• Controller integration: Transfers analog input data into a compatible ControlLogix controller configuration.
• Electronic keying: Helps reduce installation errors by checking module identity against the configured slot.

Typical Industrial Applications

• Process monitoring: Acquire compatible transmitter signals for process control and operator displays.
• Water treatment: Monitor suitable flow, pressure, and level transmitters through compatible input channels.
• Manufacturing: Collect analog feedback for machine monitoring and process adjustment.
• Utilities: Integrate supported analog instruments into centralized control systems.
• Equipment diagnostics: Track input values and identify abnormal readings through controller logic and HMI displays.

Installation Guide

1. Confirm compatibility: Verify the ControlLogix chassis, controller, module revision, and project configuration.
2. Isolate power: Follow site lockout procedures before installing or removing the module.
3. Check the slot: Confirm that the selected chassis slot supports the intended module configuration.
4. Verify the wiring mode: Select single-ended, differential, or high-speed differential operation as supported by the application.
5. Check signal types: Match field instrument outputs to the module's supported input ranges.
6. Inspect grounding: Follow the manufacturer's wiring and grounding recommendations to reduce electrical interference.
7. Configure the module: Set the correct input mode, channel parameters, and controller project settings.
8. Test the channels: Compare module readings against a known signal source before enabling process control.

Do not assume that every channel supports every input arrangement simultaneously. Confirm channel grouping and configuration restrictions in the official manual.

Commissioning and Diagnostic Guidance

• Zero or low readings: Check transmitter power, loop wiring, polarity, and the configured input range.
• Unstable readings: Inspect grounding, shielding, cable routing, and electrical noise sources.
• Incorrect scaling: Compare engineering-unit scaling with the transmitter's actual output range.
• Channel configuration faults: Check the selected input mode and module configuration in the controller project.
• Overheating concerns: Review chassis ventilation and the module's stated power dissipation.
• Intermittent input faults: Inspect terminal connections and compare channel behavior with a calibrated signal source.

Field example: A pressure transmitter reports an unexpectedly low value on the HMI. An engineer verifies loop current, channel configuration, and scaling before replacing the input module.

For a noisy signal, compare the affected channel with a stable reference source. Check wiring and grounding before changing module hardware.

Measurement Performance and Environmental Considerations

• Measurement range: The supplied current range is 0–20 mA. Confirm supported voltage ranges in the official manual.
• Frequency response: Verify channel filtering and high-speed differential operating limits in the module documentation.
• Resolution: Confirm the configured data format and effective resolution in the applicable technical manual.
• Accuracy and linearity: Check manufacturer specifications for accuracy, linearity, and temperature effects.
• Input sensitivity: Evaluate the supported signal range, transmitter accuracy, and required process measurement tolerance.
• Temperature: The supplied operating range is 0°C to 60°C.
• Electrical interference: Follow approved wiring, shielding, and grounding practices.
• Isolation: The supplied information states a 250 V continuous isolation rating and no isolation between individual inputs. Verify the exact isolation boundaries before connecting field circuits.

Do not infer unlisted accuracy, sampling rate, resolution, or electromagnetic immunity values. Use the official module documentation when designing measurement circuits.

Compatibility and Selection Guide

• Chassis compatibility: Verify that the module fits the intended ControlLogix chassis and system architecture.
• Signal type: Confirm whether the field instrument supplies current or voltage signals.
• Channel arrangement: Check the required single-ended or differential configuration.
• Signal isolation: Consider external isolation where the application requires channel-to-channel isolation.
• Controller project: Verify module profile support, configuration settings, and controller firmware compatibility.
• Measurement requirements: Match input range, accuracy, filtering, and response time to the process requirements.

The 1756-IF16 may not suit every analog acquisition application. Compare the complete signal requirements against the manufacturer's specifications before ordering.

Certifications and Compliance

Check the manufacturer's documentation for applicable safety, electromagnetic compatibility, and regional approvals. Confirm that the exact catalog number and hardware revision meet the installation site's requirements.

Do not assume a specific certification without verifying the official product documentation.

Packaging and Shipping

• 1 × Allen-Bradley 1756-IF16 analog input module, according to the confirmed order.
• Additional accessories or documentation only when explicitly listed in the order.

• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Processing time: Target shipment processing within 24–48 hours after order confirmation, subject to stock verification.
• Packaging: Protective packaging suitable for transportation.

Contact our team to confirm stock, accessories, packaging details, and shipping arrangements before ordering.

Warranty and Technical Support

Global PLC Spare HUB provides a 12-month warranty under its applicable sales terms. Contact our team to confirm coverage and claim procedures.

Our team can help check catalog numbers, input requirements, chassis compatibility, and replacement suitability before purchase.

Provide the existing module label, system configuration, signal type, and destination country when requesting a quotation.

Global PLC Spare HUB's Insight

Field experience shows that analog input faults often originate from signal wiring or configuration rather than module failure.

For example, a 4–20 mA transmitter may display an incorrect process value when the channel range or HMI scaling does not match the transmitter configuration.

First, measure the loop current with a suitable instrument. Then compare the channel configuration and engineering-unit scaling against the project documentation.

For differential measurements, confirm the wiring arrangement and common-mode limits before connecting the field instrument. Remember that individual inputs do not provide channel-to-channel isolation according to the supplied specifications.

These checks help engineers isolate wiring, configuration, and hardware problems before replacing components.

Frequently Asked Questions

Q1: What does the Allen-Bradley 1756-IF16 module do?

The 1756-IF16 acquires analog signals from compatible field instruments and supplies measurement data to a ControlLogix controller.

Q2: What current input range does the 1756-IF16 support?

The supplied specifications list a current input range of 0–20 mA. Verify supported operating modes and configuration details in the official manual.

Q3: How many input channels can I use?

The module supports 16 single-ended inputs, 8 differential inputs, or 4 high-speed differential inputs, subject to documented configuration restrictions.

Q4: Does the 1756-IF16 provide isolation between individual inputs?

The supplied specifications state that individual inputs do not have channel-to-channel isolation. Check the manufacturer's isolation documentation before connecting circuits with different ground potentials.

Q5: Why does an analog reading fluctuate?

Check grounding, shielding, cable routing, transmitter stability, and terminal connections. Compare the signal with a stable reference before replacing the module.

Q6: What should I check when a 4–20 mA transmitter shows the wrong value?

Verify loop current, channel input configuration, and HMI scaling. Confirm that the configured engineering range matches the transmitter's actual output range.

Q7: How do I select the correct replacement module?

Confirm the full catalog number, chassis compatibility, signal type, input arrangement, project configuration, and measurement requirements before ordering.

Q8: What warranty and shipping options are available?

Global PLC Spare HUB offers a 12-month warranty under applicable terms. FedEx, UPS, and DHL options are available, with processing targeted within 24–48 hours after order confirmation.

Q9: What information should I provide for a quotation?

Provide the catalog number, required quantity, signal type, chassis details, destination country, and any relevant installation requirements. Our team can help review compatibility and pricing.
