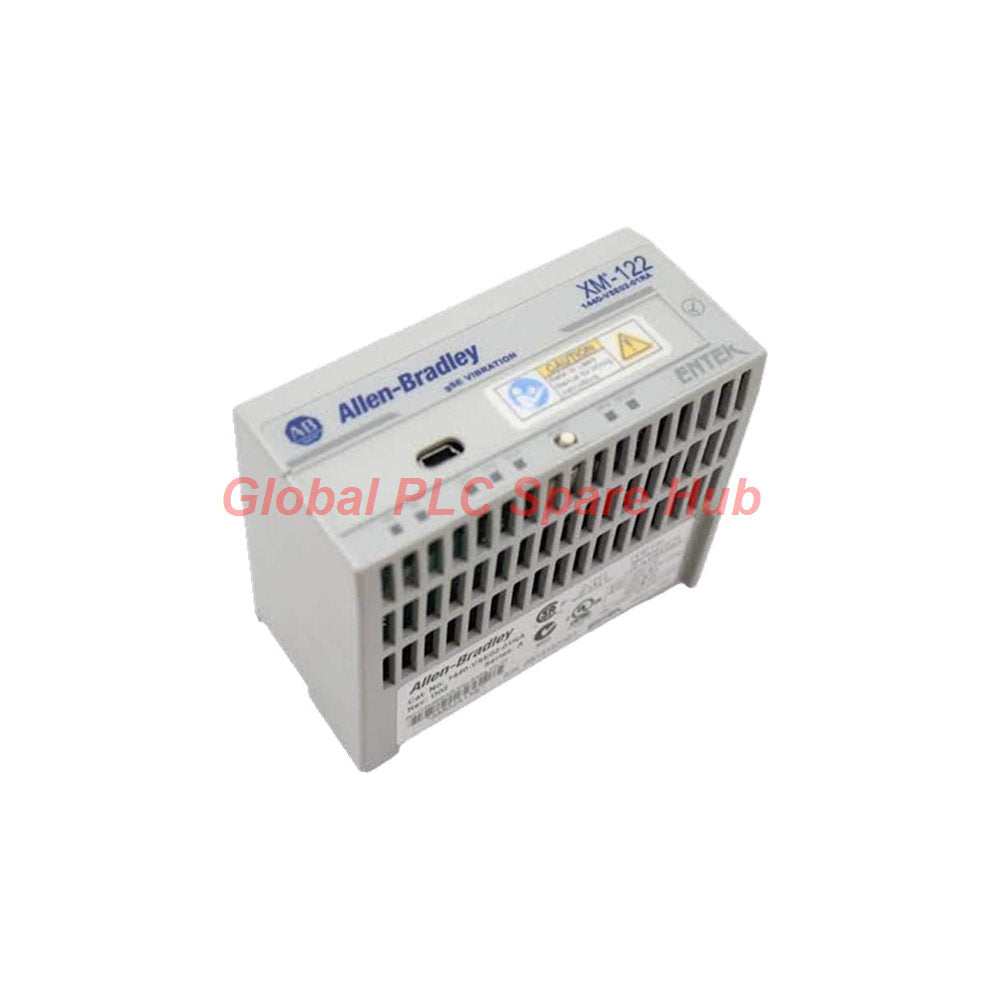

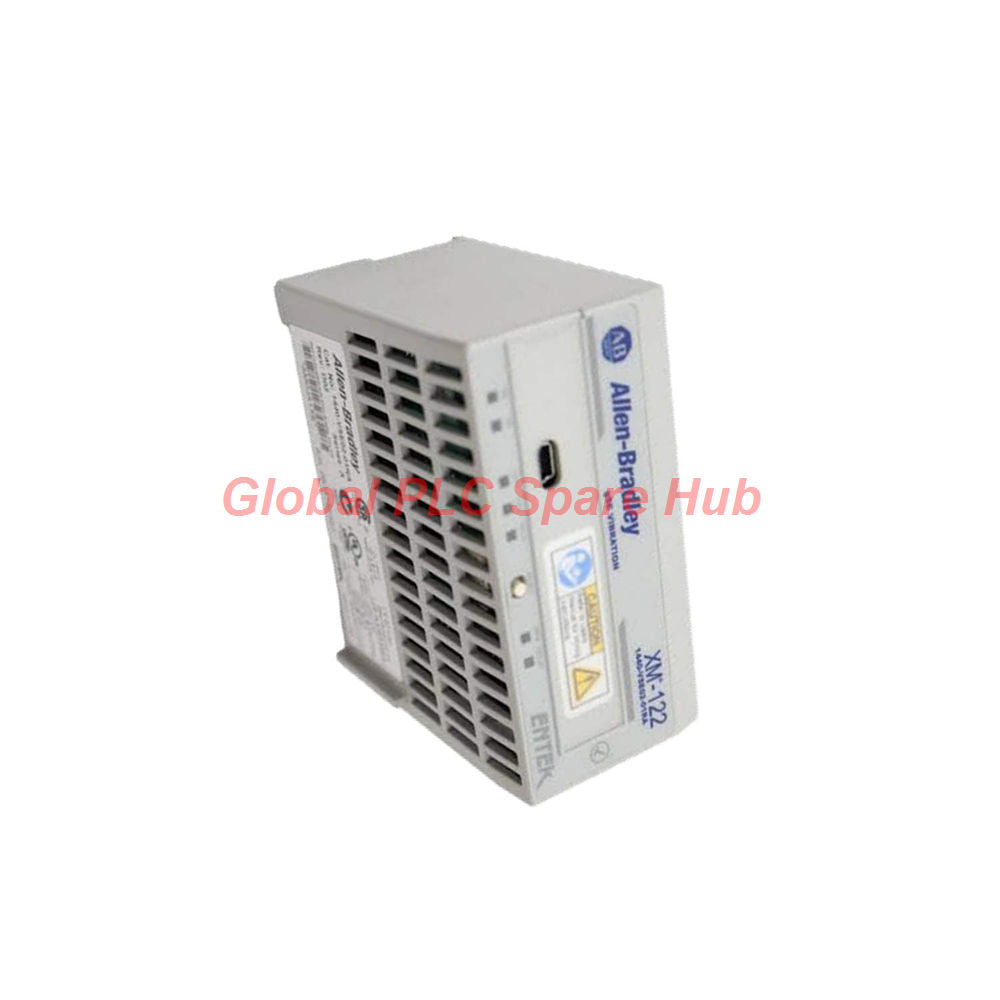

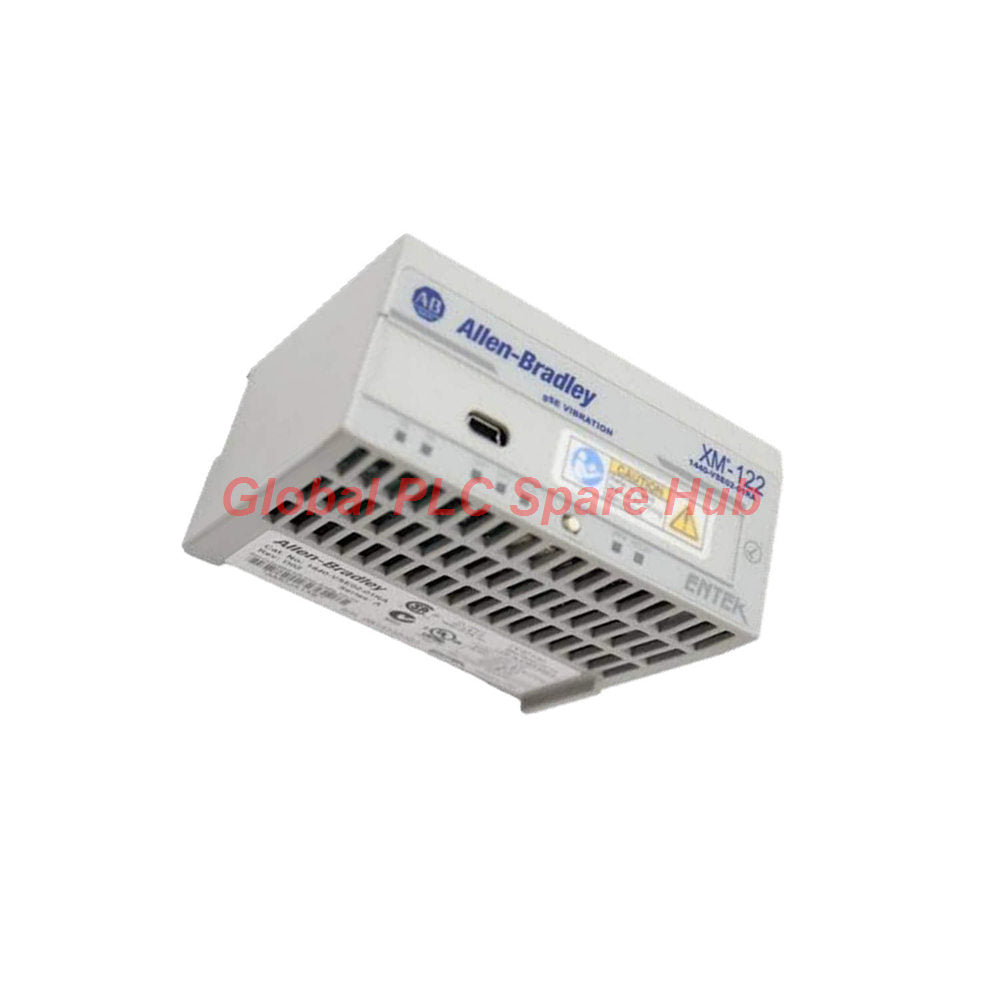

Allen-Bradley 1440-VSE02-01RA XM Series Vibration Module 2-Ch DeviceNet

Allen-Bradley 1440-VSE02-01RA XM Series Vibration Module Product Overview

The Allen-Bradley 1440-VSE02-01RA is a high-performance, two-channel vibration monitor from the intelligent XM Series. This specialized hardware module delivers real-time machinery protection by capturing critical low-frequency dynamic data. It integrates seamlessly into industrial automation architectures using the native DeviceNet protocol. Engineers deploy this module to calculate targeted vibration parameters on critical rotating assets. It processes synchronous and asynchronous signals to identify early mechanical faults. The rugged design ensures high reliability in demanding processing plants and manufacturing environments.

Global PLC Spare HUB's Insight

From an automation engineering perspective, the XM Series 1440-VSE02-01RA represents an efficient approach to decentralized condition monitoring. Instead of routing complex analog sensor cables back to a central rack, this module digitizes vibration signals directly at the machine. It operates as a standalone protector or interfaces with distributed control systems. The onboard digital signal processing provides local relay control capabilities. This architecture minimizes system response time for critical trip conditions. It reduces network overhead by transmitting pre-processed diagnostic data rather than raw waveforms over DeviceNet.

Comprehensive Technical Specifications

• Brand: Allen-Bradley
• Model: 1440-VSE02-01RA
• Product Line: XM Series
• Part Number: 1440-VSE02-01RA
• UPC Number: 781180000171
• GTIN: 10781180000178
• Module Type: Vibration Monitor Module
• Number of Inputs: 2 independent channels
• Measurement & Frequency Range: 1 Hz to 20 Hz low-frequency response
• Sampling Modes: Synchronous and asynchronous data acquisition
• Input Impedance: Greater than 100 kilo-ohms for optimal signal transfer
• Signal Resolution: High-accuracy analog-to-digital processing conversion
• Linearity & Sensitivity: Precision-matched to industrial eddy current probes and accelerometers
• Communication Protocol: DeviceNet network standard
• Fixed Baud Rate: 19,200 bits per second
• Number of Outputs: 2 isolated solid-state outputs
• Rated Supply Voltage: 24 Volts DC nominal
• Typical Power Consumption: 175 milliamperes
• Maximum Power Consumption: 300 milliamperes
• Typical Heat Production: 4 Watts
• Maximum Heat Production: 7 Watts
• Status Indicators: 7 red and green operational LEDs
• Environmental Tolerance: Industrial grade coating for high noise immunity
• Physical Weight: 0.75 lbs (0.34 kg)

Equipment Compatibility and Applications

The 1440-VSE02-01RA module monitors specific rotating machinery and industrial equipment assets:

• Industrial cooling tower fans and low-speed ventilation blowers
• Heavy-duty industrial water pumps and fluid handling systems
• Low-speed agitators, mixers, and industrial blending vessels
• Hydroelectric turbines and low-RPM power generation equipment
• Reciprocating compressors and large industrial gearboxes
• Integration setups with standard Rockwell Automation ControlLogix systems
• Distributed control topologies utilizing DeviceNet industrial networks

Diagnostic and Monitoring Capabilities

The Allen-Bradley 1440-VSE02-01RA offers advanced onboard diagnostics for machinery protection:

• Continuous monitoring of sensor circuit integrity for open or short faults
• Real-time tracking of tracking sensor bias voltage levels
• Localized alarm and trip threshold processing for instantaneous status updates
• Clear visual troubleshooting via seven distinct red and green status LEDs
• Networked error reporting for communication fault analysis over DeviceNet

Installation Guide

• Always disconnect the primary power source before starting the installation process.
• Mount the compatible XM Series terminal base securely onto a standard DIN rail.
• Route the DeviceNet network cabling through the designated terminal base connections.
• Connect your two vibration sensors to the specified input channel terminals.
• Wire the 24V DC power supply while maintaining correct polarity lines.
• Align the 1440-VSE02-01RA module guides with the terminal base housing slots.
• Press the module firmly into the base until it seats completely.
• Tighten the integrated retaining screws to secure the physical connection.

Commissioning and Maintenance Convenience

• The removable terminal base design allows module replacement without disturbing field wiring.
• Serial configuration utilities enable quick parameter duplication across multiple units.
• Onboard LEDs provide instant verification of network status and channel health.
• The fixed 19,200 bps baud rate eliminates complex network autobaud troubleshooting steps.
• Simple firmware flashing procedures streamline long-term system updates and maintenance.

Procurement and Selection Guidance

• Verify that your machinery operating speeds fall within the 1 Hz to 20 Hz tracking range.
• Ensure your existing control network architecture supports the DeviceNet protocol.
• Confirm that you have the required terminal base accessory for mounting purposes.
• Review your sensor impedance metrics to match the module input specifications.

Shipping, Packaging, and Warranty

• Packaging List: One factory-packed Allen-Bradley 1440-VSE02-01RA module, installation leaflet
• Dispatch Time: Standard shipping occurs within 24 to 48 hours from order confirmation
• Express Couriers: Reliable global delivery via FedEx, UPS, and DHL networks
• Warranty Coverage: Includes a comprehensive 12-month warranty policy for peace of mind

Frequently Asked Questions

Can I use this module with high-frequency accelerometers?

The hardware design optimizes data collection specifically for low-frequency ranges between 1 Hz and 20 Hz.

What happens if a sensor cable breaks during operation?

The internal diagnostic system detects the fault immediately and triggers a sensor failure status light.

Does this module require a separate power supply for the outputs?

The isolated outputs maintain independent electrical circuits to preserve critical signal integrity across systems.

Can I hot-swap this unit during emergency system maintenance?

You can remove the module from its terminal base without disconnecting the main wiring grid.

What is the purpose of the synchronous sampling mode?

Synchronous mode locks data collection to the machine rotation speed via an external tachometer signal.
