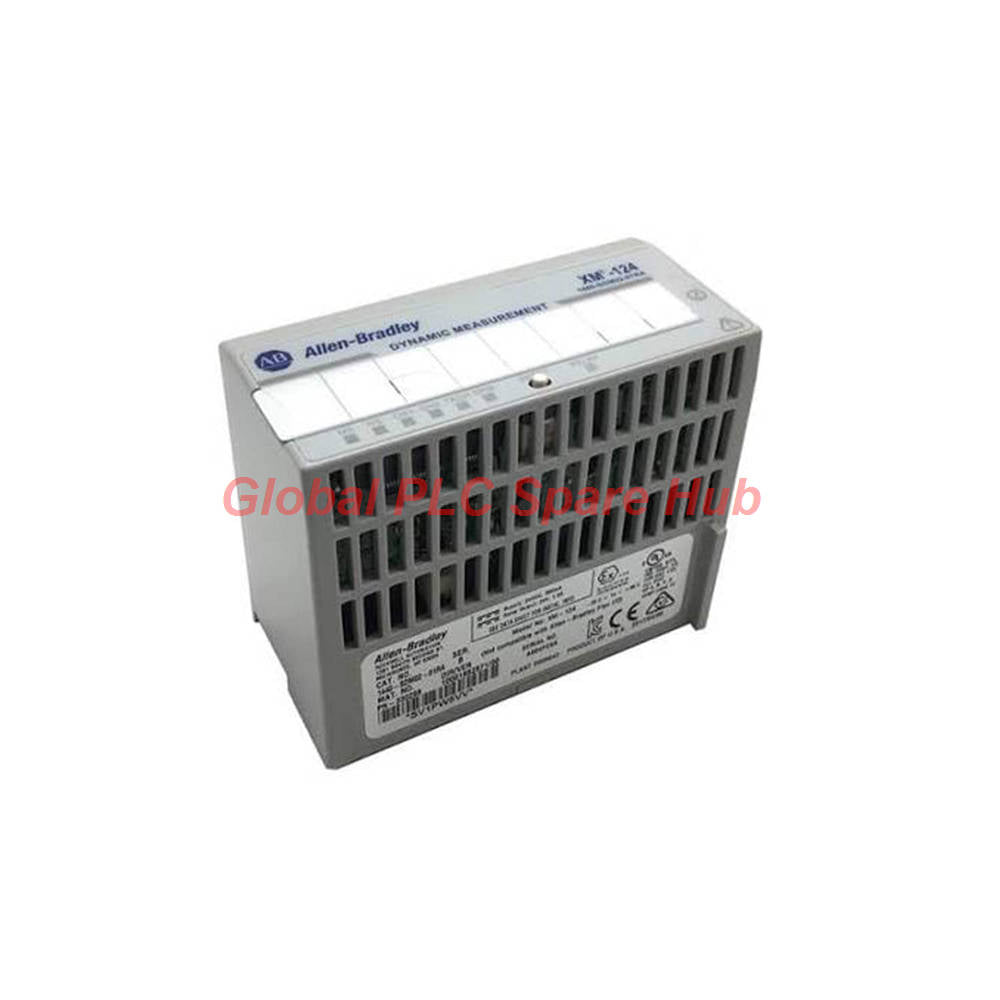

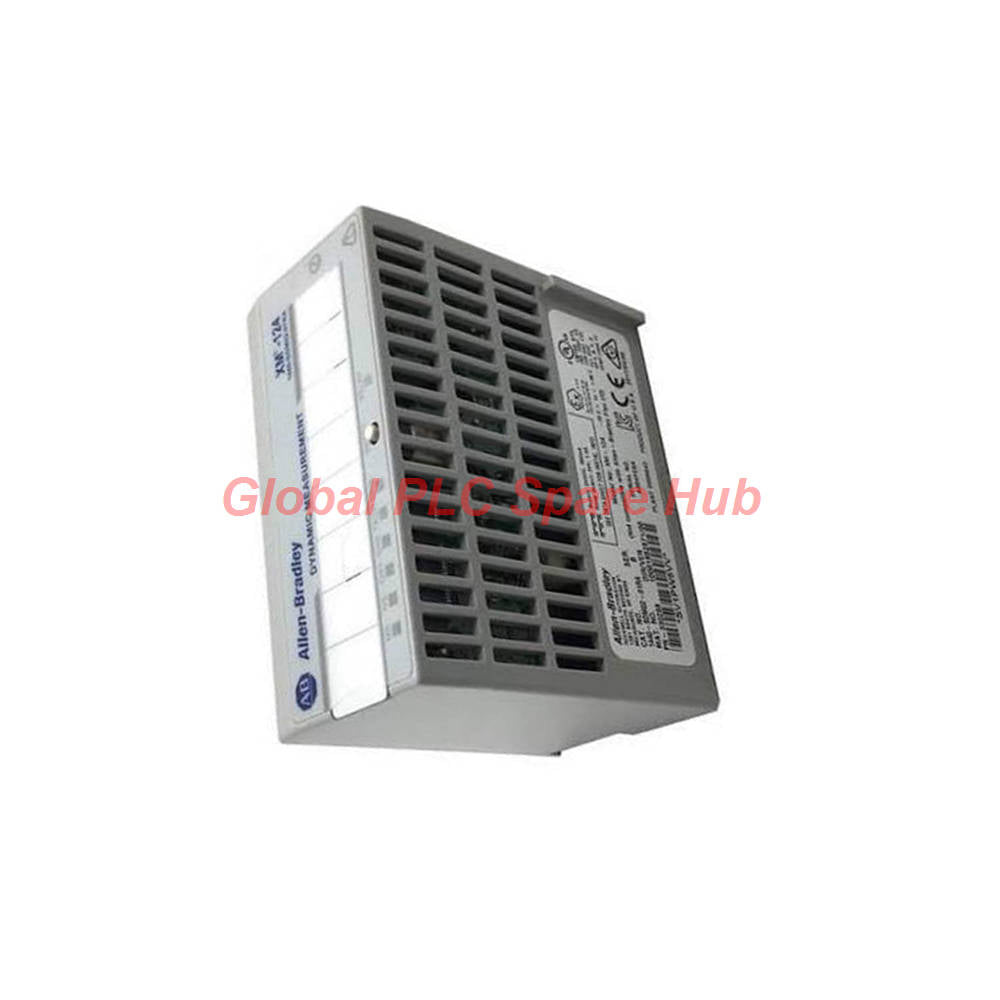

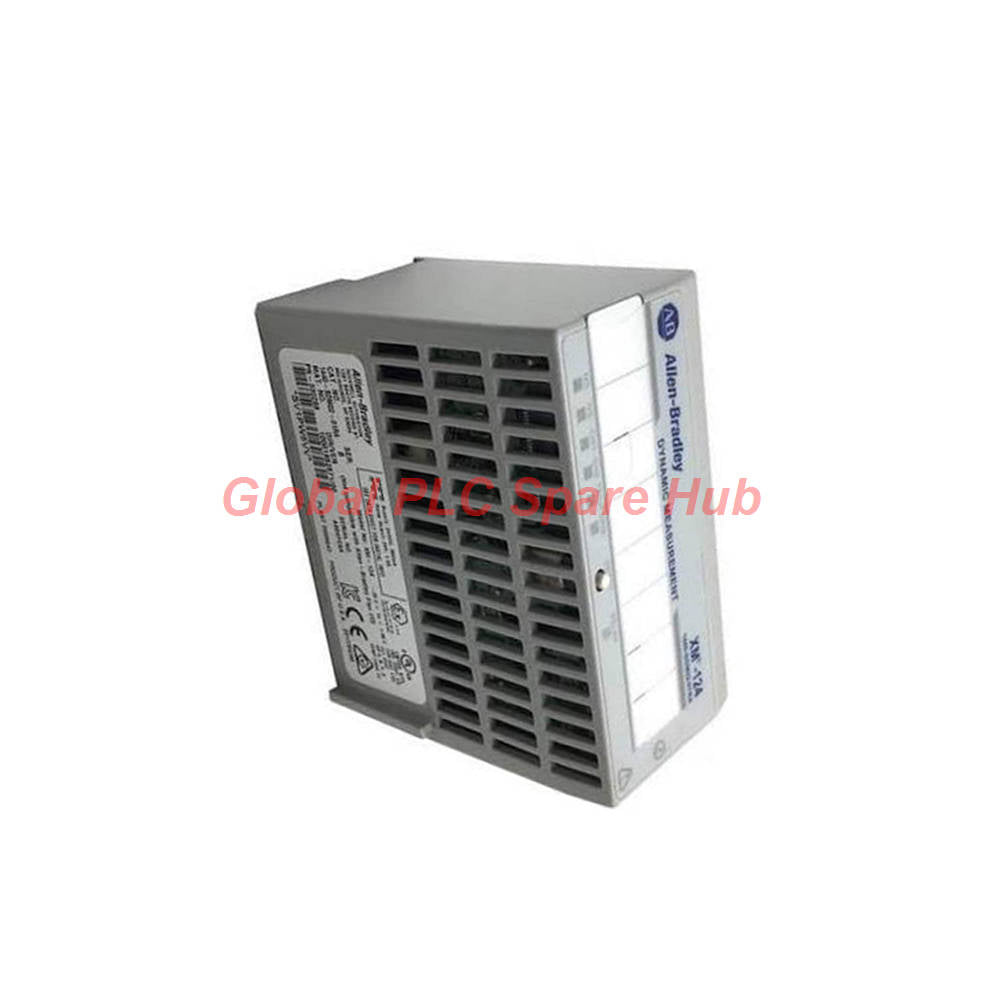

Allen-Bradley 1440-SDM02-01RA XM-124 Dynamic Measurement Module

Product Overview

The 1440-SDM02-01RA is a high-performance module within the Allen-Bradley XM-124 series. This unit provides critical dynamic measurement capabilities for industrial machinery protection and condition monitoring. It effectively processes signals from diverse sources, including eddy current probes, accelerometers, and velocity transducers, to ensure reliable plant operation.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1440-SDM02-01RA
• Series: XM-124 Dynamic Measurement Module
• Measurement Range: 0.0167 to 20,000 Hz frequency response
• Input Channels: Two dynamic inputs for transducers; one dedicated tachometer input
• Input Impedance: > 100 kΩ (Measurement); > 120 kΩ (Tachometer)
• Sensitivity: Adjustable up to 15% from nominal values
• Signal Output: Two isolated 4-20 mA outputs; 300 Ω maximum load
• Environmental Tolerance: Engineered for high resistance to electromagnetic interference and industrial noise
• Power Requirements: 24V DC, 350 mA (Requires Class 2/SELV/PELV power supply)

Installation and Maintenance

• Mount the module onto the compatible XM-124 terminal base.
• Verify all wiring adheres to SELV/PELV electrical safety standards.
• Utilize integrated diagnostic tools for rapid system health status checks.
• Perform routine cable inspections to maintain transducer signal fidelity.
• Leverage the modular design for simplified field troubleshooting and unit replacement.

Compatibility and Certification

• Universal compatibility with standard industry proximity probes and IEPE accelerometers.
• Seamless integration with existing XM-124 series system architectures.
• Designed to comply with rigorous international industrial safety and electromagnetic compatibility standards.

Typical Applications and Diagnostics

• Industrial Applications: Critical monitoring for turbines, centrifugal compressors, fans, and pumps.
• Diagnostic Capacity: Detects shaft displacement, vibration anomalies, and rotational speed deviations.
• Predictive Maintenance: Provides essential data for early-stage equipment failure identification.

Shipping and Warranty

• Shipping Logistics: We ship via FedEx, UPS, or DHL for efficient delivery.
• Dispatch Time: Orders are processed and shipped within 24-48 hours.
• Package Contents: 1440-SDM02-01RA module and matching terminal base.
• Warranty: Includes a comprehensive 12-month quality assurance guarantee.

Frequently Asked Questions (FAQ)

Q: Is this module compatible with existing IEPE accelerometers?
A: Yes, the 1440-SDM02-01RA supports IEPE transducer power requirements directly.

Q: How do I manage high levels of ambient electrical noise?
A: Use high-quality shielded cabling and verify that the XM-124 chassis is properly bonded to the system ground.

Q: What is the primary advantage of the isolated current outputs?
A: Isolated outputs eliminate ground loops, ensuring signal integrity in complex distributed control systems.

Buying Guide

When purchasing the 1440-SDM02-01RA, confirm that your transducer type matches the module's voltage and current configurations. Ensure your existing terminal base is compatible with the XM-124 architecture. Our technical team is available to assist with configuration requirements.

Global PLC Spare HUB Insight

The 1440-SDM02-01RA is a top-tier choice for vibration monitoring in mission-critical assets. Global PLC Spare HUB recommends this unit for integration into Allen-Bradley machinery protection systems. Its robust design and versatile input handling make it ideal for high-speed rotating equipment in power generation and petrochemical facilities.
