AI910B S900 I/O ABB 3KDE175512L9100 | Zone 2 Intrinsically Safe

Product Overview

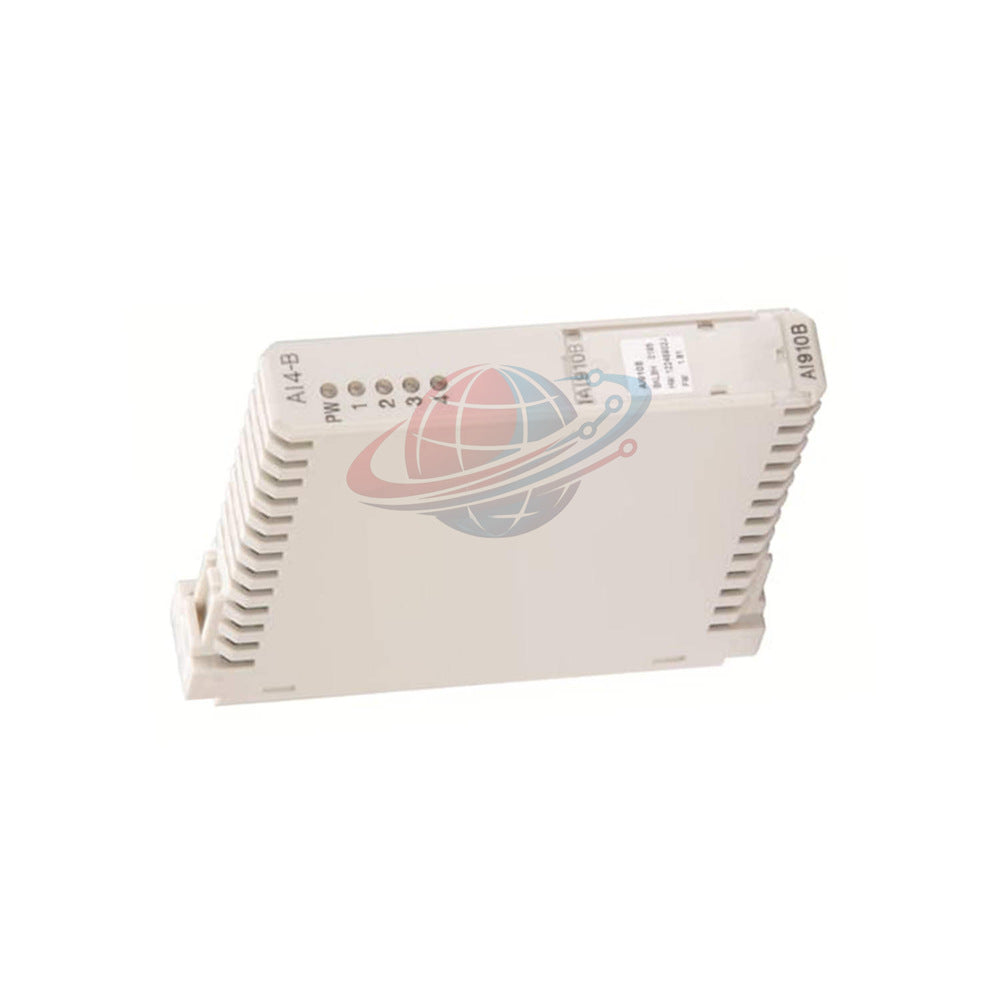

• The AI910B (3KDE175512L9100) is a 4-channel analog input module for the ABB S900 I/O system.
• It is specifically classified as Type B, suitable for installation in ATEX Zone 2 hazardous areas.
• This module provides power and signal processing for 4...20 mA loop-powered 2-wire field transmitters.
• Designed for high-reliability industrial use, it features G3 conformal coating for protection against corrosive atmospheres.

Technical Specifications

• Brand: ABB
• Model: AI910B
• Article Number: 3KDE175512L9100
• Signal Type: 4...20 mA (4 Channels)
• Hazardous Area: ATEX Zone 2 (Module) / Zones 0, 1, 2 (Field Devices)
• Safety Feature: Intrinsically Safe (IS) inputs
• Operating Temp: -20 °C to +60 °C
• Communication: PROFIBUS DP (via S900 Bus Coupler)
• Mechanical: 20mm width, 104mm height/depth, 0.13 kg weight
• Protection: ISA-S71.04 G3 Conformal Coating

Diagnostic & Maintenance Capabilities

• The AI910B provides real-time "Short and Break" detection for every individual loop.
• Supports Hot Swap functionality, allowing module replacement without powering down the I/O station.
• Hot Configuration in Run (HCIR) enables parameter changes without interrupting the control process.
• Advanced FDT/DTM integration allows for comprehensive remote diagnostics and asset management.

Typical Application Scenarios

• Remote I/O stations in Oil & Gas refineries for pressure and level monitoring.
• Chemical processing plants requiring intrinsically safe inputs in corrosive environments.
• Distributed control in large-scale wastewater treatment facilities using PROFIBUS DP.
• Replacement of bulky marshalling cabinets by placing AI910B modules closer to the field devices in Zone 2.

Global PLC Spare HUB’s Insight

• The AI910B is a "best-in-class" solution for minimizing installation footprint in hazardous areas.
• Our engineers highlight the electrical isolation between the bus and the power supply as a key factor in preventing system-wide faults from a single loop failure.
• The S900 I/O platform is renowned for its sturdiness and "error-tolerant" design, making it a reliable choice for critical infrastructure.

Shipping & Warranty Terms

• Warranty: 12-month professional quality guarantee on all AI910B units.
• Express Logistics: Global delivery via FedEx, UPS, or DHL.
• Dispatch Time: Orders typically ship within 24 to 48 hours.
• Packaging: Securely packed for international transit to maintain component integrity.

Expert FAQ & Selection Tips

• What is the difference between AI910B and AI910S?
• AI910B is for Zone 2 installation, while the AI910S is designed for Zone 1 installation. Both can connect to Zone 0 field devices.
• Does this module require a separate power supply for the transmitters?
• No, the AI910B supplies the 24V loop power directly to the 2-wire transmitters.
• How do I handle the common return wiring?
• All four channels share a common return; ensure your field loop documentation accounts for this shared reference.
• Can I use this module for SIL-rated safety loops?
• Check your specific TUV/safety manual; while S900 is highly reliable, specific SIL loops may require the S900 Safety series modules.
• What happens if a field wire breaks?
• The AI910B will immediately trigger a diagnostic alarm via the PROFIBUS master, identifying the specific channel at fault.
