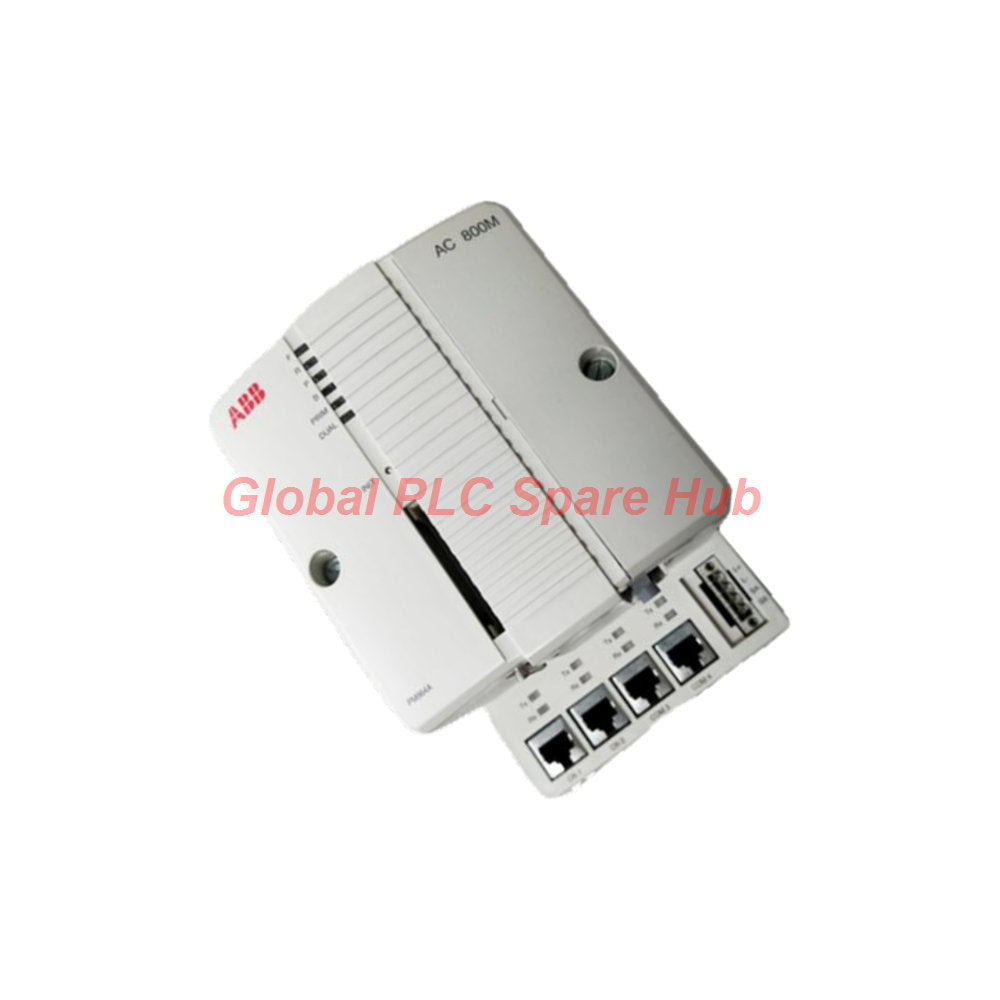

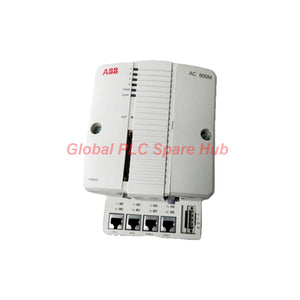

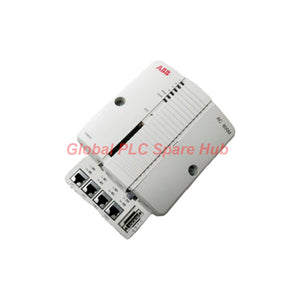

ABB PM866K01 Processor Module AC 800M Series

Product Overview

The ABB PM866K01 is a high-performance central processing unit designed for the AC 800M controller family. This PM866K01 processor features an MPC866 microprocessor operating at 133 MHz. The PM866K01 controller includes 64 MB of SDRAM and 4 MB of flash PROM for firmware storage. Engineers use the PM866K01 module for demanding industrial automation applications. The PM866K01 CPU supports reliable data handling and system redundancy.

Technical Specifications

The PM866K01 technical parameters adhere to strict industrial standards.

Installation Guide

• Mount the PM866K01 securely onto a standard DIN-rail.
• Ensure proper clearance for the 135 mm depth from the wall.
• Connect power inputs to the four-pin screw connector using terminals L+ and L–.
• Wire redundant power supply status inputs to terminals SA and SB.
• Connect up to twelve S800 I/O units to the electrical ModuleBus.
• Utilize the dual Ethernet ports (CN1 and CN2) for network connectivity.

Commissioning and Maintenance

• Verify supply voltage remains within the 19.2 V DC to 30 V DC range before startup.
• Monitor redundant power supply status via high-level (minimum 15 V) and low-level (maximum 8 V) thresholds.
• Use the Compact Flash interface to load application software and cold retain data storage.
• Allow approximately 7 hours to recharge an empty backup battery completely.
• Check the serial port COM4 regularly when using external service tools.

Compatibility and Diagnostic Capabilities

• Fully compatible with ABB AC 800M system hardware and S800 I/O modules.
• Supports Redundancy Control Link for high-availability system configurations.
• Built-in diagnostic status inputs monitor power supply stability continuously.
• Provides reliable error detection through integrated communication port monitoring.

Certifications and Warranty

• Certified to meet IP20 protection standards under EN60529 and IEC 529.
• Backed by a comprehensive 12-month quality warranty from the date of purchase.

Packaging and Logistics

• Package includes one PM866K01 CPU controller unit with factory protective boxing.
• Guaranteed fast dispatch within 24 to 48 hours from order confirmation.
• Secure global delivery shipped via trusted carriers including FedEx, UPS, and DHL.

Typical Application Sites

• Large-scale power generation and distribution facilities.
• Continuous chemical and petrochemical processing plants.
• Advanced discrete manufacturing and assembly automation lines.
• Water and wastewater treatment control systems.

Global PLC Spare HUB's Insight

Global PLC Spare HUB engineers note that managing power supply stability is critical when deploying the PM866K01 in high-vibration industrial zones. Field technicians often pair the PM866K01 with external battery modules like the SB821 to extend backup protection during unexpected plant power outages. Proper grounding of the DIN-rail significantly reduces electrical noise interference on the serial and Ethernet ports.

Frequently Asked Questions

Q: What is the primary function of the PM866K01 module?
A: The PM866K01 serves as the central processing unit for ABB AC 800M controllers, managing system execution and I/O communication.

Q: How long does the internal battery sustain memory backup?
A: The internal battery provides a minimum of 158 hours of backup power for stored data.

Q: Can the PM866K01 support redundant system setups?
A: Yes, the module includes a Redundancy Control Link specifically designed for redundant controller configurations.

Q: What shipping carriers are used for orders?
A: All orders are dispatched within 24 to 48 hours using reliable carriers including FedEx, UPS, and DHL.

Q: What warranty is included with the PM866K01?
A: Every unit comes with a full 12-month warranty covering manufacturing defects.
