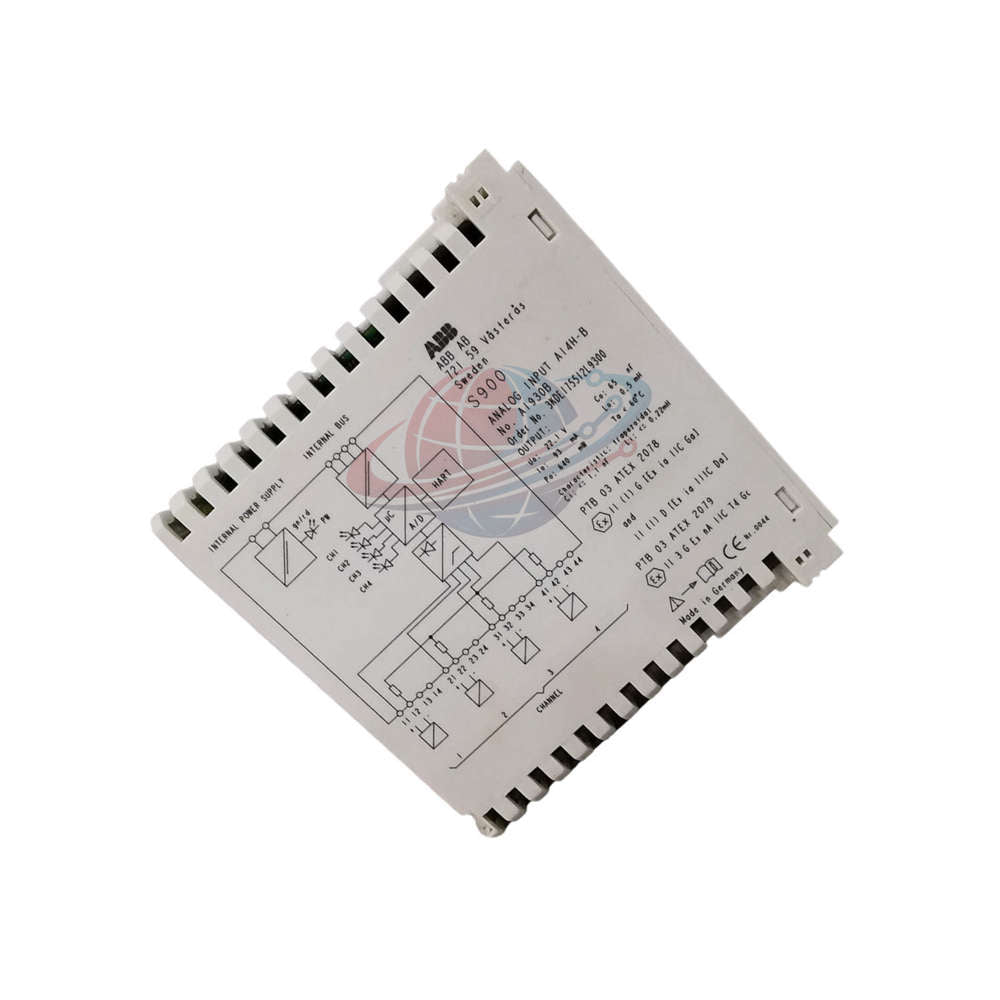

ABB AI930B 3KDE175512L9300 S900 Series Analog Input Module

Product Overview

• The AI930B (3KDE175512L9300) is a high-performance analog input module for the S900 Remote I/O system.
• It provides 4 channels of 4...20 mA signal processing with integrated power supply for 2-wire transmitters.
• Engineered for ATEX Zone 2 hazardous locations, it supports intrinsically safe field connections.
• The AI930B features G3-rated coating to ensure reliability in corrosive industrial environments.
• Full HART protocol support allows for deep diagnostic access to connected field instruments.

Technical Specifications

• Brand: ABB
• Model: AI930B
• Part Number: 3KDE175512L9300
• Channel Count: 4 Isolated Analog Inputs.
• Signal Range: 4...20 mA standard current loop.
• Fieldbus Communication: PROFIBUS DP via S900 bus interface.
• Hazardous Area Rating: ATEX Zone 2 / Intrinsically Safe inputs.
• Environmental Protection: ISA-S71.04 G3 Conformal Coating.
• Operating Temperature: -20 °C to +60 °C for extreme industrial climates.
• Diagnostic Detection: Integrated wire-break and short-circuit monitoring.

Engineering Advantages

• Zero-Downtime Maintenance: Hot-swap and Hot Configuration in Run (HCIR) functionality.
• Reduced Wiring Costs: Field-mounted design eliminates the need for expensive marshalling cabinets.
• HART Integration: Pass-through of HART frames for cyclic and acyclic data variables.
• Robust Architecture: Electrical isolation between bus, power, and individual input channels.

Global PLC Spare HUB's Insight

• The AI930B is a vital component for ABB 800xA users looking to extend their I/O into hazardous zones.
• Its ability to power loop-fed transmitters directly simplifies the field wiring architecture significantly.
• We recommend the AI930B for offshore and chemical platforms where G3 corrosive protection is mandatory.
• This module represents a durable, long-cycle spare part for existing S900 infrastructure.

Logistics & Warranty

• Shipping Carriers: Global express delivery via FedEx, UPS, and DHL.
• Handling Time: Guaranteed dispatch within 24-48 hours.
• Warranty Protection: Standard 12-month industrial warranty included.
• Condition: 100% Brand New and Original in factory box.

Frequently Asked Questions (FAQ)

• Question: Is the AI930B compatible with 4-wire transmitters?
• Answer: This specific AI930B model is designed for 2-wire loop-powered transmitters; 4-wire devices may require an external power source.
• Question: What happens to the process if the AI930B module is removed?
• Answer: The S900 system’s Hot Swap feature allows you to pull the module without disrupting power or communication to other modules on the rack.
• Question: How does G3 coating improve the 3KDE175512L9300’s reliability?
• Answer: It protects the internal circuitry of the AI930B from moisture, dust, and atmospheric pollutants that cause electrical shorts.
• Question: Does the module support Sequence of Events (SOE)?
• Answer: No, the AI930B is a standard analog input module; SOE is typically reserved for specialized digital input modules.
• Selection Guide: Why choose Type B (AI930B) over other variants?
• Answer: Choose the AI930B when your I/O rack is located in Zone 2 but needs to interface with sensors located in Zone 0 or 1.
