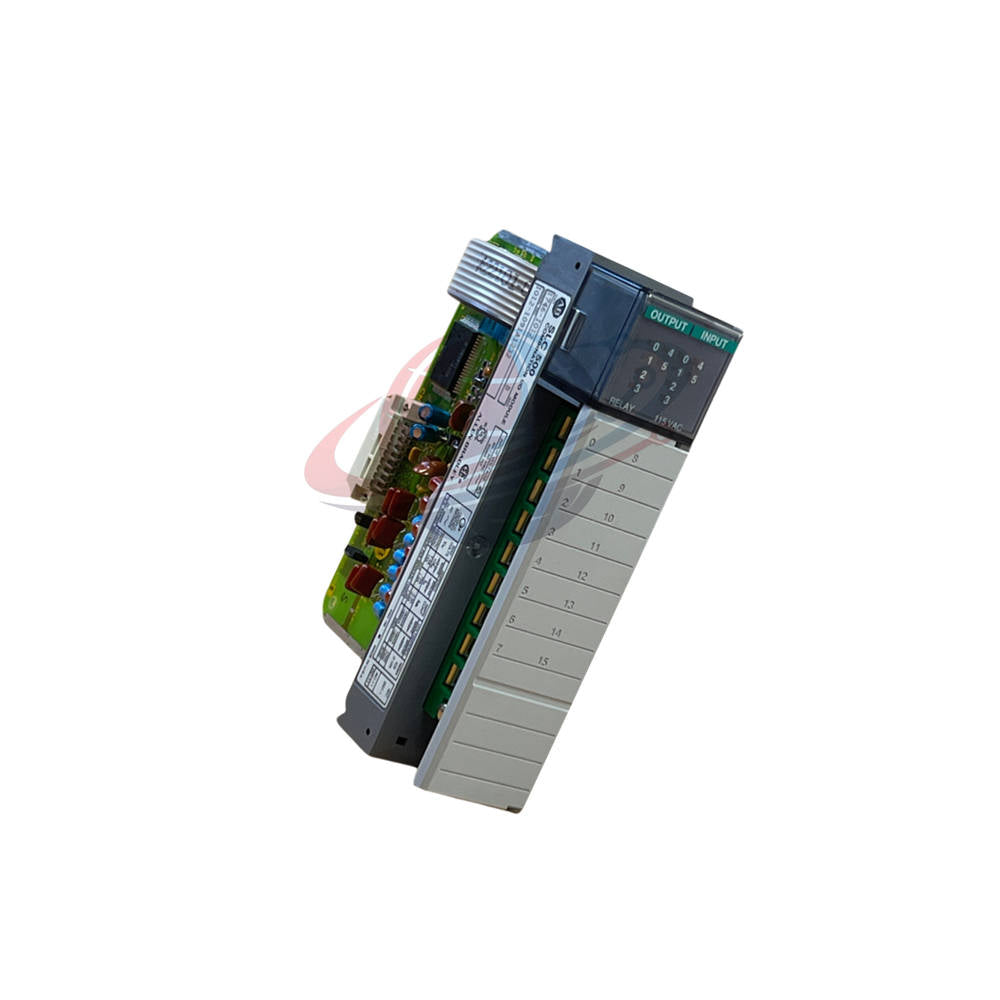

AB 1746-IO12 SLC 500 Combination I/O Module 120VAC 6-In 6-Out Relay

Product Overview

The Allen-Bradley 1746-IO12 serves as a high-efficiency digital combination module for the SLC 500 series. This hardware integrates six 120V AC input channels and six Form A relay outputs into one unit. It optimizes cabinet space by occupying only a single slot in the SLC 500 chassis. Engineers choose the 1746-IO12 for reliable interlocking and control in dense automation environments.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1746-IO12
• Series: SLC 500 Controller Platform
• Module Type: Digital I/O Combination Module
• Input Measurement Range: 85-132V AC (120V AC nominal)
• Output Operating Voltage: 5-265V AC / 5-125V DC
• Frequency Response: 47-63 Hz for AC operations
• Resolution/Capacity: 6 Inputs and 6 Form A (N.O.) Relay Outputs
• Current Sensitivity: 1.5A per output at 120V AC / 1.2A at 24V DC
• Linearity/Continuous Current: 8.0A maximum aggregate current per module
• Temperature Range (Operating): 0 to 60 °C (32 to 140 °F)
• Temperature Range (Storage): -40 to 85 °C (-40 to 185 °F)
• Environmental Tolerance: 5-95% relative humidity (non-condensing)
• Noise Immunity: NEMA Standard ICS 2-230 rated
• Vibration Resistance: 2.5G at 57-200Hz
• Shock Resistance: 30G operational shock rating
• Isolation: 1500V Electro-optical isolation between I/O and logic

Global PLC Spare HUB's Insight

The 1746-IO12 is an essential bridge for legacy SLC 500 systems. Engineering teams value this module for its dual-functionality which reduces hardware overhead. It effectively mimics the performance of the 1746-IA16 input stage and 1746-OW8 relay characteristics. This module suits various industrial devices including motor starters, solenoid valves, and indicator panels.

Installation and Maintenance Guide

• Inspect the SLC 500 chassis for debris before inserting the module.
• Slide the 1746-IO12 into any available slot except slot 0.
• Secure the module using the top and bottom chassis latches.
• Always disconnect power before removing or installing I/O modules.
• Verify terminal screw tightness to prevent signal loss from vibration.
• Perform annual loop validation to ensure relay contact integrity.

Compatibility and Certification

• System Compatibility: Fully compatible with all SLC 500 fixed and modular chassis.
• Expansion Capability: Works in local or remote I/O racks.
• Certifications: CSA certified for Class 1, Division 2 hazardous locations.
• Compliance: Meets standard NEMA and industrial automation safety protocols.

Shipping and Warranty

• Packaging List: One (1) Allen-Bradley 1746-IO12 Module.
• Warranty Terms: Includes a comprehensive 12-month quality guarantee.
• Express Delivery: Worldwide shipping via FedEx, UPS, and DHL.
• Lead Time: Orders dispatch within 24-48 hours of payment confirmation.

Typical Application Scenarios

• Material handling conveyor systems requiring AC sensing and relay switching.
• Water treatment facilities using 120V AC float switches and pump starters.
• Food and beverage packaging lines with high-density I/O requirements.
• Hazardous location monitoring where Class 1 Div 2 certification is mandatory.

Diagnostic Capabilities

• LED Indicators: Front panel status lights display individual I/O point activity.
• Backplane Monitoring: Integrated logic detects communication loss with the processor.
• Physical Inspection: Modular design allows quick visual verification of terminal blocks.

Frequently Asked Questions (FAQ)

Question: How do I handle a failed relay on the 1746-IO12?

Answer: You must replace the entire module as the internal relays are not field-serviceable.

Question: Can I use different voltages on the relay outputs?

Answer: Yes, the relay contacts are isolated, allowing for mixed AC and DC loads.

Question: Does the 1746-IO12 require external power for the logic side?

Answer: No, the module draws its 5V and 24V DC logic power directly from the backplane.

Question: What is the benefit of the Form A contact type?

Answer: Form A provides a simple Normally-Open contact ideal for standard on/off control logic.

Buying Guide

• Verify your voltage requirements match the 85-132V AC input window.
• Check your total current draw against the 8.0A module continuous limit.
• Confirm your chassis has an open slot to accommodate the SLC 500 form factor.
• Select this module if you need to save space by combining inputs and outputs.
