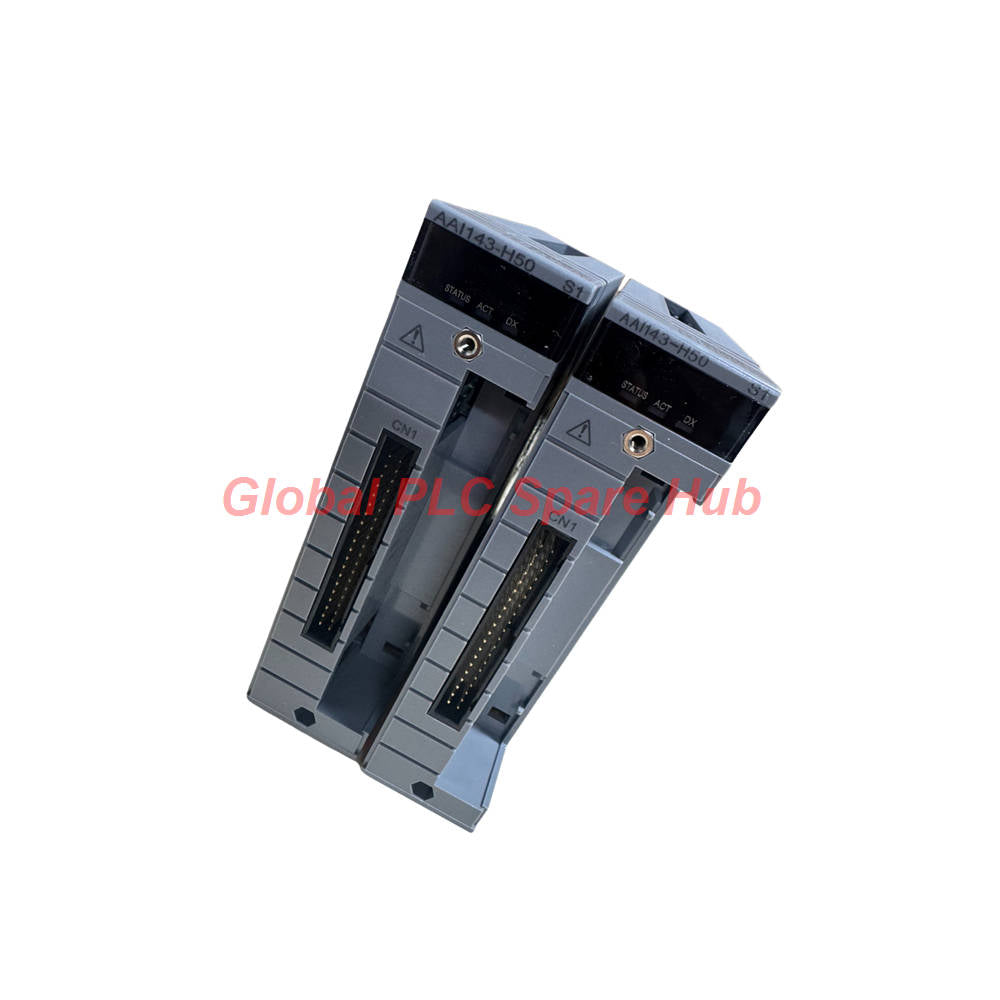

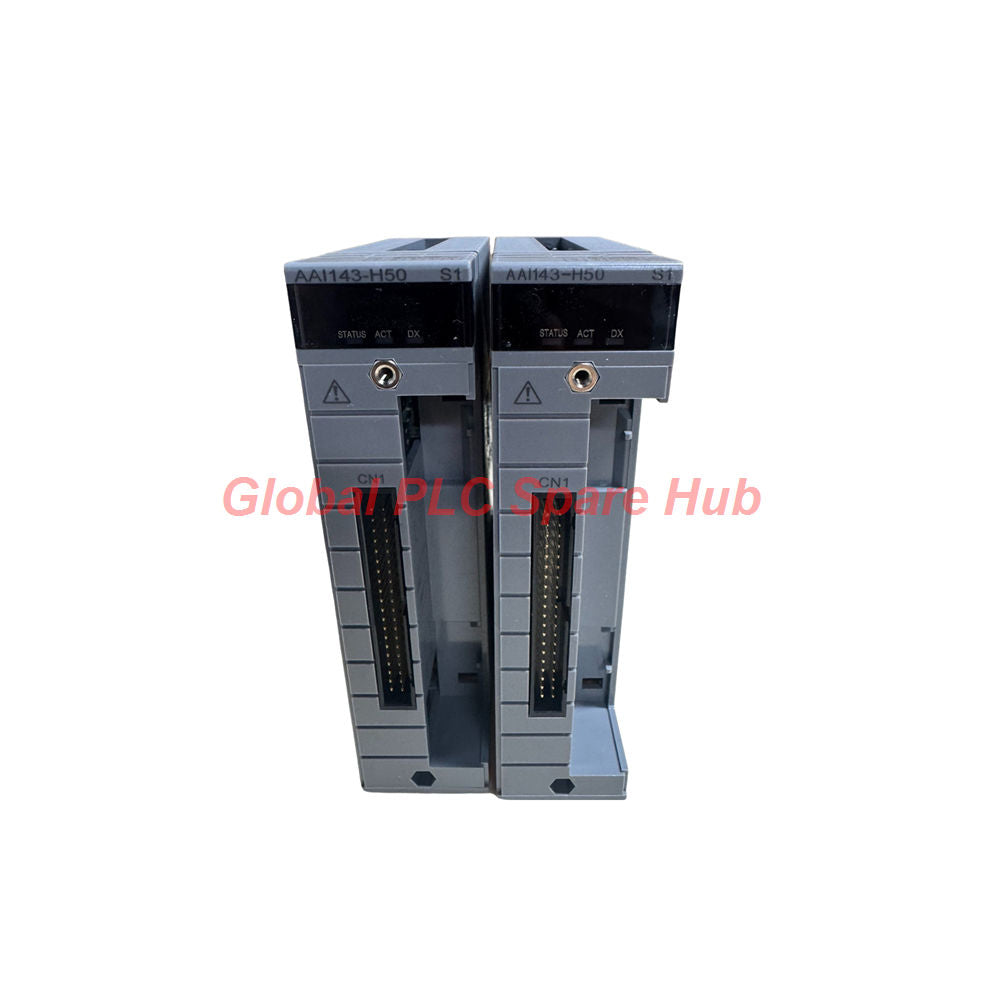

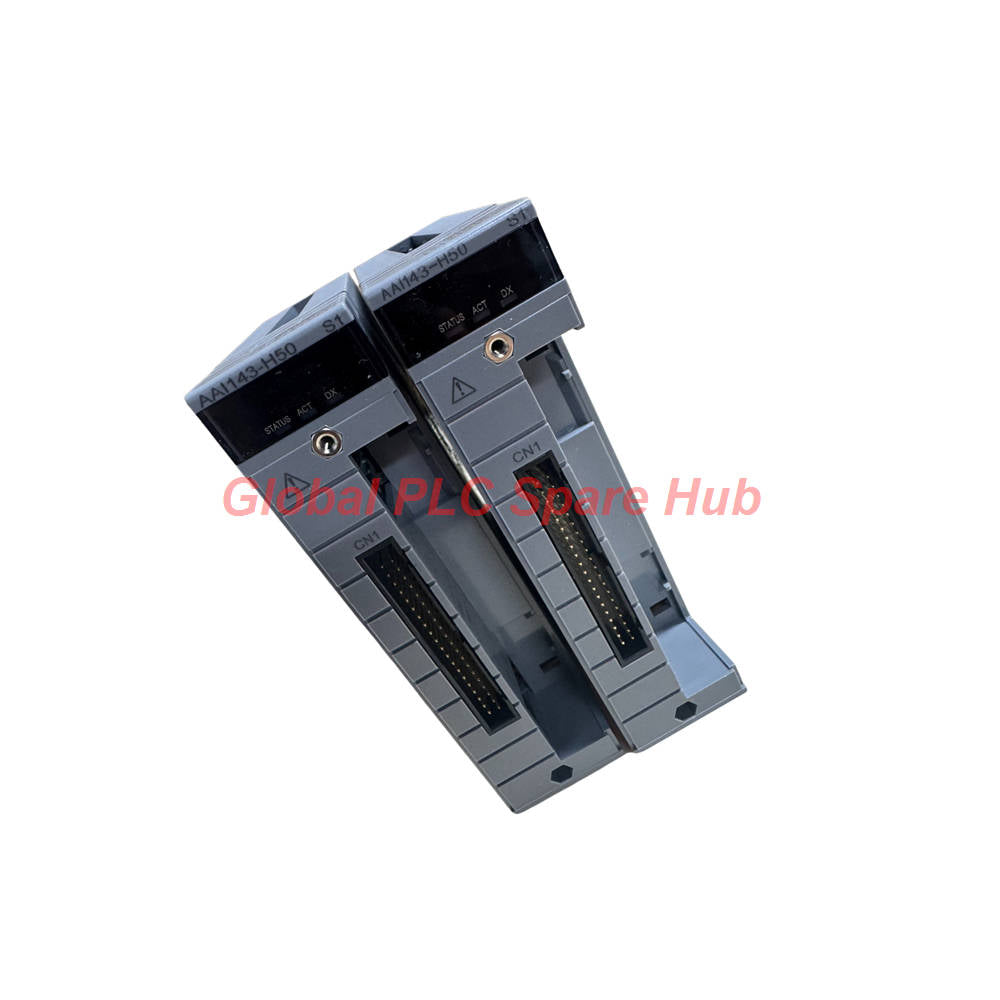

Yokogawa AAI143-H50 Analog Input Module — Product Overview

The Yokogawa AAI143-H50 is a 16-channel analog input module designed to acquire industrial 4–20 mA signals. Each input channel is isolated, supporting signal acquisition in process automation applications where channel separation is important.

The module supports HART communication, allowing compatible field instruments to provide digital communication alongside their analog measurement signals. Its 10 ms data update period supports process monitoring and control tasks that require regular analog data refresh.

For project selection, engineers should confirm the host system, module installation requirements, transmitter wiring, and HART communication path before ordering.

1. Configuration Breakdown — AAI143-H50

Code Configuration meaning Engineering consideration
AAI143 Analog input module family 16 isolated input channels for 4–20 mA signals.
H Digital communication with HART protocol Confirm HART support across the field instrument, module configuration, and host system.
5 Configuration without explosion protection Check the installation area's hazardous-area classification and applicable project requirements.
0 Basic type Verify the complete ordering code against the installed system and project documentation.

Selection note: The suffix interpretation above follows the supplied product information. Confirm the complete ordering code and applicable installation requirements before replacing or specifying a module.

2. Technical Specifications

Parameter Specification
Manufacturer Yokogawa
Model AAI143-H50
Module type AAI143 analog input module
Number of input channels 16, isolated
Input signal 4–20 mA
Allowable input current 24 mA
Accuracy ±16 µA
Data update period 10 ms
Input-to-system withstand voltage 1500 V AC for 1 minute
Input resistance, power ON 270 Ω at 20 mA to 350 Ω at 4 mA
Input resistance, power OFF 500 kΩ or greater
Transmitter power supply 19.0 V or higher at 20 mA; 25.5 V or less at 0 mA
Transmitter output current limit 25 mA
Transmitter type selection 2-wire or 4-wire, selectable per channel using a setting pin
Ambient-temperature drift ±16 µA per 10°C change
Maximum 5 V DC current consumption 230 mA
Maximum 24 V DC current consumption 540 mA
External connection options Pressure-clamp terminal, MIL connector cable, or dedicated KS1 cable
HART communication Available
Weight 0.3 kg

Specification note: Accuracy and drift are reproduced from the supplied data. Confirm the manufacturer's applicable measurement conditions and installation documentation when evaluating measurement uncertainty.

3. Signal Architecture and Wiring Considerations

The AAI143-H50 converts field current signals into analog input data for use by a compatible control system. Its 16 isolated channels allow multiple measurement points to be acquired through one module.

  • 4–20 mA measurement: Suitable for compatible transmitters that represent process variables through a current loop.
  • Channel isolation: Supports separation between input channels and the system as specified. Do not interpret the input-to-system withstand-voltage rating as proof of every possible channel-to-channel isolation condition.
  • 2-wire and 4-wire transmitters: Select the correct setting pin position for each channel. Confirm the transmitter wiring diagram and power requirements before energizing the loop.
  • HART communication: Check the field device's HART configuration, wiring arrangement, and host-system support. HART availability on the module alone does not guarantee that every host can access all digital device variables.
  • Connector selection: Match the terminal or cable arrangement to the installed base unit and system wiring design.

4. Suitable Equipment and Industrial Applications

Application area Typical field instruments What the module acquires
Process measurement Pressure and differential-pressure transmitters 4–20 mA process measurement signals
Flow monitoring Compatible flow transmitters Flow-related current signals
Tank and vessel monitoring Level transmitters Level-related analog measurements
Temperature monitoring Temperature transmitters with 4–20 mA outputs Conditioned temperature measurement signals
Utility and equipment monitoring Compatible pressure, flow, or other process transmitters Analog measurements used for operator displays, alarms, and control logic

System compatibility: Confirm the target Yokogawa control-system platform, base unit, slot assignment, configuration software, and system revision. Do not assume compatibility with every Yokogawa controller or I/O subsystem based solely on the AAI143 model family.

5. Diagnostic Capability and Troubleshooting

The AAI143-H50 provides an analog acquisition path and supports HART communication. Effective troubleshooting also depends on transmitter condition, loop wiring, module configuration, and host-system diagnostics.

Observed symptom Potential causes Recommended checks
Input value remains at zero or does not change Open loop, incorrect wiring, transmitter power issue, or channel configuration error Measure loop current, verify terminal connections, and confirm the channel setting.
Measurement differs from the field instrument Incorrect scaling, loop-current error, wiring resistance, or instrument calibration issue Compare the measured loop current with the configured engineering range and host scaling.
HART communication is unavailable Unsupported host path, wiring issue, incompatible field device configuration, or communication setup error Verify HART support end to end, check loop wiring, and review the host configuration.
Several channels show abnormal readings Common wiring or power issue, configuration errors, or a system-side problem Compare affected channels, inspect shared connections, and review system diagnostics.

Diagnostic limitation: The specifications supplied do not establish a complete list of onboard alarms, status indicators, wire-break detection functions, or channel fault codes. Verify these functions in the applicable Yokogawa documentation rather than assuming they are available.

6. Global PLC Spare HUB's Insight

When evaluating an AAI143-H50 for a plant maintenance or replacement project, Global PLC Spare HUB recommends checking the signal path before changing hardware. A mismatch between transmitter type, channel setting, and host scaling can produce incorrect readings even when the module itself is operational.

  • Before replacement: Record the existing module suffix, system slot, channel assignments, and connected transmitter types.
  • During commissioning: Confirm loop current at representative operating points and compare it with the control-system engineering value.
  • For HART projects: Test digital communication through the actual host or maintenance tool intended for use. Do not rely solely on the module's HART specification.
  • For isolation-sensitive installations: Review the complete wiring and grounding design alongside the manufacturer's isolation ratings.

For example, if one pressure measurement appears incorrect after a module replacement, first verify the channel's 2-wire or 4-wire setting and loop current. Then check host scaling and HART access before concluding that the module is defective.

7. Installation and Replacement Checklist

  1. Verify the full part number: AAI143-H50.
  2. Confirm the installed control-system platform, base unit, and supported module revision.
  3. Compare the existing wiring method with the required terminal or cable arrangement.
  4. Check the per-channel setting for the connected 2-wire or 4-wire transmitter.
  5. Verify the loop supply, maximum current, and expected 4–20 mA operating range.
  6. Confirm that the required HART functions are supported by the field device and host system.
  7. Follow site procedures for isolation, removal, installation, and commissioning.

8. Frequently Asked Questions

Q1: Can the AAI143-H50 accept voltage signals directly?

No. The supplied specification identifies a 4–20 mA input. A voltage-output instrument requires an appropriate signal-conditioning solution unless the system design explicitly supports conversion before the module input.

Q2: How should I choose between 2-wire and 4-wire transmitter wiring?

Start with the field instrument's wiring diagram and power arrangement. Select the corresponding channel setting pin position, then verify loop current and transmitter supply requirements during commissioning.

Q3: Does HART support mean I can access every transmitter parameter from the control room?

Not necessarily. The module is specified as supporting HART communication, but access to digital variables depends on the host system, communication path, software, and field instrument. Confirm the required HART functions before purchase.

Q4: What should I check when replacing an existing AAI143 module?

Match the complete suffix, base unit, slot, wiring accessories, transmitter configuration, and host-system revision. Also confirm whether the application requires HART and whether its installation area has specific protection requirements.

Q5: What information should I provide when requesting a quotation?

Provide the complete model number, required quantity, target system or controller family, existing module part number if replacing a unit, and delivery destination. Include the connector or cable arrangement and any HART or installation-protection requirements to reduce selection errors.

9. Packaging, Shipping, and Warranty

  • Packaging: Packed for transport to help protect the module during handling and shipment.
  • Shipping options: FedEx, UPS, or DHL, subject to destination, carrier service availability, and order arrangements.
  • Dispatch estimate: Typically 24–48 hours after stock status and order details are confirmed. Actual dispatch timing depends on availability and order processing.
  • Warranty: 12-month seller warranty, subject to the written warranty terms and conditions provided with the order.
  • Before ordering: Contact Global PLC Spare HUB to confirm availability, the supplied configuration, shipping arrangements, and warranty coverage.

Request a Quote: Contact Global PLC Spare HUB for pricing and availability for the Yokogawa AAI143-H50. Share your system details and replacement requirements to help confirm the correct configuration.
