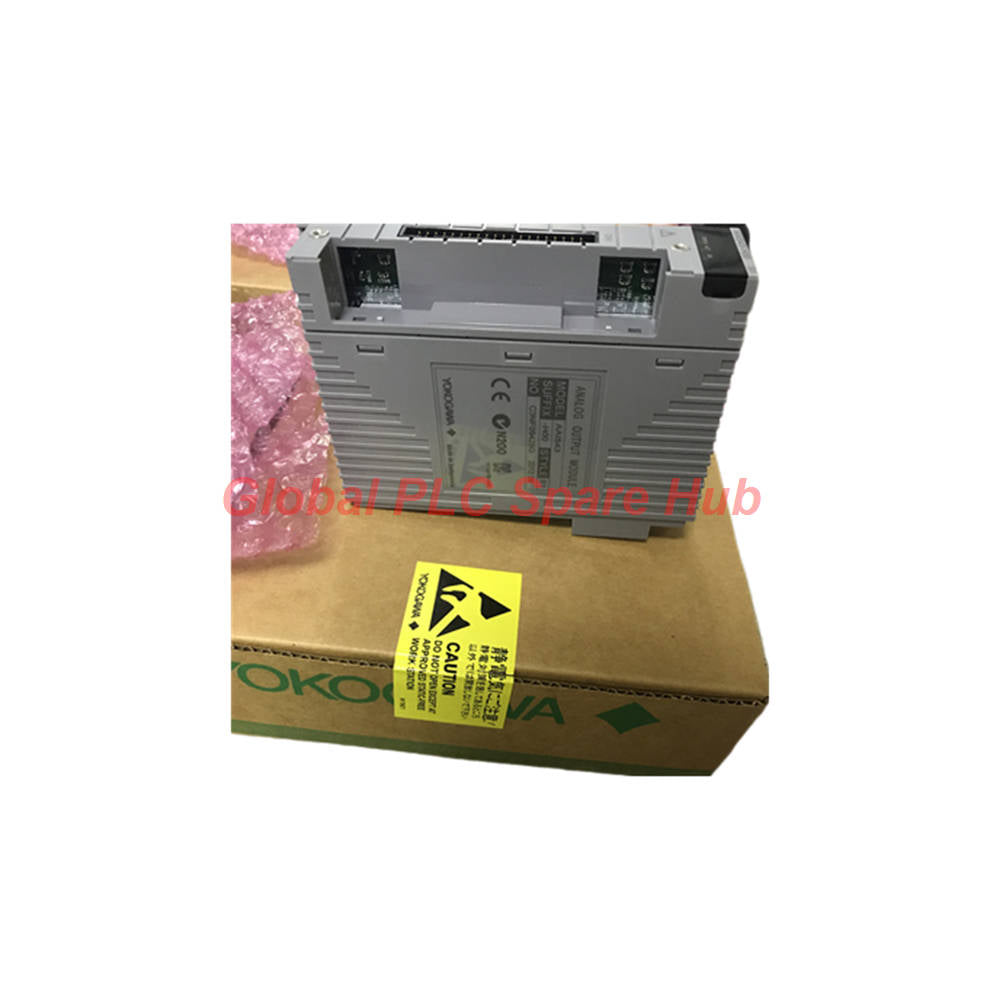

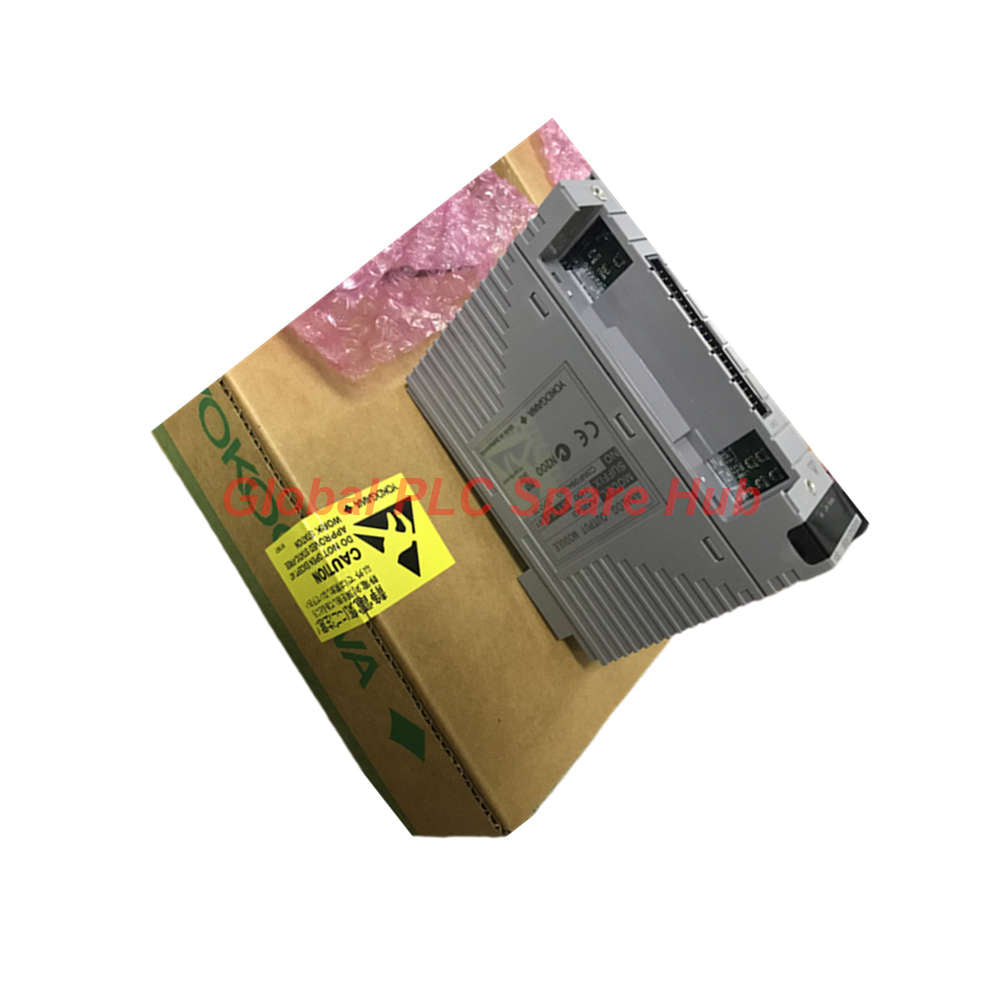

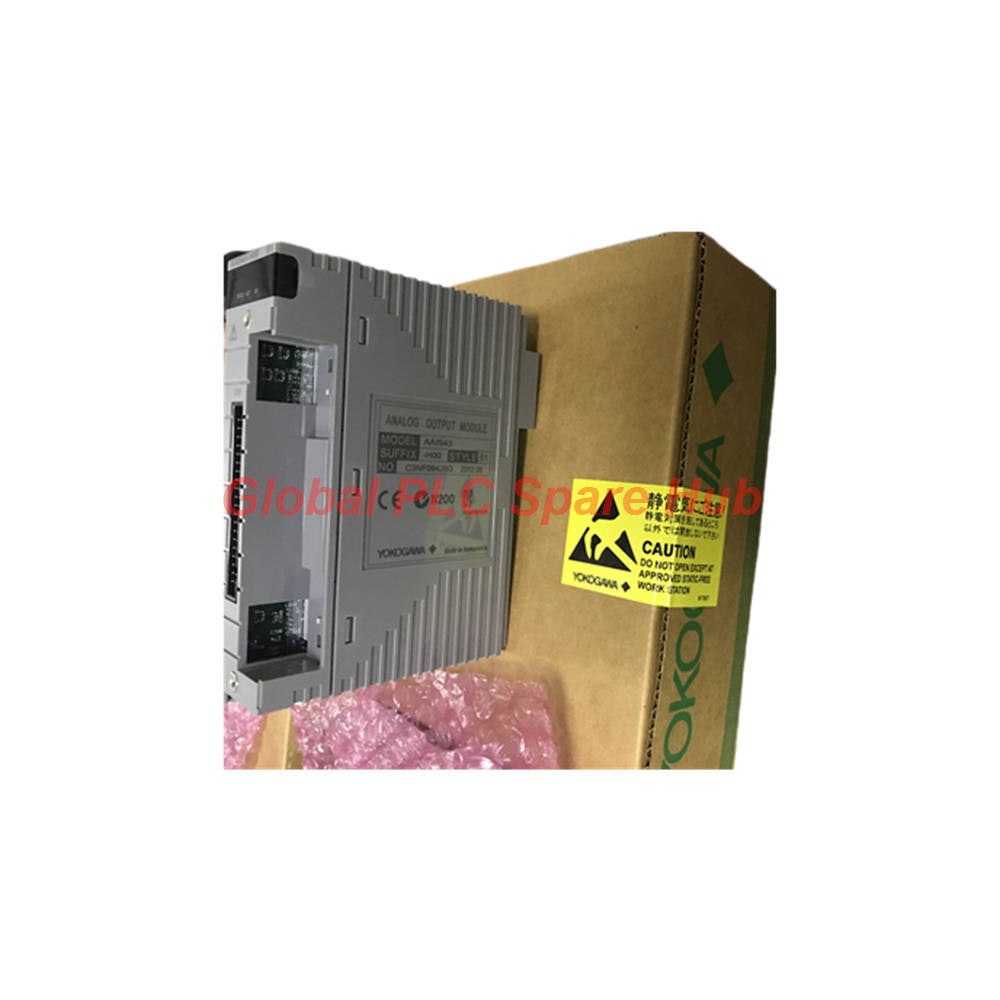

AAI141-S50/K4A00 Yokogawa DCS Module AAI141 Analog Input Card

Engineering Overview

The Yokogawa AAI141-S50/K4A00 functions as a high-density analog input interface module engineered for the CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). Operating as a key component of the AAI141 Series, this module accepts 16 non-isolated 4 to 20 mA DC field signals. It delivers simultaneous real-time process monitoring and direct digital integration through integrated HART protocol capabilities.

Hardware engineers designed this module to power connected field instruments directly while sampling data at an aggressive 10 ms cycle. Its compact 0.2 kg form factor, combined with the factory-installed KS Cable Interface Adapter, drastically reduces panel footprint and streamlines multichannel cabinet marshalling.

Part Number Configuration Breakdown

• Base Module: AAI141
  • Function: 16-channel non-isolated 4-20 mA DC analog input interface module.
• Suffix Code 1: -S
  • Communication Type: Standard type communication featuring native HART protocol support.
• Suffix Code 2: 5
  • Explosion Protection: Standard non-explosionproof specification.
• Suffix Code 3: 0
  • Hardware Revision: Basic module design architecture.
• Option Code: /K4A00
  • Interface Provision: Equipped with factory KS Cable Interface Adapter for direct marshalling connection.

Technical Specifications

Target DCS Architectures and Applications

The AAI141-S50/K4A00 module integrates seamlessly into continuous process industry environments:

• Primary process control loops inside Yokogawa CENTUM VP Field Control Stations (FCS).
• Petrochemical refinery distillation column temperature and pressure transmitter arrays.
• Flow rate transmitter aggregation across water treatment and power generation facilities.
• Smart field device management loops utilizing embedded HART pass-through telemetry.

Advanced System Diagnostics

The AAI141 card provides system engineers with proactive maintenance feedback:

• Continuous monitoring of channel loop currents to detect open-circuit or short-circuit line faults instantly.
• Real-time HART status diagnostics for verifying field instrument health and calibration parameters remotely.
• Internal hardware self-tests that flag power rail voltage drops or internal component drift back to the FCS diagnostics buffer.

Global PLC Spare HUB's Insight

During a emergency turnaround project at an ethylene plant, a customer experienced erratic input readings across several loops after installing replacement field transmitters. Our field team reviewed the AAI141-S50/K4A00 card setup and discovered that the new transmitters were active 4-wire units, whereas the onboard channel pins were still set to passive 2-wire mode. Because the AAI141 features per-channel physical setting pins, we quickly reconfigured the affected channels on-site without needing to purchase separate signal isolators or external power supplies.

Global Shipping and Warranty Coverage

We deliver industrial automation parts worldwide under standard commercial guarantees:

• 12-Month Warranty: Every unit is fully covered by a 12-month replacement warranty starting on the date of delivery.
• 24-48 Hour Dispatch: Orders are processed, tested, and dispatched from stock within 24 to 48 hours.
• Express Logistics: Shipped globally via top-tier express couriers: FedEx, UPS, and DHL.

Selection and Procurement Guide

Confirm these technical factors before finalizing your order for the AAI141-S50/K4A00:

• Isolation Needs: Verify that your loops share a common ground reference. The AAI141 is a non-isolated module; choose the AAI143 if channel-to-channel isolation is mandatory.
• Cabinet Wiring: Ensure the /K4A00 option suffix matches your existing terminal arrangement (KS multi-core cable interface adapter).
• Field Powering: Check channel setting pins prior to power-up to match 2-wire loop-powered or 4-wire externally powered sensors correctly.

Frequently Asked Questions

Question 1: How do I change an individual channel on the AAI141-S50/K4A00 from a 2-wire to a 4-wire transmitter input?

You can adjust the channel power configuration manually by setting the physical onboard jumper pin corresponding to that specific input channel before inserting the card into the rack.

Question 2: What is the main practical advantage of the /K4A00 option code on this module?

The /K4A00 code indicates that the unit comes factory-equipped with a KS cable interface adapter, allowing direct plug-and-play connection to external marshalling panels via pre-assembled Yokogawa system cables.

Question 3: Can this module read dynamic process signals fast enough for rapid shutdown loops?

With a 10 ms data scan update period and a 100 ms step response time, the module easily handles high-speed control loops, though safety instrumented systems generally mandate dedicated ProSafe-RS hardware.

Question 4: Does using a non-isolated module like the AAI141 pose ground loop risks in large plants?

Yes. Because the channels share a common ground, installing unisolated transmitters in noisy environments with ground potential differences can degrade signal accuracy. Use signal isolators or isolated cards for such specific lines.

Question 5: What occurs to the input resistance of the AAI141-S50/K4A00 if the module loses control power?

When system power drops OFF, the internal input resistance automatically jumps to 500 kΩ or higher. This high-impedance state prevents the module from overloading the field loop or draining external loop power sources.
