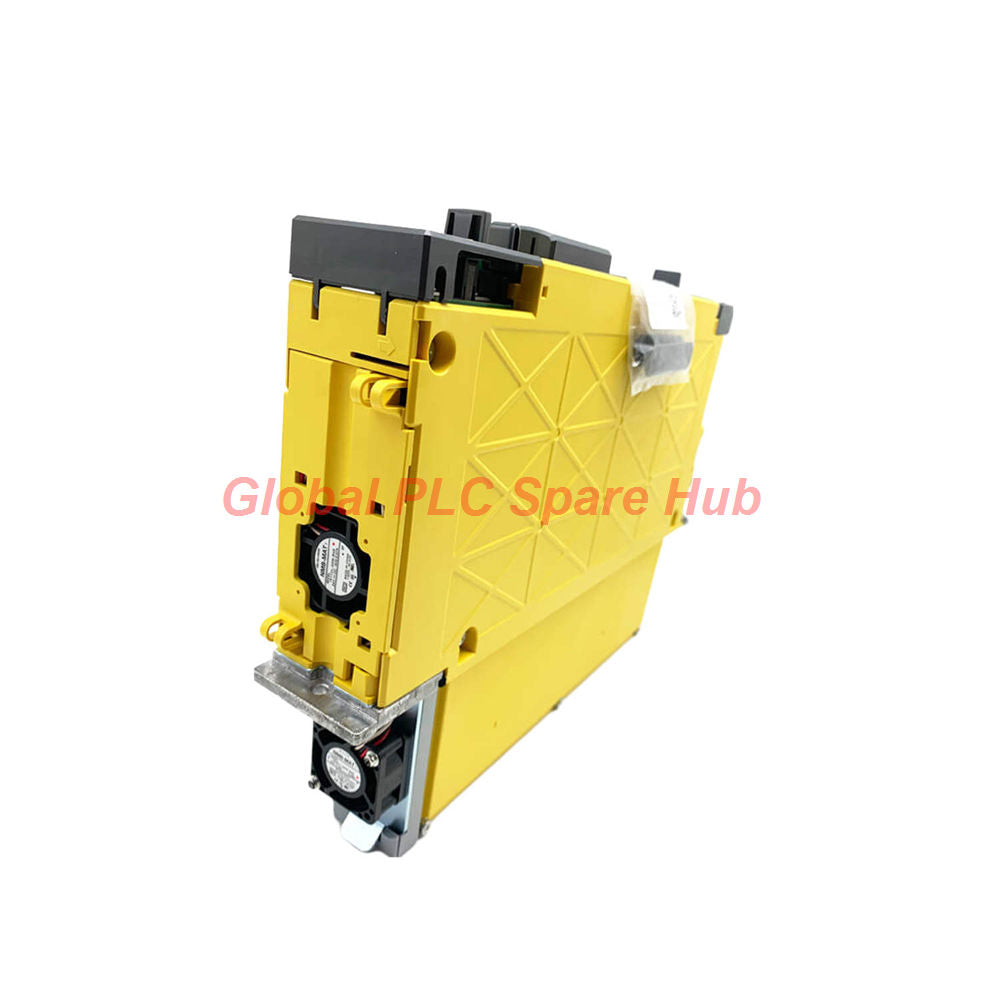

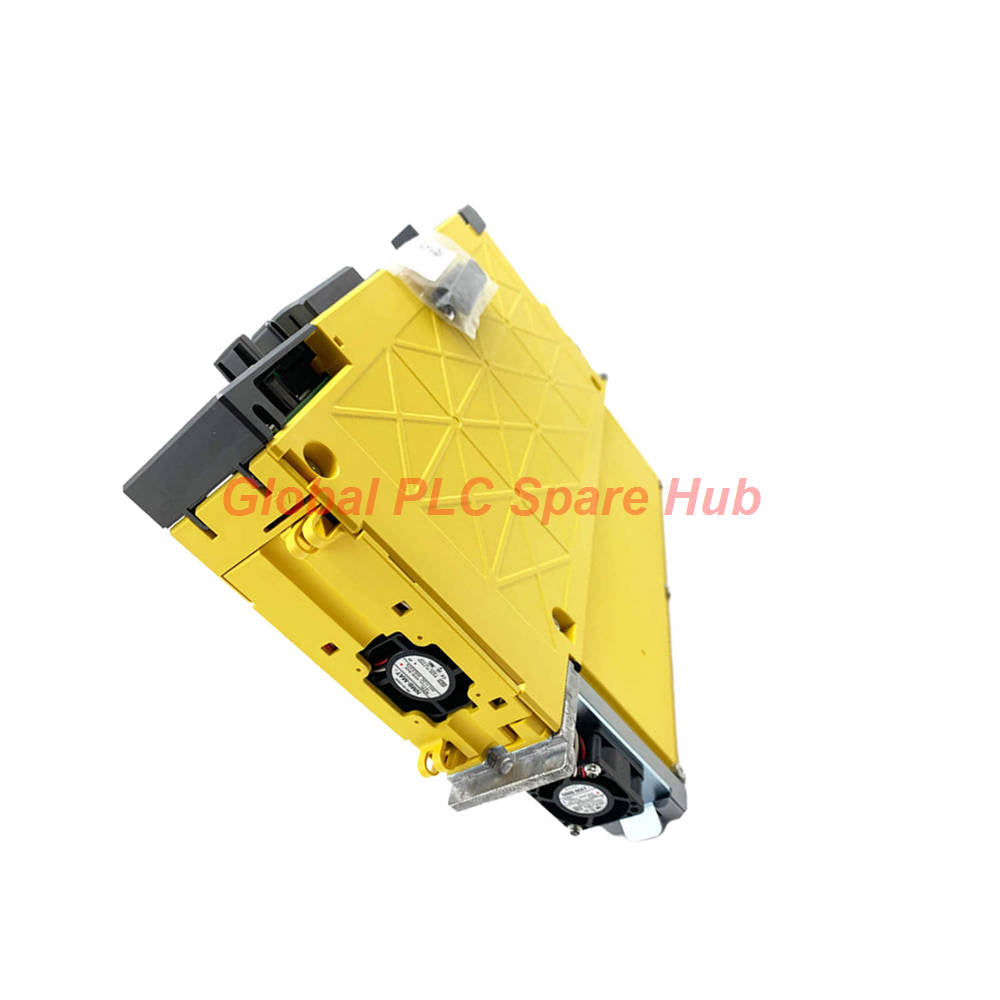

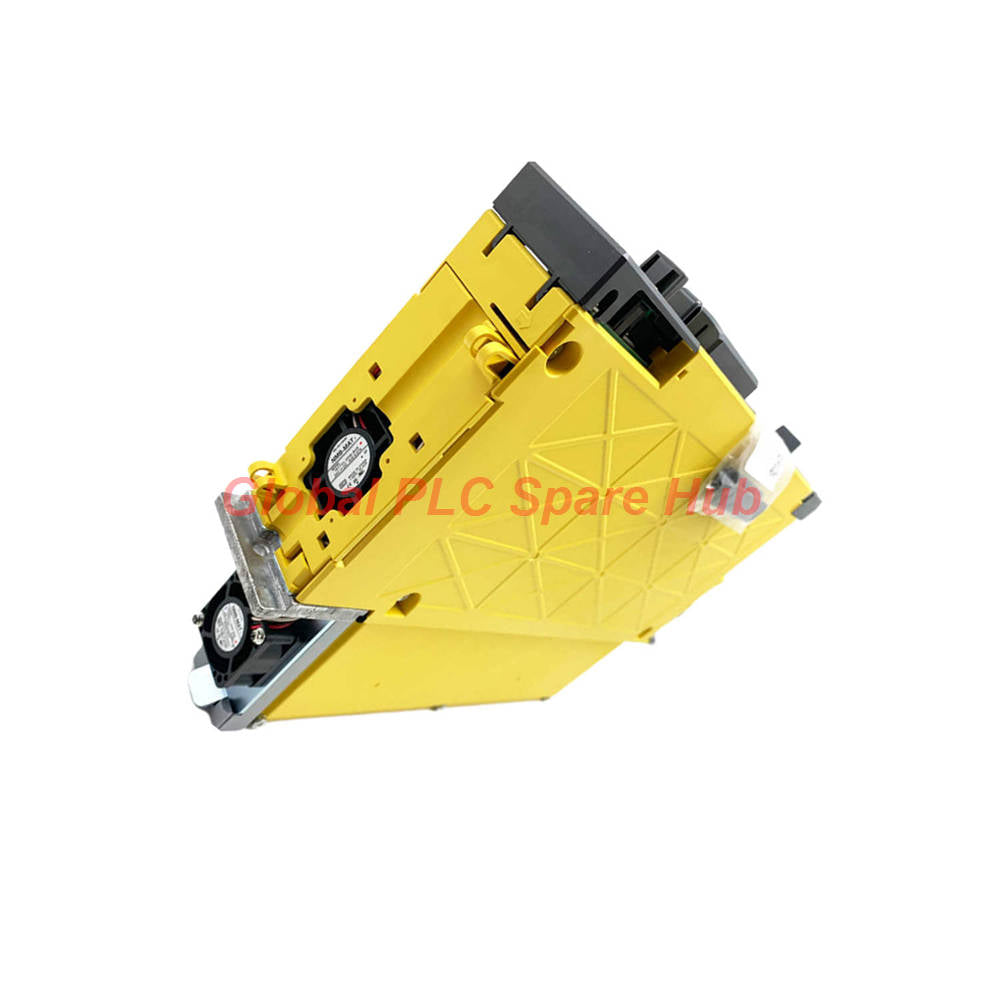

A06B-6240-H209 FANUC Servo Amplifier Module 2-Axis Alpha iSV In Stock

Overview

The FANUC A06B-6240-H209 is a high-performance dual-axis (L/M axis) servo amplifier module engineered for the A06B series motion control family. Operating on a DC link bus input of 283V DC to 339V DC, it delivers precision 3-phase AC voltage (200-240 VAC) across an extended output frequency range of 0 to 550 Hz. Designed for synchronized dual-axis positioning, the A06B-6240-H209 provides up to 22.5 Amps rated output current per axis for demanding industrial CNC machinery.

Dual-Axis Drive Architecture & Power Conversion

• 2-Axis Synchronized Output Matrix:
  • Controls two independent servo axes (L-axis and M-axis) from a single compact drive housing.
  • Delivers continuous rated output current of 22.5 A per channel (L-axis: 22.5 A / M-axis: 22.5 A).
  • Generates 3-phase AC output voltage from 200 VAC to 240 VAC with fine vector control up to 550 Hz.
• DC Bus Input & Current Load Capabilities:
  • Accepts rectified DC bus input voltage ranging between 283 VDC and 339 VDC.
  • Rated input current draw stands at 39 A at 283 VDC nominal line feed.
  • Compatible with global 50 Hz and 60 Hz main utility grid power supplies via upstream PSM modules.
• Thermal Management & Installation Spec:
  • Engineered to operate reliably in ambient factory floor temperatures between 0°C and 55°C.
  • Compact footprint chassis weighing approximately 15.00 lbs (6.80 kg) minimizes cabinet space requirements.
  • Integrates heavy-duty internal heat dissipation structures to maintain thermal stability under high duty cycles.

Technical Specifications Parameter Matrix

Target Applications & Equipment Deployment

• CNC Machine Tool Integration:
  • Ideal for driving dual-axis motion pairs such as X/Y or Z/B feeds on CNC lathes, milling centers, and wire-cut EDM machinery.
  • Pairs seamlessly with FANUC 0i, 16i, 18i, and 21i series CNC controllers over high-speed optical fiber communications (FSSB).
• Automated Production Machinery:
  • Controls synchronized multi-axis gantry robots, automated pallet changers, and rotary indexing tables in high-throughput automotive manufacturing lines.

Diagnostic Capabilities & Alarm Fault Tracking

• Front-Panel Status Display:
  • Features an integrated 7-segment LED readout that displays real-time operational status and numeric error codes.
  • Instantly flags faults such as DC bus under-voltage (Alarm 2), inverter IPM overcurrent (Alarm 8, 9, or b), and control power failure.
• Comprehensive Circuit Protection:
  • Monitors motor winding overload conditions, internal heat sink over-temperature, and phase ground faults to prevent catastrophic hardware damage.

Supply Chain & Warranty Guarantees

• Package Contents:
  • One fully tested FANUC A06B-6240-H209 dual-axis servo amplifier unit.
  • Sealed anti-static ESD shielding bag surrounded by custom shock-absorbing foam packaging.
• Warranty Policy:
  • Backed by a comprehensive 12-month operational replacement warranty effective from the dispatch date.
• Express Shipping & Logistics:
  • Dispatched within 24 to 48 hours following order confirmation.
  • Worldwide air express service provided via FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight

When engineering or troubleshooting CNC control enclosures containing dual-axis drives like the A06B-6240-H209, field engineers must pay close attention to the shared DC bus connection and high-frequency PWM switching characteristics. Because both L and M channels draw power from a common 283-339 VDC bus rail, an isolation failure on one motor channel can easily simulate a drive-wide failure if diagnostic steps are missed.

During an emergency service call at a automotive stamping plant, an X/Y axis slide generated intermittent IPM overcurrent alarms on the A06B-6240-H209 whenever the feed rate exceeded 80%. Plant staff suspected a failed drive card. Our engineering team isolated the outputs and performed a megohmmeter insulation resistance check on both motor cables. While the L-axis motor tested clean, the M-axis motor showed a 1.2 MΩ phase-to-ground leakage caused by coolant ingress inside the power junction box. Cleaning and resealing the motor junction box resolved the overcurrent trips without replacing the drive. We strongly recommend testing both axis motor windings for insulation breakdown before installing a replacement amplifier module.

Frequently Asked Questions (FAQ)

Q: What motor channels are controlled by the A06B-6240-H209 module?

A: The A06B-6240-H209 controls two separate servo motor channels designated as the L-axis and M-axis, each rated for up to 22.5 Amps continuous output.

Q: Can the A06B-6240-H209 be wired directly to a 3-phase 220V AC wall line?

A: No. Main power must first pass through a FANUC Power Supply Module (PSM) to convert AC line power into the required 283-339 VDC bus input.

Q: How do I verify if an overcurrent alarm on the A06B-6240-H209 is caused by the drive or the motor?

A: Disconnect power cables for both L and M axes from the bottom terminals. If the overcurrent alarm clears upon powering up the DC bus, the fault lies in the external motor or cabling; if the alarm remains, the drive's internal IGBT module is damaged.

Q: What is the maximum output frequency supported by the A06B-6240-H209?

A: The drive supports an output frequency spectrum from 0 up to 550 Hz, enabling high-rpm operation for precision servo motors.

Q: What precautions should be taken before physically removing the A06B-6240-H209 from a machine cabinet?

A: Turn off main machine power and wait at least 5 minutes for the DC link capacitors to discharge fully. Verify that the DC bus voltage measures below 50 VDC across the terminal bars before disconnecting any wiring.
