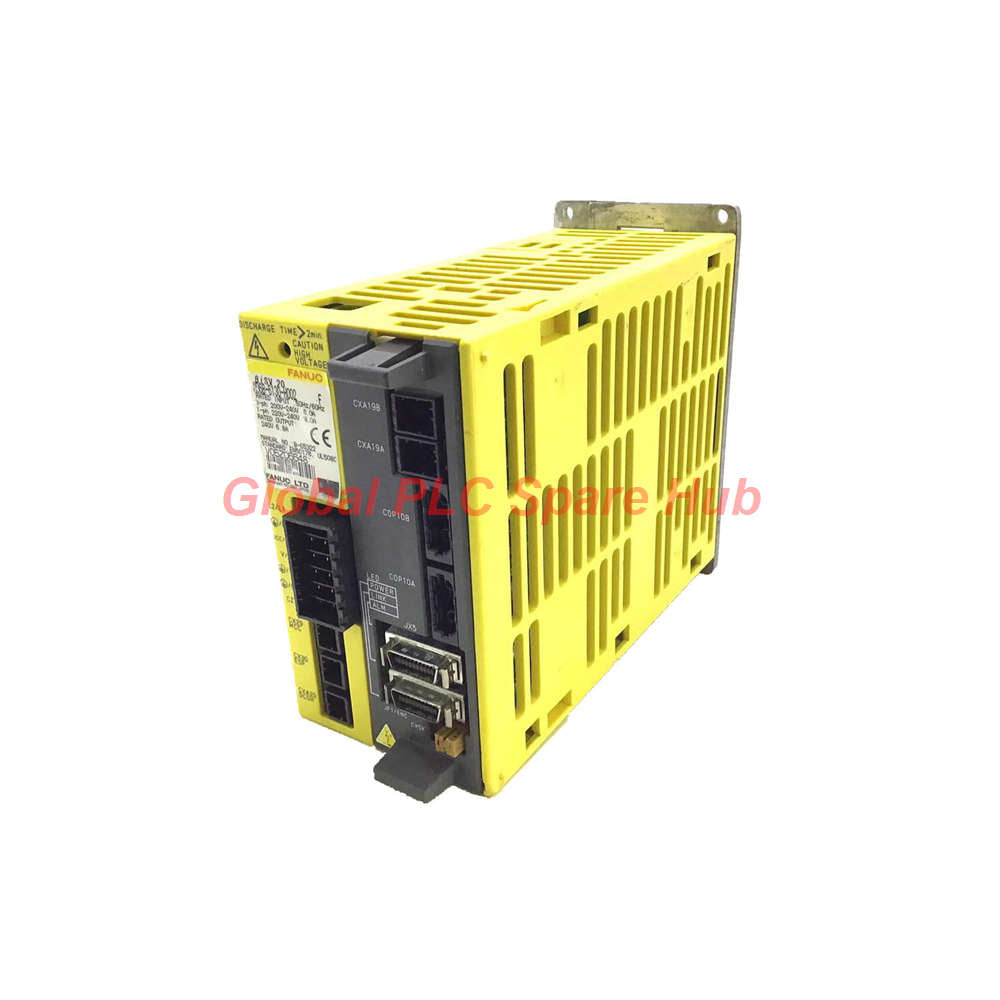

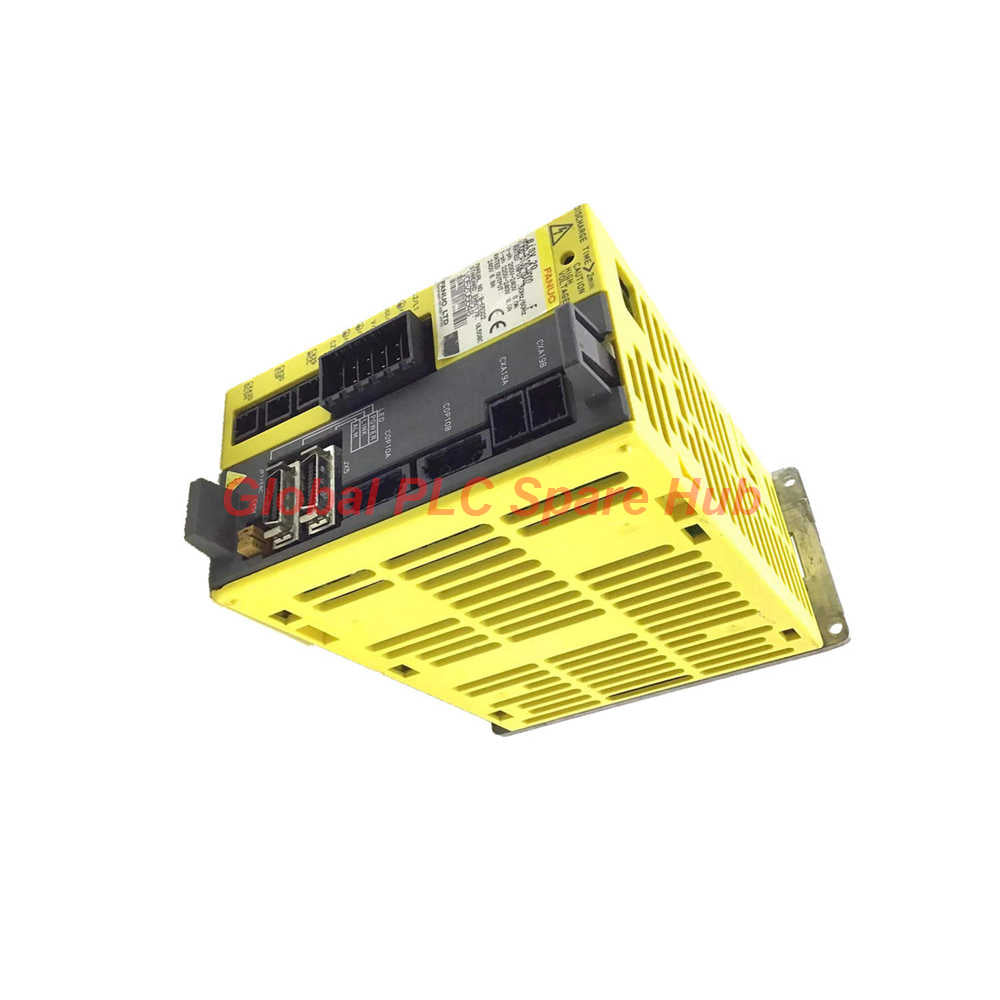

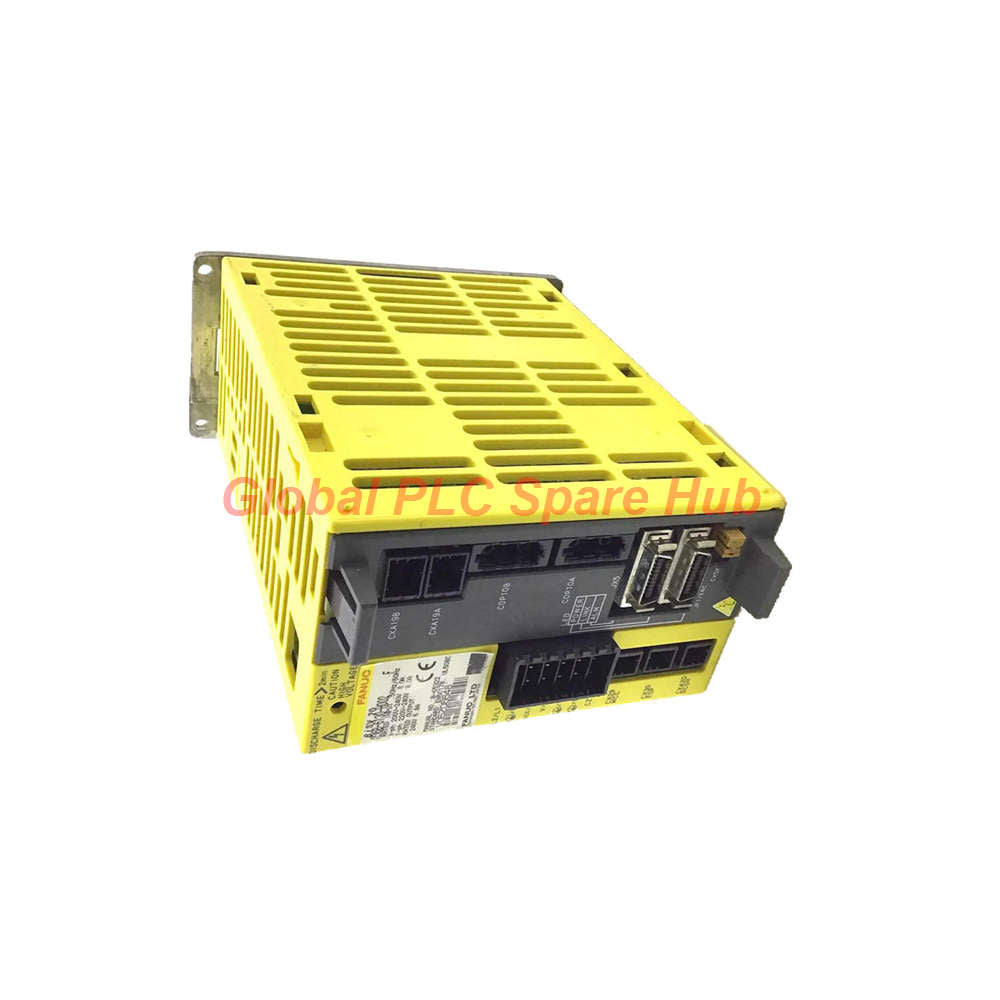

A06B-6130-H002 Servo Drive FANUC A06B Module 200V Class

Engineering Architecture & Configuration Breakdown

The A06B-6130-H002 is a compact 200V-class AC servo amplifier module engineered by FANUC within the A06B product line. Designed for high-precision motion control, it supports flexible power configurations accepting both single-phase and three-phase 200 to 240 VAC inputs at 50/60 Hz. Its solid-state inverter architecture delivers reliable multi-axis actuation while maintaining strict operational stability in crowded industrial enclosures.

Technical Parameter Specifications

Advanced Diagnostic Capabilities & Protection

• Equipped with real-time microprocessor monitoring to detect phase imbalances and input voltage sags instantly.
• Features internal hardware trip circuits protecting output power transistors from overcurrent and short-circuit conditions.
• Displays diagnostic alarm error codes on front status interfaces to accelerate troubleshooting by maintenance personnel.
• Monitors internal thermal dissipation levels to initiate safe thermal throttling before overheating damages internal components.

Global PLC Spare HUB's Insight

Global PLC Spare HUB motion control specialists note that voltage fluctuations on single-phase 200V supplies frequently trigger nuisance overvoltage faults on the A06B-6130-H002. Technicians must verify incoming line regulation and ensure cabinet vibration levels remain strictly below 0.5G to protect internal circuit board connections. Stocking a pre-tested replacement unit eliminates prolonged downtime on automated assembly lines.

Global Logistics & Assurance Guarantees

• Comprehensive 12-month warranty included with every purchased A06B-6130-H002 unit.
• Expedited 24 to 48-hour order dispatch to minimize plant operational interruptions.
• Reliable, secure worldwide shipping routing through FedEx, UPS, and DHL courier services.

Target Equipment & Industrial Application Scenarios

• Compact CNC lathe auxiliary axes and small milling machine feed drives.
• Precision automated pick-and-place robotic arms utilizing A06B motion architecture.
• Specialized electronics manufacturing and component insertion machinery.

Expert Frequently Asked Questions

Can this amplifier operate on both single-phase and three-phase power?
Yes, the unit is versatile and engineered to accept either 1-phase or 3-phase 200 to 240 VAC input power configurations.

What maximum output current does this specific servo model deliver?
The amplifier is rated for a continuous output current of 6.8 Amperes with a 240 VAC maximum output voltage.

What environmental precautions are vital during installation?
Ensure the cabinet environment remains below 90 percent relative humidity, is entirely condensation-free, and stays under the 0.5G operational vibration threshold.

What selection criteria should guide the procurement of a replacement drive?
Verify that your machine supply voltage matches the 200V class specification and confirm motor load amperage requirements align with the 6.8 A output rating.

How can technicians quickly identify internal drive faults during a stoppage?
Check the front-panel status indicators and diagnostic display codes to pinpoint whether the trip originated from thermal overload, phase loss, or overcurrent.
