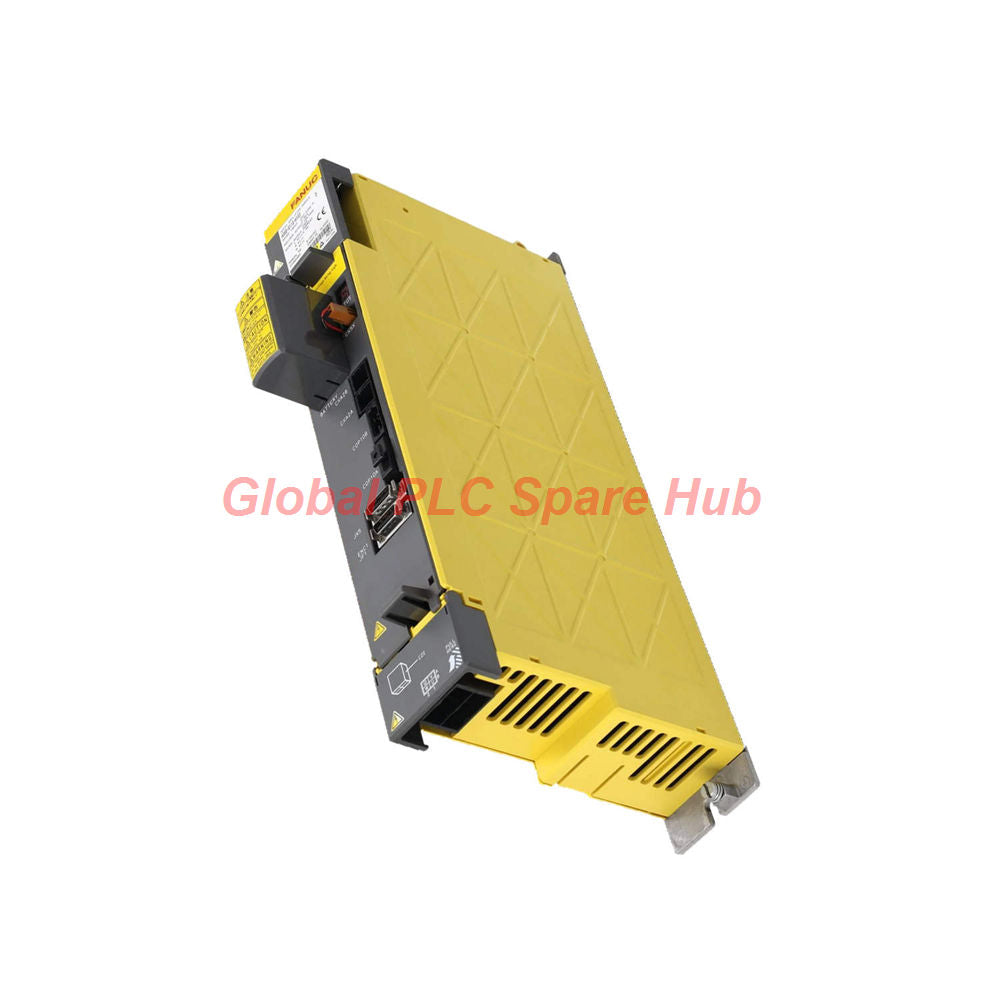

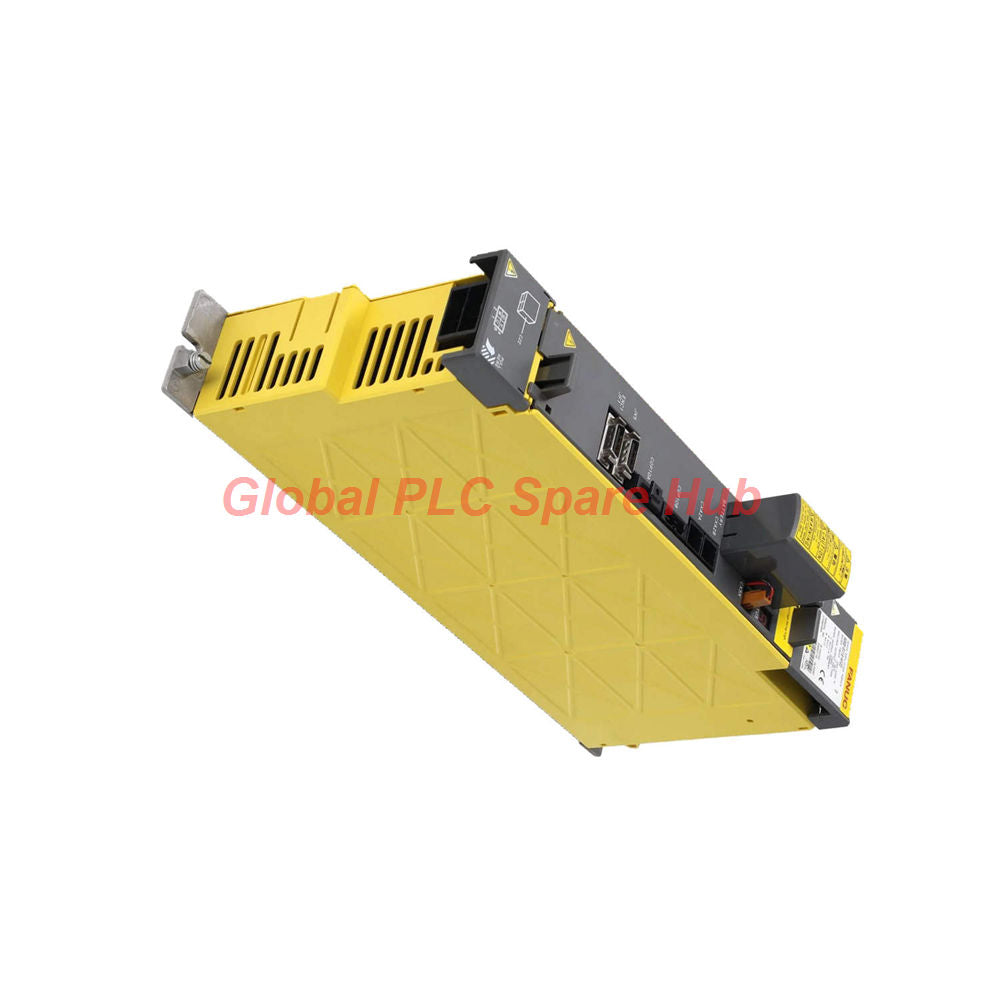

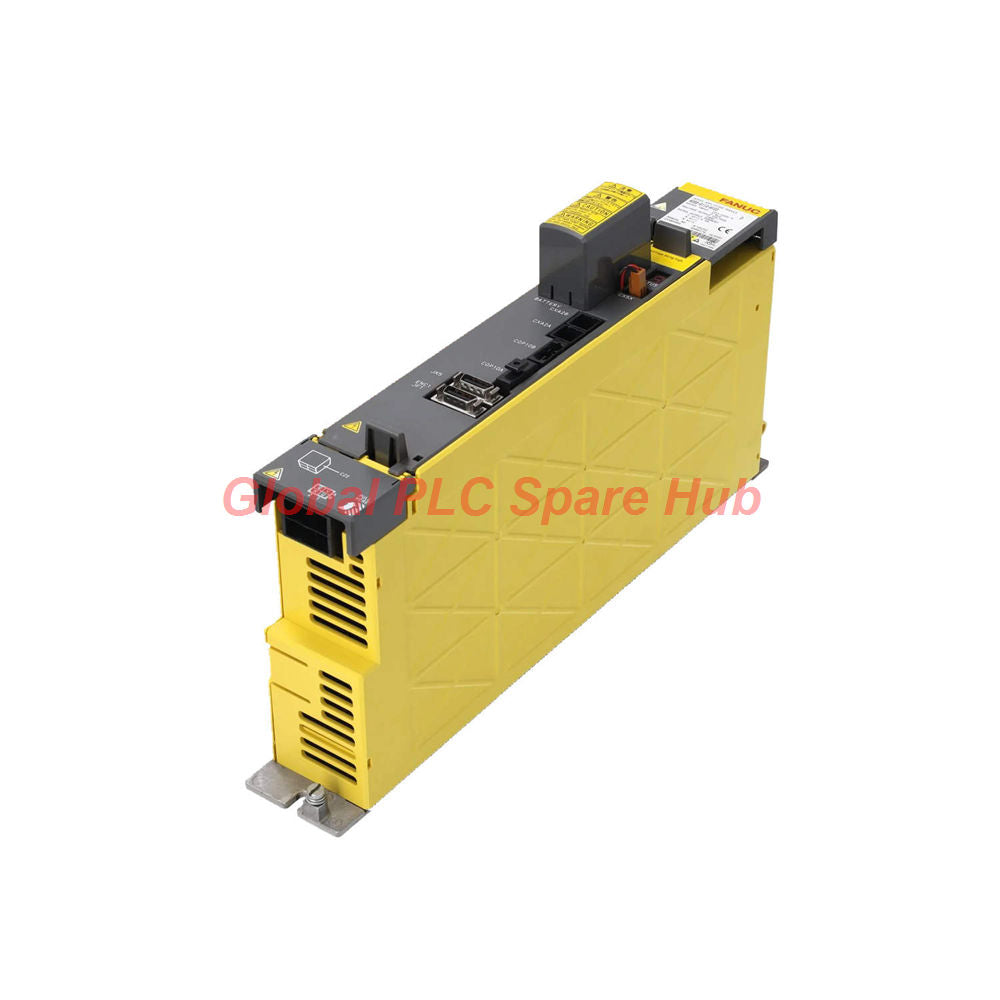

A06B-6114-H103 FANUC A06B Series Servo Amplifier Module

Product Overview & Architecture

The **A06B-6114-H103** is a high-precision digital servo amplifier module engineered by **FANUC** as part of the **A06B** industrial automation product line. Built to govern multi-axis machine tool movement, this drive unit converts DC bus power into variable-frequency AC output, delivering precise current control and dynamic motor positioning for high-speed machining centers.

Global PLC Spare HUB's Insight & Technical Review

In high-vibration CNC machining environments, thermal buildup and DC bus ripple voltage are primary drivers of intermittent drive faults. During recent maintenance evaluations of **FANUC A06B** amplifiers, field engineers observed that maintaining ambient operating temperatures below 55 °C and ensuring clean 283-339 VDC input rails prevent premature switching transistor degradation. Based on our practical assessment of the **A06B-6114-H103**, its robust 6.5A rated output and broad 0.1 to 800 Hz frequency span provide exceptional torque stability across complex contouring paths.

Technicians commissioning this module should carefully verify that relative humidity in the cabinet remains below 90% RH with zero condensation to protect internal gate-driver optics. Additionally, verifying proper weight distribution (4.99 kg) during cabinet mounting ensures that mechanical chassis stress is minimized across extended operational lifecycles.

Technical Specifications Breakdown

Hardware Configuration & Installation Guidelines

**DC Bus Connection:** Securely interface the 283-339 VDC input lines from the power supply module while ensuring proper bus discharge before handling. **Cabinet Placement:** Mount vertically in a clean enclosure, allowing adequate top and bottom clearance for natural convection cooling within the 0 °C to 55 °C window. **Grounding Protocols:** Bond the chassis ground lug directly to the enclosure backplate to suppress high-frequency PWM switching noise.

Diagnostics & Troubleshooting Capabilities

**Front-Panel Alarm Display:** Equipped with digital status indicators that output specific alarm codes for overcurrent, overvoltage, and thermal trips. **PWM Signal Filtering:** Internal isolation circuitry shields control logic from high-frequency electromagnetic interference generated across the 800 Hz output span. **Thermal Monitoring:** Continuous internal temperature tracking prevents overheating during prolonged high-load acceleration cycles.

Compatible Hardware & Typical Application Scenarios

**Compatible Systems:** **FANUC** CNC controllers, power supply units, and alpha-i series servo motors. **Target Applications:** High-speed vertical machining centers, CNC lathes, robotic multi-axis positioning arms, and precision industrial automation milling stations.

Logistics, Warranty & Fulfillment

**Package Contents:** 1 x **A06B-6114-H103** Servo Amplifier Module in industrial anti-static packaging. **Global Shipping:** Expedited 24-48 hour order dispatch shipped worldwide via premier carriers including FedEx, UPS, and DHL. **Warranty Assurance:** Backed by an industry-standard 12-month operational replacement warranty.

Frequently Asked Questions (FAQ)

What safety steps are required before replacing the **A06B-6114-H103** amplifier?

Always disconnect main input power, lock out the cabinet, and wait at least 5 to 10 minutes for the internal DC bus capacitors to fully discharge before touching power terminals.

How can I troubleshoot an overcurrent alarm on this servo drive?

Check the motor power cables for insulation breakdown or short circuits to ground, and verify that the axis mechanical ball screw is not binding or jammed.

Why is humidity control critical for this module's operation?

Operating above 90% relative humidity or allowing condensation to form can cause tracking faults across high-voltage printed circuit boards and trigger gate-driver failures.

What buying guidance should I follow when sourcing a replacement amplifier?

Verify your exact part number and software series code (**A06B-6114-H103**) to ensure parameter compatibility and avoid motion control errors with your CNC controller.

How does the 2.5 kW rated input power affect my transformer sizing?

Ensure your upstream power supply and power transformer can comfortably sustain the 2.5 kW load plus peak transient acceleration currents without excessive voltage sag.
