A06B-6079-H106 Servo Amplifier FANUC A06B CNC Motor Driver

Engineering Architecture & Configuration Breakdown

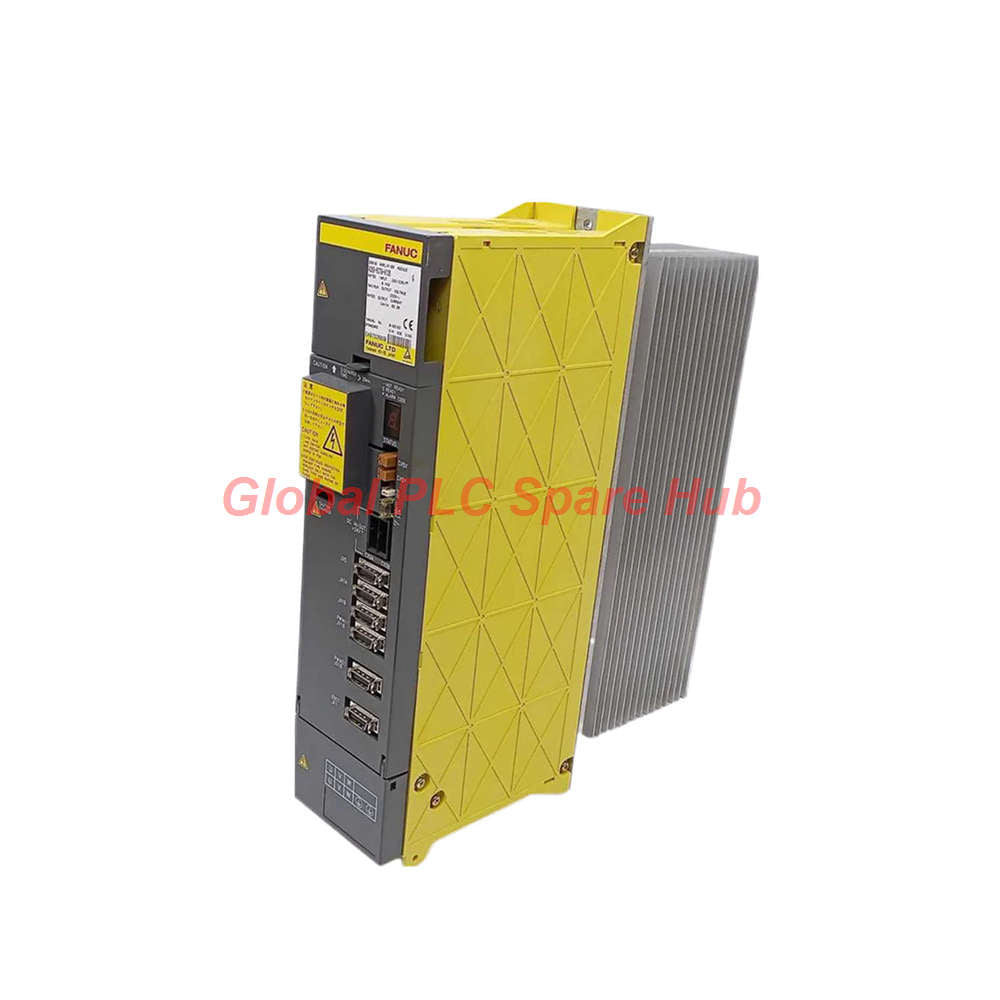

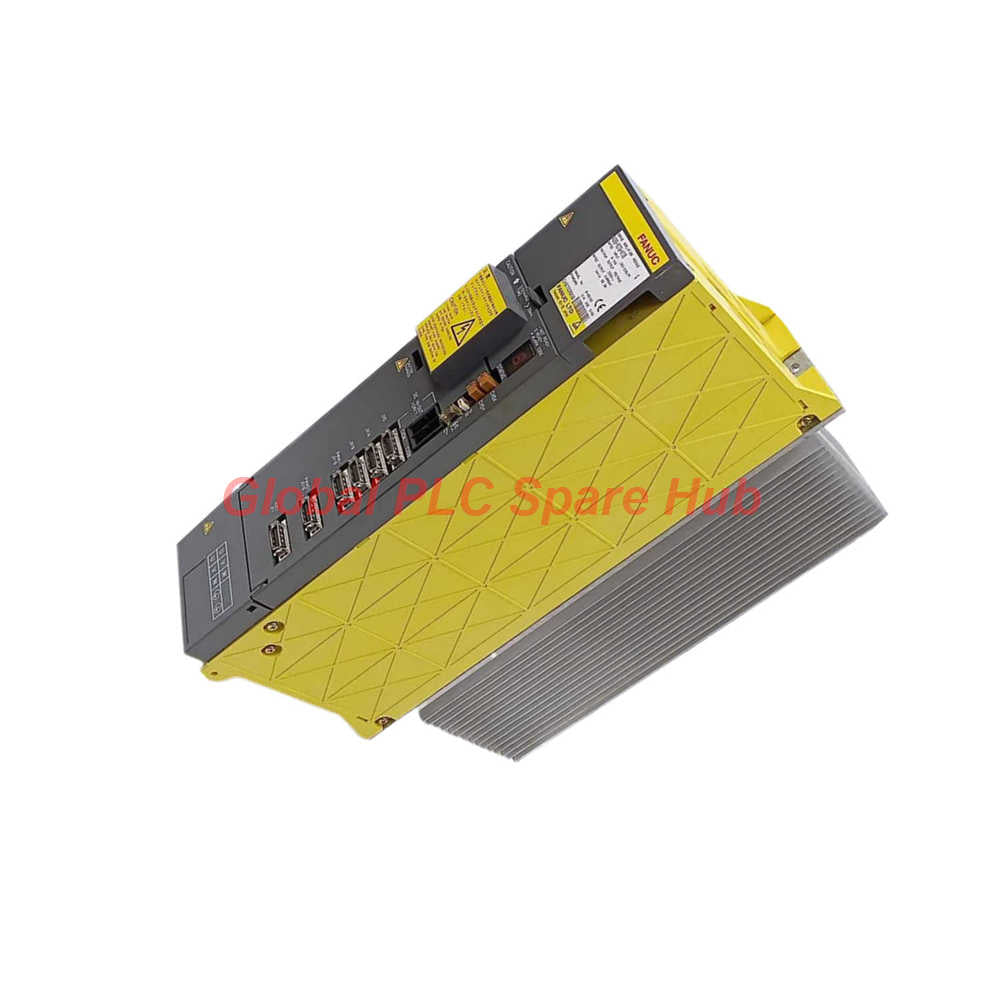

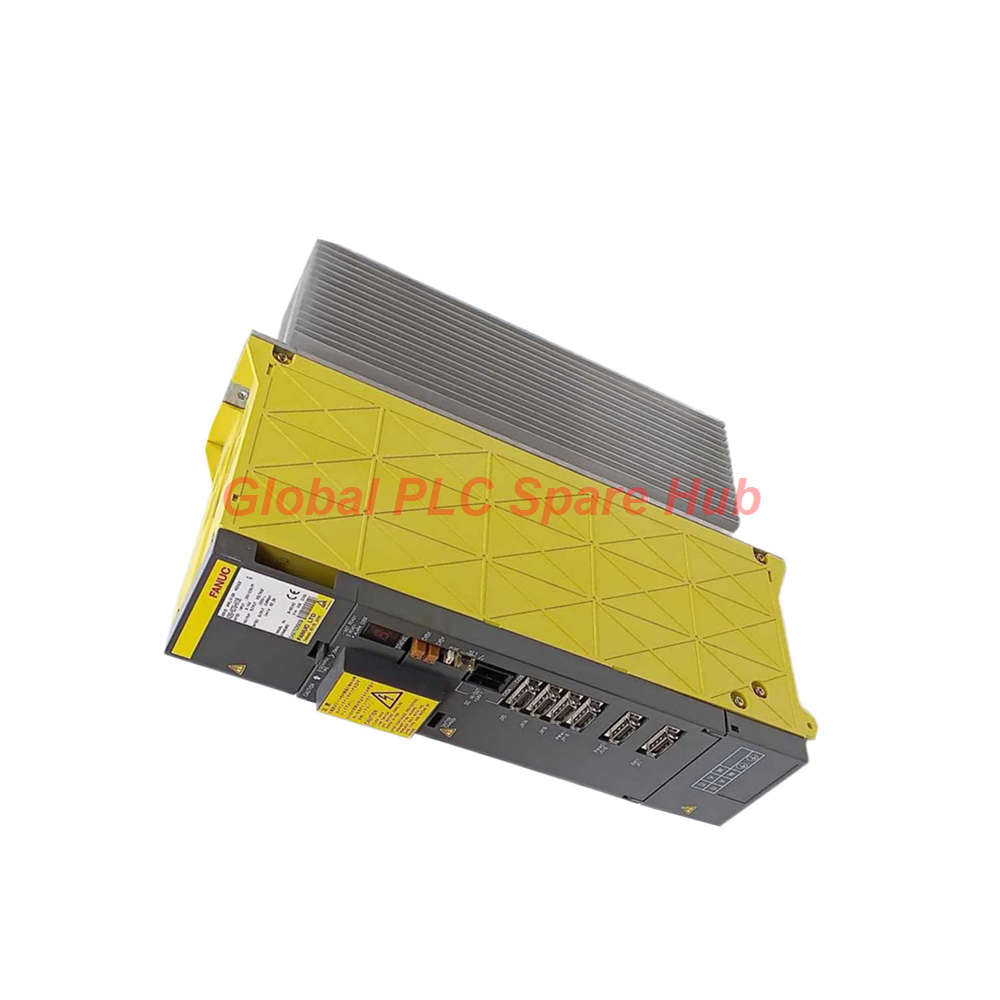

The A06B-6079-H106 is a heavy-duty AC servo amplifier engineered by FANUC for high-precision CNC machinery within the A06B product line. It utilizes a pulse-width modulation (PWM) interface to achieve accurate multi-axis motion control. Built with an integrated air-cooled thermal dissipation layout, the unit handles demanding continuous current outputs while maintaining strict thermal stability inside crowded electrical enclosures.

Technical Parameter Specifications

Advanced Diagnostic Capabilities & Protection

• Features integrated electronic circuit protection guarding against system overloads and excessive current spikes.
• Provides proactive overvoltage protection clamping to prevent DC bus voltage surges from damaging output transistors.
• Displays real-time drive alarm codes via front-panel status LEDs to accelerate troubleshooting by maintenance crews.
• Monitors internal heatsink thermal levels continuously to prevent premature shutdown during peak machining cycles.

Global PLC Spare HUB's Insight

Global PLC Spare HUB motion control specialists emphasize that premature IGBT failures in the A06B-6079-H106 typically trace back to clogged internal cooling fans or failing cabinet air filters. Maintenance personnel must inspect cooling airflow paths quarterly to prevent thermal throttling. Keeping a pre-tested backup unit in stock eliminates extended downtime during critical high-speed milling operations.

Global Logistics & Assurance Guarantees

• Comprehensive 12-month warranty included with every purchased A06B-6079-H106 unit.
• Expedited 24 to 48-hour order dispatch to minimize plant operational interruptions.
• Reliable, secure worldwide shipping routing through FedEx, UPS, and DHL.

Target Equipment & Industrial Application Scenarios

• Multi-axis CNC milling centers and high-speed turning lathes utilizing A06B architecture.
• Precision industrial robotics requiring high-current servo motor actuation.
• Automated stamping and heavy-material forming machinery control cabinets.

Expert Frequently Asked Questions

What is the primary function of the PWM interface on this servo drive?
The pulse-width modulation interface translates controller commands into precise voltage pulses, ensuring accurate speed and positioning control of connected servo motors.

How should the amplifier be physically mounted inside an electrical cabinet?
The unit is designed exclusively for vertical, wall-mounted installation to allow optimal natural and forced air convection across its heatsink fins.

What safety mechanisms protect the unit from electrical abnormalities?
It incorporates dedicated hardware layers providing instantaneous overcurrent, overvoltage, and thermal overload cutoff protection.

What considerations are essential when selecting a replacement drive unit?
Verify your machine's input bus voltage matches the 283-325 V range and confirm that your motor load requirements align with the 52.2 A continuous rating.

What maintenance steps prevent sudden thermal faults in production environments?
Regularly clean dust accumulation from the internal cooling fan and check that cabinet ambient temperatures do not exceed the 55 degrees Celsius maximum limit.
