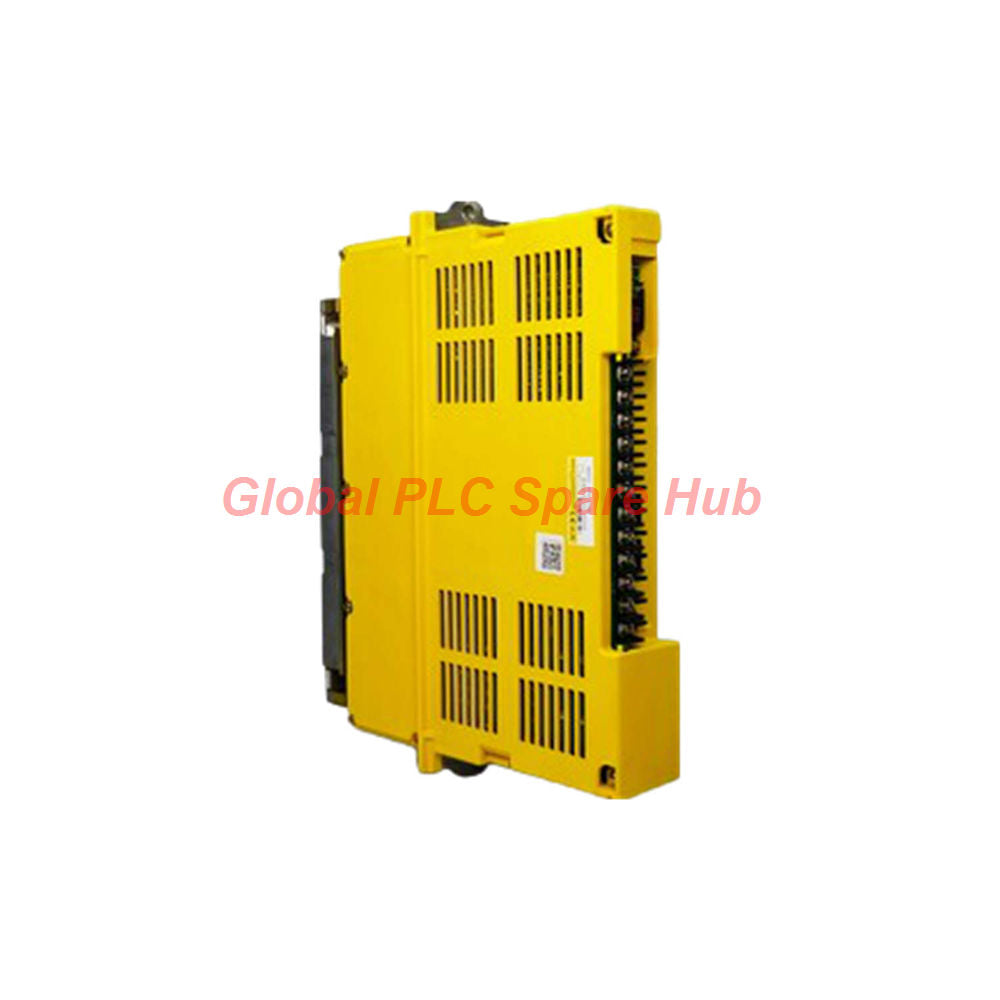

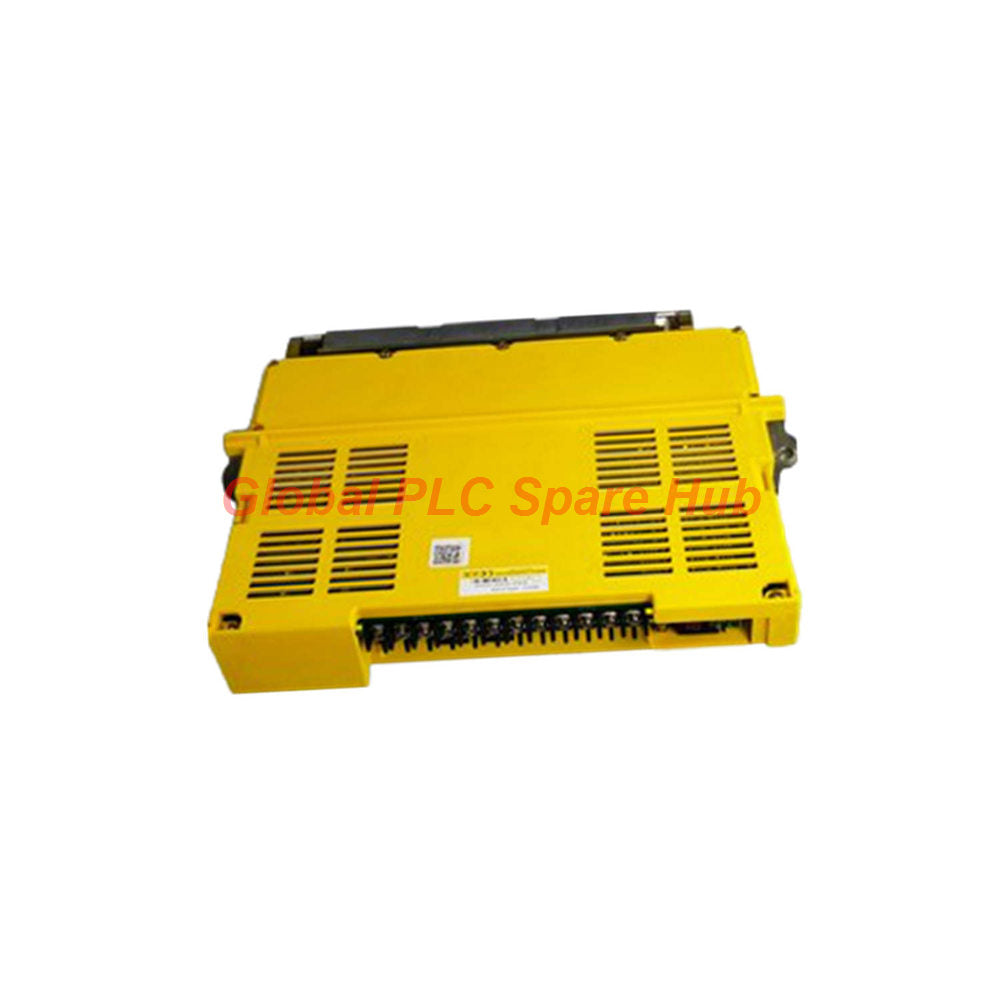

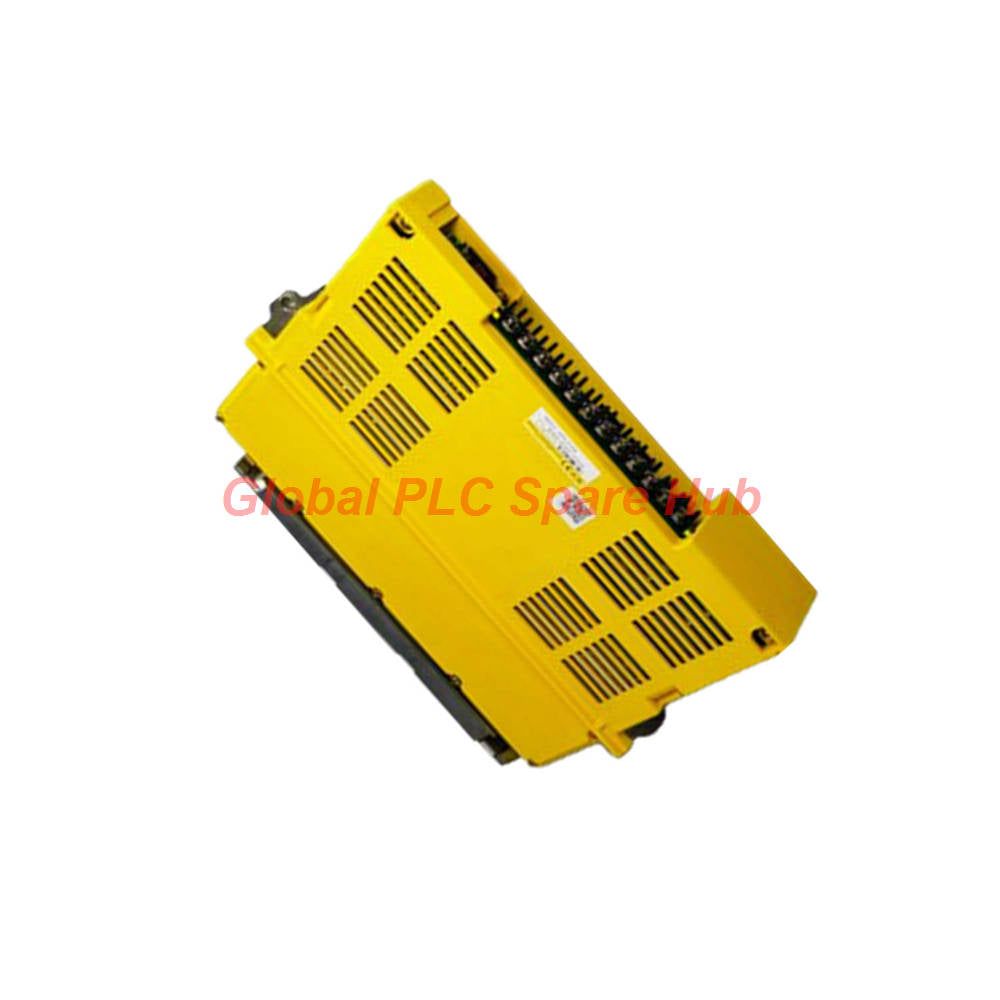

A06B-6066-H246 FANUC C Series Dual Axis AC Servo Drive In Stock

Overview

The FANUC A06B-6066-H246 is a dual-axis AC servo amplifier unit designed for the A06B motion control system series. Built to execute precision position, velocity, and torque control routines across two independent motion axes, this unit operates on single-phase 200/220/230 VAC utility power at 50/60 Hz. The A06B-6066-H246 provides hardware protection features and air-cooled thermal dissipation to ensure continuous axis synchronization in CNC machine tool cabinets.

Dual-Axis Drive Architecture & Power Handling

• 2-Axis Synchronized Control Execution:
  • Manages dual independent AC servo motor channels from a single integrated chassis.
  • Supports closed-loop position, speed, and torque regulation for synchronized feed motion.
  • Designed for vertical or wall-mounted installation inside industrial enclosure racks.
• Power Input & Voltage Characteristics:
  • Operates on single-phase AC input voltage rated at 200/220/230 VAC (+10% / -15%).
  • Compatible with global 50 Hz and 60 Hz line frequency utility grids without external step-down transformers.
• Thermal Management & Physical Build:
  • Forced-air cooling architecture prevents internal transistor thermal buildup.
  • Operating temperature tolerance: 0°C to +55°C (32°F to 131°F).
  • Compact physical footprint with a net unit weight of 15.00 lbs (6.80 kg / 5.90 kg base).

Technical Specifications Parameter Matrix

Target Applications & Equipment Deployment

• CNC Machinery Integration:
  • Controls dual-axis motions such as X/Y slides or Z-axis feed and rotary tool indexing on CNC lathes, mills, and grinding machines.
  • Interfaces directly with FANUC 0-M, 0-T, 16, 18, and 21 series CNC control mainframes.
• Automated Motion Assemblies:
  • Drives dual-axis pick-and-place actuators, gantry loaders, and automated parts transfer units in high-duty cycle production cells.

Diagnostic Capabilities & Protection Features

• Integrated Circuit Protections:
  • Hardware-level overcurrent detection trips PWM gate drive pulses instantly to safeguard power transistors.
  • Overvoltage and DC link surge protection circuits mitigate regenerative braking feedback spikes.
  • Thermal overload sensors monitor heatsink dissipation to prevent thermal runaway.
• Fault Diagnostics:
  • Front-panel status display and CNC alarm bus report standard FANUC servo alarms (such as Alarm 401, 414, or drive LED fault codes) to simplify troubleshooting between control interface cables, power inputs, or motor feedback encoders.

Supply Chain & Warranty Guarantees

• Package Contents:
  • One original FANUC A06B-6066-H246 2-axis AC servo amplifier module.
  • ESD shielding wrap enclosed within a heavy-duty protective shipping box.
• Warranty Policy:
  • Backed by a full 12-month operational replacement warranty from the date of shipment.
• Express Shipping Logistics:
  • Dispatched within 24 to 48 hours following order confirmation.
  • Global express delivery supported via FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight

When installing or retrofitting FANUC C Series drives like the A06B-6066-H246, field engineers must pay attention to single-phase AC line voltage quality and enclosure thermal clearance. Because this amplifier integrates two drive channels into one compact frame powered by single-phase AC input, line voltage dips under heavy dual-axis acceleration can trigger premature DC link under-voltage or overload alarms.

During a field call at a precision metal fabrication shop, a two-axis milling machine exhibited intermittent VRDY OFF (Servo Alarm 401) errors whenever both axes executed high-speed interpolation simultaneously. On-site staff assumed the internal drive logic had failed. Our engineers installed a power quality logger and observed that the 220 VAC input line dropped below 175 VAC during simultaneous motor acceleration due to undersized cabinet supply wiring. Upgrading the AC input feed wire gauge restored stable line voltage and eliminated the intermittent trips on the A06B-6066-H246 drive. We recommend inspecting all AC line terminal connections and verifying cabinet cooling fan operation during routine maintenance.

Frequently Asked Questions (FAQ)

Q: What main power input is required to operate the A06B-6066-H246 drive?

A: The module requires a single-phase AC input supply rated at 200/220/230 VAC (+10% / -15%) at 50/60 Hz.

Q: How many servo motor axes can be driven by a single A06B-6066-H246 module?

A: It is a 2-axis amplifier designed to control two independent AC servo motors simultaneously from one unit.

Q: What are the primary control modes supported by the A06B-6066-H246?

A: The unit supports closed-loop position control, speed (velocity) control, and torque control modes selected by the master CNC controller.

Q: What is the recommended mounting orientation for the A06B-6066-H246 in a control cabinet?

A: The unit must be mounted vertically on the panel wall to allow free vertical convection airflow across its internal heat sink assembly.

Q: How can I determine if a VRDY alarm is caused by the A06B-6066-H246 or external interlocks?

A: Check the single-phase AC input voltage across terminals L1/L2 and verify that emergency stop string interlocks are closed before checking the drive's internal status LED indicators.
