A06B-6047-H004 A06B FANUC 30M Series Velocity Controller

FANUC A06B A06B-6047-H004 Product Breakdown

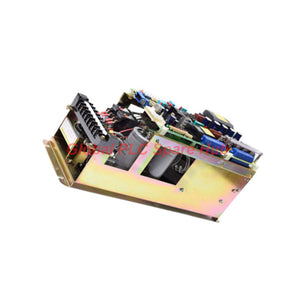

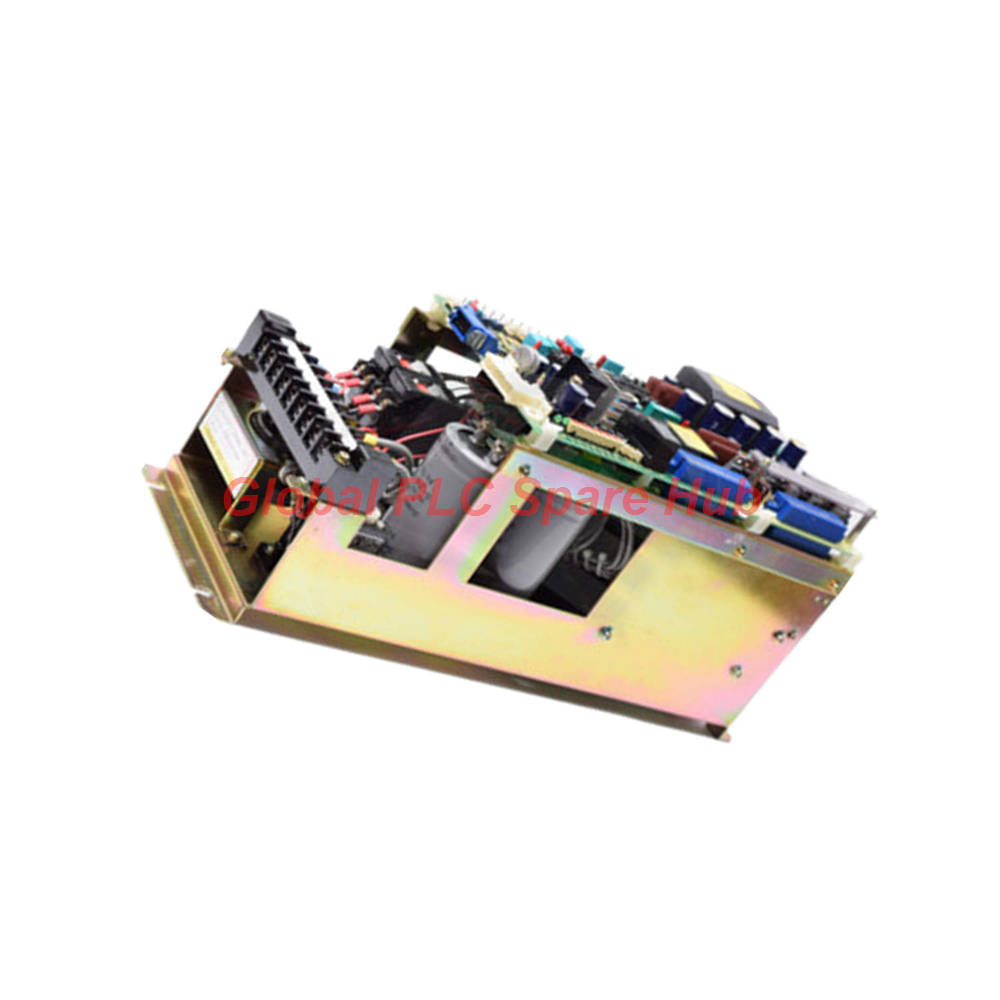

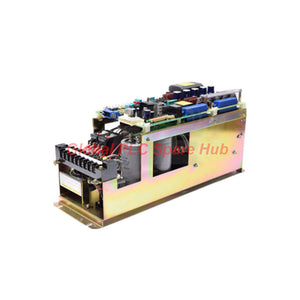

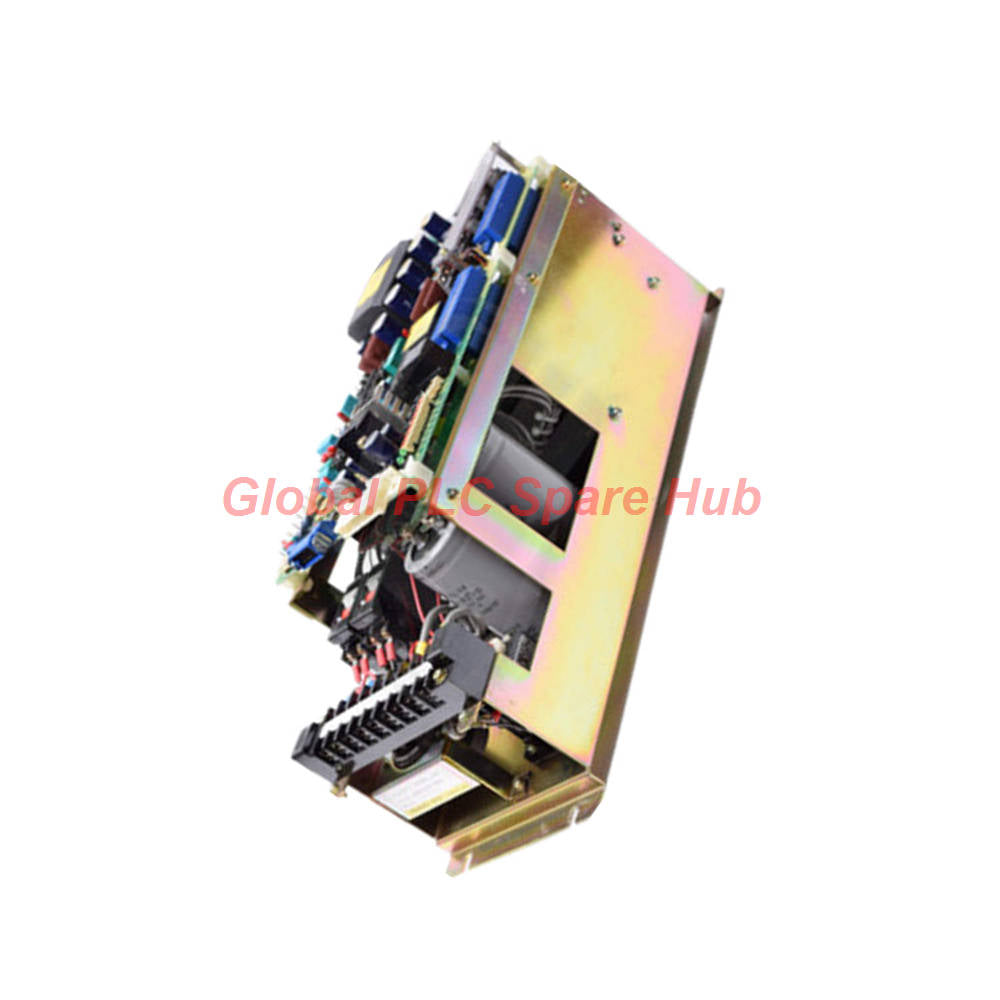

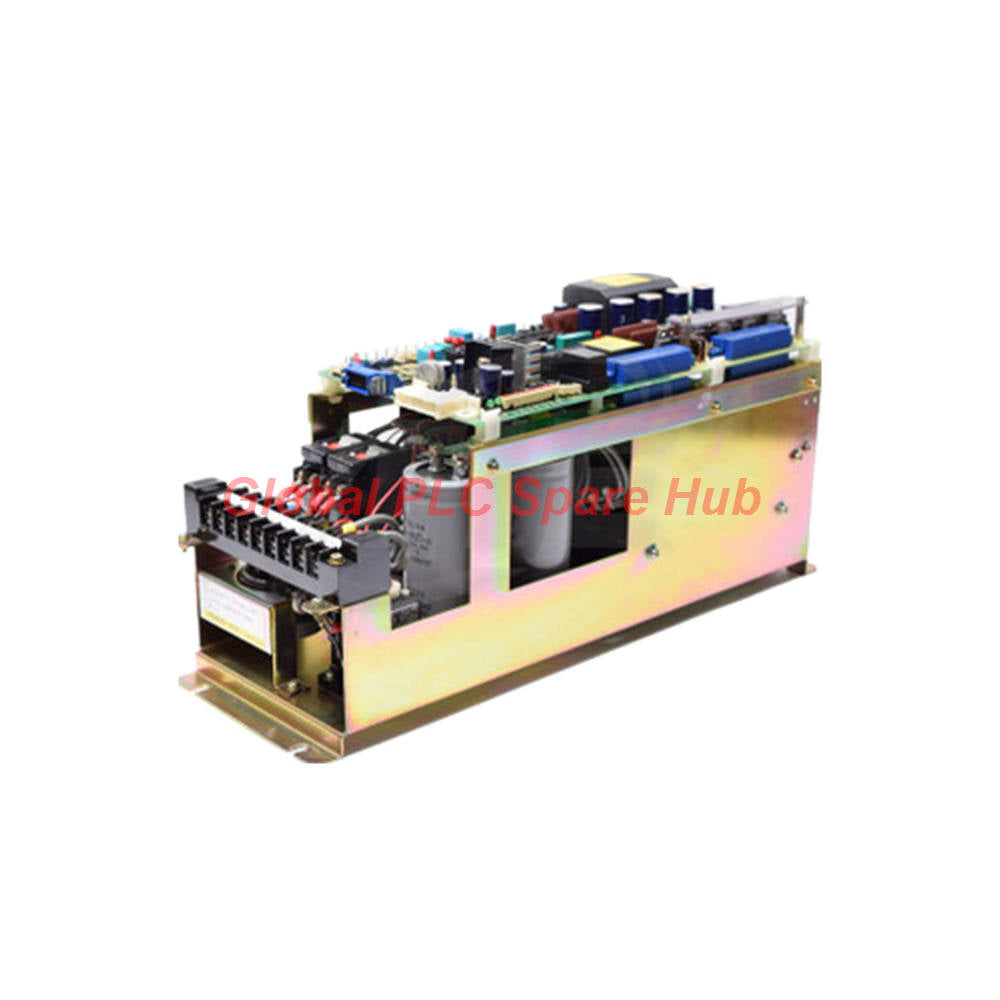

Global PLC Spare HUB Review: The A06B-6047-H004 (series A06B) is a heavy-duty DC servo drive engineered explicitly for precise velocity control within legacy FANUC 30M drive architectures. Weighing approximately 19 to 23.59 lbs, this unit integrates an internal velocity control unit designed to handle demanding CNC milling and automated automotive transfer lines. Maintenance engineers rely on its robust analog-to-digital processing loops to maintain tight rotational synchronization under fluctuating mechanical loads.

Core Technical Specifications & Parameters

• Manufacturer Brand: FANUC
• Product Line Series: A06B
• Catalog Part Number: A06B-6047-H004
• Device Classification: DC Servo Drive / Velocity Control Unit
• Model Architecture Group: 30M Drive Model Series
• Supported Control Function: Integrated velocity loop control
• Physical Net Weight: 19.00 lbs (8.62 kg) to 23.59 lbs variant span
• Operating Ambient Temperature: 0 to 40 degrees Celsius
• Maximum Mechanical Vibration Tolerance: Up to 5G acceleration
• Maximum Operational Altitude: 1000 meters above sea level limit

Industrial Environment & Mechanical Limits

• Constructed to withstand harsh manufacturing floors with a strict 0°C to 40°C thermal envelope.
• Engineered to resist high shock and vibration thresholds up to 5G, preventing premature component solder fatigue.
• Altitude restriction of 1000 meters ensures proper dielectric cooling air density in high-elevation facilities.

Logistics, Fulfillment & Warranty Terms

• Processing Speed: Rapid order preparation and dispatch within 24 to 48 hours.
• Global Shipping Carriers: Secure international and domestic transport via FedEx, UPS, and DHL.
• Warranty Protection: Fully covered by a standard 12-month replacement or repair guarantee.

Typical Application Scenarios

• Legacy CNC horizontal and vertical machining center axis feed drives.
• Automated automotive stamping press transfer mechanisms.
• High-precision material handling and robotic velocity synchronization loops.

Purchasing Guidance

• Verify that your cabinet cooling system maintains ambient temperatures below 40 degrees Celsius to protect the A06B-6047-H004 internal power stages.
• Confirm that your controller rack is compatible with the 30M drive model series interface requirements before deployment.

Frequently Asked Questions

Question: What are the early warning signs of velocity loop instability on the A06B-6047-H004 servo drive?

Answer: Technicians typically observe axis motor hunting, slight thermal drift during continuous moves, or CNC system contouring errors caused by feedback potentiometer degradation.

Question: Can the A06B-6047-H004 be operated in facilities located above 1000 meters in elevation?

Answer: Operating above 1000 meters requires de-rating the drive or ensuring forced-air cabinet cooling due to reduced air density affecting thermal dissipation.

Question: How does the 5G vibration tolerance impact mounting procedures inside a CNC cabinet?

Answer: While the drive tolerates up to 5G vibration, it should still be hard-mounted to a rigid sub-panel using lock washers to prevent loosening over time in high-impact stamping environments.

Question: What preventive checks should be performed on the A06B-6047-H004 power section during scheduled maintenance?

Answer: Inspect internal DC bus capacitors for bulging or leakage, verify screw terminal torque, and clean any dust accumulation around the chassis ventilation paths.

Question: Is the velocity control unit on this drive field-adjustable for different motor inertias?

Answer: Yes, gain and integration potentiometers on the board allow fine-tuning of velocity response to match specific connected DC servo motor load characteristics.
