990-08-XX-03-00 Bently Nevada Probe Transmitter | 4-20 mA Axial Monitoring

Product Overview: Axial Motion Monitoring with a 4–20 mA Output

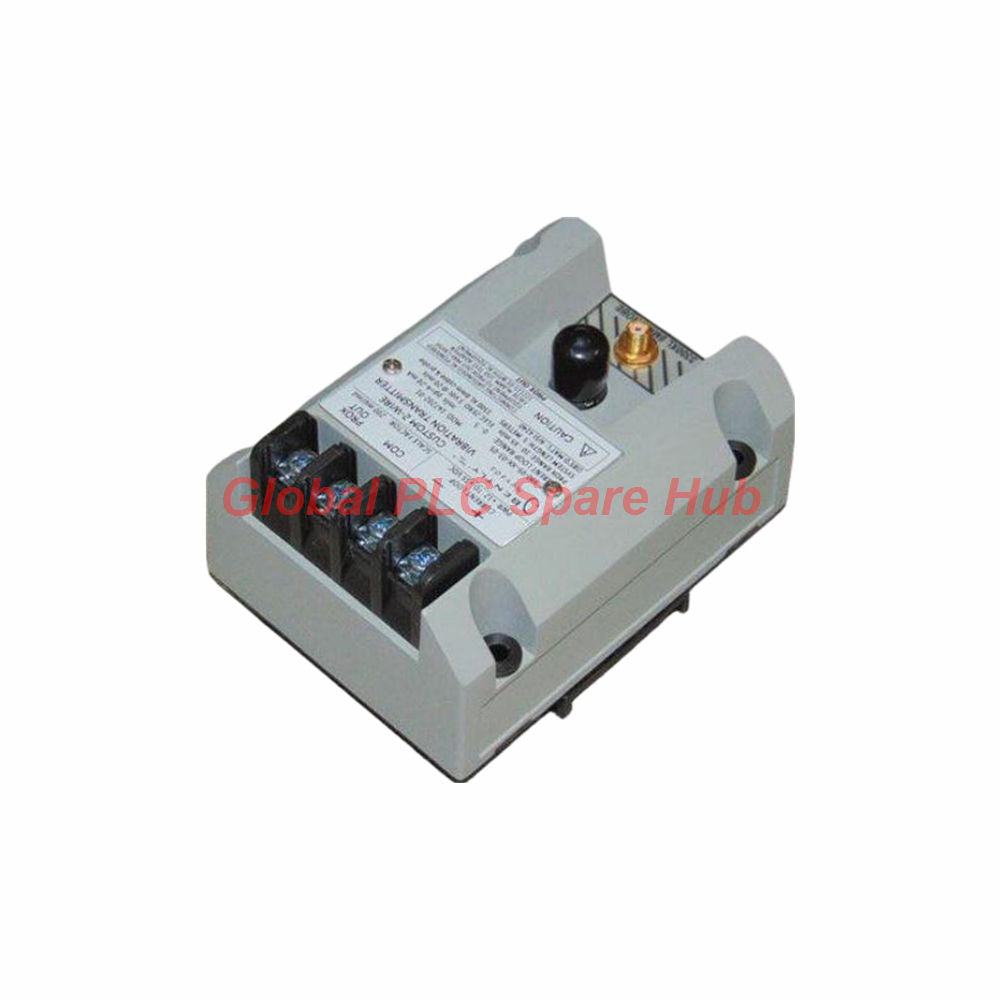

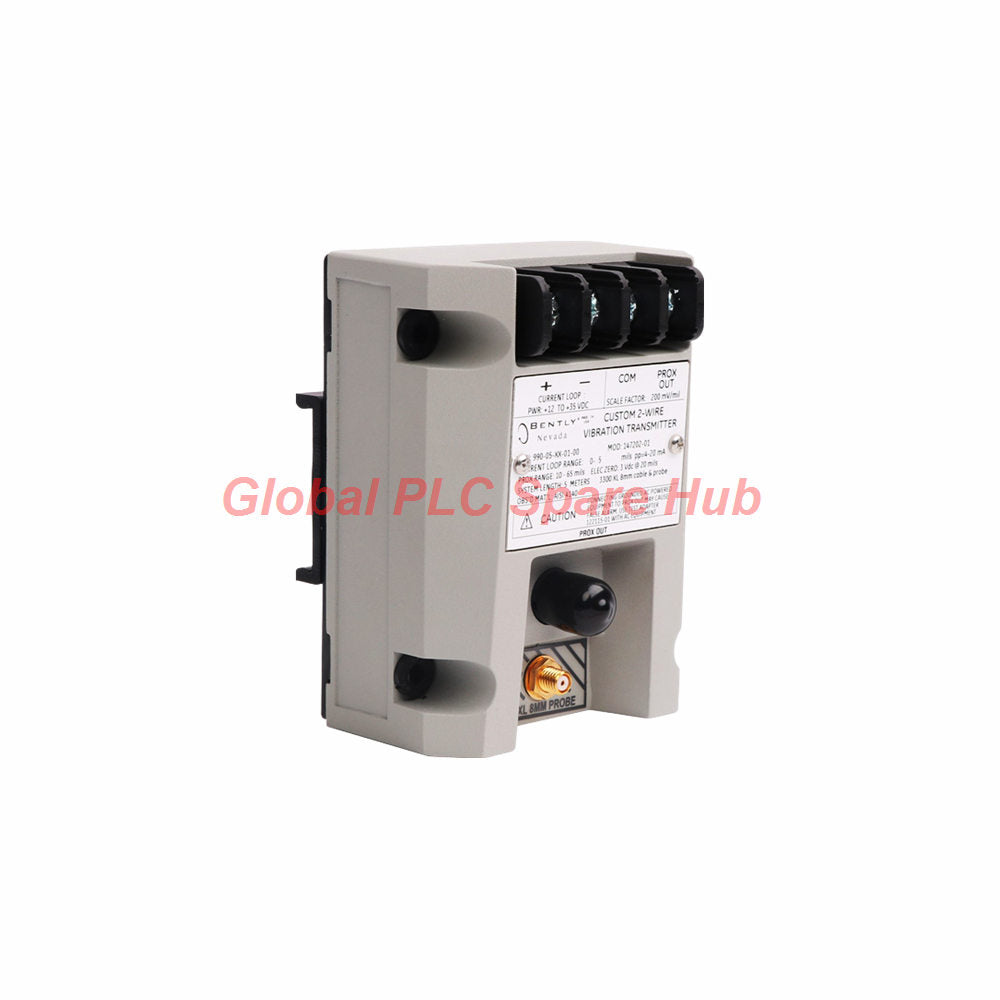

The Bently Nevada 990-08-XX-03-00 is a probe vibration transmitter configuration for axial displacement monitoring. It converts a compatible proximity probe signal into a standard 4–20 mA current output for industrial control and monitoring systems.

The transmitter accepts one non-contacting 3300 NSv proximity probe and its compatible extension cable. Its two-wire loop design supports integration with PLC analog inputs, DCS controllers, and other compatible current-loop receivers.

The 08 full-scale option represents 0–8 mils peak-to-peak (0–200 μm peak-to-peak). The 03 mounting option specifies DIN clips and screws. The 00 agency approval option indicates that no agency approval is specified by that ordering code.

• Manufacturer: Bently Nevada
• Product Number: 990-08-XX-03-00
• Product Type: Probe vibration transmitter
• Ordering Model Description: 991 thrust transmitter family, as provided in the ordering information
• Measurement Purpose: Axial displacement monitoring
• Output: 4–20 mA DC, two-wire configuration

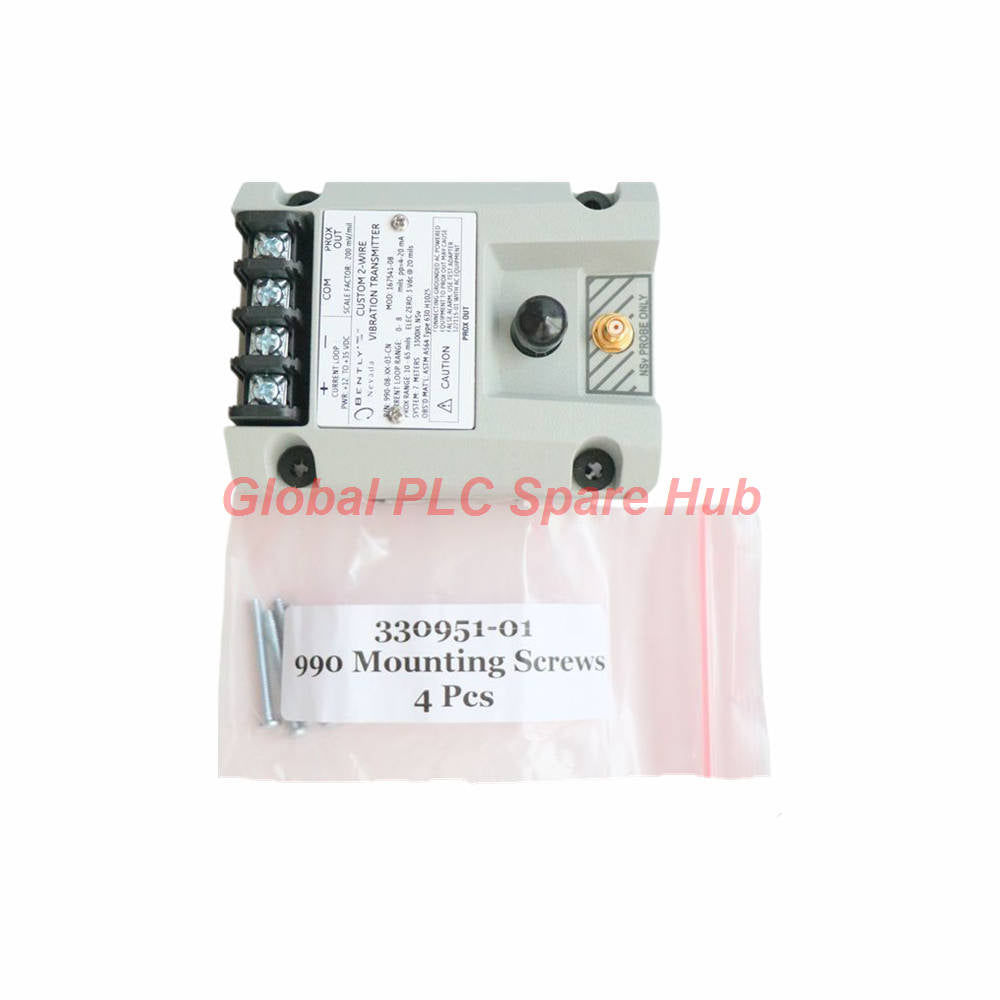

• Mounting: DIN rail using clips and screws
• Manufacturing Origin: USA, according to the supplied product information
• Warranty: 12 months, subject to supplier terms

Technical Specifications

Configuration note: The XX system-length field requires the applicable MOD number. Confirm this value before ordering to match the transmitter with the installed probe system.

How the Transmitter Supports Machinery Protection

The transmitter converts a compatible proximity probe measurement into a current signal that downstream equipment can interpret. This arrangement allows control-system engineers to monitor axial movement without relying solely on a local vibration rack display.

1. Probe Measurement: The 3300 NSv proximity probe senses the position of a compatible conductive target.
2. Signal Conversion: The transmitter converts the probe system signal into a proportional 4–20 mA output within its configured range.
3. Control-System Integration: A compatible PLC, DCS, or monitoring input reads the current signal.
4. Alarm Processing: Engineers configure warning and trip thresholds in the receiving system when the application requires them.
5. Fault Investigation: Technicians compare the current signal with independent measurements and operating conditions.

Important: The transmitter provides a measurement signal, not a complete machine shutdown function. The receiving system must implement the required alarms, interlocks, and protection logic.

Signal Performance and Loop Design

Reliable readings depend on correct probe compatibility, system length, loop power, and input configuration. Engineers should verify these parameters before connecting the transmitter to an operating control system.

• Loop Power: Supply 12–35 VDC at the transmitter terminals. Account for voltage drops across the receiver, wiring, and other loop components.
• Load Resistance: Keep the total loop resistance within 1,000 Ω at a 35 VDC supply. Recalculate the allowable load at lower supply voltages.
• Current Scaling: Configure the receiving analog input for 4–20 mA and apply the correct engineering-unit range.
• Accuracy: The stated typical accuracy is ±1.5% of full scale under the specified test conditions. The reference uses the TEST signal input and voltage measured across a 250 Ω loop resistance.
• Zero and Span: Use the external adjustments during authorized calibration. Record the initial and final readings for traceability.
• Fault Signaling: The specified Not OK response drops below 3.6 mA. Confirm that the receiving device recognizes this condition correctly.

The 0–8 mils peak-to-peak option describes the ordered full-scale measurement setting. Do not assume that every output configuration has the same engineering-unit scaling.

Recommended Equipment and Applications

Use this transmitter only where the measured variable, probe arrangement, and required protection function match the application. Confirm the equipment manufacturer's requirements before applying it to a critical machine.

Installation and Commissioning Guide

• Step 1 — Confirm the System Length: Identify the required MOD number and verify the complete probe system configuration.
• Step 2 — Mount the Transmitter: Secure the DIN clips and screws to a suitable rail or approved mounting arrangement.
• Step 3 — Verify the Probe: Confirm that the installed 3300 NSv probe and extension cable match the transmitter requirements.
• Step 4 — Check the Power Supply: Measure the DC voltage at the transmitter terminals before commissioning.
• Step 5 — Inspect the Loop: Check polarity, terminal tightness, cable continuity, and total loop resistance.
• Step 6 — Configure the Analog Input: Select 4–20 mA operation and set the correct engineering-unit scaling.
• Step 7 — Verify the Output: Compare the current output against an approved test signal or known operating condition.
• Step 8 — Test Fault Handling: Verify how the PLC or DCS responds when the transmitter reports a Not OK condition.
• Step 9 — Document the Results: Record the MOD number, calibration settings, supply voltage, output values, and alarm thresholds.

Follow approved site procedures before disconnecting any machinery protection circuit. Do not adjust zero or span while relying on unverified process measurements.

Diagnostic Capabilities and Field Troubleshooting

The transmitter's current output gives technicians a useful starting point for diagnosing measurement-loop problems. Correct interpretation requires the configured measurement range and the receiver's fault-handling logic.

Field example: A turbine axial-position trend may suddenly fall below its normal operating range after maintenance. Before changing alarm limits, technicians should check the transmitter supply, probe connections, current loop, and receiving-channel scaling.

These checks help distinguish electrical faults from genuine shaft movement. They do not replace the machine manufacturer's protection procedures or an independent mechanical assessment.

Mechanical and Environmental Characteristics

• Probe Tip: Polyphenylene sulfide (PPS).
• Probe Case: AISI 303 or 304 stainless steel.
• Probe Cable: 75 Ω coaxial cable with fluoroethylene propylene (FEP) insulation.
• Optional Cable Armor: Flexible AISI 302 stainless steel, with an optional FEP outer jacket.
• Maximum Specified Tensile Strength: 222 N (50 lbf) between the probe case and probe lead.
• Transmitter Temperature: -35°C to +85°C during operation.
• Storage Temperature: -51°C to +100°C.

Protect probe leads from sharp bends, crushing, abrasion, and excessive pulling force. Route signal cables away from high-current conductors where practical, and follow the approved grounding and shielding scheme.

Global PLC Spare HUB's Insight

For axial monitoring, engineers should prioritize correct system length and signal scaling before investigating small changes in the 4–20 mA trend. An incorrect MOD number or receiver range can create misleading readings even when the loop appears electrically healthy.

During a turbine overhaul, for example, a maintenance team may replace a proximity probe while retaining the existing transmitter. The team should verify the replacement probe's compatibility, extension cable arrangement, and system length before returning the channel to service.

After commissioning, technicians should record the current output at a known operating condition. They should also document the configured zero, span, alarm thresholds, and response to a Not OK condition.

This approach improves fault isolation and helps prevent unnecessary transmitter replacement. It also gives the next maintenance team a clear reference for evaluating changes in axial position.

Packaging, Warranty, and Shipping

• Product: Bently Nevada 990-08-XX-03-00 probe vibration transmitter configuration.
• Warranty: 12 months, subject to the supplier's applicable terms and conditions.
• Shipping Carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch Target: 24–48 hours after order confirmation, subject to stock verification and order processing.
• Order Verification: Confirm the complete part number and required MOD number before dispatch.
• Package Contents: Confirm the transmitter, mounting accessories, and included documentation against the supplier's packing list.

Frequently Asked Questions

Q1: Why does the XX code require confirmation before purchase?

The XX field represents a system-length option that requires a MOD number. The correct value depends on the intended probe system configuration. Confirm the existing system documentation before ordering a replacement.

Q2: How should engineers interpret a current output that changes after a machine load change?

First, compare the change with the expected axial movement and the configured measurement range. Check the machine operating condition and verify the signal against independent data before treating the change as a fault.

Q3: What is the most useful commissioning record for future troubleshooting?

Record the MOD number, transmitter supply voltage, loop current, analog input scaling, and normal operating readings. Include alarm thresholds and the observed response to a verified Not OK condition.

Q4: How can a buyer determine whether this transmitter suits an existing control cabinet?

Confirm the DIN mounting arrangement, available DC supply, input resistance, and two-wire 4–20 mA interface. Check the required engineering-unit range and the receiving input's handling of signals below 3.6 mA.

Q5: When should a technician adjust zero and span instead of replacing the transmitter?

Adjustments may be appropriate when an approved calibration test identifies a correctable offset or scaling error. Verify the probe system, MOD number, supply voltage, and loop configuration first. Replace components only after testing identifies a fault and approved procedures permit the change.

Request Pricing and Technical Confirmation

Contact Global PLC Spare HUB to request a quotation for the Bently Nevada 990-08-XX-03-00. Provide the required MOD number, quantity, and intended application to help verify system compatibility before purchase.
