95DSS3-1 Fireye InSight II Scanner: High-Performance Flame Monitoring

Product Overview: Integrated Flame Sensing Excellence

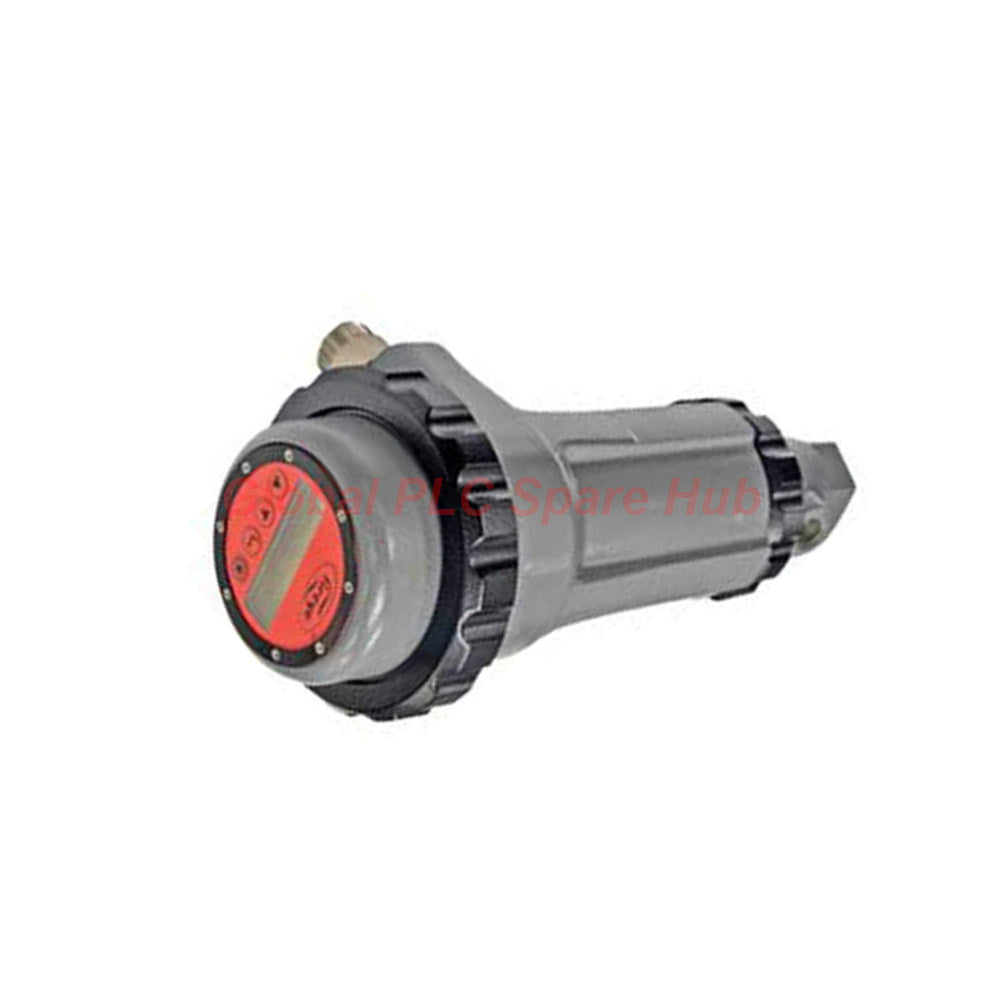

The 95DSS3-1 is a premier model within the Fireye InSight II Scanner series, engineered for high-stakes industrial combustion environments. This all-in-one flame monitoring solution integrates advanced sensor technology with robust logic, eliminating the need for separate remote amplifiers. Designed for durability, the 95DSS3-1 provides real-time flame analysis, ensuring operational stability in demanding safety-critical applications.

Technical Specifications

• Manufacturer: Fireye
• Model Number: 95DSS3-1
• Series: InSight II Scanner
• Input Power: 24 Vdc (+10%, -15%), 0.35 A consumption
• Flame Relay Output: 2 x SPDT (N.O. and N.C.)
• Fault Relay Output: 1 x SPST (N.O.)
• Contact Rating: 100 mA @ 30 Vdc / 50 Vac
• Electrical Interface: 8-pin and 12-pin quick-disconnect connectors
• Housing Construction: Cast aluminum with gray polyester finish
• Environmental Protection: NEMA 4X / IP66; Class I/II Division 2 rated
• Thermal Range: -40°C to +65°C ambient; up to 80°C internal
• Relative Humidity: 0% to 95% non-condensing

Global PLC Spare HUB’s Insight

The 95DSS3-1 is technically superior for operators managing multi-burner boiler management systems (BMS). Its onboard diagnostics minimize false trips by differentiating flame flicker frequency with high precision. We recommend this unit for utility power plants and large-scale petrochemical process furnaces where reliability is paramount. Its capability to operate in NEMA 4X environments makes it the ideal choice for outdoor or high-moisture installation sites.

Application Scenarios & Diagnostic Capabilities

• Key Applications: Power utility boilers, industrial process heaters, gas-fired turbines, and petrochemical incinerators.
• Advanced Diagnostics: Provides signal strength monitoring, flame flicker frequency tracking, and internal temperature reporting. The unit alerts maintenance teams of degrading flame quality before a shutdown occurs.

Logistics and Warranty

• Warranty: Guaranteed 12-month performance warranty for all factory-new units.
• Shipping: Worldwide fast-track delivery via FedEx, UPS, or DHL.
• Lead Time: Orders are processed and dispatched within 24 to 48 hours.

Expert Frequently Asked Questions

How does the 95DSS3-1 handle signal interference in a multi-burner array?
It utilizes advanced digital signal processing to filter out background radiation and flicker from adjacent burners, ensuring the relay only tracks the specific burner flame assigned to it.

What is the primary advantage of the dual-connector design?
The 12-pin and 8-pin arrangement simplifies field wiring while providing dedicated channels for power, flame relay status, and remote communication/diagnostics.

When should I consider a fiber optic mount for this scanner?
If the ambient temperature at the burner sight path exceeds the 65°C limit, or if the line of sight is obstructed, the fiber optic mount is required to isolate the scanner from direct heat.

How do I optimize the scanner setup for a startup?
Use the onboard status indicators to verify flame signal strength. During the initial commissioning, ensure the gain settings are calibrated to detect the pilot flame vs. the main flame to prevent premature lockout.

Why is the 20ms hold time requirement critical for my power supply?
The 95DSS3-1 is sensitive to rapid voltage drops. A 20ms hold time ensures that transient power fluctuations do not cause the scanner to reboot, which would trigger a safety system trip.
