84661-33 Bently Nevada Interconnect Cable | 33ft Armored Signal Lead

Engineering Performance Overview

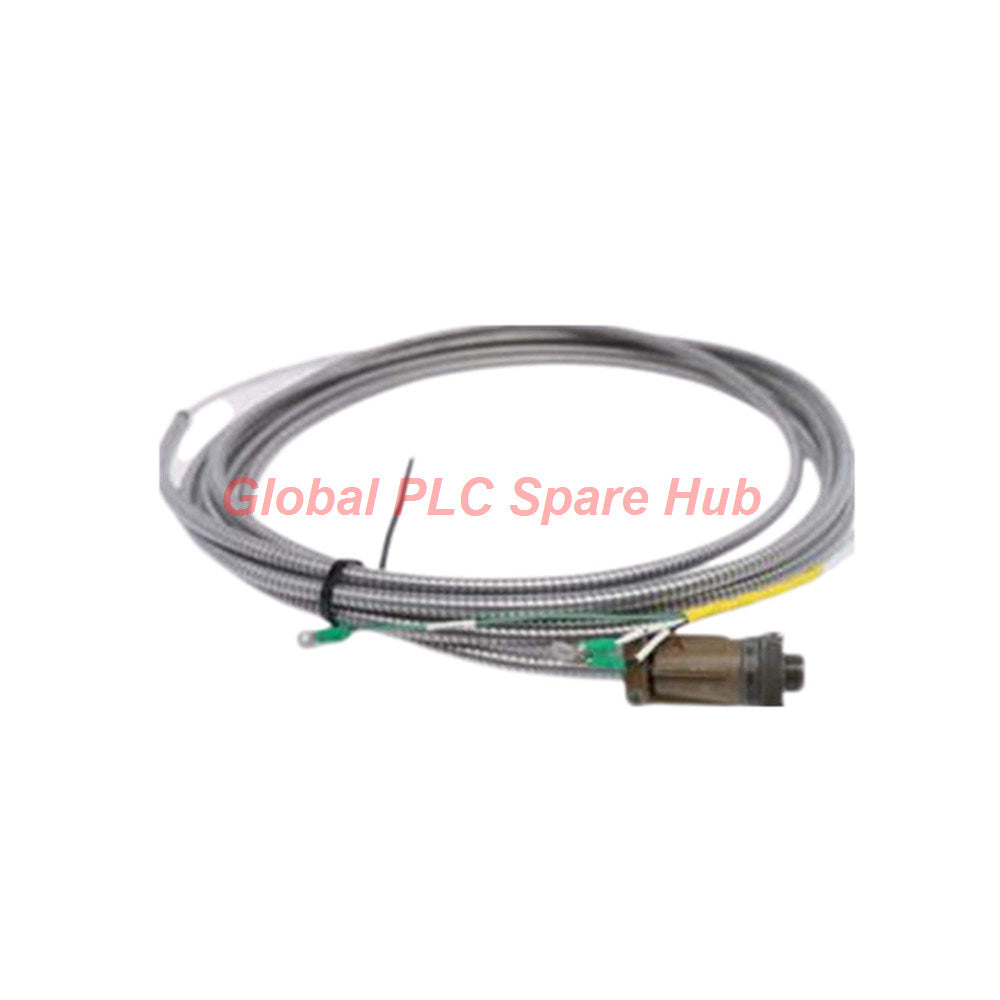

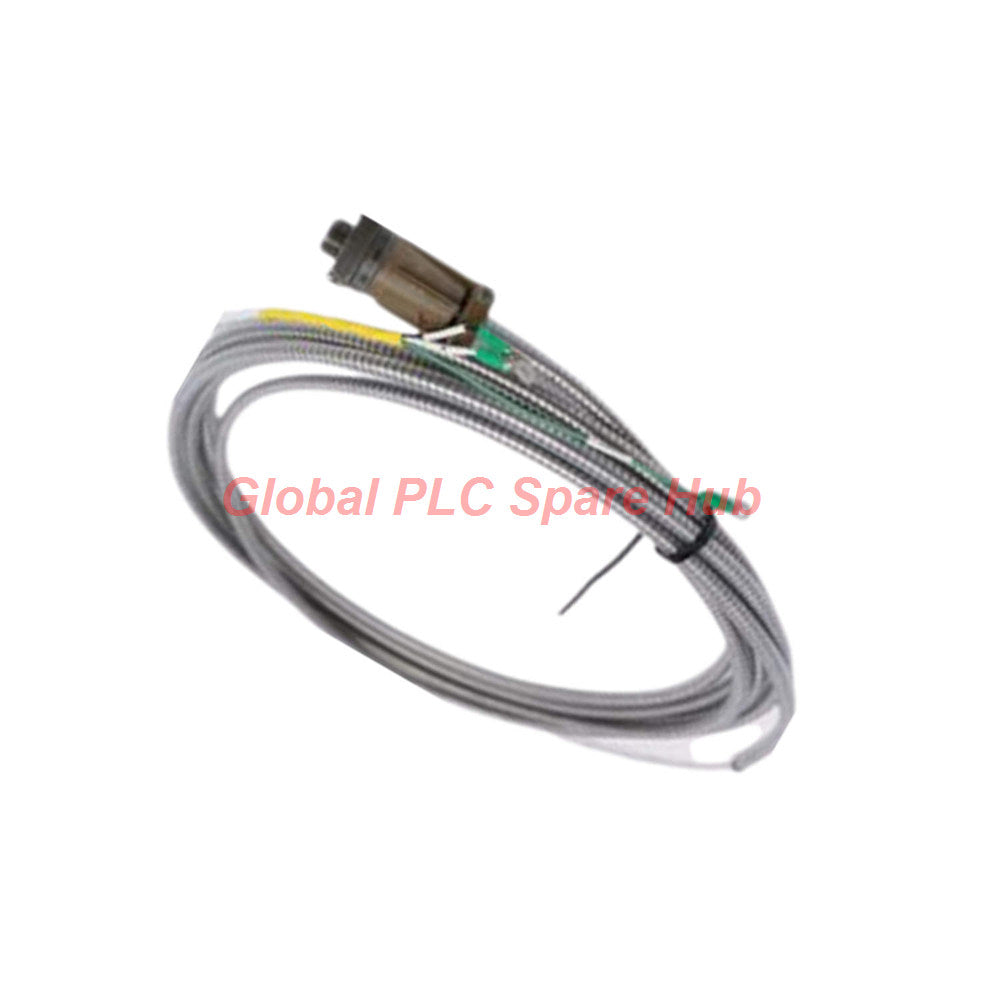

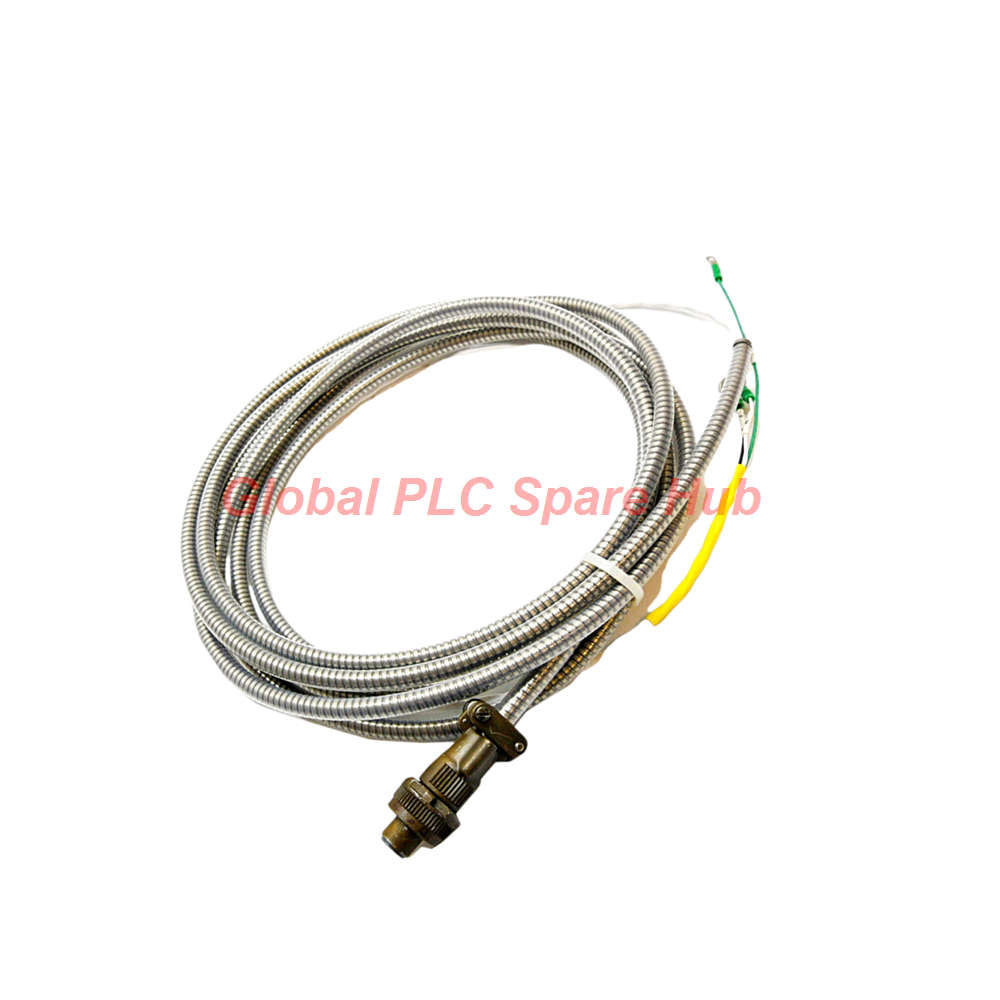

The 84661-33 is a high-integrity signal extension assembly engineered by Bently Nevada within their specialized interconnect cabling product line. Designed to bridge vibration monitors with remote sensors, the 84661-33 utilizes a robust two-conductor twisted, shielded 22 AWG architecture encased in a protective metal armor. This construction effectively blocks electromagnetic interference (EMI) and mechanical damage in harsh industrial environments, ensuring distortion-free data transmission over extended cable runs.

Part Number Configuration Breakdown

Core Technical Architecture & Specifications

Mechanical Integration & Deployment Protocols

• Routing Protection: Secure the armored exterior using industrial cable cleats to prevent excessive strain on the terminal lugs.
• Moisture Sealing: Ensure the two-socket female connector is pushed firmly until seated, locking out condensation in humid turbine pits.
• Grounding Continuity: Terminate the internal shield drain wire properly at the control panel ground bus to maintain noise immunity.

Advanced Diagnostics & Signal Integrity Capabilities

• Attenuation Prevention: Low electrical resistance across the 22 AWG twisted pair minimizes voltage drop over the 33-foot span.
• Noise Rejection: High common-mode rejection ratio achieved via balanced twisted-pair geometry and outer shield coverage.
• Loop Continuity Verification: Simplifies offline troubleshooting by providing direct lug-to-socket resistance check points during annual maintenance shutdowns.

Global PLC Spare HUB's Insight

Plant instrumentation engineers at Global PLC Spare HUB note that standard unshielded wiring routed near high-voltage motor feeds frequently introduces spurious noise spikes into vibration monitoring channels. Replacing makeshift wiring with the factory-terminated 84661-33 armored assembly eliminates erratic alarm trips caused by electromagnetic coupling.

Target Equipment & Industrial Application Scenarios

• Balance and Vibration Rigs: Connecting remote accelerometers and velocity transducers to local junction boxes.
• Reciprocating Compressors: Frame vibration monitoring lines exposed to continuous mechanical flexing and oil mist.
• Power Generation Turbines: Interconnecting casing-mounted velocity sensors across high-temperature turbine decks.

Commercial Logistics & Warranty Terms

• Expedited Global Dispatch: Priority international shipping channels via FedEx, UPS, and DHL with orders packed and dispatched within 24 to 48 hours.
• Quality Assurance: Backed by a full 12-month manufacturer warranty guaranteeing structural and electrical integrity.

Engineering FAQ & Selection Guidance

Q: Can the 33-foot length of the 84661-33 be shortened on-site if my routing distance is shorter?
A: Trimming the cable is discouraged because it compromises the moisture-resistant molded connector termination; select a custom length suffix if a precise fit is required.

Q: What is the primary operational benefit of choosing an armored cable over a standard PVC jacket?
A: The flexible metallic armor protects the inner 22 AWG conductors from accidental mechanical damage, chemical splatter, and heavy foot traffic in crowded industrial plants.

Q: How does the moisture-resistant connector prevent signal degradation in wet outdoor environments?
A: The specialized boot and internal gasket seal form a tight barrier around the socket pins, stopping water ingress that causes ground loops and high-impedance shorts.

Q: Is it permissible to splice two 84661 cables together to reach a longer distance?
A: Splicing introduces impedance discontinuities and compromises shielding; it is always recommended to order a single continuous cable length up to the 96-foot maximum limit.

Q: What wiring practice prevents ground loops when connecting the terminal lugs to the monitoring panel?
A: Always ground the shield drain wire at one end only (typically the control panel side) to prevent circulating ground currents from corrupting low-level vibration signals.
