84661-24 Bently Nevada Interconnect Cable Assembly

Engineering Overview & Cable Architecture

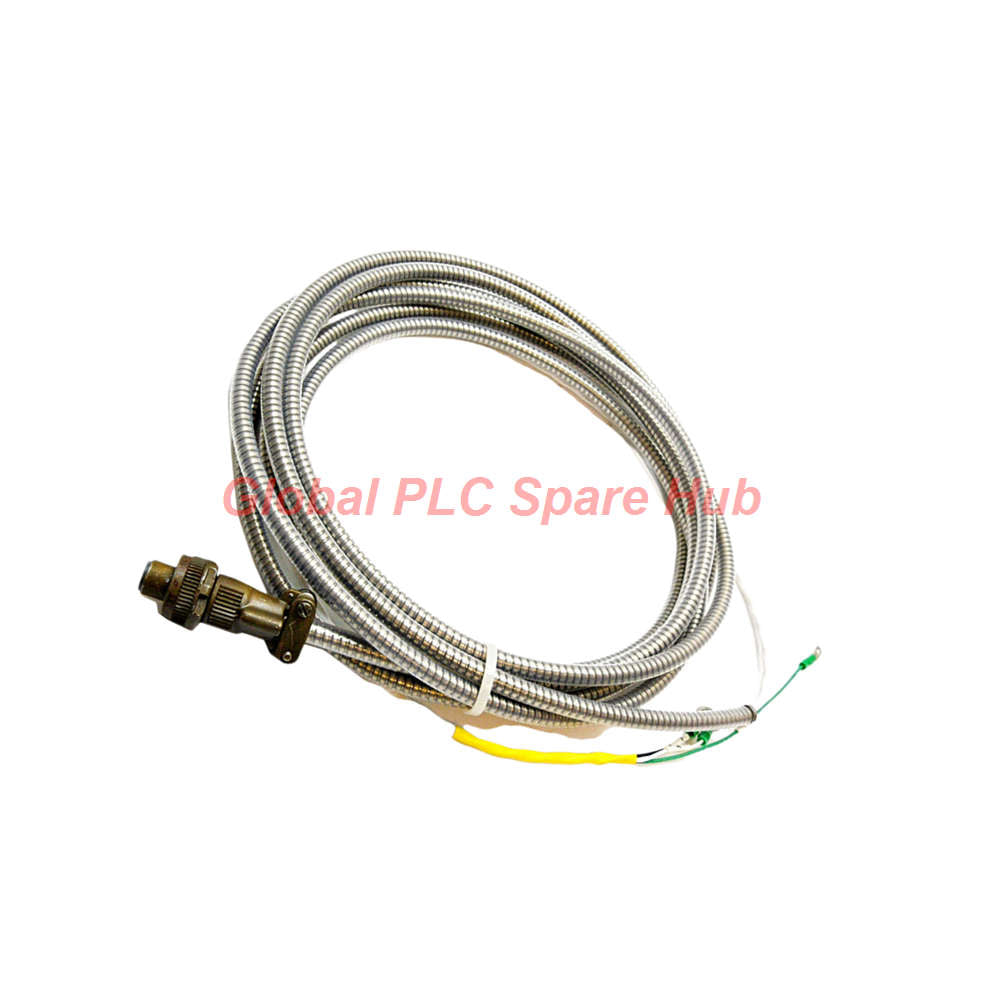

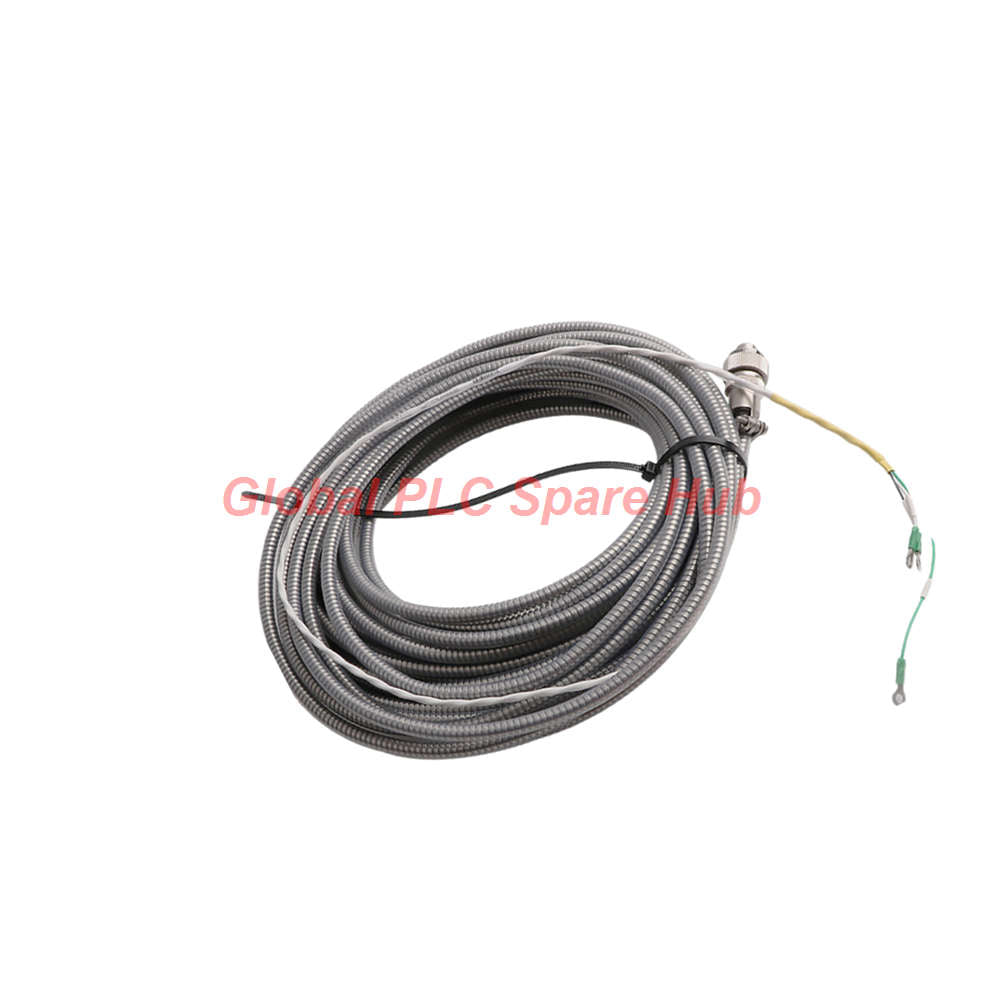

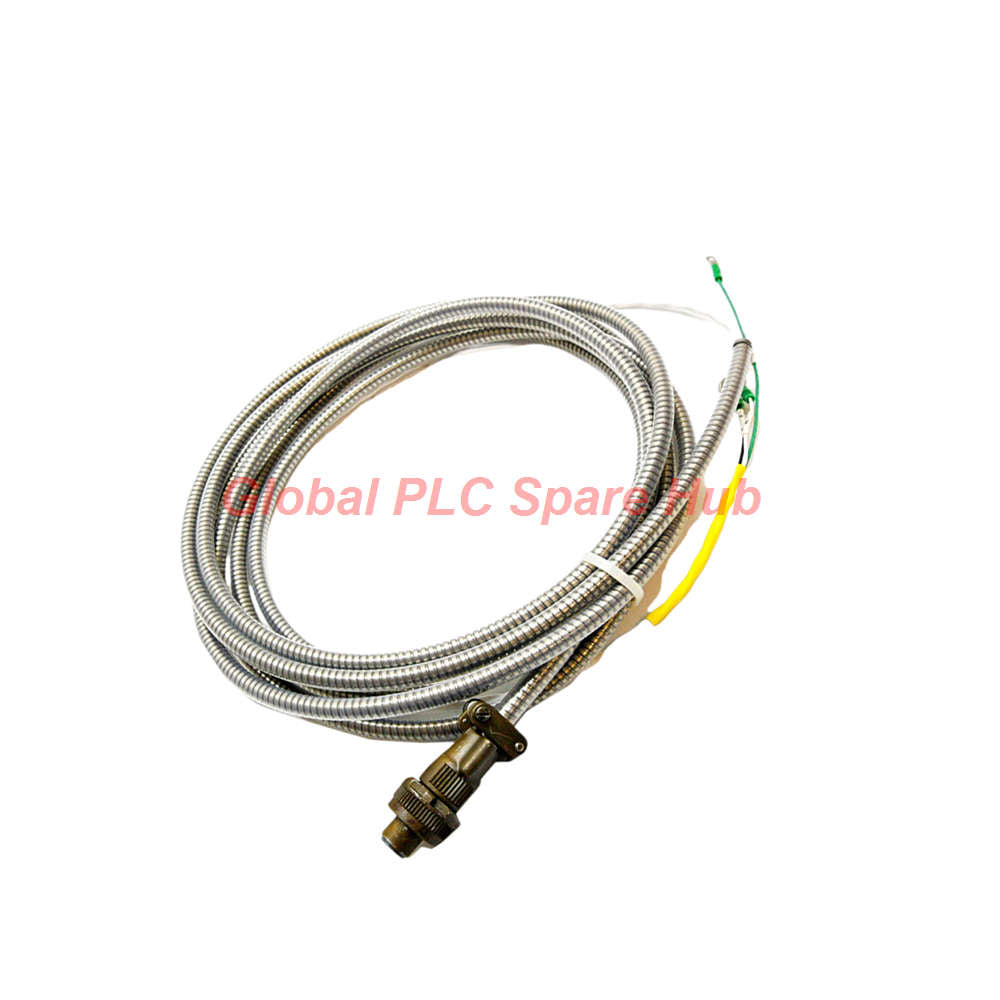

The 84661-24 interconnect cable manufactured by Bently Nevada provides reliable signal transmission for machinery protection transducers. As part of the Interconnect Cables series, this rugged assembly utilizes a two-conductor twisted, shielded 22 AWG armored design equipped with a moisture-resistant female connector on one end and terminal lugs on the other.

Configuration Breakdown & Suffix Architecture

Technical Specifications Matrix

• Manufacturer & Model: Bently Nevada 84661-24
• Length Parameters: 24 ft nominal length (Operational range: Min 3.0 ft / Max 96 ft)
• Armor Protection: Rugged outer metallic armor shielding against mechanical abrasion
• Environmental Sealing: Moisture-resistant female connector prevents fluid ingress at probe interface
• Electrical Isolation: Continuous foil and braid shield terminating to drain wire

Compatible Field Devices & Application Scenarios

The 84661-24 cable connects proximity probes directly to rack monitors or remote junction boxes. Typical heavy industrial environments include:

• Turbine-generator bearing housings exposed to severe oil mist and washdown conditions.
• High-vibration centrifugal compressor skids requiring armored mechanical protection.
• Hydroelectric turbine generator pits subject to high humidity and condensation.

Advanced Diagnostic Capabilities

The continuous 360-degree shielded armor architecture prevents electromagnetic and radio frequency interference from corrupting low-level gap voltage signals. Maintaining low signal loop resistance ensures vibration monitors receive pristine dynamic waveforms without harmonic attenuation or false spike artifacts.

Global Logistics, Fulfillment & Warranty Terms

• Rapid Dispatch: Verified stock orders process and ship within 24 to 48 hours.
• Global Transport: Secure international air freight via FedEx, UPS, and DHL.
• Quality Protection: Backed by a standard 12-month manufacturer defect warranty.

Global PLC Spare HUB's Insight

Instrumentation technicians frequently experience high signal noise floor issues when unarmored extension cables run parallel to variable frequency drives. Field experience shows that replacing standard wiring with armored cables like the 84661-24 completely eliminates induced 50/60 Hz ground loops. For instance, a petrochemical plant stabilized erratic orbit plots on a cracked steam turbine shaft by routing signals through this shielded assembly, ensuring clean spectral analysis.

Professional Frequently Asked Questions

Question: What specific precaution is necessary when routing the armored sheath of the 84661-24 through cable trays?

Answer: Technicians must ensure the outer armor and drain wire are properly grounded at only one end to prevent circulating ground currents from inducing voltage noise.

Question: Can maintenance personnel cut and splice this cable in the field if the 24-foot length is excessive?

Answer: Field splicing is strictly discouraged because altering the matched electrical capacitance and loop resistance distorts proximity probe calibration curves.

Question: How does the moisture-resistant female connector protect against fluid ingress in wet environments?

Answer: An internal elastomer sealing boot creates a tight environmental barrier around probe pins, preventing oil and water from bridging the signal contacts.

Question: What purchasing considerations apply when selecting alternative lengths within this series?

Answer: Buyers must verify that total cable loop capacitance remains within the maximum limits specified by the Bently Nevada monitor rack data sheet.

Question: What troubleshooting steps apply if a monitor displays a constant -24V bias fault?

Answer: Technicians should inspect the terminal lug connections for loose screws and test continuity across the two socket conductors using a digital multimeter.
