6ES7531-7NF00-0AB0 Siemens SIMATIC S7-1500 AI 8xU/I HF Module

Product Overview

The 6ES7531-7NF00-0AB0 is an ultra-precise, high-feature analog input module engineered for the Siemens SIMATIC S7-1500 control platform. This high-density analog input module features 8 universal channels grouped individually to deliver complete electrical isolation. Supporting up to 24-bit resolution alongside a strict 0.1% operational error limit, it captures micro-level signal deviations accurately. Control engineers deploy this component for high-end laboratory test stands, custody transfer systems, and highly sensitive process environments.

Global PLC Spare HUB's Insight

Our technical team classifies the 6ES7531-7NF00-0AB0 as a top-tier instrument for instrumentation environments plagued by severe ground-loop problems. Every single channel among the 8 inputs provides independent channel-to-channel isolation rated to handle a 30 V AC / 60 V DC common-mode voltage threshold. The exceptional 24-bit processing depth resolves subtle drift issues in analog loops instantly. Furthermore, the integrated "Calibrate in RUN" functionality allows field instrumentation technicians to re-zero channels without stopping the master PLC process.

Compatible Host Hardware

• Siemens SIMATIC S7-1500 Standard and Failsafe central processing units
• ET 200MP distributed I/O racks connected via high-speed PROFINET or PROFIBUS networks
• Standard 40-pin push-in or screw-type front connector infrastructure pieces
• Integrated S7-1500 shielding components including the bundled infeed element and dedicated grounding clamps

Targeted Application Scenarios

• Chemical Processing Plants: Monitors precise mass flow meters and pressure transmitters under high common-mode voltage stress.
• Power Plant Instrumentation: Collects delicate current and voltage parameters from distributed switchgear monitoring subsystems safely.
• Automotive Dyno Testing: Captures high-frequency torque and throttle feedback variations utilizing the optimized Fast Mode setting.
• Water Treatment Facilities: Interfaces directly with remote 2-wire and 4-wire water quality analysis instrumentation arrays.

Technical Specifications Matrix

• Brand / Manufacturer: Siemens
• Model Number: 6ES7531-7NF00-0AB0
• Product Series: SIMATIC S7-1500 Automation Architecture
• Module Type: High Feature Analog Input (AI 8xU/I HF)
• Input Channels: 8 inputs arranged in separate isolated groups of 1 channel each
• Maximum Resolution: 24-bit processing depth when using scale value or measurement range adjustment options
• Basic Accuracy Limit: Highly precise 0.05% at 25 degrees Celsius ambient temperature
• Voltage Input Selections: 1 to 5 V, -10 to +10 V, -2.5 to +2.5 V, and -5 to +5 V configurations
• Current Input Selections: 0 to 20 mA, 4 to 20 mA, and wideband -20 to +20 mA loops
• Input Resistance Profiles: 100 kΩ for all voltage settings; 25 Ω supplemented by 42 Ω PTC protection for current loops
• Interference Rejection Matrix: 80 dB minimum series mode rejection within standard speed processing states
• Isolation Potential: 2000 V DC dielectric test limit between independent measurement channels
• Maximum Thermal Profile: Standard horizontal operation rated up to 60 degrees Celsius without active cooling

Diagnostic Capabilities & Process Interrupts

• Hardware limit value interrupts trigger instantly upon violations of two distinct upper or lower boundary limits.
• Wire-break monitoring activates automatically for 1 to 5 V voltage spans and 4 to 20 mA current loops.
• Continuous power diagnostics monitor the status of the incoming external 24 V DC supply lines.
• Onboard software logs capture parameterization errors, overflow scenarios, and underflow signals immediately.
• Front-mounted channel LEDs shift from solid green to flashing red during active wiring or hardware faults.

Procurement Guidance & Engineering Selection Advice

• Verify that your development station runs STEP 7 TIA Portal version V14 or higher for correct device catalog deployment.
• Assess your sensor types early since this hardware requires an external transmitter supply to drive 2-wire current devices.
• Utilize the included shield bracket and shield terminal block to ensure full compliance with the 80 dB interference suppression rating.
• Account for accuracy degradation below 0 degrees Celsius where standard operational error limits double systematically.

Logistics & Warranty Structure

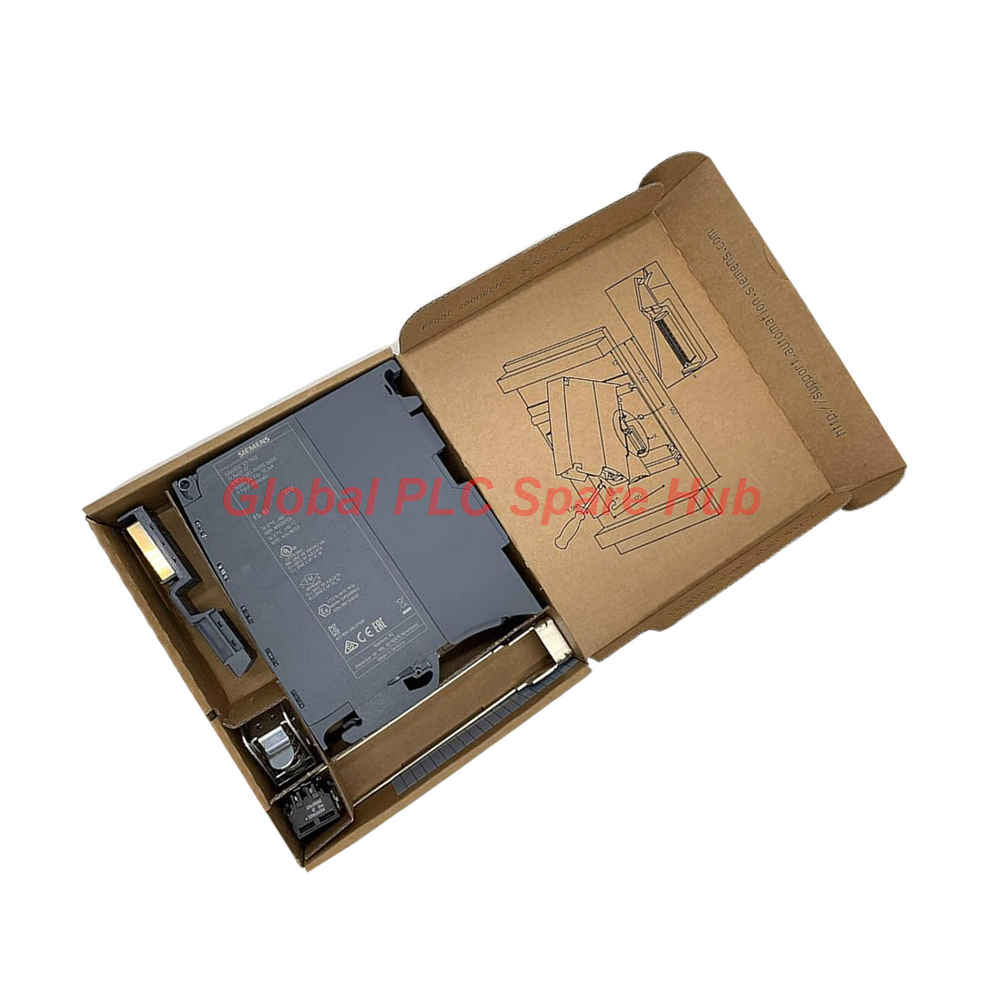

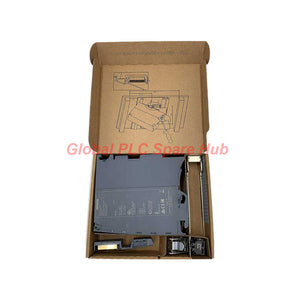

• Package Inventory: One new Siemens 6ES7531-7NF00-0AB0 module, one shield bracket, one shield terminal, and one infeed element.
• Warranty Safeguard: This high-end instrumentation piece includes our standard 12-month comprehensive replacement warranty program.
• Order Fulfillment: Global fulfillment centers execute dispatch protocols within 24 to 48 hours following payment completion.
• Express Logistics Providers: Reliable global courier tracking handled exclusively via premium FedEx, DHL, and UPS shipping options.

Frequently Asked Questions

• Question: Why does this module achieve 24-bit resolution while standard S7 formats max out at 16 bits?
• Answer: The module uses a high-performance internal converter that yields a 24-bit representation when you select "Scalable measured values" or "Measuring range adaptation" in TIA Portal, outputting data in 32-bit REAL format instead of the standard 16-bit INTEGER layout.
• Question: Does the current input option require external fusing to protect against overcurrent damage?
• Answer: No, the module features built-in protection. Each current input path incorporates a 25-ohm resistor paired with an integrated 42-ohm positive temperature coefficient thermistor to guard against accidental overvoltages up to the 40 mA destruction limit.
• Question: How do Fast Mode and Standard Mode configurations impact the filtering performance of this module?
• Answer: Standard Mode optimizes noise rejection by offering 80 dB of series mode suppression at typical industrial frequencies. Fast Mode drops the suppression factor to 40 dB but decreases the basic channel conversion time down to a swift 4 milliseconds for high-speed tracking.
• Question: Can this module measure thermocouples or RTD sensors like Pt100 elements directly?
• Answer: No, this specific model only accepts standard analog voltage and current inputs. To process resistance temperature detectors or thermocouples directly on an S7-1500 rack, you must select alternative modules such as the AI 8xRTD/TC variants.
• Question: What exactly does the "Calibrate in RUN" function achieve for a system operating in the field?
• Answer: This feature allows maintenance engineers to issue calibration commands via the control software to compensate for component aging or sensor drift. The module calculates new calibration offsets dynamically while the central processor remains in RUN mode, eliminating system downtime.
