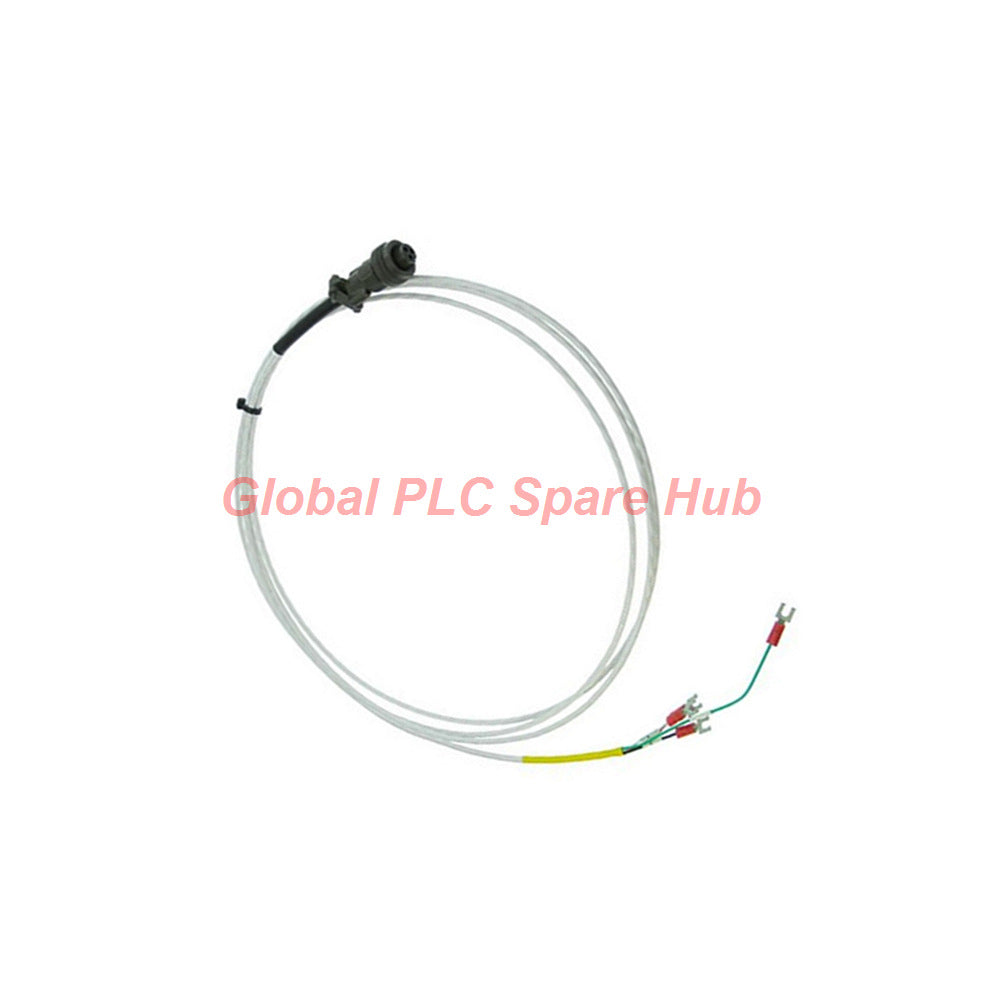

6925-99 Bently Nevada Interconnect Cable | 99ft 30m Transducer Cord

Global PLC Spare HUB's Insight

From our technical lab evaluations, the Bently Nevada 6925-99 series excels in high-noise machinery environments. Standard commercial cabling often acts as an antenna, picking up harmful electromagnetic and radio frequency interference. In contrast, the robust 22 AWG shielded architecture of the 6925-99 preserves the clean voltage modulations generated by proximity transmitters.

Our engineering field tests confirm that the 3-socket molded connector maintains gas-tight seals even when subjected to continuous oil vapor. Additionally, the pre-installed terminal lugs on the destination end eliminate stripping errors on-site. Choosing the maximum 99-foot configuration ensures a seamless run from the local machine junction box back to the control room, avoiding signal degradation from unnecessary splices.

Configuration Breakdown & Model Structure

The Bently Nevada 6925 series follows a standardized configuration logic based on required length. Below is the precise breakdown for this product family:

• Base Part Number: 6925 (Standard 3-Conductor Interconnect Cable Assembly)
•   └── Cable Ends Option: 3-socket plug at probe end to terminal lugs at monitor end
•   └── Conductor Configuration: 22 AWG (0.5 mm²) twisted shielded copper conductors
•   └── Length Designation Suffix: -99 (Specifies 99 Feet / 30 Meters total length)
•         ├── Minimum Available Length: -02 (2.0 feet / 0.6 meters)
•         └── Maximum Available Length: -99 (99 feet / 30 meters)

Technical Specifications

Target Equipment & Applications

The 6925-99 interconnect assembly is engineered for direct pairing with the following machinery protection platforms:

• Legacy Bently Nevada 3300 machinery monitoring racks
• Legacy Bently Nevada 7200 proximity transducer systems
• Radial vibration transmitters and axial position monitors
• Local weather-proof transmitter housings and machinery junction boxes

Diagnostic Capabilities

Because dynamic vibration readings depend on micro-ampere and low-voltage fluctuations, cable health is paramount. The high-performance shielding inside the 6925-99 prevents electromagnetic crosstalk from nearby power cables. This preserves the signal's clean waveform, allowing diagnostic software to accurately identify mechanical faults such as shaft unbalance, rotor misalignment, and oil whirl.

Logistics & Quality Guarantee

• Full Product Warranty: Global PLC Spare HUB backs this cable assembly with a comprehensive 12-month quality warranty.
• Rapid Shipping: We dispatch all completed orders within 24 to 48 hours directly from our regional stock centers.
• Worldwide Express Carriers: We partner with industry-leading logistics networks including DHL, FedEx, and UPS.

Frequently Asked Questions (FAQ)

How can I verify if a 6925-99 cable is failing due to physical wear vs. electrical noise?
You can perform a loop resistance test on the 22 AWG conductors using a multimeter. High resistance or intermittent values when bending the cable points to physical copper fatigue. Constant, clean resistance alongside erratic monitor readings usually points to poor shield grounding at the monitor end.

Does this cable assembly require any conduit during open-air industrial runs?
While the outer jacket provides strong chemical resistance, we advise installing the cable within a flexible or rigid metal conduit for runs crossing open areas. This shielding protects the physical assembly from falling debris, heavy traffic, and direct weld spatter.

Can I cut a 6925-99 cable down to a shorter length if my runs change during installation?
Yes, you can trim the cable at the terminal lug end. However, you must carefully strip the shield, re-crimp new, high-quality insulated terminal ring connectors, and properly isolate the bare drain wire to prevent ground loops.

Is the 3-socket plug on this cable compatible with newer 3300 XL series proximity sensors?
The 6925 connector plug is designed primarily for older generations, such as the 7200 series. For modern 3300 XL proximity sensors, verify your sensor's specific manual, as they often require a different connector keyed configuration.

What is the proper grounding strategy when installing this shielded cable?
To avoid ground loops, you should ground the cable shield at one end only. Typically, the shield is tied to the instrument ground inside the monitor rack, leaving the shield isolated and floating at the local machine junction box.
