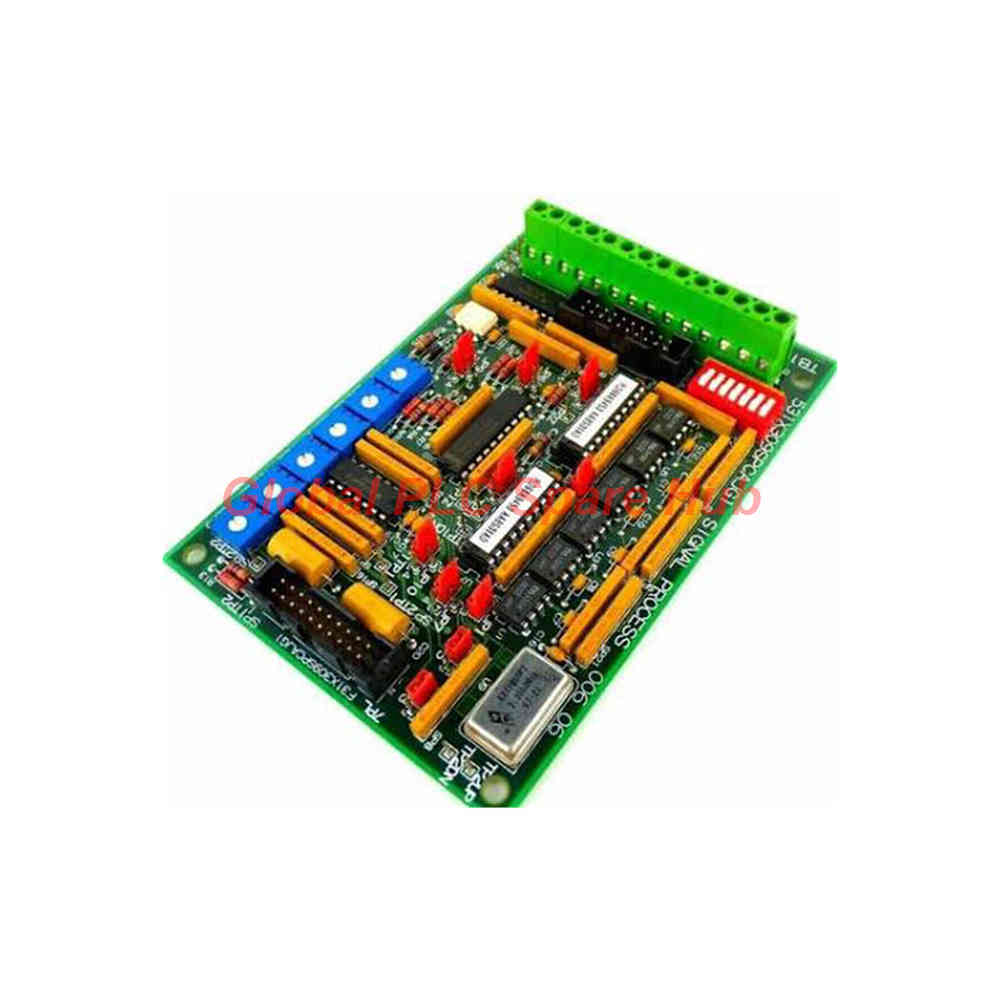

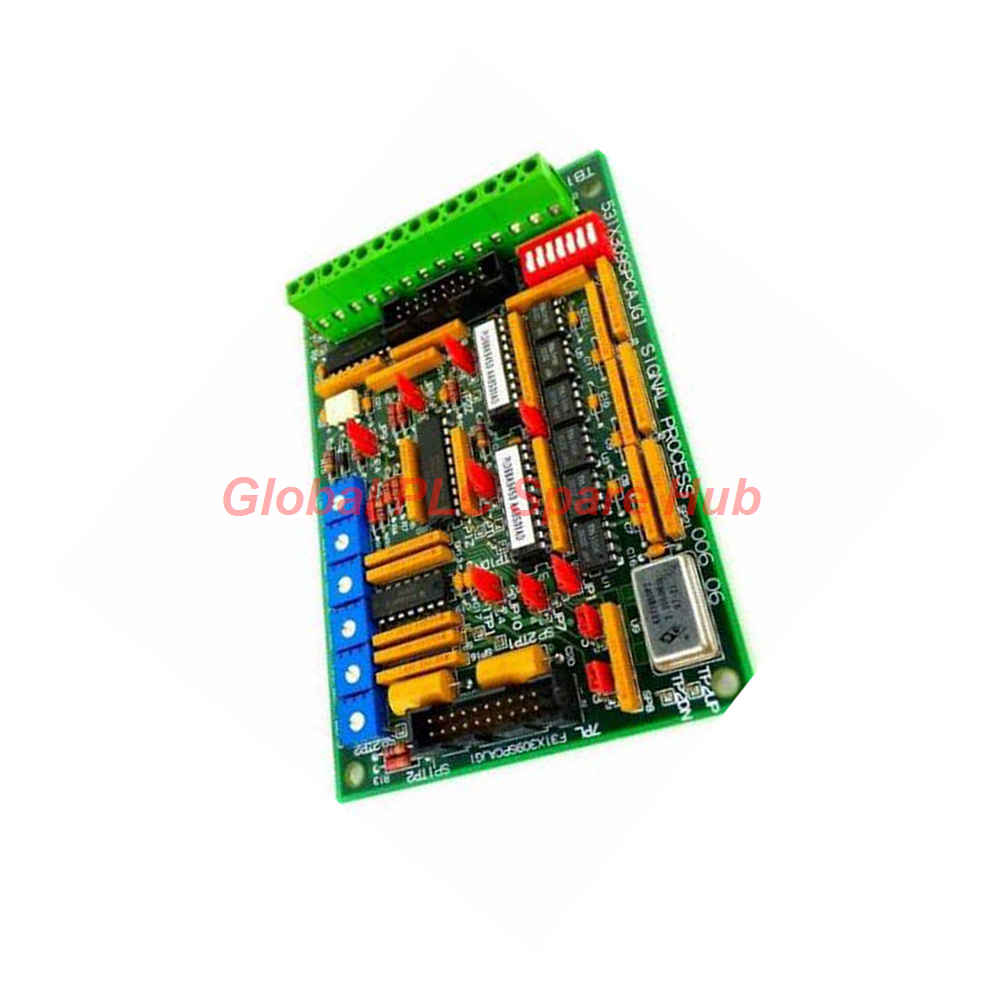

531X309SPCAJG1 GE Signal Processor | Digital Speed Drive Control Board

Precision Control: 531X309SPCAJG1 Signal Processor

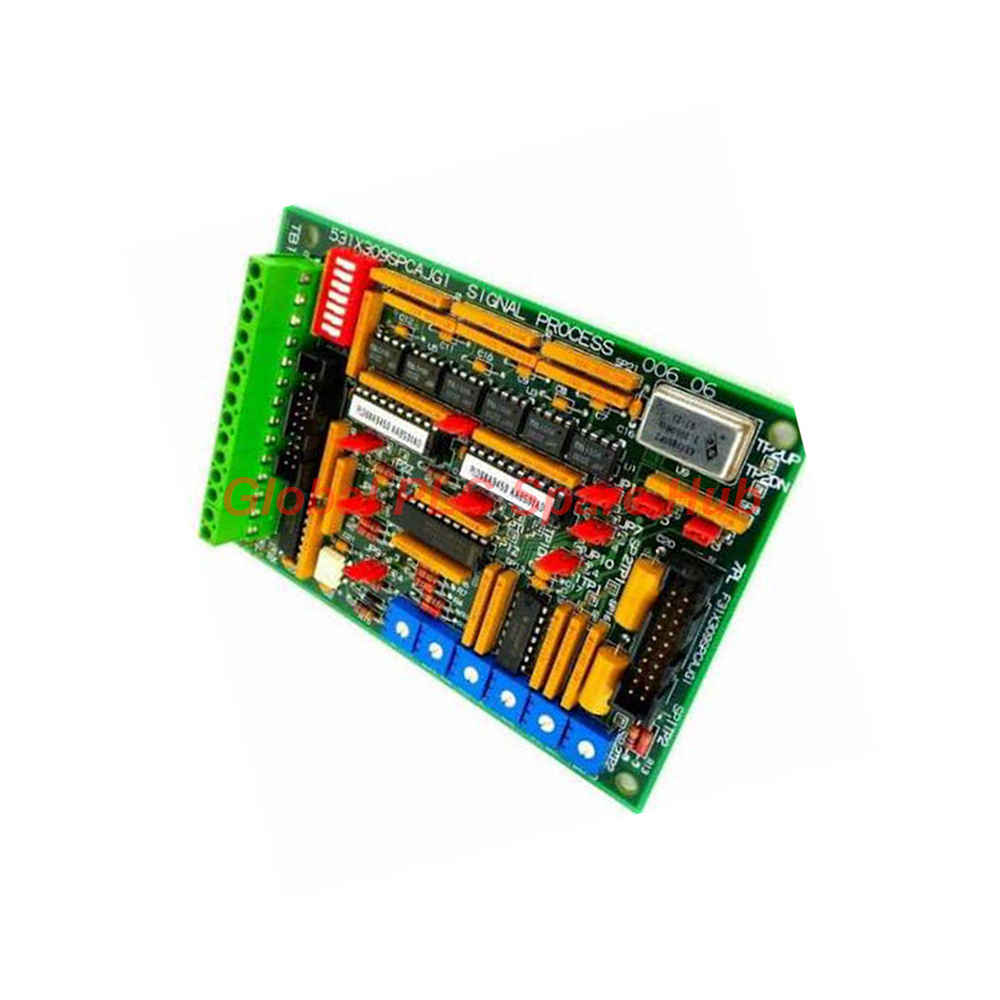

The 531X309SPCAJG1 serves as a high-fidelity digital signal processor card, specifically engineered for the GE DC2000 digital adjustable speed drive series. As a key component of the 531X family, this module acts as the critical bridge between external feedback devices and the internal SDCC drive control card, ensuring real-time command execution.

Technical Architecture & Capabilities

• Model: 531X309SPCAJG1
• System Integration: Optimized for SDCC Drive Control Card interfacing.
• Feedback Processing: Manages input from external encoders and tachometers.
• Signal Conversion: Transforms current and voltage references into logic-level command signals.
• Communication Protocols: Full support for RS-422 serial signal processing.
• Configurability: On-board hardware adjustment via jumpers, potentiometers, and DIP switches for precision gain and filtering.

Global PLC Spare HUB's Insight

Based on our diagnostic history at Global PLC Spare HUB, the 531X309SPCAJG1 is often the root cause when intermittent speed feedback errors occur in legacy GE systems. We emphasize that proper potentiometer calibration is essential after installation to match the specific motor inertia of your application.

Operational Applications

• Heavy-duty DC motor velocity control.
• Continuous process line synchronization.
• Precision motion control in manufacturing conveyors.
• High-response industrial tension regulation.

Logistics & Support

• Fast Dispatch: Orders processed within 24-48 hours.
• Global Logistics: Reliable transit via FedEx, UPS, or DHL.
• Quality Assurance: All units backed by a 12-month performance warranty.
• Professional Guidance: Consult the GEH-6005 manual for comprehensive wiring diagrams and installation schematics.

Professional FAQ

What should I check if the drive reports a speed feedback loss?
Verify the integrity of the RS-422 cabling and ensure that the encoder signals are reaching the board terminals without high-frequency noise interference.

Are there specific safety precautions for board handling?
Always use ESD-safe equipment. Only qualified personnel should adjust on-board potentiometers to avoid damaging sensitive signal circuits.

How do I handle signal drift in my drive system?
Use the on-board potentiometers to adjust the signal filtering parameters; always document existing settings before making any manual adjustments.

Selection Guide: How do I verify this is the correct revision for my drive?
Cross-reference your current SDCC card revision against the hardware compatibility section in your specific GEH-6005 drive manual to ensure full functionality.

Can I upgrade the firmware on this card?
No, this is a hardware-based signal processor. All configurations are handled physically via the board's onboard jumpers and analog components.
