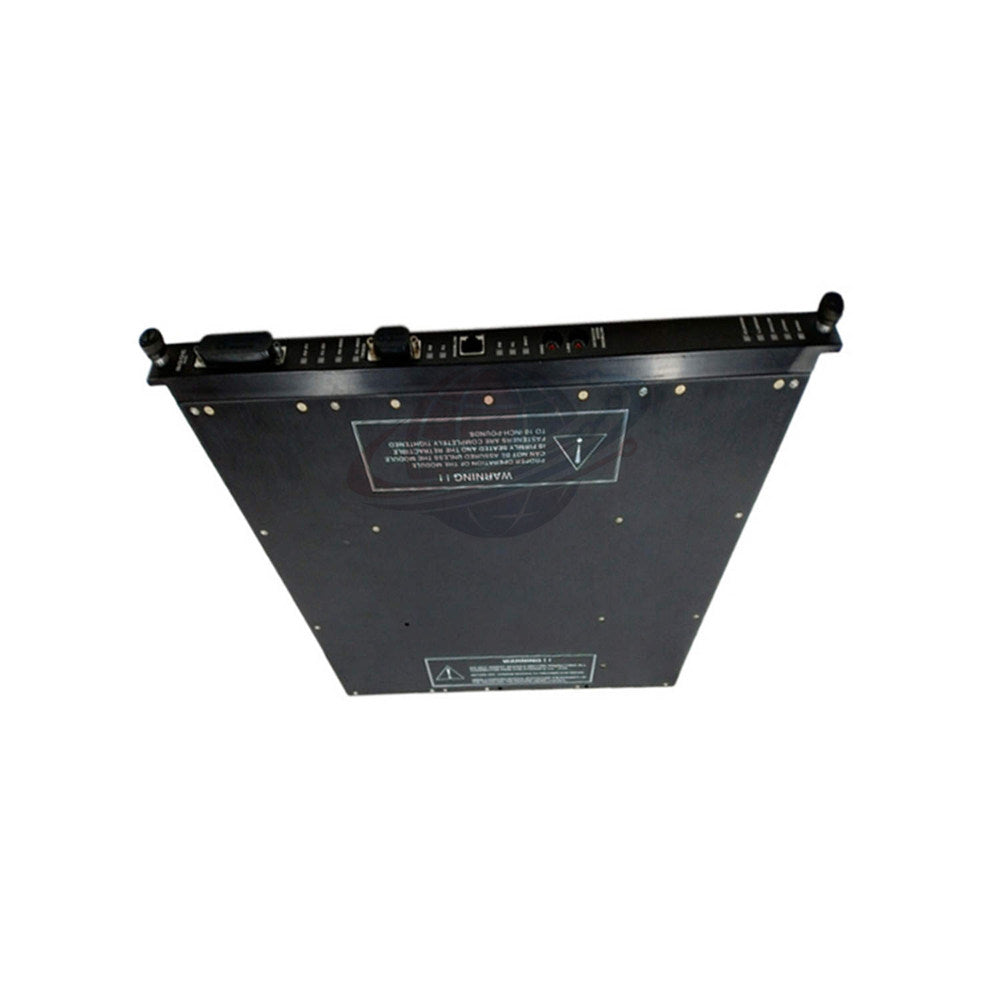

3700A Analog Input Triconex TMR Module 0-5V 32-Channel

Product Introduction

• The 3700A is a high-integrity Triple Modular Redundant (TMR) analog input module for the Triconex system.
• Engineered for safety-critical environments, the 3700A provides 32 differential, DC-coupled input points.
• It utilizes three independent input channels to ensure that a single component failure does not compromise the safety loop.
• The 3700A 0-5V voltage range and 12-bit resolution deliver precise data for demanding industrial monitoring.
• Designed with hot-spare capability, the Triconex 3700A allows for seamless online replacement without process interruption.

Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model: 3700A / 3700
• Series: Tricon v9/v10/v11 Systems
• Architecture: Triple Modular Redundant (TMR) for maximum fault tolerance.
• Input Count: 32 points, differential, DC coupled.
• Voltage Range: 0-5 VDC, +6% (exclusive to the 3700A).
• Current Support: 0-20 mA with an external 250 Ω shunt on the termination panel.
• Conversion Speed: 55ms input update rate for real-time responsiveness.
• Precision: 12-bit resolution with accuracy better than 0.15% of FSR.
• Input Impedance: 30 MΩ (DC) minimum, ensuring minimal signal loading.
• Noise Rejection: -80 dB common mode rejection (DC-100Hz) and effective normal mode filtering.
• Overrange Protection: Sustains up to 150 VDC/115 VAC continuous without damage.

Global PLC Spare HUB's Insight

• The 3700A is the industry standard for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.
• Its mid-value selection algorithm is a mechanical necessity for ensuring "voted" data is accurate across all three processors.
• Unlike standard I/O, the 3700A can operate reliably even if two out of its three internal channels report a fault.
• We recommend the 3700A for high-vibration and electrically noisy turbine control environments due to its robust CMR/NMR specs.
• Ensure you utilize the correct External Termination Panel (ETP) for the 3700A to maintain impedance matching.

Diagnostic & Status Monitoring

• PASS: Green LED indicates the module has passed internal self-tests and is healthy.
• FAULT: Red LED signals a channel discrepancy or internal hardware error (does not always mean module failure).
• ACTIVE: Yellow LED indicates the module is currently processing field signals and communicating with the backplane.
• Chassis Alarm: Integrated diagnostic failures automatically trigger the system-level alarm via the Tricon backplane.

Ideal Device Compatibility & Applications

• Safety Instrumented Systems (SIS): Critical for SIL3 rated safety loops in oil and gas refineries.
• Turbine Control: Precise monitoring of speed, pressure, and temperature sensors.
• Burner Management Systems (BMS): Reliable analog flame sensing and fuel flow monitoring.
• Equipment: Designed exclusively for Triconex Chassis (Main or Expansion) and specific ETP interfaces.

Shipping and Warranty Terms

• Dispatch Service: Global logistics handled within 24-48 hours.
• Express Delivery: Worldwide air shipping via FedEx, UPS, and DHL.
• Warranty Period: Full 12-month industrial warranty provided for the 3700A.
• Compliance: Mechanically keyed to prevent incorrect installation in non-compatible chassis slots.

Professional Selection Guide & FAQ

• Question: Can I replace a model 3700 with a 3700A?
• Answer: The 3700A is often backward compatible, but it offers a tighter voltage range (+6% overhead). Always check your Tricon software version to ensure the 3700A is supported in your specific project configuration.

• Question: How do I handle 4-20mA signals with a 0-5V module?
• Answer: The 3700A requires an external termination panel with a 250 Ω shunt resistor. This converts the 0-20mA current loop into a 0-5V signal readable by the 3700A.

• Question: What does a yellow "FAULT" light mean if the system is still running?
• Answer: On a 3700A, a FAULT light indicates one of the three internal TMR legs has a diagnostic failure. Because the module is redundant, it will continue to operate safely using the remaining two legs.

• Question: Why is leg-to-leg isolation important in TMR modules?
• Answer: Leg-to-leg isolation (typically 200 KΩ) ensures that a short circuit or electrical surge on one internal channel cannot propagate to the other two, preserving the voting integrity of the 3700A.

• Question: Is there a specific mounting requirement for the 3700A?
• Answer: Yes. The 3700A is mechanically keyed. If you feel resistance during insertion, do not force it; verify that the slot is configured for an Analog Input TMR module.
