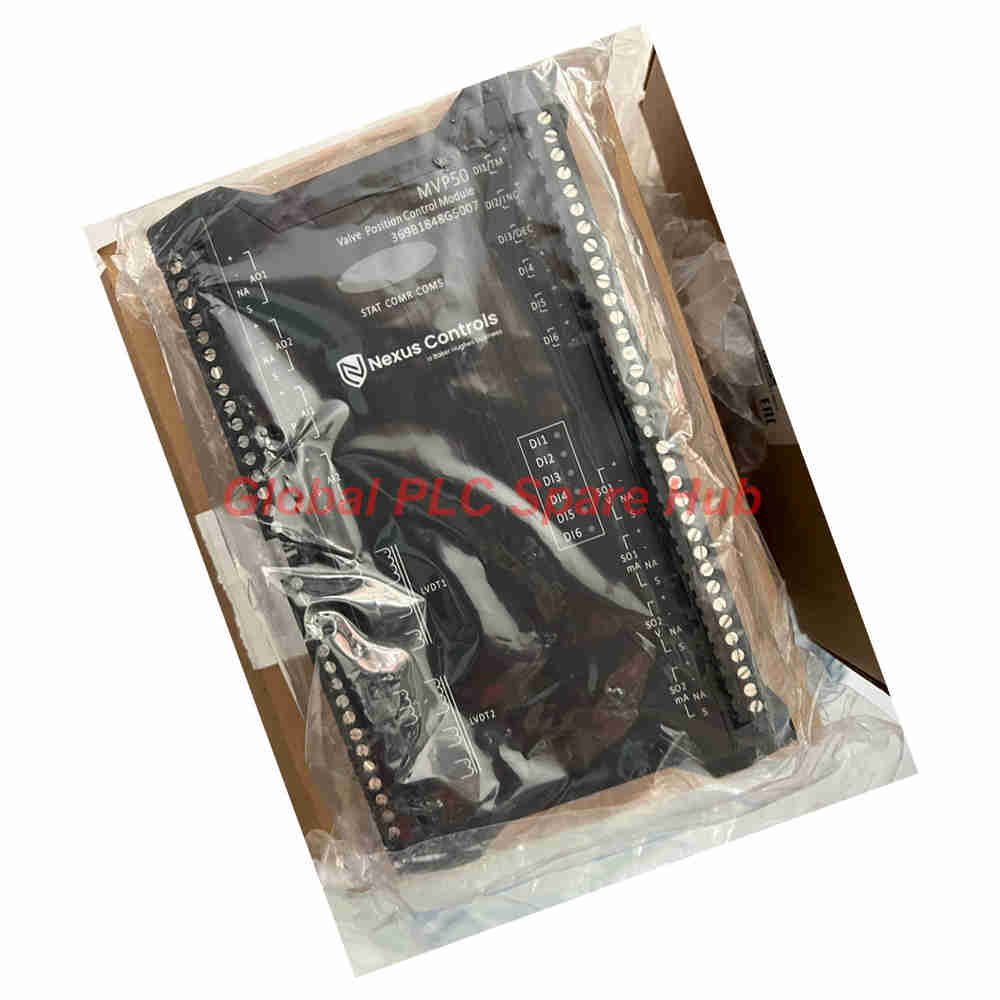

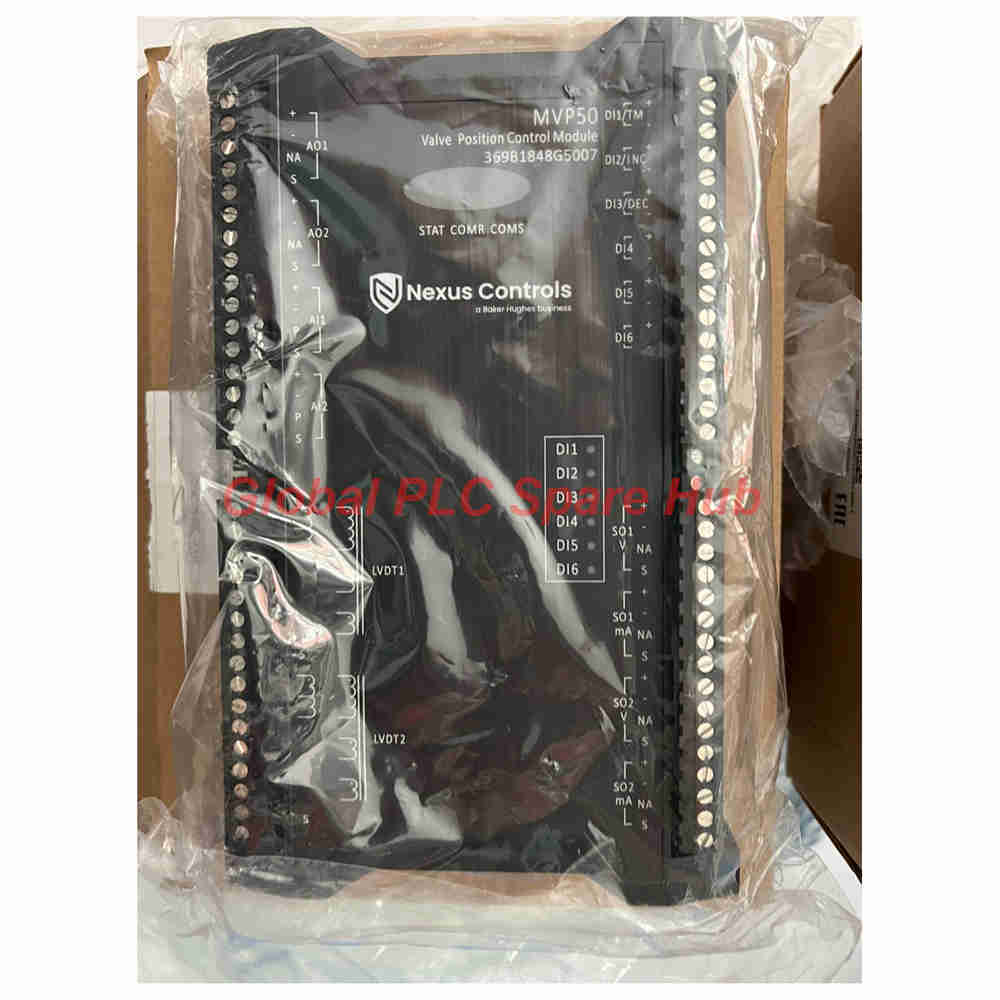

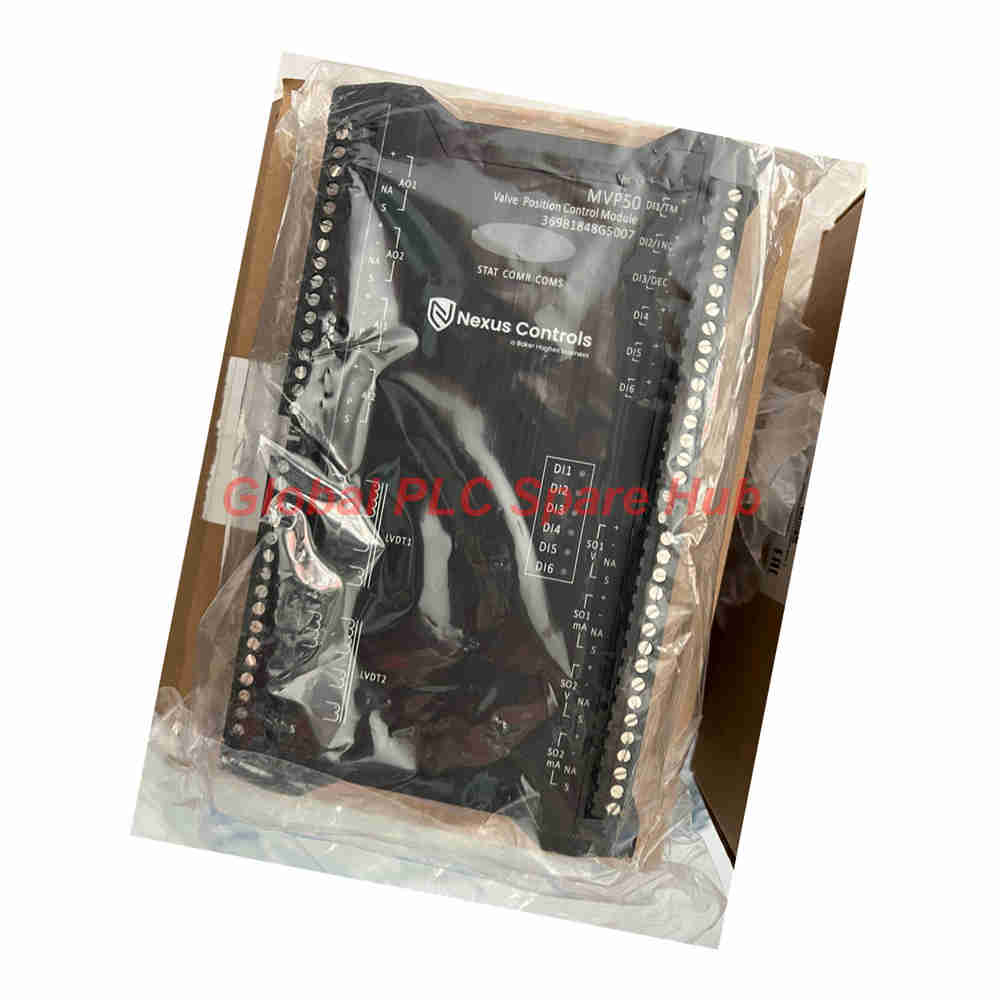

369B1848G5007 GE Nexus Valve Position Control Module MVP50
Manufacturer: GE
Product No.: 369B1848G5007
Condition： In stock
Product Type: Valve Control Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineered for High-Precision Valve Position Control
The 369B1848G5007 is the GE Nexus MVP50 Valve Position Control Module designed for demanding industrial control applications.
It combines high-speed processing, redundant communication, and precision position feedback within one integrated control platform.
The module delivers accurate valve positioning using dual LVDT feedback and high-performance servo outputs.
Its architecture supports continuous operation in mission-critical control systems.
Multiple diagnostic functions improve equipment availability while reducing maintenance time.
The redundant network design increases system reliability for turbine and process control applications.
Key Engineering Advantages
| Capability | Engineering Value |
|---|---|
| Dual LVDT Channels | Supports precise valve position feedback |
| Configurable Excitation | Flexible sensor compatibility |
| Dual Servo Outputs | Accurate actuator positioning |
| Integrated Diagnostics | Rapid fault identification |
| Redundant Ethernet Networks | High system availability |
| QNX Real-Time OS | Deterministic control performance |
| Fast Control Cycle | Minimum 40ms execution |
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Series | Nexus MVP50 |
| Model | 369B1848G5007 |
| Module Type | Valve Position Control Module |
| LVDT Inputs | 2 Channels |
| LVDT Wiring | 3-wire and 6-wire supported |
| Wire Break Detection | Supported |
| LVDT Excitation | Frequency and amplitude configurable |
| Analog Inputs | 2 Channels |
| Supported AI Signals | 0-20mA, 0-5V, ±10V |
| Servo Outputs | 2 Channels |
| Servo Output Range | ±40mA, ±10V |
| Servo Fault Detection | Supported |
| Analog Outputs | 2 Channels, 0-5V |
| Digital Inputs | 6 Channels |
| Signal Filtering | 3-50ms Adjustable |
| Default Filter | 24ms |
| Channel Indicators | Input Status Display |
| LED Indicators | Run, Communication, Alarm |
| Channel Isolation | 500VAC to Ground |
| System Isolation | 1500VAC |
| Power Consumption | Typical 3.7W |
| Maximum Power | 10.7W |
| Certification | CE Certified with System |
| Power Supply | Redundant 24VDC |
| Processor | Intel® 1.66GHz 64-bit Embedded CPU |
| Memory | 1GB DDR2 |
| Flash Storage | 2GB On-board Flash |
| Control Network | 1Gbps Redundant Ethernet |
| I/O Network | 1Gbps Redundant Ethernet |
| Serial I/O Bus | 4 Redundant Intelligent Buses |
| Bus Speed | 1Mbps |
| Maximum Nexus Modules | 48 |
| Operating System | QNX® Real-Time Operating System |
| Control Cycle | 40ms Minimum |
| Configuration Capacity | 999 Control Pages |
| Time Synchronization | NTP ±1ms, SOE Accuracy 1ms |
| Operating Temperature | 0°C to 60°C |
Recommended Equipment
- Steam turbine control systems
- Gas turbine governor systems
- Hydraulic valve actuators
- Electro-hydraulic positioning systems
- Power plant automation
- Industrial compressor control
- Large rotating machinery
- Critical process control platforms
- Distributed industrial automation
Application Scenarios
| Industry | Typical Function |
|---|---|
| Power Generation | Main steam valve positioning |
| Oil & Gas | Turbine governor control |
| Petrochemical | Critical process valve regulation |
| Pipeline Stations | Flow control automation |
| Industrial Utilities | Servo actuator management |
Global PLC Spare HUB's Insight
Engineers frequently select the 369B1848G5007 when precise valve positioning directly affects equipment efficiency.
Dual LVDT feedback significantly improves actuator positioning consistency during long operating cycles.
Field experience shows that redundant Ethernet architecture minimizes communication interruptions during controller maintenance.
Many turbine retrofit projects benefit from the adjustable signal filtering function.
Increasing filter time effectively suppresses vibration-induced feedback fluctuations without reducing positioning accuracy.
Integrated Diagnostic Functions
- LVDT wire-break monitoring
- Servo output channel fault detection
- Communication status monitoring
- Module operating health indication
- Alarm LED notification
- Input channel activity indication
- NTP synchronization monitoring
- Network redundancy supervision
Installation Recommendations
- Install redundant 24VDC power sources.
- Separate signal wiring from power cables.
- Verify LVDT wiring before calibration.
- Configure excitation parameters according to sensor specifications.
- Adjust signal filtering after mechanical commissioning.
- Validate communication redundancy before production startup.
Packaging Contents
- 369B1848G5007 Valve Position Control Module
- Protective industrial packaging
- Inspection and identification label
- Product documentation support
Shipping & Warranty
| Service | Details |
|---|---|
| Express Courier | FedEx / UPS / DHL |
| Processing Time | 24-48 Hours |
| Packaging | Industrial Anti-static Protection |
| Warranty | 12 Months |
| Technical Support | Professional Engineering Assistance |
Professional FAQ
Q1. Why does this module support both 3-wire and 6-wire LVDTs?
Different actuator manufacturers use different sensor structures.
Supporting both wiring methods simplifies system integration.
Q2. How should signal filtering be selected during commissioning?
Stable mechanical systems usually perform well with shorter filter settings.
Applications with vibration normally require longer filtering to improve position stability.
Q3. What should engineers verify before replacing this module?
Confirm actuator feedback type, communication architecture, and controller configuration.
Checking these parameters reduces commissioning time after installation.
Q4. Why is redundant networking important in turbine control?
Network redundancy maintains communication during cable or switch failures.
Continuous communication helps prevent unexpected control interruptions.
Q5. Which projects benefit most from choosing this controller?
Applications requiring accurate valve positioning, fast diagnostics, and continuous operation receive the greatest benefit.
Power generation and rotating equipment control remain common deployment environments.
Engineering Selection Advice
- Select this module for high-accuracy servo valve positioning.
- Choose it when redundant communication is required.
- Recommended for projects using LVDT feedback technology.
- Suitable for high-availability turbine automation.
- Ideal for advanced Nexus control architectures requiring deterministic response.
The GE 369B1848G5007 Nexus MVP50 Valve Position Control Module delivers reliable positioning accuracy, intelligent diagnostics, and redundant control performance for demanding industrial automation systems.
