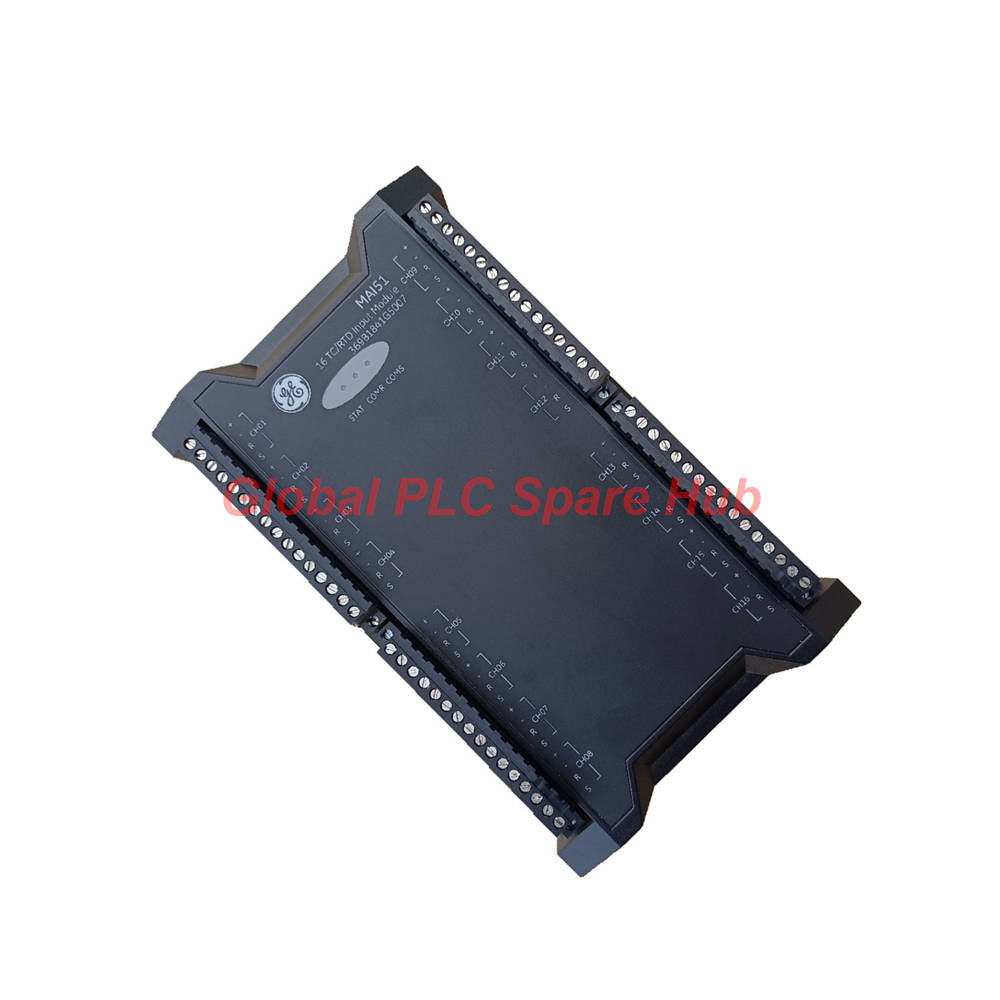

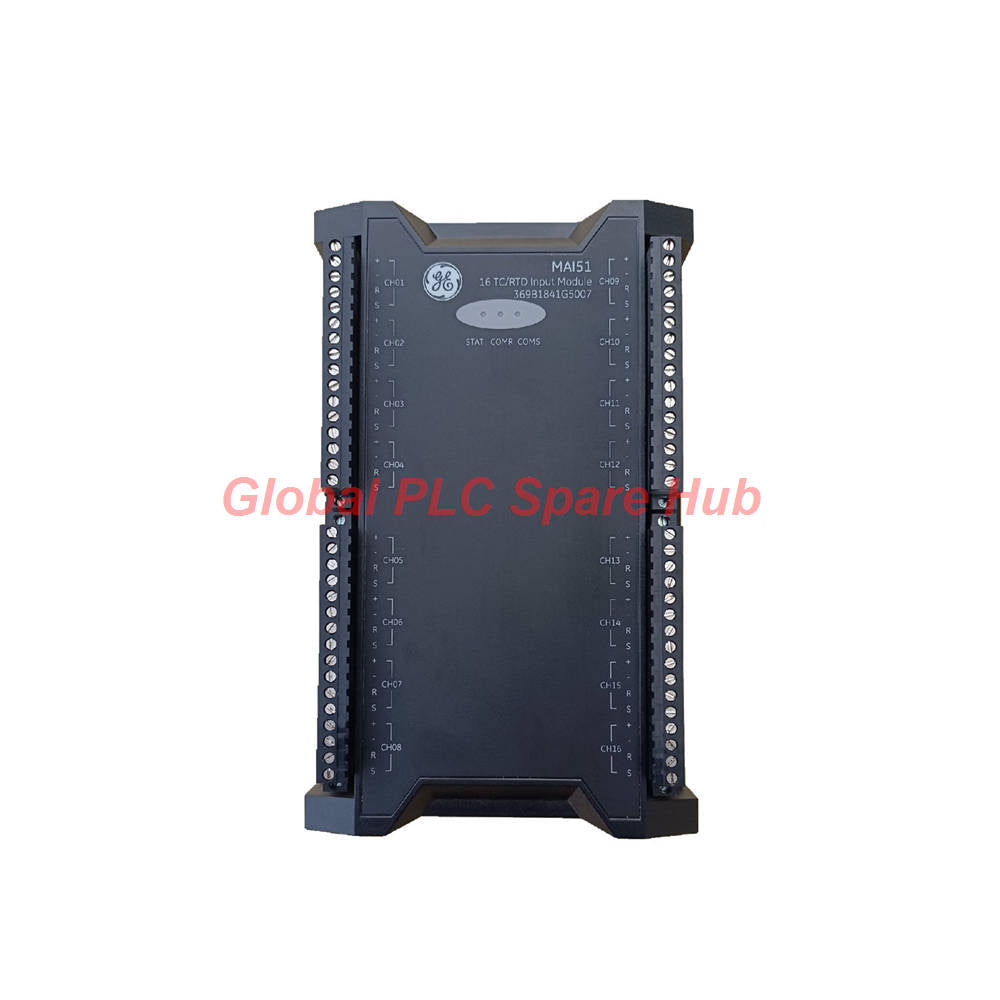

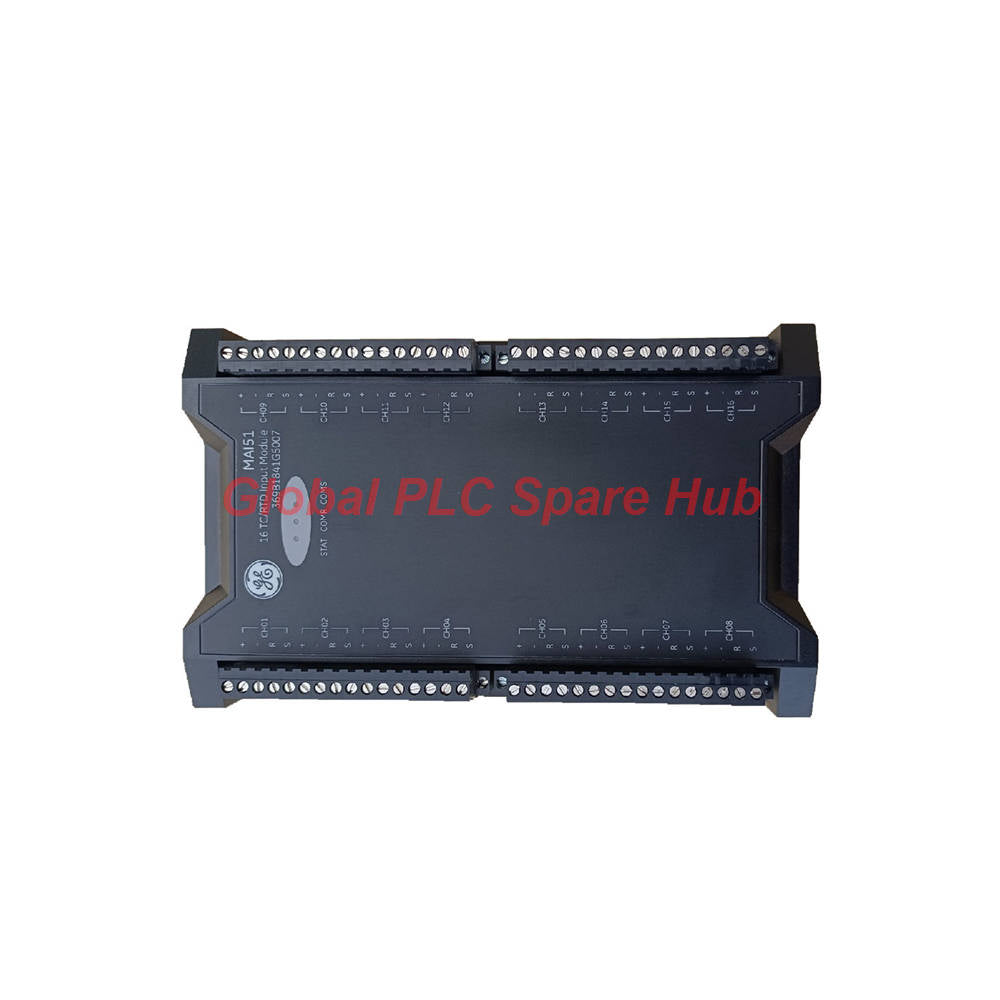

369B1841G5007 GE MAI51 Series 16-Channel Temperature Input Module

GE MAI51 369B1841G5007 Product Overview

Global PLC Spare HUB Review: The 369B1841G5007 (model MAI51) is a high-precision 16-channel thermocouple and resistance temperature detector input module engineered for demanding industrial data acquisition systems. Driven by a high-performance 32-bit embedded processor, this unit handles complex multi-range temperature sensors with strict 16-bit analog-to-digital conversion accuracy. Plant instrumentation engineers deploy this module to secure reliable thermal feedback across volatile process control loops.

Core Technical Specifications & Parameters

• Manufacturer Brand: GE (General Electric)
• Series Identification: MAI51 Control System
• Catalog Part Number: 369B1841G5007
• Input Channel Capacity: 16 channels divided into two groups of 8
• Supported RTD Types: Pt10, Pt100, Cu100, Cu50 (2-wire and 3-wire configurations)
• Supported Thermocouple Types: E, J, K, N, R, S, T, B
• Measurement Precision Error: Maximum 0.2% full scale
• Analog-to-Digital Resolution: 16-bit conversion architecture
• Common Mode Rejection Ratio: Greater than 120 dB
• Differential Mode Rejection Ratio: Greater than 60 dB
• Isolation Ratings: 250VAC channel-to-channel, 500VAC channel-to-ground, 1500VAC channel-to-system

Power Distribution & Hardware Architecture

• Powered via dual redundant 24V DC supplies (21.6 to 26.4V DC operating range with 1:1 redundancy layout).
• System power consumption remains under 2W with a nominal operating draw of 1.8W.
• Features single-row European detachable terminal connectors supporting up to 2.5mm² dual wire gauges.
• Compact physical profile measuring 209 mm high x 129.5 mm wide x 51 mm deep, configured for standard screw mounting.

Communication & Environmental Compliance

• Utilizes a redundant high-speed intelligent serial bus operating at 1 Mbps via a standard female DB-9 connector.
• Complies with industrial standards including CFR 47 FCC Part 15, ANSI C63.4, EN 61326-1, CISPR 11, and IEC 61000-4 series testing.
• Operating Temperature Range: 0 to 60 degrees Celsius with 10% to 90% non-condensing relative humidity.
• Designed for harsh environments with vibration tolerance up to 10-500 Hz (acceleration under 10 m/s²) and stringent dust particle size thresholds.

Diagnostics & Fault Monitoring Capabilities

• Front-panel LED indicators display real-time module run status, communication health, and fault alarm triggers.
• Built-in software logic executes ±10% over-limit alarm detection (note: ±10V inputs are exempt from over-limit software alarms).
• Advanced optical and dielectric isolation effectively suppresses severe industrial electromagnetic and radio frequency interference.

Logistics, Fulfillment & Warranty Terms

• Processing Speed: Rapid order handling and dispatch within 24 to 48 hours.
• Global Delivery Partners: Express secure shipping worldwide via FedEx, UPS, and DHL.
• Warranty Protection: Backed by a comprehensive 12-month repair or replacement warranty.

Typical Application Scenarios

• Refinery and petrochemical furnace temperature monitoring loops.
• Power generation turbine exhaust gas thermocouple measurement systems.
• Large-scale industrial boiler automated heat distribution and thermal feedback networks.

Purchasing Guidance

• Verify that your controller backplane architecture natively supports the MAI51 bus protocol before procuring the 369B1841G5007 module.
• Ensure field wiring terminal blocks are properly rated for 2.5mm² dual-wire termination to prevent loose sensor connections.

Frequently Asked Questions

Question: How does the MAI51 system handle isolation between individual measurement channels on the 369B1841G5007 module?

Answer: The hardware incorporates robust dielectric barriers providing 250VAC isolation between channels, 500VAC from channels to ground, and 1500VAC between channels and system logic to eliminate ground loops.

Question: Can the 369B1841G5007 simultaneously process both 3-wire RTD sensors and standard thermocouples?

Answer: Yes, the 16 channels support diverse sensor types including Pt100, Cu50, and multiple thermocouple variants (E, J, K, N, R, S, T, B) across its dual 8-channel group architecture.

Question: What troubleshooting steps should be taken if the front-panel LED indicates a communication fault on the MAI51 bus?

Answer: Inspect the DB-9 serial connector wiring integrity, verify the dual 24V DC redundant power supplies maintain a steady 21.6-26.4V DC range, and check the 1 Mbps bus termination.

Question: How are over-limit alarms triggered on temperature input channels for this module?

Answer: The module executes a software-based threshold check that activates an alarm when input values deviate beyond ±10% of the normal scaled range, excluding standard voltage inputs.

Question: What wire gauge size is recommended for secure installation on the 369B1841G5007 terminal blocks?

Answer: The European single-row detachable terminal blocks are specifically designed to accommodate up to 2.5mm² double-wire configurations for reliable mechanical retention in high-vibration settings.
