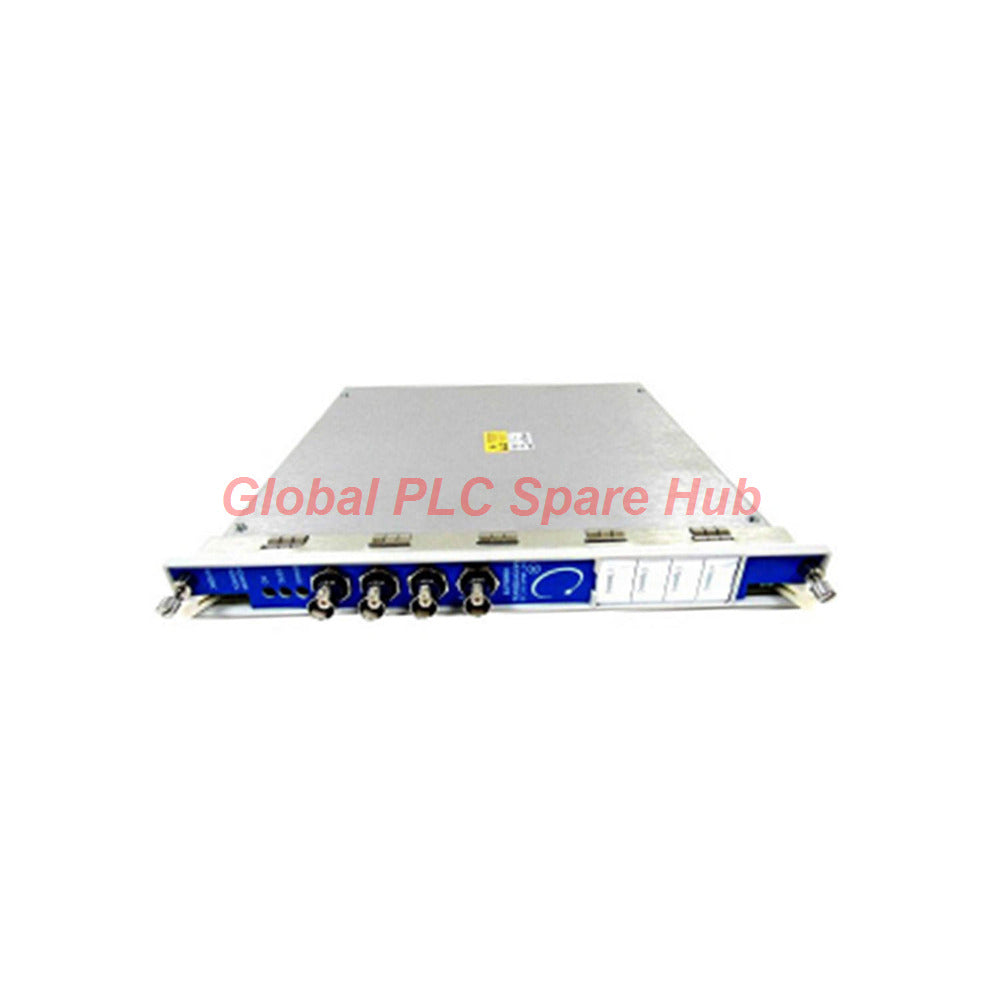

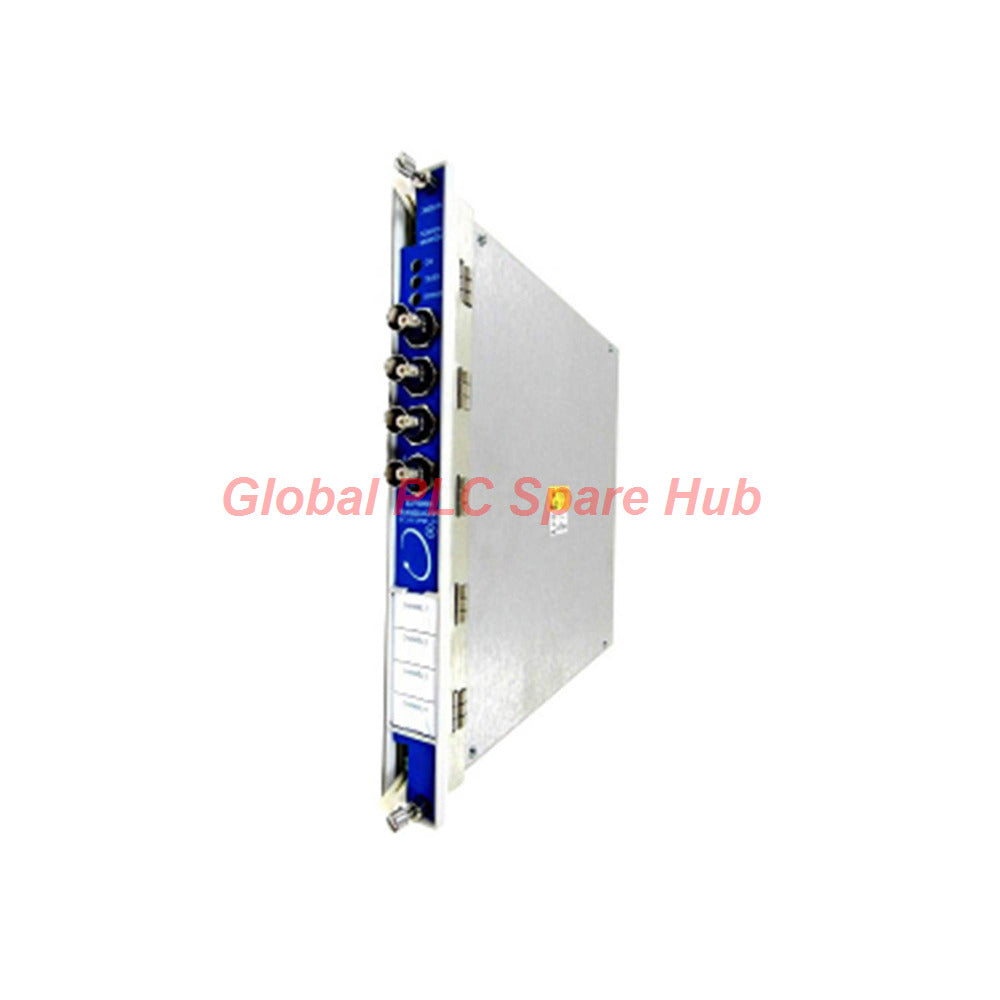

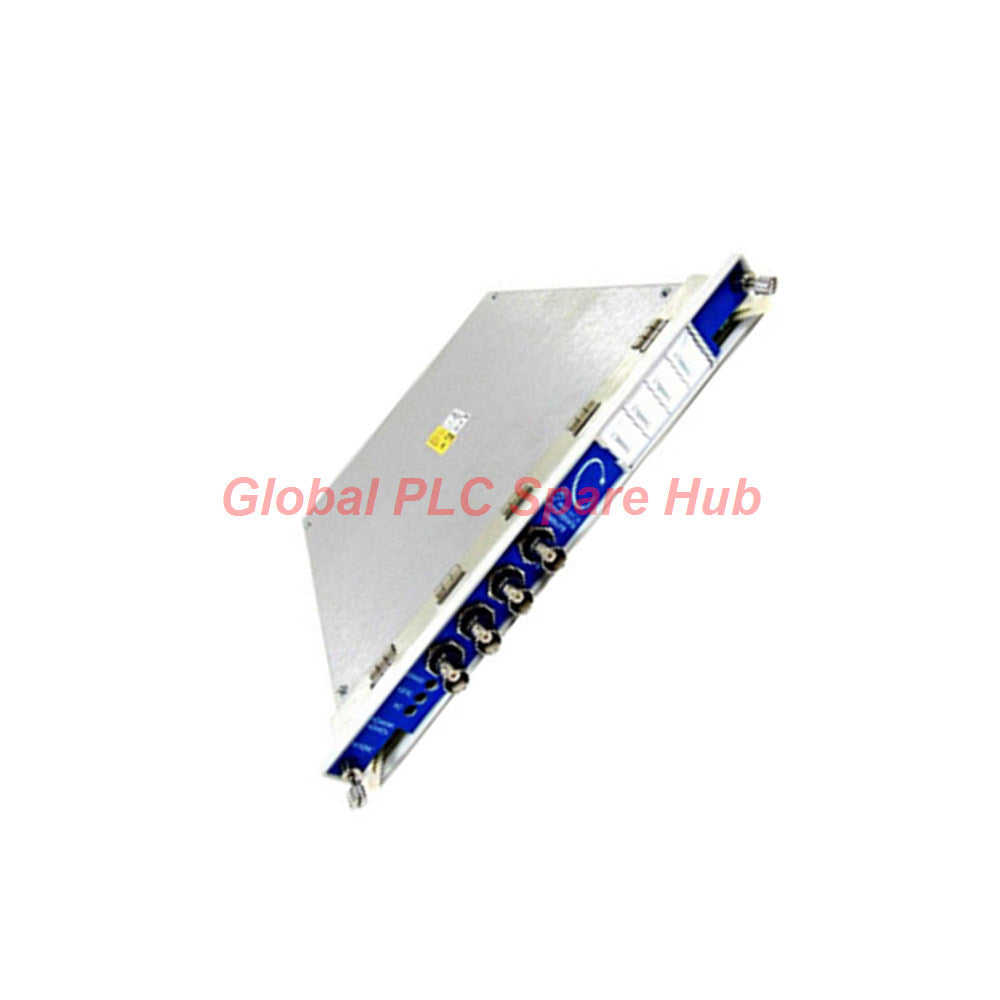

3500/77M-03-00 Bently Nevada Recip Cylinder Pressure Monitor

3500/77M-03-00 Bently Nevada Recip Cylinder Pressure Monitor 3500 Series Module

The 3500/77M (Model: 3500/77M-03-00) engineered by Bently Nevada acts as a dedicated four-channel machinery protection module within the 3500 Series framework. It interfaces directly with positive-voltage third-party pressure transducers to process dynamic cylinder chamber metrics, safeguarding reciprocating compressors from mechanical overload, rod failure, and unexpected pressure spikes.

Ordering Configuration Breakdown

• Base Model & Suffix: 3500/77M-03-00
• Module Option A (-03): Cylinder Pressure I/O Module featuring Internal Terminations
• Approval Option B (-00): Standard configuration without specialized hazardous agency approvals

Hardware Specifications & Electrical Metrics

• Brand: Bently Nevada
• Product Family: 3500 Series
• Input Channels: 1 to 4 positive voltage third-party pressure transducers (psia)
• Input Impedance: 50 kΩ on Cylinder Pressure I/O with internal terminations
• Power Consumption: 7.8 Watts maximum with transducer supplies operating at full load
• Transducer Supply: +23.0 ± 0.8 Vdc with 24.5 mA current limiting per channel
• Buffered Output Impedance: 550 Ω (inverted and offset by -2.265 Vdc)
• Frequency Response: 0 to 5.5 kHz across all active pressure channels
• Pressure Accuracy: Within ±0.5 percent full-range at +25°C; within ±1.0 percent from -30°C to +65°C

Environmental Thresholds & Physical Dimensions

• Operating Thermal Range: -30°C to +65°C (-22°F to +150°F)
• Storage Thermal Range: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: Up to 95 percent under non-condensing conditions
• Monitor Module Footprint: 241.3 mm x 24.4 mm x 241.8 mm; Weight: 0.91 kg (2.0 lb)
• I/O Module Footprint: 241.3 mm x 24.4 mm x 99.1 mm; Weight: 0.20 kg (0.44 lb)
• Rack Space: Requires 1 full-height front slot and 1 full-height rear slot

Regulatory Compliance & Standards

• FCC Compliance: Part 15 of FCC Rules for non-interfering industrial operation
• EMC Directives: EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions) under Directive 2014/30/EU
• Electrical Safety: Certified to EN 61010-1 under Low Voltage Directive 2014/35/EU
• Environmental Safety: Fully compliant with RoHS Directive 2011/65/EU

Targeted Equipment & Industrial Application Scenarios

• Primary Applications: Gas transmission compressor stations, petrochemical refining synthesis units, and heavy industrial refrigeration skids.
• Supported Machinery: Multi-stage reciprocating compressors, process gas hypercompressors, and balanced-opposition compressor trains.

Diagnostic Capabilities & Measured Variables

• Single-Chamber Parameters: Continuously calculates discharge pressure, suction pressure, maximum pressure, minimum pressure, and compression ratio.
• Calculated Mechanical Stress Variables: Computes peak rod compression, peak rod tension, and the degree of rod reversal using channel inputs combined with mechanical parameters.
• Protection Response: Drives immediate alert and danger setpoint alarms to prevent catastrophic crosshead or piston rod failure.

Logistics, Packaging, and Warranty Provisions

• Packaging Standard: Factory-sealed anti-static packaging designed to protect sensitive internal microprocessors during transit.
• Global Fulfillment: Expedited shipping dispatch within 24 to 48 hours via premium international carriers including FedEx, UPS, and DHL.
• Warranty Terms: Backed by a comprehensive 12-month factory warranty covering material defects and manufacturing anomalies.

Frequently Asked Questions

Question: How many measured variables does each channel of the 3500/77M generate for compressor analysis?

Answer: Each channel provides a total of eight measured variables, split between five single-chamber values and three calculated mechanical rod stress parameters.

Question: What are the specific electrical characteristics of the buffered transducer outputs on the cylinder pressure module?

Answer: The buffered outputs feature a 550 ohm output impedance, short-circuit protection, and an inverted signal offset by -2.265 Vdc.

Question: What buying considerations should engineers keep in mind when ordering the 3500/77M-03-00 configuration?

Answer: Ensure your system layout utilizes internal termination wiring practices and verify whether your operating environment requires standard or hazardous area agency approvals before purchasing.

Question: Why is tracking the degree of rod reversal critical for reciprocating compressor health?

Answer: Monitoring rod reversal ensures that the piston rod experiences alternating tensile and compressive loads during every cycle, which is vital for maintaining proper crosshead pin lubrication.

Question: How does the module maintain measurement accuracy across extreme ambient temperature swings?

Answer: The unit utilizes precision internal signal conditioning circuitry that limits pressure measurement error to within ±1.0 percent across a wide thermal range of -30°C to +65°C.

Global PLC Spare HUB's Insight

Field engineers commissioning reciprocating machinery frequently struggle with signal noise picked up from long transducer cable runs. When deploying the 3500/77M monitor, utilizing proper shield grounding at the rack termination block prevents high-frequency electrical interference from skewing peak rod compression readings. Maintaining stable +23 Vdc transducer power supply regulation ensures long-term calibration stability across demanding gas compression cycles.
