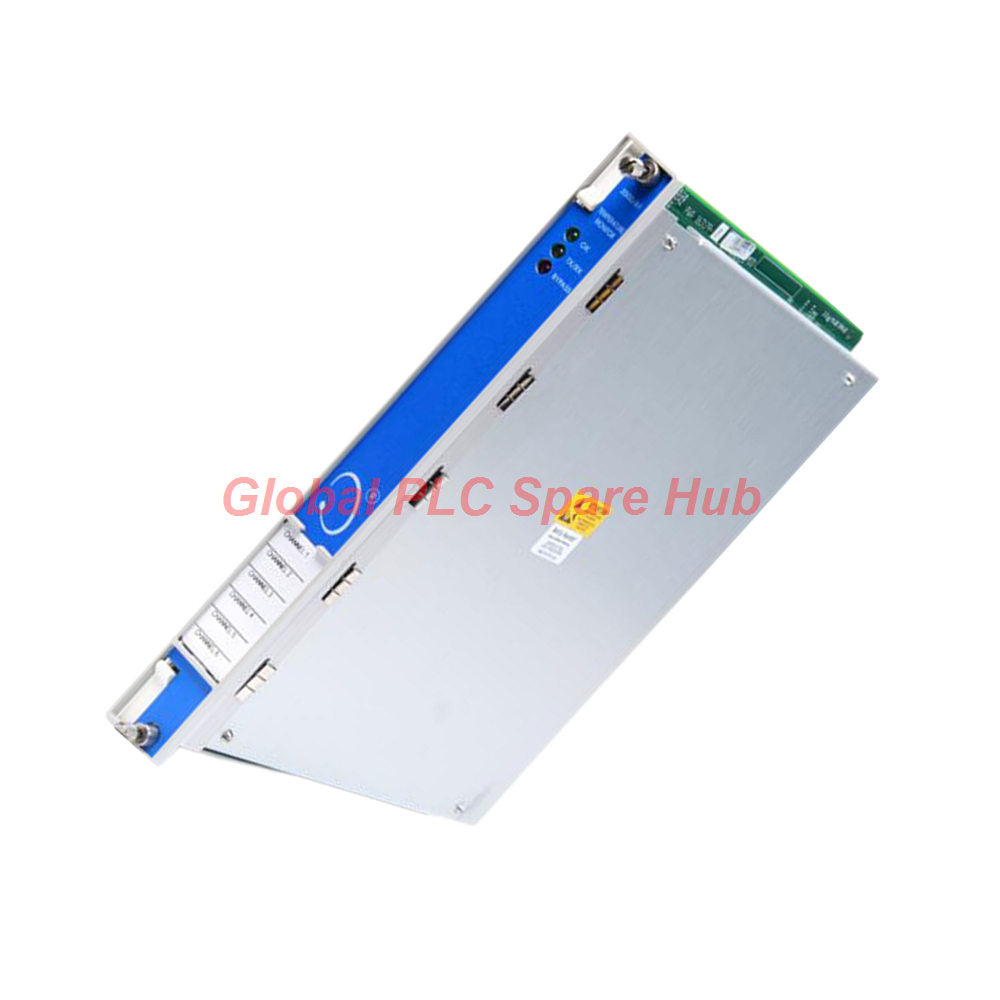

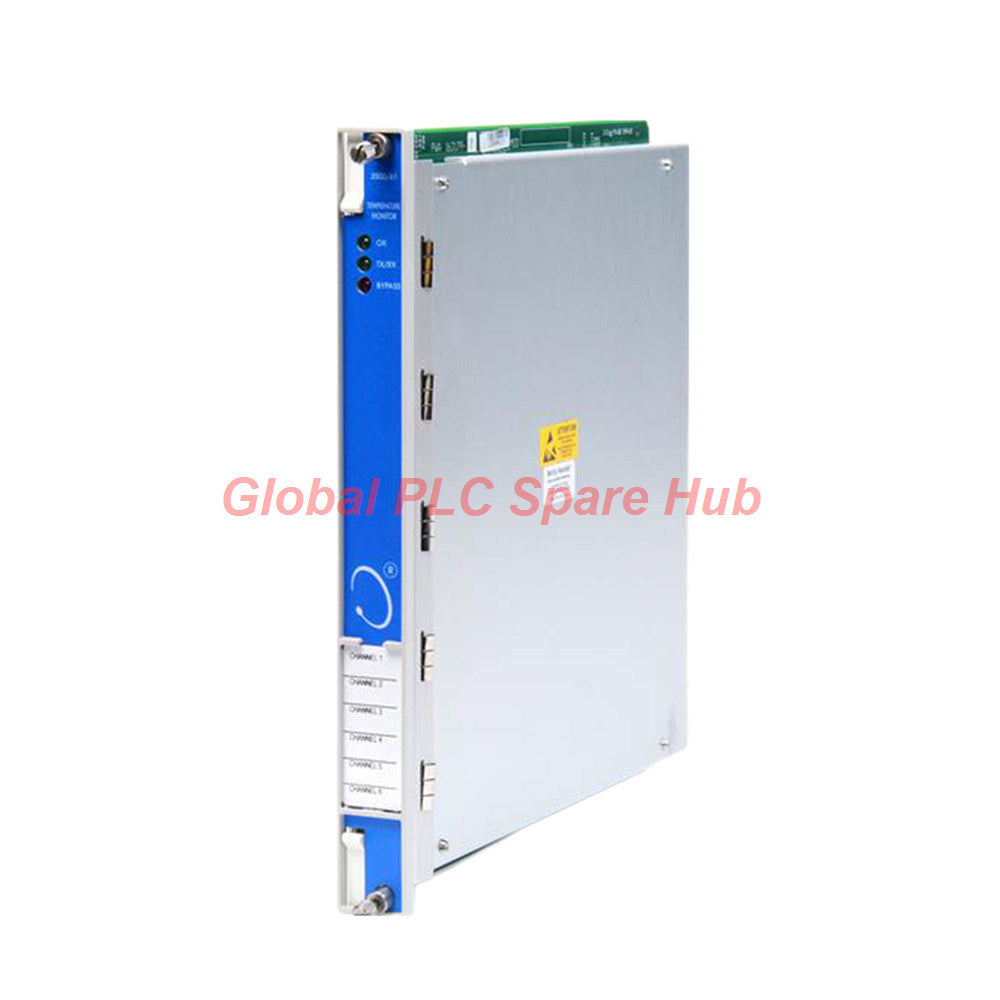

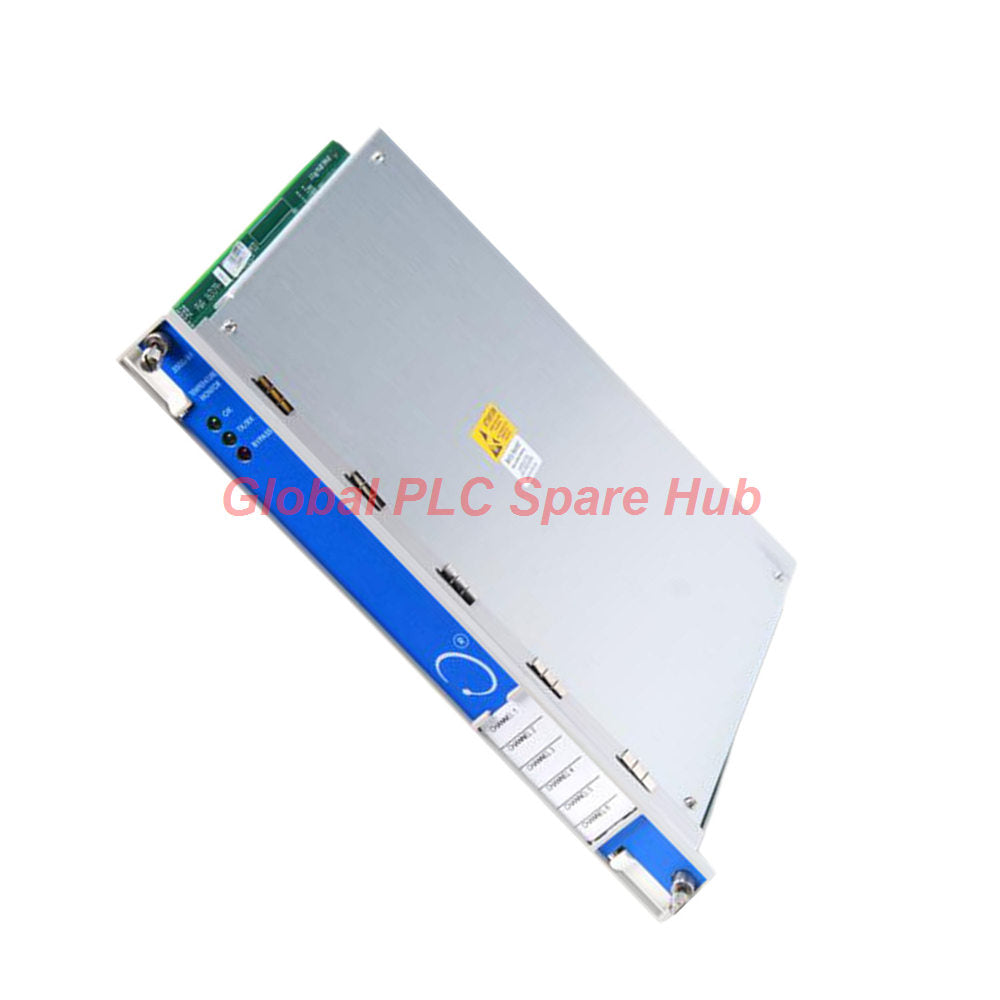

3500/61-01-01 3500 Series Temperature Module Bently Nevada

Product Overview

The 3500/61-01-01 Bently Nevada 3500 Series Temperature Monitor delivers continuous thermal condition monitoring across high-value rotating machinery.

Machinery protection racks utilize this 6-channel processing module to accept direct inputs from resistance temperature detectors (RTDs) and thermocouples (TCs).

Equipped with dedicated +4 to +20 mA recorder outputs per channel, the unit transmits proportional analog signals directly to plant DCS and SCADA networks.

The integrated internal termination I/O module ensures robust field signal processing while retaining Class 1, Div 2 hazardous location certifications.

Part Number Suffix & Configuration Breakdown

The hierarchical tree below details the specific option code configuration for the 3500/61-01-01 using MECE principles:

• 3500/61 — Bently Nevada Temperature Monitor with Recorder Outputs
  • 01 — I/O Module Type: RTD/TC Non-Isolated I/O Module with Internal Terminations
  • 01 — Agency Approval Option: CSA/NRTL/C (Class 1, Division 2 Groups A, B, C, D)

Technical Specifications Table

Target Equipment & Application Scenarios

• Centrifugal Gas Compressor Bearings: Tracks radial journal and thrust bearing shoe metal temperatures continuously to detect oil film breakdown.
• Steam Turbine Exhaust Hoods: Monitors casing surface thermal profiles and steam exhaust temperatures to prevent rotor differential thermal stress.
• Large Electric Motor Stators: Interfaces with embedded 3-wire Pt100 RTDs inside motor windings to protect against insulation breakdown during high-load operations.

Advanced Diagnostic Capabilities

The 3500/61-01-01 conditions raw microvolt and resistance changes into process variables and compares them against dual configurable setpoints (Alert and Danger thresholds).

When integrated with 3500 System Rack Management software, channels provide differential temperature tracking across opposing thrust bearing pads.

Plant engineers utilize these trends to identify asymmetric axial thrust loads, pad tilting faults, and cooling oil restriction before severe wipes occur.

Global PLC Spare HUB's Insight & Field Experience

During a scheduled overhaul of a high-pressure boiler feed pump, a customer reported intermittent temperature spikes on channel 3 of an existing 3500 rack, triggering false alarms.

Our field diagnostics revealed ground loops caused by compromised RTD shielding on an aging non-isolated terminal block.

We supplied a replacement 3500/61-01-01 module and assisted the site team in verifying field lead wire resistance.

By restoring clean 925 μA excitation current across the 3-wire RTD circuit and re-terminating wires properly, temperature readings stabilized within ±0.5°C of calibrated bath references, eliminating false trips during restart.

Packaging, Delivery & Warranty Terms

Every 3500/61-01-01 unit is tested and shipped in protective ESD shielding foam and original factory packaging.

Orders ship within 24 to 48 hours via premium international carriers including FedEx, UPS, and DHL.

All items carry a comprehensive 12-month factory warranty covering operational performance and component reliability.

Frequently Asked Questions (FAQ)

Q1: What is the main functional difference between the 3500/60 and the 3500/61 temperature monitoring modules?

A1: While both modules process 6 RTD/TC channels, the 3500/61 provides six buffered +4 to +20 mA individual recorder outputs on the I/O module for direct strip-chart or DCS logging, consuming slightly more power (9W vs 7W).

Q2: How does the module handle line resistance compensation on 3-wire RTD field wiring setups?

A2: The module injects matched 925 μA current sources across the lead wires to measure and subtract lead resistance automatically, ensuring accurate temperature calculations at the monitoring rack.

Q3: Why must engineers avoid configuring Type E thermocouples below -60°C when using isolated I/O modules at elevated ambient temperatures?

A3: Above +35°C ambient rack temperatures, cold-junction compensation linearity degrades on isolated modules; setting ranges down to -100°C causes inaccurate signal processing despite software allowance.

Q4: Can a short circuit on one of the +4 to +20 mA recorder output channels cause the main temperature monitor to trip?

A4: No, the 3500/61 recorder outputs feature short-circuit protection; external loop shorting or wiring faults will not affect internal monitor logic, alarm processing, or rack backplane safety routines.

Q5: What essential pre-installation checks prevent configuration errors when replacing an existing 3500/61 module?

A5: Verify that the backplane DIP switches and 3500 Rack Configuration software match the connected sensor type (RTD vs TC curve), confirm proper terminal block seating, and ensure your vendor provides 12-month warranty coverage.
