Engineering Overview & Rack Architecture

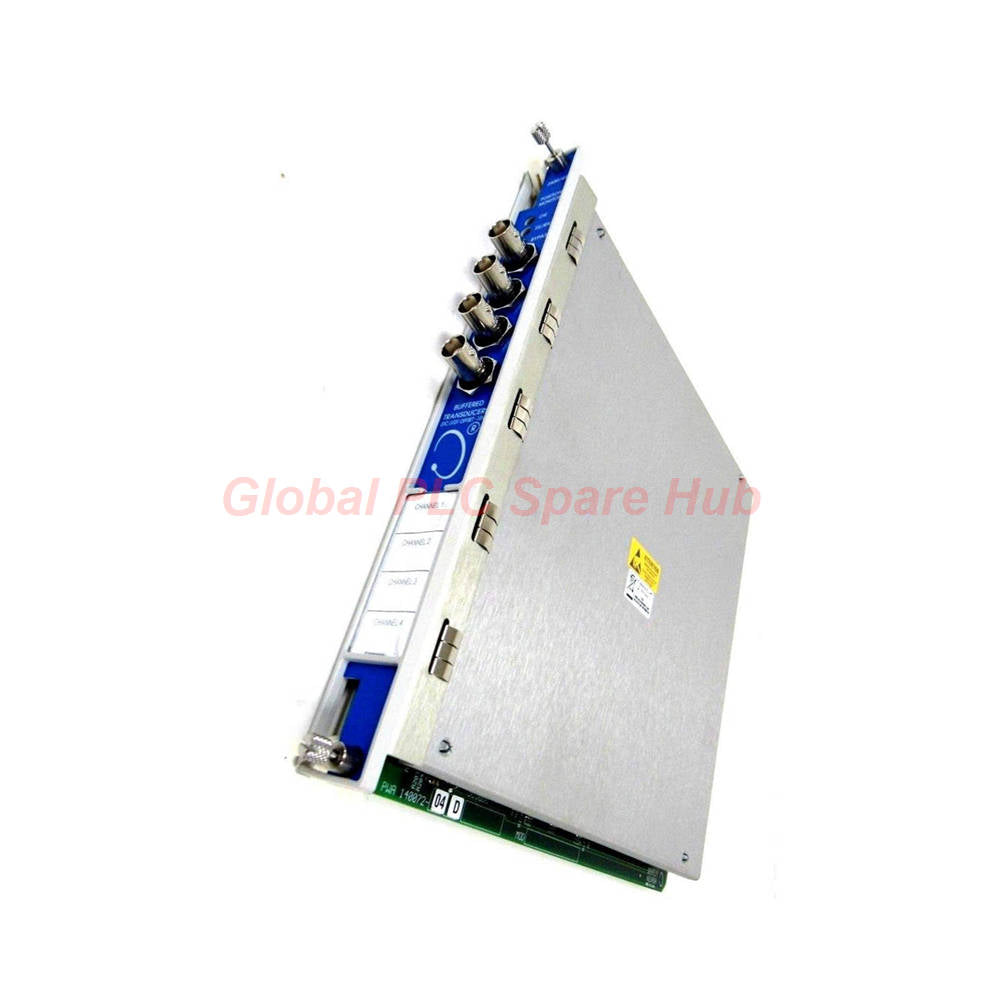

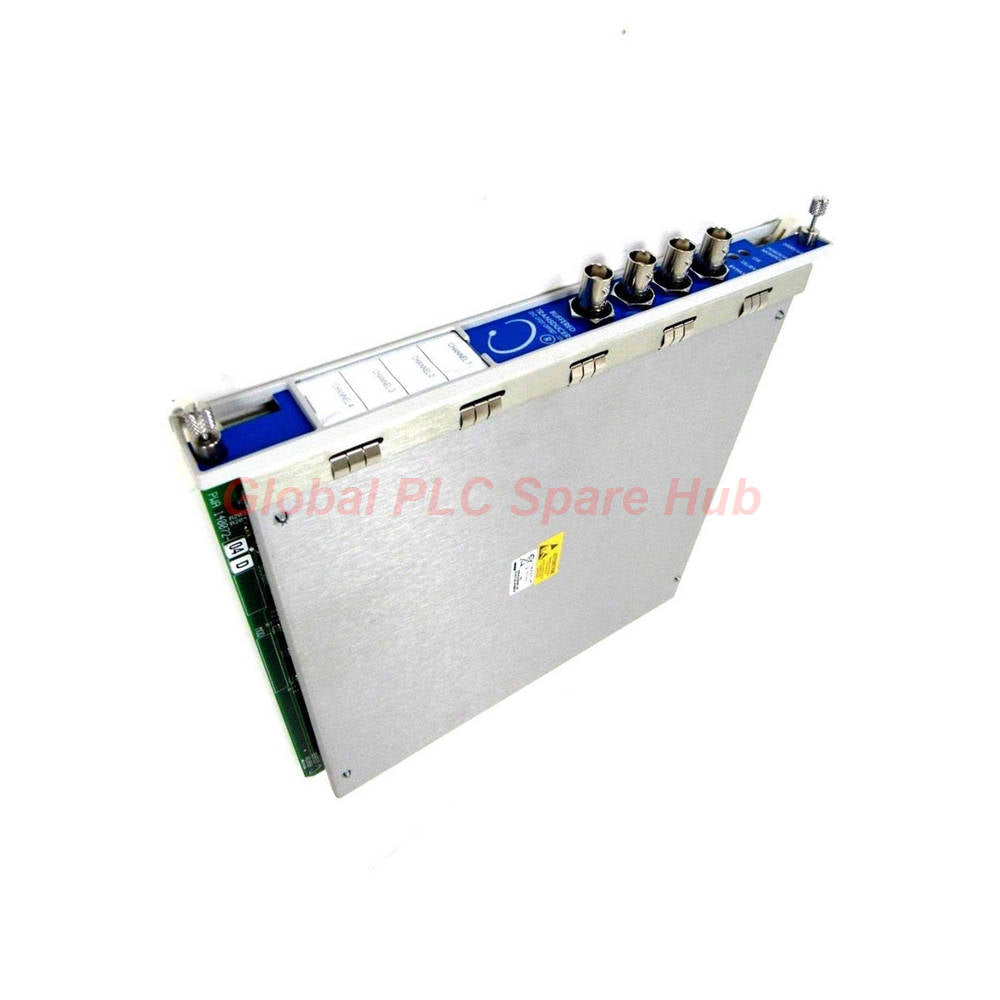

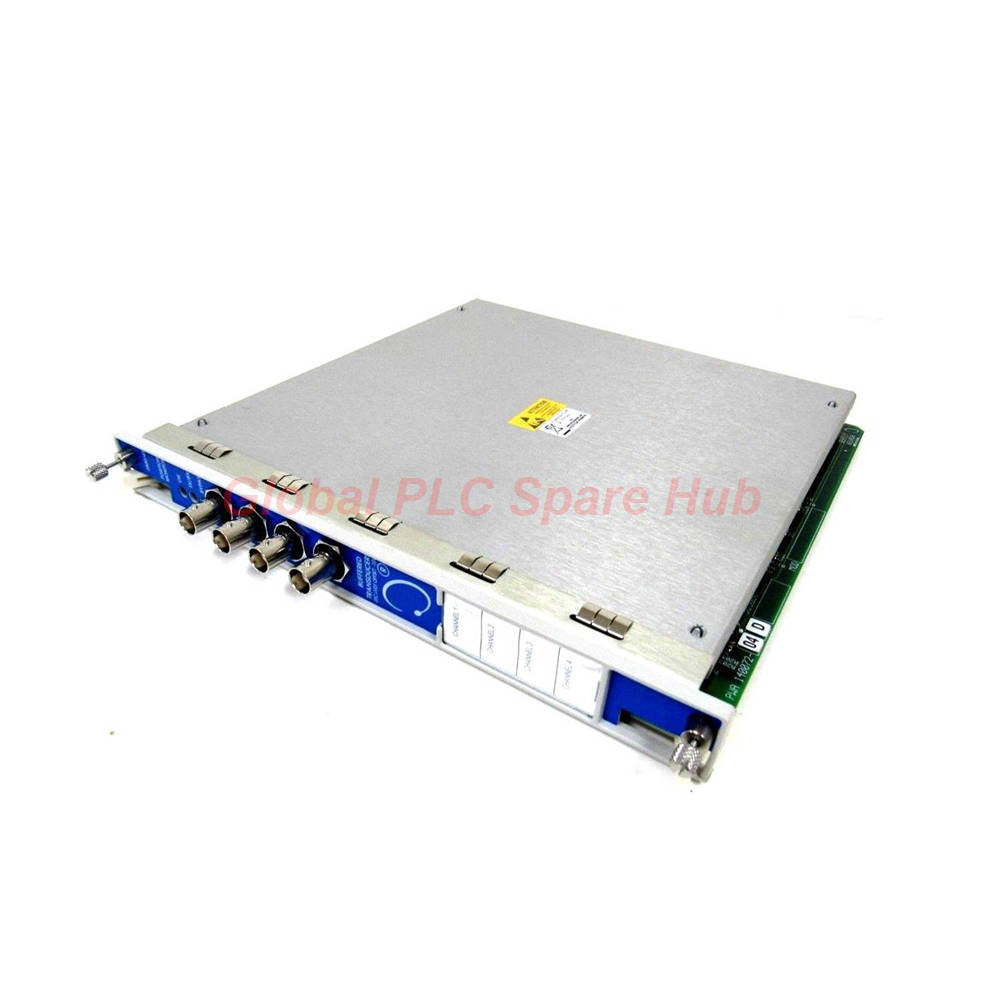

The 3500/45-05-00 position monitor engineered by Bently Nevada provides multichannel axial and radial position tracking for heavy rotating machinery. Operating within the 3500 Position Monitor series, this specific configuration integrates an AC LVDT input module with internal terminations and standard agency classification.

Configuration Breakdown & Suffix Architecture

Configuration Element	Designation Parameter	Engineering Specification
Base Model	Monitor Series	Bently Nevada 3500/45 Machinery Position Monitor Platform
05 Suffix	I/O Module Type	AC LVDT Position I/O Module equipped with Internal Terminations
00 Suffix	Agency Approval	Standard unclassified hazardous area installation rating (None)
Signal Inputs	Channel Capacity	Accepts 1 to 4 independent transducer signal inputs per module
Power Draw	Thermal Consumption	8.5 Watts typical power draw utilizing AC LVDT input configuration

Technical Specifications Matrix

Manufacturer & Model: Bently Nevada 3500/45-05-00
Input Impedance: 137 kOhms dedicated resistance for AC LVDT input channels
Excitation Output: AC LVDT power supply provides 2.3 Vrms at 3400 Hz sine wave
Measurement Accuracy: Within ±0.33% of full-scale typical (±1% maximum error limit)
Recorder Interface: Proportional +4 to +20 mA output with 0 to 600 Ohm load resistance
Physical Enclosure: Main board dimensions 241.3 x 24.4 x 241.8 mm; Weight 0.91 kg (2.0 lbs)

Compatible Rotating Equipment & Application Scenarios

The 3500/45-05-00 monitor connects directly with precision displacement transducers across critical industrial assets. Typical high-reliability deployment scenarios include:

Large utility steam turbine thrust bearing wear monitoring via dual AC LVDT probes.
High-pressure hydraulic steam valve position feedback tracking in power generation plants.
Differential expansion and casing growth measurement on multi-casing gas turbines.

Advanced Diagnostic Capabilities

Front-panel LED indicators report real-time operational health (OK), rack backplane communications (TX/RX), and bypass status. The 100 ms update rate ensures control systems capture rapid mechanical shifts, while isolated recorder channels remain unaffected by accidental short-circuit conditions on external loops.

Global Logistics, Fulfillment & Warranty Terms

Rapid Dispatch: Stock orders process and ship within 24 to 48 hours.
Global Transport: Secure international air freight via FedEx, UPS, and DHL.
Quality Protection: Backed by a standard 12-month manufacturer defect warranty.

Global PLC Spare HUB's Insight

Instrumentation engineers often experience unstable position readings when AC LVDT excitation leads pick up electromagnetic noise from nearby high-voltage governor wiring. Field experience shows that grounding the shield drain wire exclusively at the 3500 rack while routing cables through dedicated steel conduit completely eliminates signal jitter. For instance, a combined-cycle power plant stabilized erratic hydraulic valve feedback loops on a GE turbine by verifying proper internal termination jumpers on their 3500/45-05-00 card, preventing nuisance turbine trips.

Professional Frequently Asked Questions

Question: What specific firmware revision is mandatory when integrating the 3500/45-05-00 into legacy racks?

Answer: Technicians must upgrade the 3500/20 Rack Interface Module firmware to Revision G or later and utilize 3500 Configuration Software version 2.41 or higher.

Question: How does the internal termination I/O design simplify physical field wiring inside the cabinet?

Answer: Internal terminations eliminate the need for separate marshalling blocks by allowing direct connection of field sensor wires straight to the rear I/O card terminals.

Question: What troubleshooting steps apply if the front-panel OK LED turns off during operation?

Answer: Engineers should inspect transducer excitation voltage, verify LVDT coil continuity, and check rack event logs via configuration software for specific channel fault codes.

Question: What purchasing factors should buyers evaluate when replacing older proximity monitors with this AC LVDT module?

Answer: Buyers must verify that the existing rack power supply has sufficient wattage capacity to support the 8.5 W thermal load demanded by the AC LVDT configuration.

Question: Why is matching the excitation frequency crucial when connecting third-party LVDT sensors?

Answer: The module supplies a fixed 2.3 Vrms 3400 Hz sine wave excitation; mismatched sensor frequency ratings will cause signal saturation and linearity distortion.
