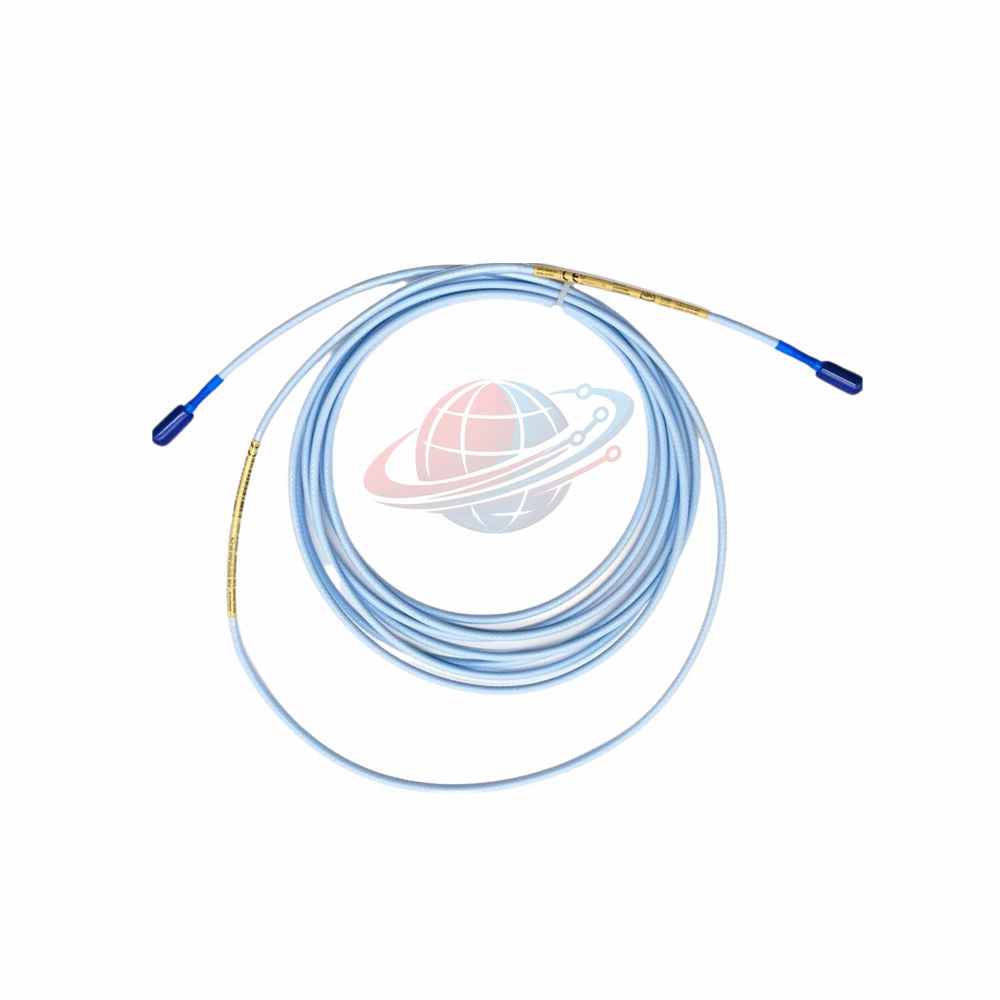

330930-060-00-05 Bently Nevada 3300 NSv Extension Cable | In Stock

330930-060-00-05 Bently Nevada 3300 NSv Extension Cable | In Stock

Manufacturer: Bently Nevada
Product No.: 330930‑060‑00‑05
Condition： In stock
Product Type: Extension Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview

The 330930-060-00-05 is a high-performance 3300 NSv Extension Cable engineered by Bently Nevada. Designed for critical machinery management systems, this extension cable bridges the gap between proximity probes and Proximitor sensors. It ensures signal integrity in tight spaces and harsh industrial environments. Manufactured in the U.S.A., this 3300 NSv series component delivers precise vibration and position measurements.

Technical Specifications & Configuration Breakdown

Brand & Model: Bently Nevada 330930-060-00-05
Series Type: 3300 NSv Extension Cable Series
Cable Length Option (060): 6.0 meters (19.7 feet) total length
Connector & Cable Option (00): Standard design without stainless steel armor
Agency Approval Option (05): Multiple hazardous area approvals certified
Measurement Range: Linear range from 0.25 to 1.75 mm (10 to 70 mils)
Sensitivity: Optimized for near-surface and small-target vibration monitoring
Linearity: Maintains strict voltage output from -1 to -13 Vdc
Temperature Range: Operating and storage from -51°C to +177°C (-60°F to +351°F)
Environmental Tolerance: Fluoroethylene propylene (FEP) insulated coaxial build
Interference Resistance: 75 ohm impedance with braided shield suppression
Shipping Weight: 1.5 Kilograms

Installation Guidelines & Setup

Match total system length between probe, extension cable, and Proximitor sensor.
Route field wiring away from high-voltage AC power conduits.
Use three-conductor shielded triad cable for optimal signal fidelity.
Keep total field wiring distance under 305 meters (1,000 feet).
Torque gold-plated brass connectors carefully to prevent signal loss.

Debugging, Diagnostics & Application Scenarios

Diagnostic Capability: Detects micro-vibrations on small shafts and tight clearances.
Target Applications: High-speed compressors, pumps, and specialized turbines.
Signal Verification: Check DC bias voltage to ensure proper gap setting.
Fault Isolation: Swap extension cables if signal attenuation occurs unexpectedly.

Compatibility & Model Comparison Guidance

Model Comparison: Compare with the 330930-040-09-05 variant found via the 330930-040-09-05 Bently Nevada 330930-040-09-05 3300 NSv Extension Cable.
Technical Advice: The 330930-060-00-05 offers a longer 6-meter span suitable for distant junction boxes, whereas shorter 4-meter variants suit compact skids.

Global PLC Spare HUB Insight & Review

Engineering teams running rotating machinery rely heavily on the 330930-060-00-05 for precision diagnostics. Global PLC Spare HUB notes that proper grounding of the FEP cable shield eliminates 50/60Hz electromagnetic noise in complex plant environments. Field engineers report that maintaining exact system length calibration prevents phase shift errors during transient startup events.

Packing List & Logistics

Package Contents: One 330930-060-00-05 extension cable unit and compliance documentation.
Fulfillment Partners: Fast dispatch via FedEx, UPS, and DHL.
Dispatch Window: Ships securely within 24 to 48 hours globally.
Warranty Terms: Backed by a comprehensive 12-month warranty period.

Frequently Asked Questions

Q: How does system length calibration affect the 330930-060-00-05?

A: The probe length and extension cable length must sum up to match the calibrated Proximitor sensor requirement.

Q: Can this unarmored cable be installed in exposed raceways?

A: Option 00 lacks stainless steel armor, so it requires placement inside protective conduits or cable trays.

Q: What maintenance checks prevent signal drift over time?

A: Inspect connector cleanliness regularly and verify that terminal block screws remain tight against vibration.

Q: How do high ambient temperatures impact cable lifespan?

A: The FEP insulation withstands up to +177°C, but continuous operation near maximum limits requires periodic jacket inspection.

Q: What buying guide advice applies to retrofitting older vibration racks?

A: Verify matching system capacitance and connector thread types before swapping legacy cables with the 3300 NSv series.
