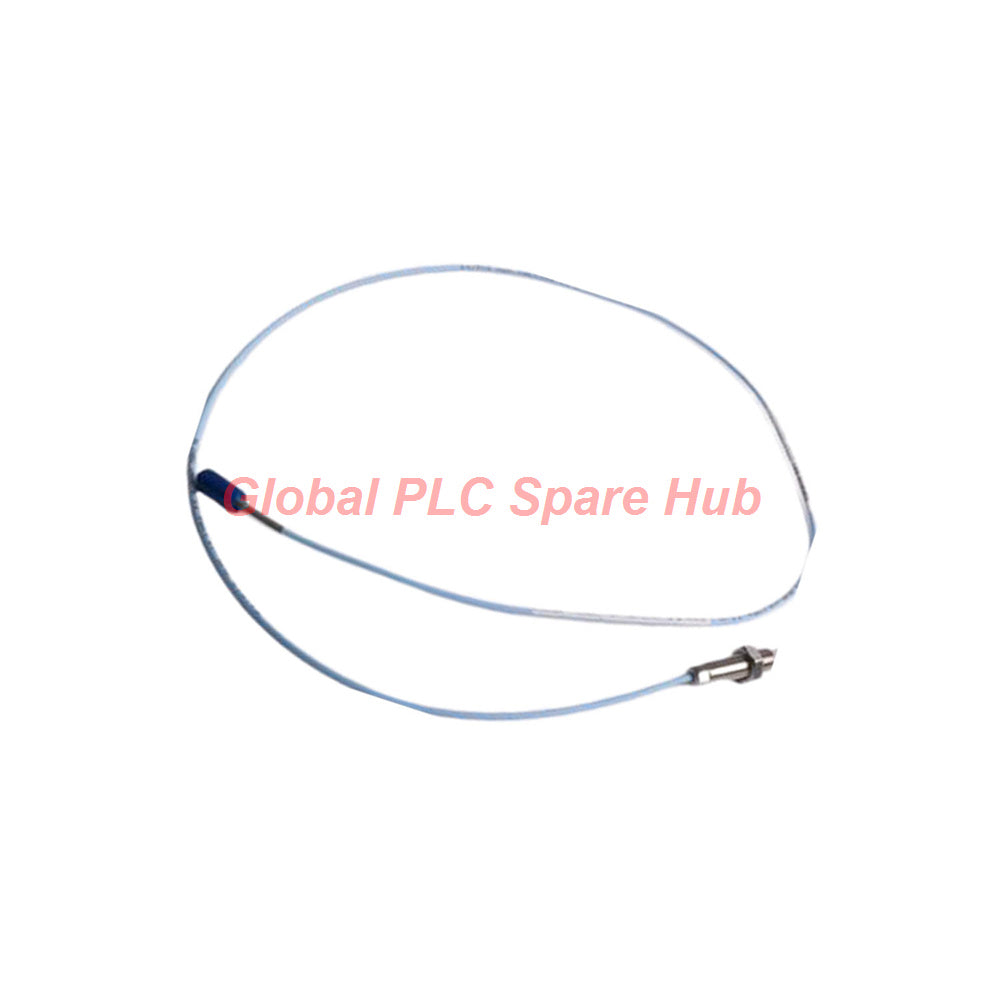

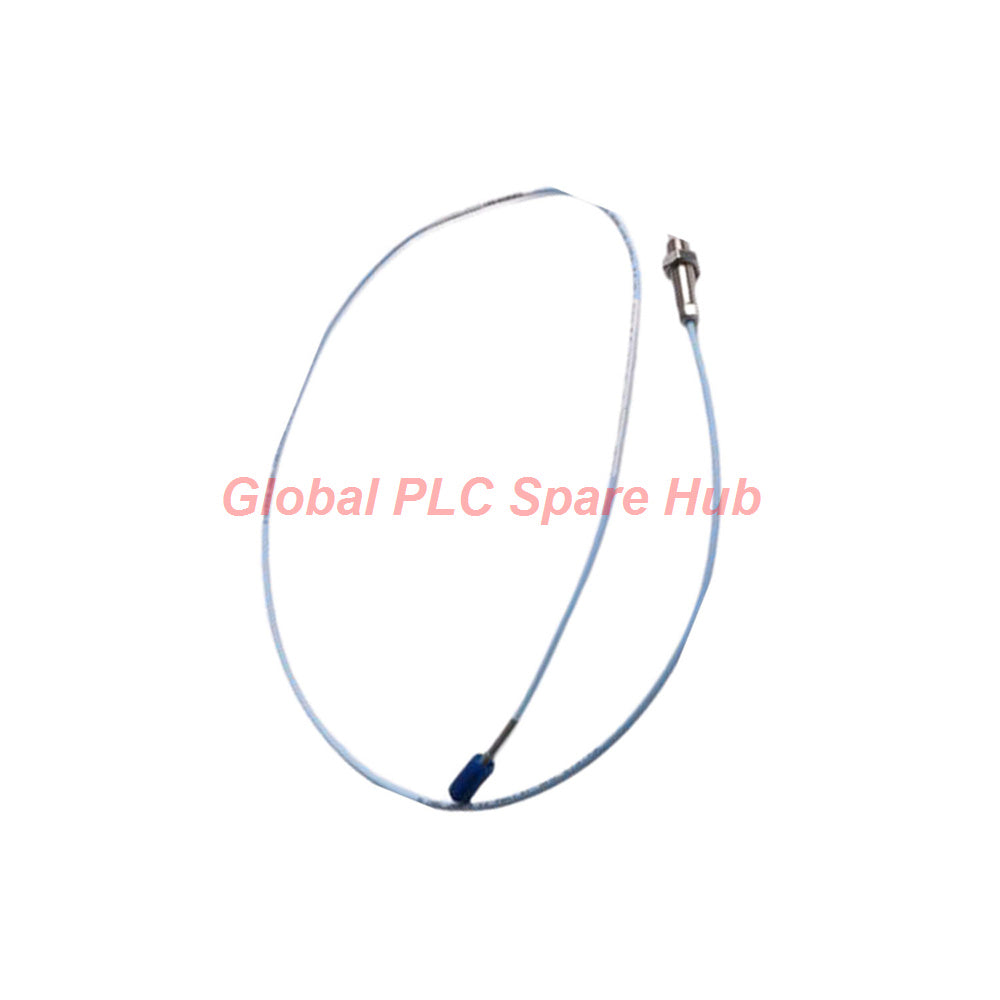

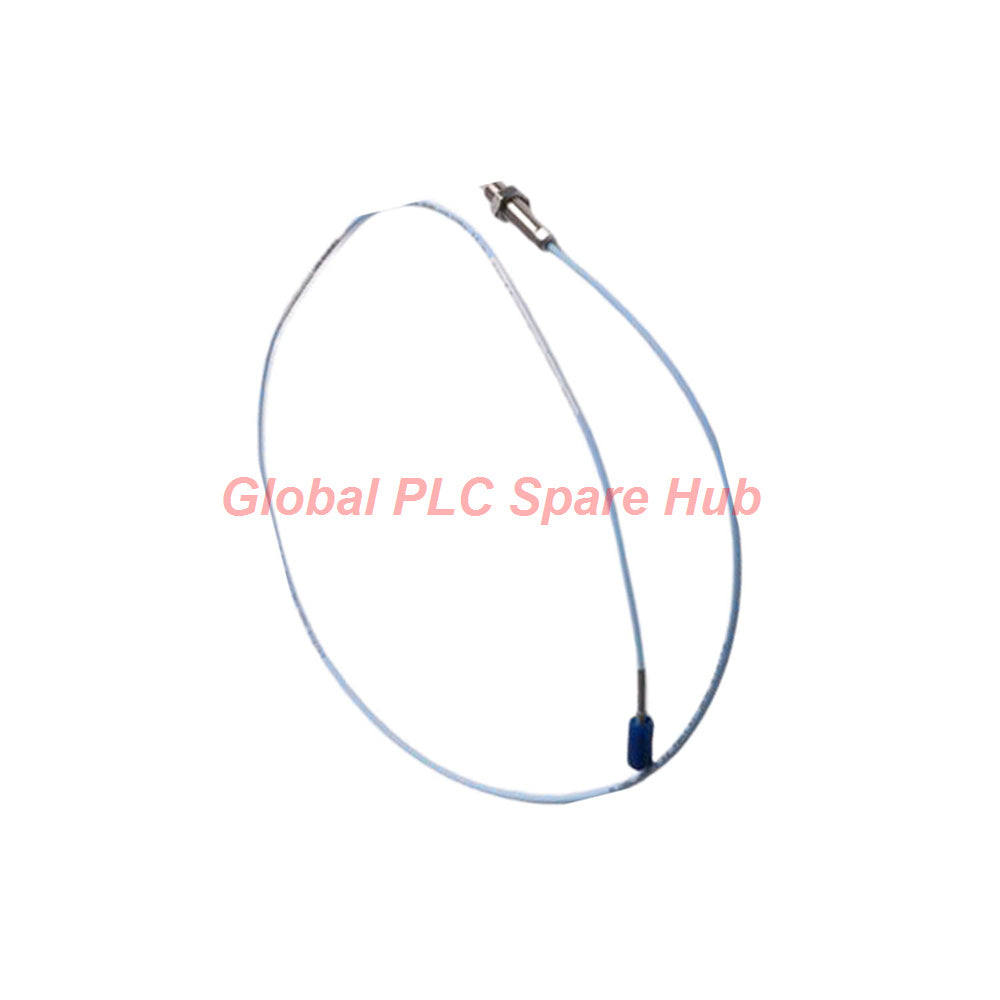

330908-12-46-05-02-05 Bently Nevada 3300 NSv Sensor Module
Manufacturer: Bently Nevada
Product No.: 330908-12-46-05-02-05
Condition： In stock
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The Bently Nevada 3300 NSv series delivers precision vibration monitoring. Model 330908-12-46-05-02-05 operates as a specialized 3/8-24 UNF proximity probe. Engineers use this sensor for radial vibration and axial position measurement. It excels in tight spaces where standard probes fail to fit.
Technical Specifications
| Parameter | Technical Specification |
|---|---|
| Manufacturer Brand | Bently Nevada |
| Product Series | 3300 NSv |
| Model Number | 330908-12-46-05-02-05 |
| Thread Size Option | 3/8-24 UNF without armor |
| Unthreaded Length | 1.2 inches (Option 12) |
| Overall Case Length | 4.6 inches (Option 46) |
| Total Cable Length | 0.5 meters / 20 inches (Option 05) |
| Connector Type | Miniature coaxial ClickLoc connector (Option 02) |
| Agency Approvals | Multiple Approvals (Option 05) |
| Case Material | AISI304 stainless steel (SST) |
| Tip Material | Polyphenylene sulfide (PPS) |
| Probe dc Resistance | 4.0 ± 0.5 Ω (Center to outer conductor) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Pressure Seal | Viton O-ring for differential pressure sealing |
| Probe Weight | 14 to 150 grams (0.5 to 5.3 oz) |
Installation Guide
- Verify thread dimensions match your machine mounting port.
- Apply recommended torque of 11.3 N•m during mounting.
- Do not exceed maximum torque limits of 33.9 N•m.
- Ensure thread engagement length stays within 0.563 inches.
- Route coaxial cables away from high-voltage power lines.
Commissioning and Maintenance
- Check dc resistance values before system startup.
- Inspect ClickLoc connectors for secure physical engagement.
- Monitor gap voltage regularly using monitoring software.
- Avoid exposing probes to temperatures below -34°C.
- Clean sensor tips during scheduled turbine outages.
Compatibility Notes
- Pair this probe with compatible 3300 NSv extension cables.
- Connect exclusively to approved Bently Nevada monitor modules.
- Maintain system impedance matching across the entire signal chain.
Certifications and Approvals
- Certified with multiple international hazardous area approvals.
- Complies with strict industrial safety standards.
Package Contents and Warranty
- Includes one factory-sealed proximity probe unit.
- Backed by a comprehensive 12-month quality warranty.
Shipping Terms and Delivery
- We ship globally via FedEx, UPS, and DHL.
- Orders dispatch within 24 to 48 hours.
Typical Applications and Diagnostics
- Ideal for steam turbines and centrifugal compressors.
- Monitors radial vibration on small-clearance machinery.
- Detects shaft misalignment and bearing wear early.
- Provides real-time diagnostic data for predictive maintenance.
Frequently Asked Questions
-
Q: How do I verify probe integrity before installation?
A: Measure dc resistance from the center conductor to the outer shield. -
Q: Can I use this probe in hazardous environments?
A: Yes, it features multiple hazardous area approvals. -
Q: What is the primary selection criterion for this model?
A: Choose this probe for constrained radial clearance applications.
Global PLC Spare HUB's Insight
- Field experience shows that improper torque application damages sensor threads.
- For example, a petrochemical plant avoided catastrophic turbine failure by replacing aging probes.
- Engineers should always verify gap voltage readings during initial cold startup.
