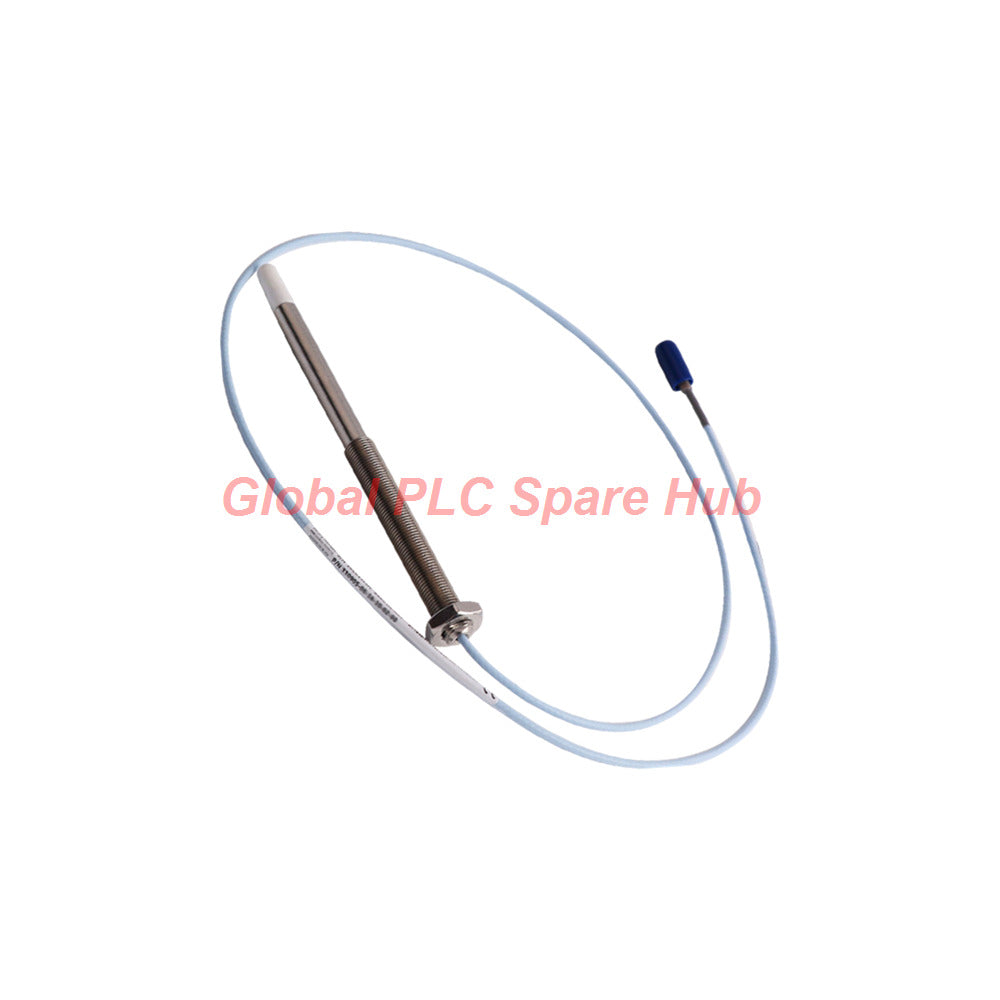

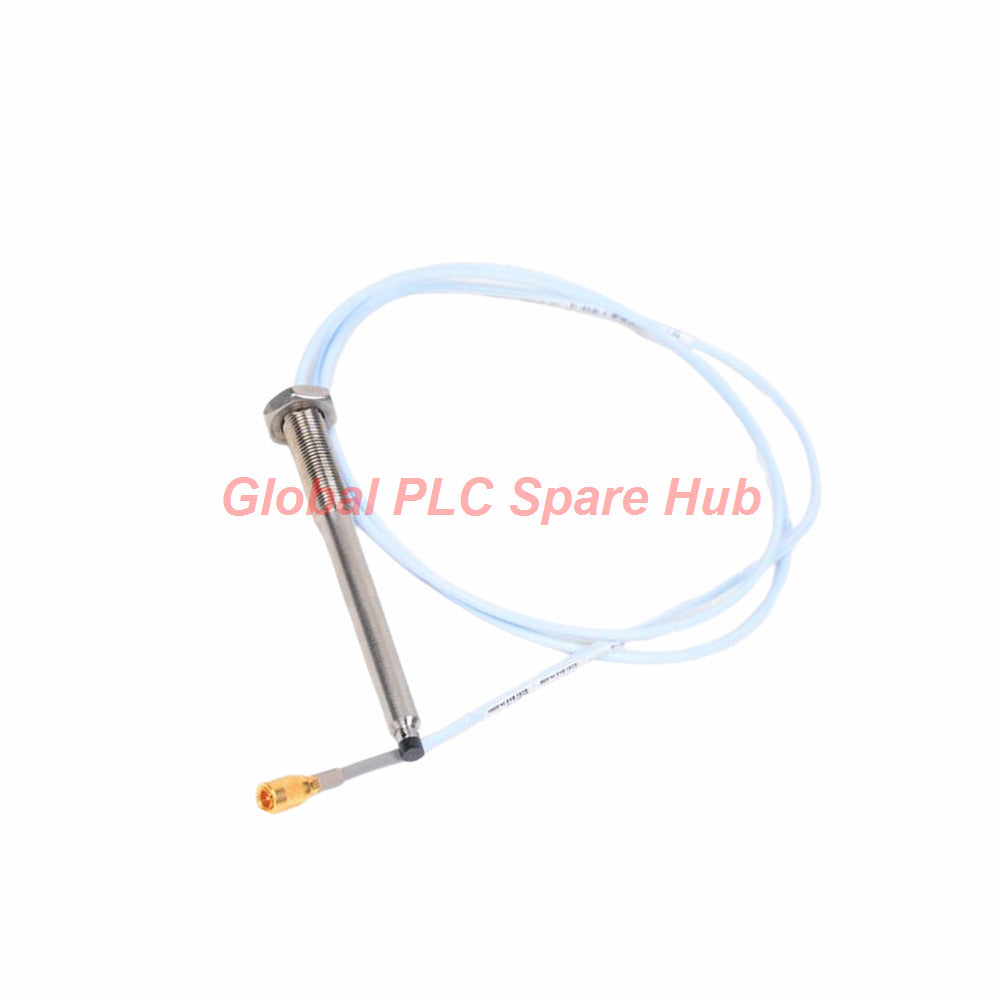

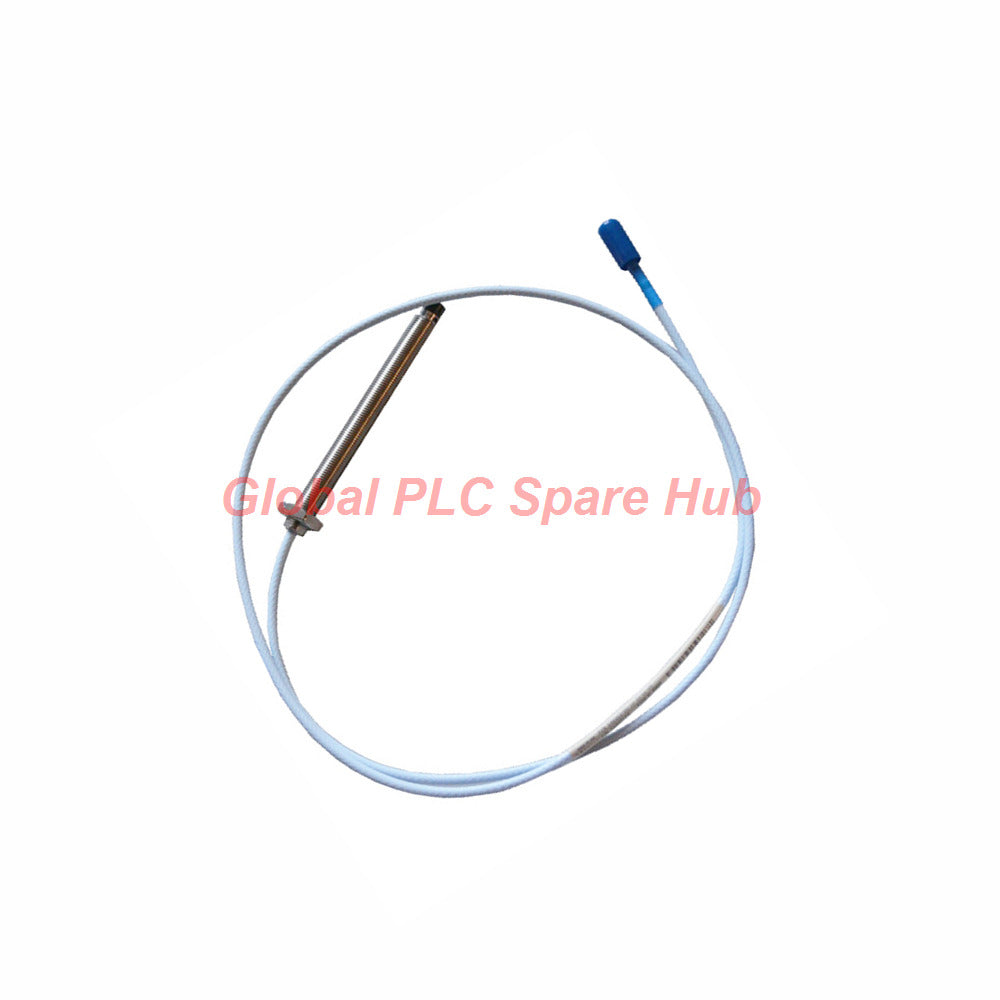

330907-05-30-10-02-05 Bently Nevada 3300 NSv Probe

330907-05-30-10-02-05 Bently Nevada 3300 NSv Probe

Manufacturer: Bently Nevada
Product No.: 330907-05-30-10-02-05
Condition： In stock
Product Type: Reverse Mount Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview

The Bently Nevada 330907-05-30-10-02-05 is a heavy-duty reverse mount proximity probe.

Engineers install this probe from the machine housing exterior for tight clearance spaces.

The 3300 NSv series delivers high chemical resistance for process compressor monitoring.

It uses patented TipLoc molding to secure the probe tip to the body.

Gold-plated ClickLoc connectors prevent accidental disconnection during heavy machine vibration.

Configuration Breakdown

Part Number: 330907-05-30-10-02-05
- Unthreaded/Thread Option (-05-30): M10x1 threads, reverse mount configuration.
- Total Length Option (-10): 1.0 meter (39 inches) probe total length.
- Connector Option (-02): Miniature coaxial ClickLoc connector with standard cable.
- Agency Approval Option (-05): Multiple global hazardous area approvals included.

Technical Specifications

Parameter Category	Engineering Specifications
Brand & Origin	Bently Nevada (Made in U.S.A.)
Model Designation	330907-05-30-10-02-05 (3300 NSv Series)
Linear Measurement Range	1.5 mm (60 mils) spanning from -1 Vdc to -13 Vdc
Recommended Gap Setting	1.0 mm (40 mils) initial gap positioning
Probe DC Resistance	4.2 ± 0.5 ohms between center and outer conductors
Construction Materials	Polyphenylene sulfide (PPS) tip with AISI 304 stainless steel case
Thread Engagement Limit	15 mm maximum thread depth for M10x1 case
Torque Ratings	7.5 N•m (66 in•lb) recommended; 22.6 N•m (200 in•lb) maximum
Operating Temperature	-52°C to +177°C (-62°F to +351°F) environmental endurance
Pressure Seal System	Viton O-ring differential pressure sealing architecture

Machinery Applications & Diagnostic Capabilities

Centrifugal Gas Compressors: Measures radial shaft position inside restricted bearing housings.
Turboexpanders: Monitors dynamic axial position where side-clearance space is extremely limited.
High-Pressure Boiler Feed Pumps: Tracks continuous shaft vibration in aggressive process environments.
Diagnostic Monitoring: Detects early shaft unbalance, dynamic misalignment, and fluid-film bearing instability.

Model Selection & Technical Comparison

Model 330907-05-30-10-02-05 includes multiple agency approvals under option code -05.

Option code -00 on 330907-05-30-10-02-00 indicates standard non-approved applications.

Both models feature identical M10x1 reverse threads and 1.0-meter cables.

Select option -05 whenever your installation requires certified hazardous area compliance.

Global PLC Spare HUB's Insight & Field Experience

Reverse mount probes solve maintenance challenges on machines lacking internal bracket mountings.

During a refinery overhaul, technicians replaced damaged probes without removing heavy machine covers.

Installing the 330907-05-30-10-02-05 externally reduced machine downtime by 18 hours.

Technicians must ensure coaxial cables maintain a minimum bend radius of 25.4 mm.

Avoid exposing probes below -34°C for extended periods to protect O-ring integrity.

Warranty & Worldwide Delivery

Every product includes a comprehensive 12-month factory warranty.
Our team dispatches orders within 24 to 48 hours.
We provide express global shipping through FedEx, UPS, and DHL.

Frequently Asked Questions

Q1: What is the main advantage of a reverse mount probe?

A1: Technicians install reverse mount probes through machine outer walls without disassembling internal housings.

Q2: Why are ClickLoc connectors critical for vibration monitoring?

A2: Gold-plated ClickLoc connectors lock firmly into position and prevent connection loosening caused by machine vibration.

Q3: How does extreme cold affect the probe pressure seal?

A3: Sustained exposure to temperatures below -34°C can compromise the Viton O-ring pressure seal over time.

Q4: How do I choose between agency option -05 and option -00?

A4: Select option -05 for hazardous industrial zones requiring certified ATEX or IECEx explosion protection.

Q5: What electrical measurement verifies probe health before installation?

A5: Measure DC resistance between conductors; a healthy probe reads within 4.2 ± 0.5 ohms.
