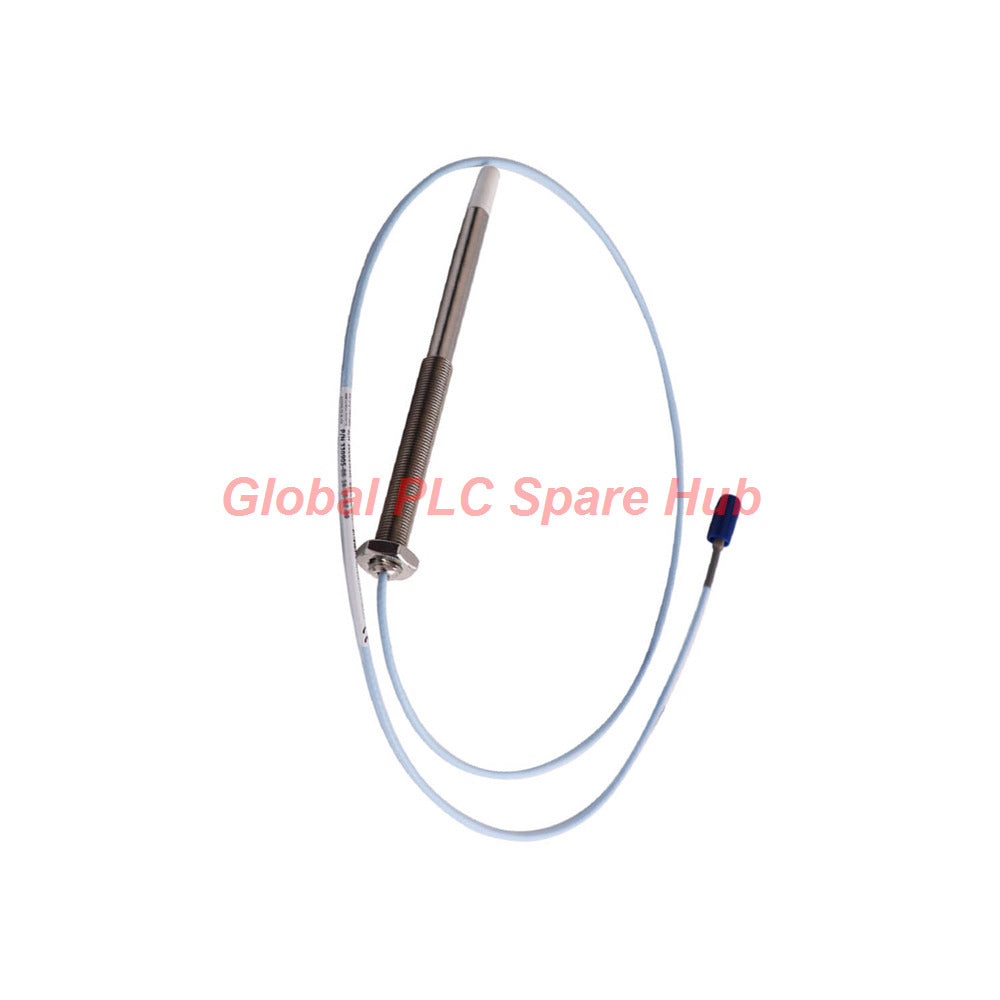

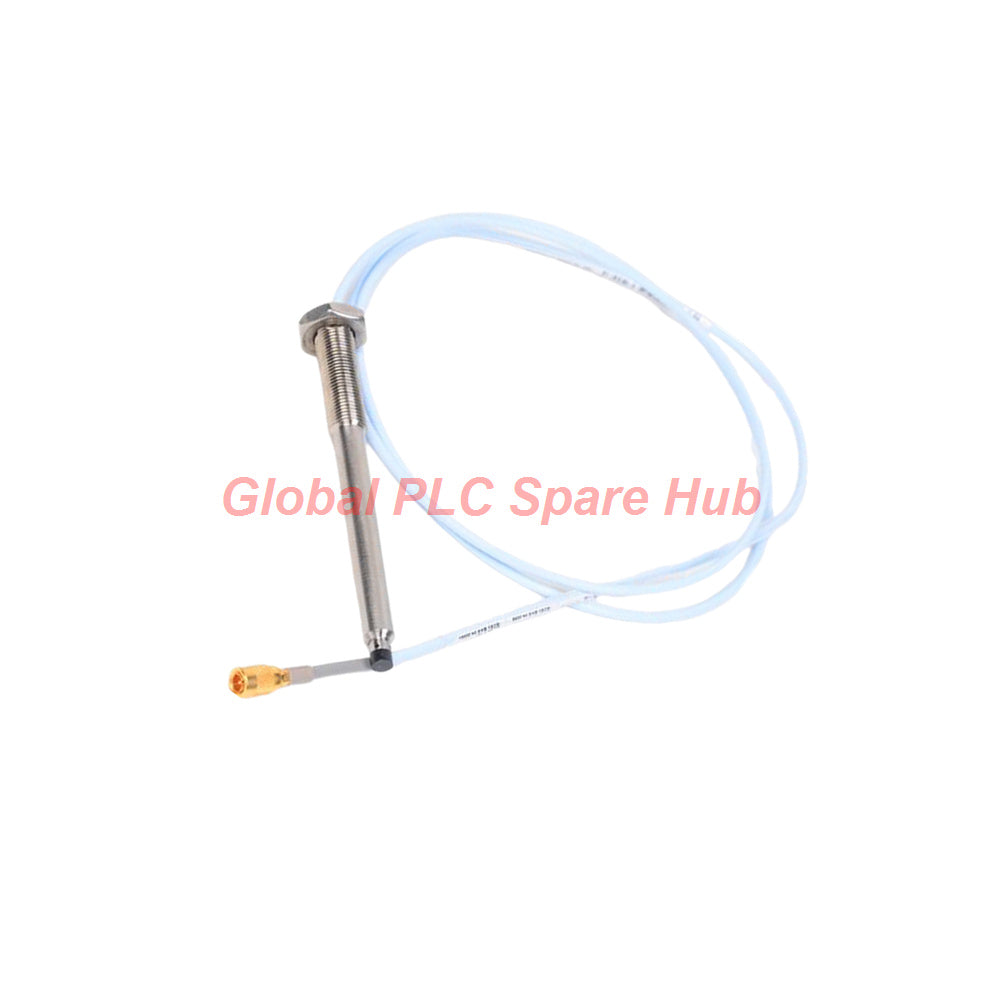

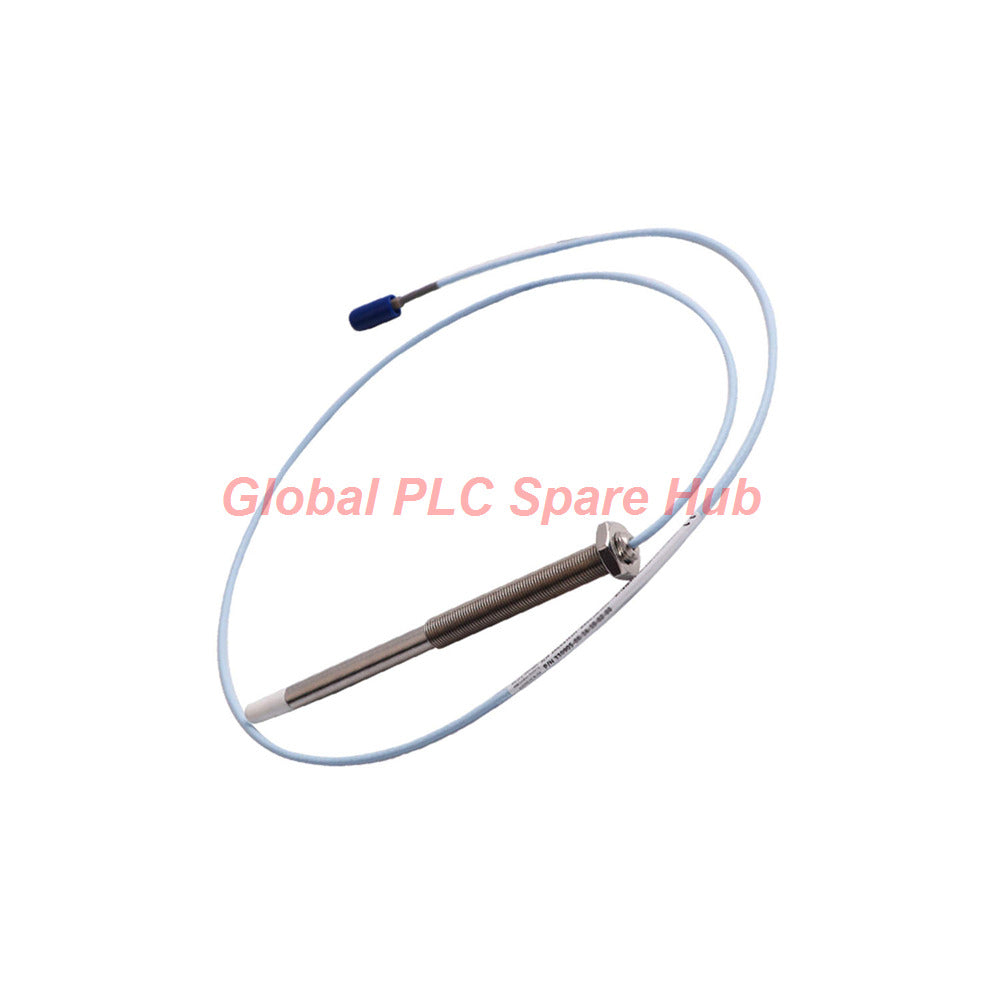

330905-00-06-50-12-00 Bently Nevada 3300 NSv Proximity Probe

Engineering Architecture Overview

The 330905-00-06-50-12-00 is a high-precision 3300 NSv Proximity Probe engineered by Bently Nevada. Designed specifically for measurements on small-shaft machinery and tight spatial envelopes where side-view interference affects standard probes, this sensor delivers an incremental scale factor of 7.87 V/mm (200 mV/mil). Global PLC Spare HUB's Insight highlights that utilizing specialized NSv proximity probes on high-speed process compressors eliminates erroneous runout readings caused by restricted target diameters, ensuring reliable vibration monitoring.

Configuration Breakdown Index

Comprehensive Technical Matrix

• Manufacturer / Brand: Bently Nevada
• Model & Series: 330905-00-06-50-12-00 (3300 NSv Series)
• Linear Range & Gap: 1.5 mm linear range (60 mils) spanning 0.25 to 1.75 mm from target; recommended gap setting at 1.0 mm (40 mils)
• Electrical Resistance: Probe DC resistance is 5.3 ± 0.7 ohms; extension cable center conductor resistance is 0.220 Ω/m
• Frequency Response: 0 to 10 kHz (+0, -3 dB typical) with up to 305 meters of field wiring
• Target Requirements: Minimum target diameter of 8.9 mm; recommended minimum of 13 mm flat target
• Materials: Polyphenylene sulfide (PPS) probe tip, AISI 304 stainless steel case, and 75-ohm FEP insulated coaxial cable
• Thermal Limits: Operating and storage temperature range from -52°C to +177°C (-62°F to +351°F)

Mechanical Mounting and Torque Guide

• Screw the M10 x 1 probe case into the mounting hole using finger-tight initial alignment.
• Observe the maximum case installation torque limit of 22.6 N·m for the first three threads, keeping recommended installation torque at 7.5 N·m.
• Maintain a minimum bend radius of 25.4 mm (1.0 in) for the coaxial probe cable during routing.
• Ensure the Viton O-ring seal seats correctly to maintain differential pressure sealing between the probe tip and case.

Commissioning and Maintenance Protocol

• Verify static gap voltage settings using a digital multimeter, targeting approximately -10 Vdc at the recommended 1.0 mm gap.
• Inspect ClickLoc connectors periodically for moisture or oil contamination that could degrade high-frequency signal integrity.
• Check field wiring shields to ensure proper grounding at a single point to prevent ground loops.

System Compatibility and Compliance

• Mechanically and electrically compatible with previous Bently Nevada 3300 RAM proximity systems while offering enhanced chemical resistance.
• Connects seamlessly to 3300 XL NSv Proximitor sensors via 75-ohm coaxial cabling.
• Designed for harsh industrial environments requiring resistance to aggressive process compressor fluids.

Package Contents and Warranty Commitment

• One 330905-00-06-50-12-00 proximity probe unit
• Integrated 5.0-meter FluidLoc cable with miniature ClickLoc connector
• Comprehensive 12-month factory warranty backed by Global PLC Spare HUB

Global Logistics and Shipping Terms

• Packaged securely with antistatic and shock-absorbing cushioning to protect delicate coaxial tips.
• Expedited global fulfillment handled through professional couriers including FedEx, UPS, and DHL.
• Guaranteed processing, calibration inspection, and dispatch within 24 to 48 hours.

Target Equipment, Applications, and Diagnostics

• Target Equipment: High-speed centrifugal compressors, small-diameter turbine shafts, gearboxes, and pumps.
• Applications: Radial vibration monitoring, shaft axial position tracking, and eccentric runout analysis on restricted target surfaces.
• Diagnostic Capabilities: High-frequency response captures transient shaft instabilities and micro-vibrations before catastrophic bearing wear occurs.

Selection Guidelines and Model Comparison

• Verify Shaft Diameter: Use NSv probes when shaft targets are smaller than 13 mm to minimize scale factor errors caused by side-view sensitivity.
• Cable Length Matching: Ensure total system length options match your Proximitor sensor calibration requirements.
• Comparative Selection Advice: If your installation requires a shorter overall case length with different cable options, review the technical specifications for alternative configurations such as the 330905-05-25-10-02-00 model to match your specific bracket and mounting depth constraints.

Frequently Asked Questions (FAQ)

Q: Why is the 330905-00-06-50-12-00 recommended over standard probes for small shafts?

A: It features specialized side-view characteristics designed to maintain linear scale factors even when measuring shafts smaller than 13 mm in diameter.

Q: What is the purpose of the FluidLoc cable option on this probe?

A: FluidLoc construction prevents oil and process fluids from wicking through the internal strands of the cable into the machinery casing.

Q: What field troubleshooting steps should I execute if output voltages drift outside the linear range?

A: Field experience suggests verifying that the mechanical gap has not shifted due to thermal expansion and inspecting the probe tip for carbon or varnish buildup.

Q: Can this NSv probe interchange directly with older 3300 RAM systems?

A: Yes. The 3300 NSv probe is fully interchangeable both mechanically and electrically with previous 3300 RAM proximity components.

Q: What torque limit must technicians observe when installing the M10 x 1 thread?

A: The maximum rated torque for the first three threads is 22.6 N·m, but a recommended installation torque of 7.5 N·m should be utilized to prevent thread stripping.
