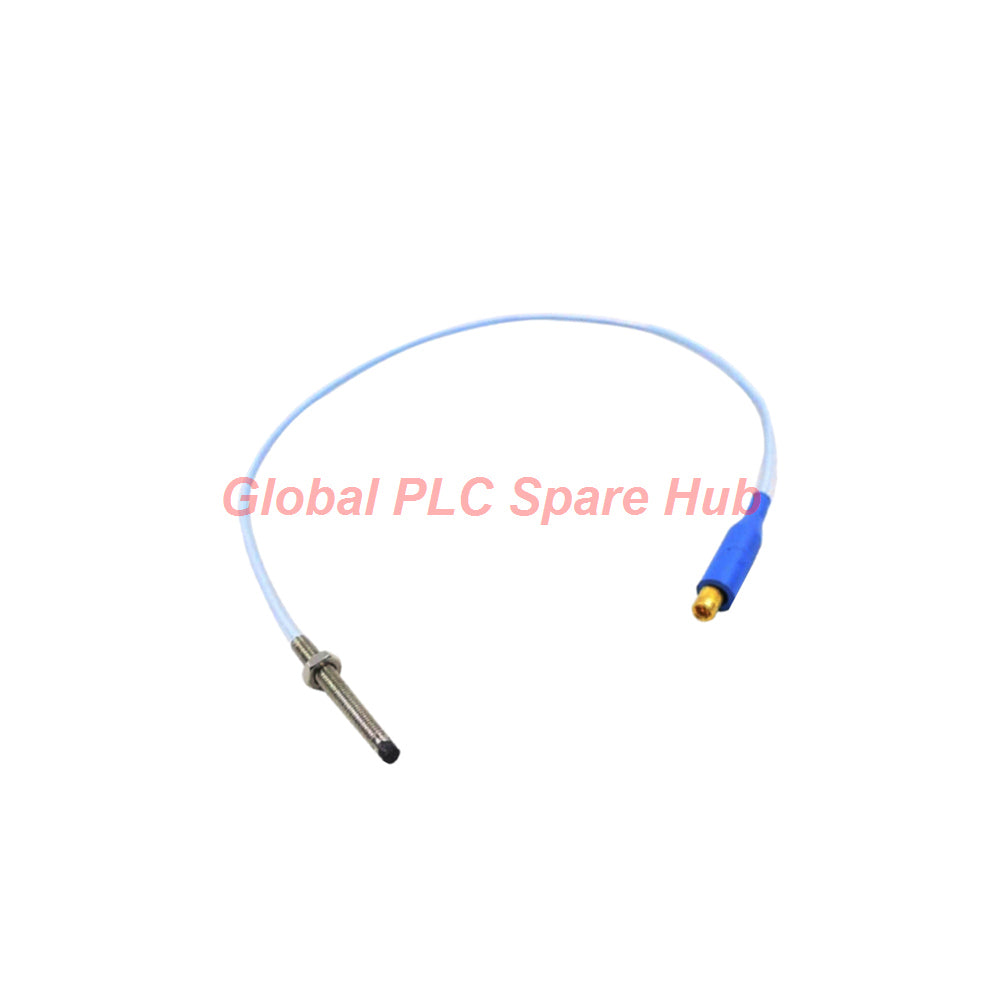

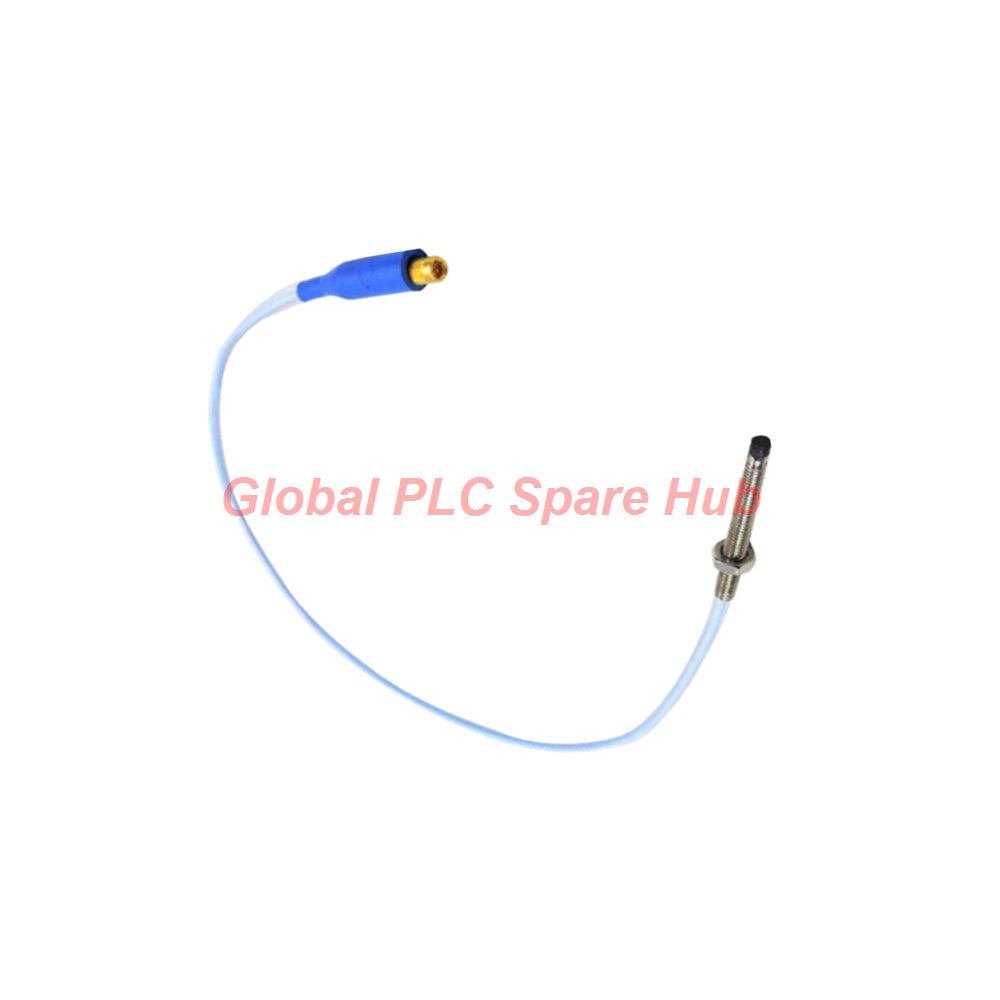

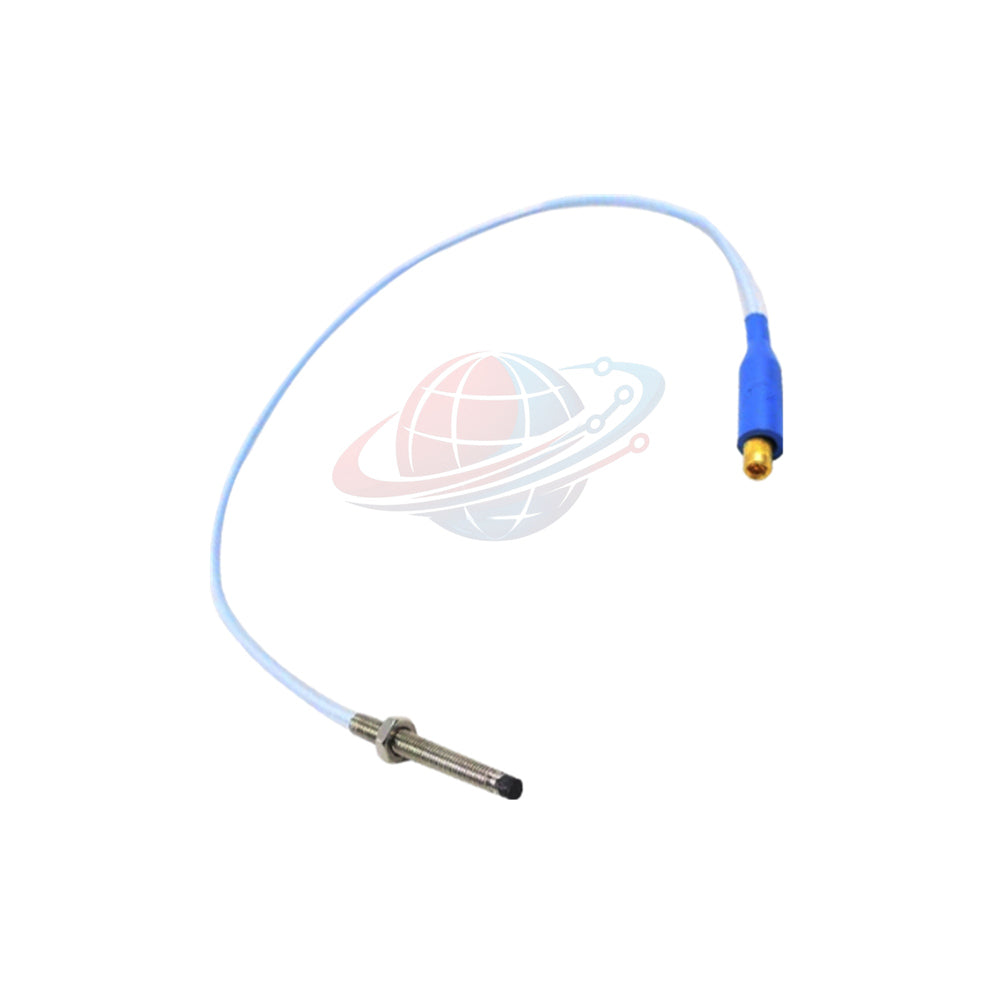

330901-00-90-10-02-05 Bently Nevada 3300 NSv Proximity Probe 1m Cable

Product Overview

The Bently Nevada 330901-00-90-10-02-05 is a 3300 NSv proximity probe designed for non-contact shaft displacement monitoring. It supports machinery protection and condition monitoring in industrial rotating equipment. The probe uses a 1/4-28 UNF threaded case and a 1.0-meter coaxial cable.

This configuration features a miniature coaxial ClickLoc connector and standard probe cable. Its stainless steel case and PPS probe tip support demanding industrial measurement environments. The probe forms part of a compatible 3300 NSv measurement chain when paired with the appropriate extension cable and Proximitor sensor.

Engineers can use this probe for shaft vibration measurements, radial displacement monitoring, and machinery diagnostic systems. Always verify the complete measurement chain before replacing an installed probe.

Technical Specifications

Model Number Breakdown

• 330901: 3300 NSv proximity probe family.
• 00: 0.0-inch unthreaded length.
• 90: 9.0-inch overall case length.
• 10: 1.0-meter total probe length.
• 02: Miniature coaxial ClickLoc connector with standard cable.
• 05: Multiple agency approvals option.

Measurement Capabilities and Diagnostic Value

The 3300 NSv system measures shaft position through non-contact proximity sensing. The probe works with a compatible Proximitor sensor and extension cable. The complete system converts changes in probe-to-target distance into an electrical signal.

• Shaft displacement: Supports radial vibration and shaft position monitoring when used with the specified measurement chain.
• Machine condition assessment: Provides input for identifying changes in shaft motion and running behavior.
• Trend analysis: Helps maintenance teams compare operating measurements against established baselines.
• Fault investigation: Supports investigations into vibration changes, shaft movement, and probe signal instability.

Important specification note: The supplied data does not define this exact configuration's measurement range, frequency response, sensitivity, linearity, resolution, or electromagnetic immunity. Confirm these values against the applicable Bently Nevada 3300 NSv system documentation. Do not assume specifications from another probe family.

Installation Guidelines

• Check the mounting thread: Confirm that the mounting port matches the probe's 1/4-28 UNF thread.
• Verify thread engagement: Keep engagement within the specified maximum of 0.375 in.
• Prepare the mounting surface: Remove debris and inspect the threads before installation.
• Set the probe gap: Follow the compatible Proximitor sensor manual and the machine manufacturer's installation procedure.
• Protect the cable: Avoid sharp bends, abrasion, excessive tension, and contact with hot surfaces.
• Secure the connector: Inspect the miniature ClickLoc interface and make sure the connection is fully seated.
• Check the measurement chain: Confirm probe, extension cable, Proximitor sensor, and monitor compatibility before startup.

Installation torque: The supplied reference lists 5.1 N·m (45 in·lb) as the recommended torque and 7.3 N·m (65 in·lb) as the maximum for 1/4-28 or M8 × 1 probe cases. Confirm the applicable procedure before tightening this specific installation.

Commissioning, Troubleshooting, and Maintenance

Correct commissioning helps distinguish probe faults from cable, sensor, and machine-related problems. Record baseline readings after installation and compare later measurements under similar operating conditions.

• Unstable readings: Inspect the connector, cable routing, grounding arrangement, and nearby electrical interference sources.
• Unexpected gap voltage: Check probe positioning, target condition, cable compatibility, and Proximitor sensor configuration.
• Abnormal vibration trends: Compare readings with historical data and investigate possible changes in shaft motion or mounting integrity.
• Intermittent signals: Check for loose connections, cable damage, contamination, and mechanical movement at the mounting point.
• Replacement verification: Compare the removed probe's complete part number and system configuration with the replacement.

Field example: A maintenance team observes intermittent shaft vibration readings after a probe replacement. The team first checks the ClickLoc connection, cable routing, and probe gap. It then verifies the extension cable and Proximitor sensor combination before attributing the change to machine vibration.

Pressure limitation: The probe uses a Viton O-ring to seal differential pressure between the probe tip and case. The supplied documentation states that probes are not pressure-tested before shipment. Verify the installation's pressure requirements independently.

Low-temperature caution: Sustained exposure below -34°C (-30°F) may cause premature failure of the pressure seal, even though the stated operating range extends to -52°C.

Compatibility and Selection Notes

The 330901-00-90-10-02-05 should be selected according to its mechanical dimensions, cable length, connector style, and measurement system requirements.

• Confirm that the application requires a 1/4-28 UNF threaded probe.
• Check the available mounting depth against the 9.0-inch overall case length.
• Verify that the 1.0-meter cable length suits the installation layout.
• Confirm the miniature coaxial ClickLoc connector matches the intended extension cable.
• Check the Proximitor sensor model and complete 3300 NSv system configuration.
• Review the applicable agency approvals when the installation requires certified equipment.

Selection warning: A matching connector does not guarantee electrical compatibility. Verify the complete probe, extension cable, and Proximitor sensor combination using the manufacturer's documentation.

Comparison with an Alternative 3300 NSv Probe

Technical recommendation: Choose 330901-00-90-10-02-05 when the installation specifically requires its Option 02 connector configuration. Consider 330901-22-90-10-11-05 only after confirming its connector, thread, and cable details. Do not substitute either model based solely on the shared 330901 family prefix.

Typical Industrial Applications

• Oil and gas: Shaft vibration and displacement monitoring on compatible rotating machinery.
• Power generation: Condition monitoring for applicable turbine and auxiliary equipment.
• Petrochemical plants: Machinery protection and vibration trend collection.
• Industrial manufacturing: Monitoring of compatible motors, pumps, compressors, and other rotating assets.
• Predictive maintenance: Collection of shaft motion data for condition-based inspection and fault investigation.

Confirm the equipment manufacturer's requirements before using the probe in a safety-critical or high-pressure application.

Packaging and Included Items

• 1 × Bently Nevada 330901-00-90-10-02-05 proximity probe, subject to order confirmation.
• Protective packaging suitable for industrial electronic components.
• Additional cables, Proximitor sensors, monitors, and mounting accessories are not included unless the quotation explicitly lists them.

Warranty and Shipping

• Warranty: 12-month warranty, subject to the seller's written terms and conditions.
• Shipping carriers: FedEx, UPS, and DHL options are available, subject to destination and service availability.
• Dispatch: Typical dispatch target is 24–48 hours after order confirmation and stock verification.
• Order support: Contact Global PLC Spare HUB to confirm stock, delivery options, and configuration details.

Global PLC Spare HUB's Insight

From a field maintenance perspective, probe replacement requires more than matching the series name. Engineers should verify the full part number, connector option, cable length, mounting thread, and compatible Proximitor sensor.

For example, a probe with the correct 1.0-meter length may still cause installation delays if its connector differs from the installed extension cable. Checking the connector option before purchasing helps reduce unnecessary downtime and avoids compatibility errors.

When investigating abnormal vibration readings, inspect the entire signal chain before replacing additional components. A damaged cable, incorrect gap, loose connector, or unsuitable sensor configuration can produce symptoms similar to a faulty probe.

Frequently Asked Questions

Q1: What does the Bently Nevada 330901-00-90-10-02-05 measure?

It serves as a non-contact proximity probe for shaft displacement and vibration monitoring within a compatible 3300 NSv measurement system.

Q2: Can I connect this probe directly to a monitoring rack?

No. Verify the required Proximitor sensor and extension cable. The probe forms part of a measurement chain rather than a standalone monitoring input.

Q3: What should I check if the signal becomes unstable after installation?

First inspect the connector, cable routing, probe gap, and mounting security. Then verify the extension cable and Proximitor sensor configuration before concluding that the probe has failed.

Q4: Can I replace this model with 330901-22-90-10-11-05?

Not without checking the configuration. Compare the connector option, mechanical dimensions, cable length, and sensor compatibility. The shared family prefix alone does not establish interchangeability.

Q5: Does this probe support operation at -52°C?

The stated operating range begins at -52°C. However, sustained exposure below -34°C may cause premature pressure-seal failure. Evaluate the actual environment before installation.

Q6: Is the probe suitable for differential-pressure service?

The probe design uses a Viton O-ring to seal differential pressure between the tip and case. The supplied documentation does not specify a verified pressure rating. Confirm the application's pressure requirements before use.

Q7: What information should I provide when requesting a replacement?

Provide the complete part number, existing probe and sensor models, cable length, connector style, mounting thread, and operating environment. Photos of the nameplate and connector can also help confirm the configuration.

Q8: What are the warranty and shipping arrangements?

Global PLC Spare HUB offers a 12-month warranty under its applicable terms. FedEx, UPS, and DHL options may be available, with a typical 24–48-hour dispatch target after order confirmation and stock verification.

Request a Quote

Contact Global PLC Spare HUB for pricing, availability, and configuration verification for the Bently Nevada 330901-00-90-10-02-05. Provide your application details to help confirm compatibility before ordering.
