Bently Nevada 330850-51-00 Technical Review

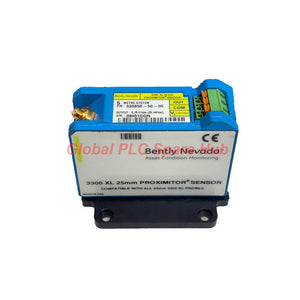

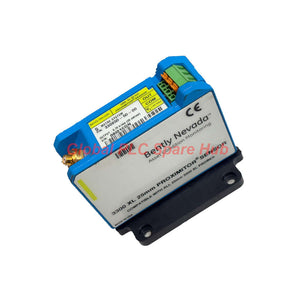

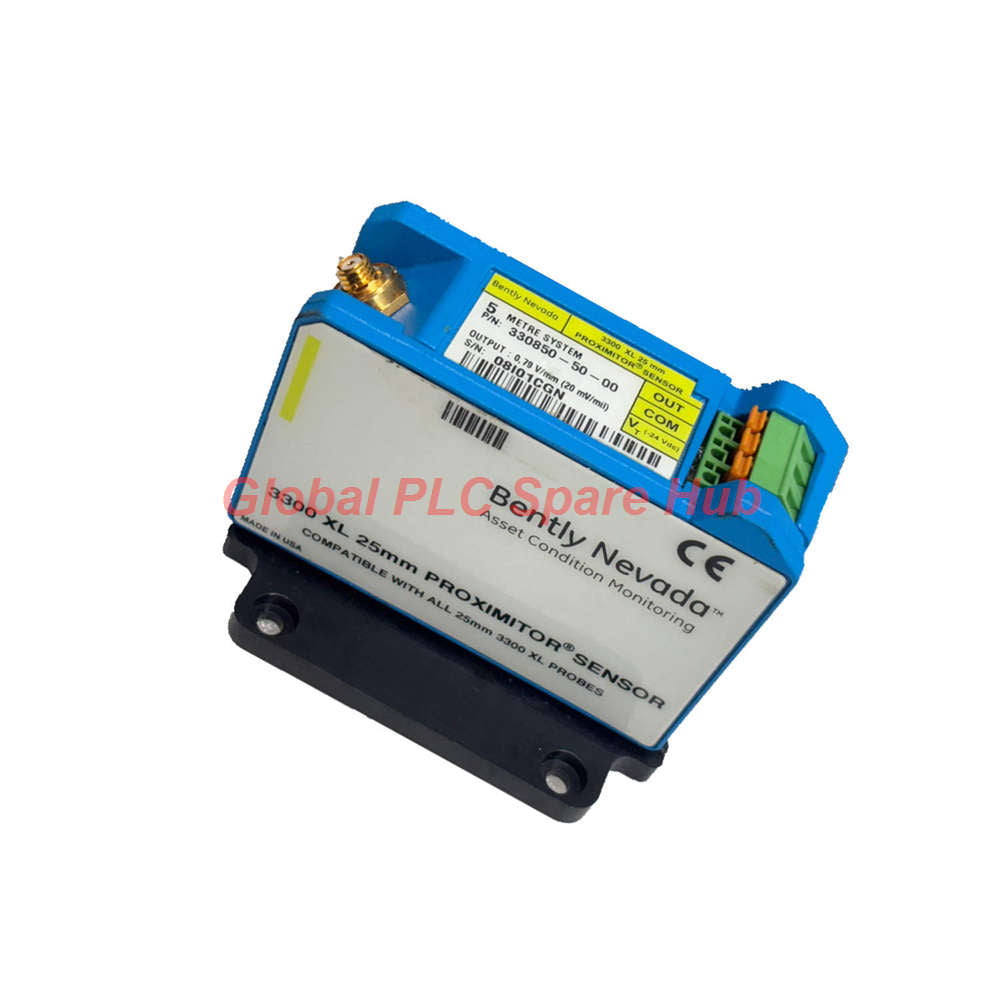

The Bently Nevada 330850-51-00 is a high-performance proximity sensor belonging to the advanced 3300 XL 25 mm transducer series. It handles non-contacting displacement measurements in large machinery.

This Proximitor Sensor features excellent RFI/EMI immunity. It achieves European CE mark standards without extra hardware. This shielding keeps signals clean near high-frequency radios.

The compact design fits dense DIN-rail arrays or traditional panels. Integrated SpringLoc terminal strips ensure tool-free, secure field wiring connections. The standard factory calibration targets AISI 4140 steel alloys.

Global PLC Spare HUB's Insight

The Bently Nevada 330850-51-00 is an engineering standard for heavy industrial vibration loops. It provides stable, low-noise signal modulation under changing factory temperatures.

Its slim enclosure profile saves valuable cabinet real estate. Instrumentation teams prefer this specific DIN-mount configuration for simple retrofits.

The SpringLoc terminals eliminate common terminal-screw loosening caused by high ambient plant vibration. The factory calibration ensures excellent out-of-the-box linearity. This makes it an ideal choice for high-reliability machinery protection systems.

Configuration Breakdown (Part Number Structural Tree)

The precise structural layout for the Bently Nevada 330850 ordering code is detailed below:

• 330850 — 3300 XL 25 mm Proximitor Sensor Core Assembly
  • -51 [This Model] — 5.0 meters (16.4 feet) total system length with integrated DIN-rail mounting hardware
  • -00 [This Model] — Standard uncertified hardware option carrying no hazardous area approvals
• Mechanical Construction Components:
  • Main Housing: A380 structural die-cast aluminum base block
  • Mounting Bracket: Anodized aluminum combined with premium stainless steel hardware
  • Wiring Block: Tool-free SpringLoc high-tension terminal contact strips

Target Equipment & Plant Applications

• Large Steam Turbines: Measuring relative shaft vibration and axial thrust position parameters.
• High-Power Compressors: Tracking fluid-film bearing clearance levels inside radial housing assemblies.
• Industrial Gearboxes: Providing diagnostic data on input and output shaft alignment changes.
• Hydroelectric Generators: Monitoring low-speed shaft runout profiles under variable fluid loads.

Diagnostic Capabilities & Signal Processing

• Static Position Monitoring: Delivers precise DC voltage feedback for exact rotor thrust movement tracking.
• Dynamic Vibration Analysis: Tracks AC voltage variations to diagnose unbalance, misalignment, or oil whirl issues.
• Power Loop Stability: Features low supply sensitivity to prevent input fluctuations from degrading output metrics.

Technical Specifications Table

Global Logistics, Delivery & Warranty Terms

• Shipment Providers: Fast global express dispatch through DHL, FedEx, and UPS loops.
• Processing Window: Securely packaged and dispatched within 24 to 48 hours of confirmation.
• Warranty Protection: Covers a full 12-month factory-backed quality guarantee term.

Strategic Procurement & Selection Guide

• System Length Verification: The -51 option specifies a 5.0-meter system length. Match this with a probe and extension cable that equal 5.0 meters combined.
• Area Safety Review: The -00 suffix means it has no hazardous certifications. Do not use this model in zones requiring ATEX, IECEx, or North American explosion protection.
• Supply Voltage Check: Keep power between -23.5 Vdc and -26 Vdc to maintain the full linear range of the sensor.

Industrial Frequently Asked Questions (FAQ)

Q: Can I mix this 330850-51-00 sensor with standard 3300 XL 8 mm proximity probes?

A: No. The 330850-51-00 is calibrated for 3300 XL 25 mm proximity probes. Mixing sizes causes major calibration shifts and distorts measurement accuracy.

Q: What happens if the supply voltage drops more positive than -23.5 Vdc?

A: Operating the sensor at a more positive voltage can reduce its linear measurement range. This restricts the maximum shaft displacement it can monitor.

Q: Does the SpringLoc terminal setup require standard crimp ferrules?

A: Crimp ferrules are not required. The high-tension SpringLoc mechanism clamps bare stranded or solid wire directly, creating a stable connection without tools.

Q: My target shaft is made of 17-4 PH stainless steel instead of AISI 4140. Will this unit work out of the box?

A: It will generate a signal, but the scale factor will shift because it is calibrated to AISI 4140 steel. You will need to apply a custom scale factor or request special factory calibration.

Q: How do I ground the shielding for the 330850-51-00 sensor?

A: Connect the extension cable outer shield to the Proximitor chassis ground point. Isolate the rest of the cable shield from the machine casing to prevent ground loop noise.
