330130-030-01-00 Bently Nevada 3300 XL Extension Cable Unit

Industrial Architecture & Product Overview

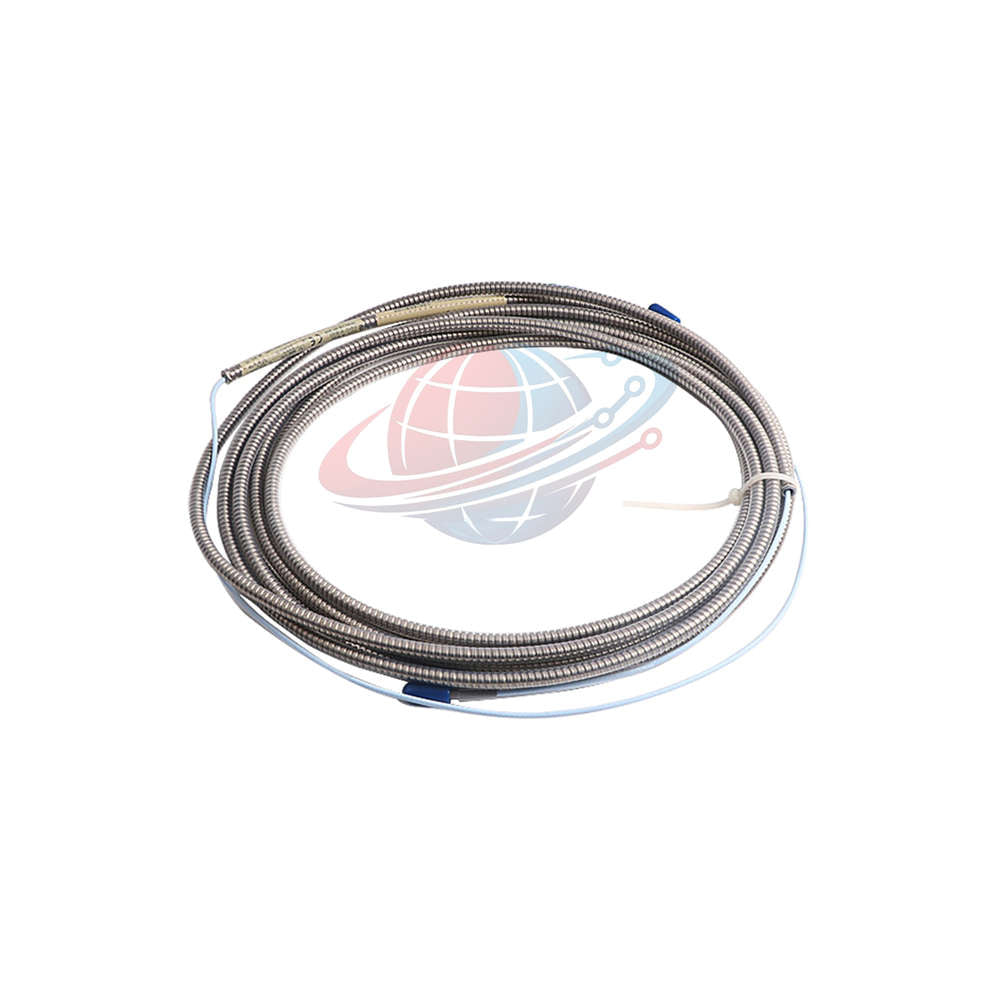

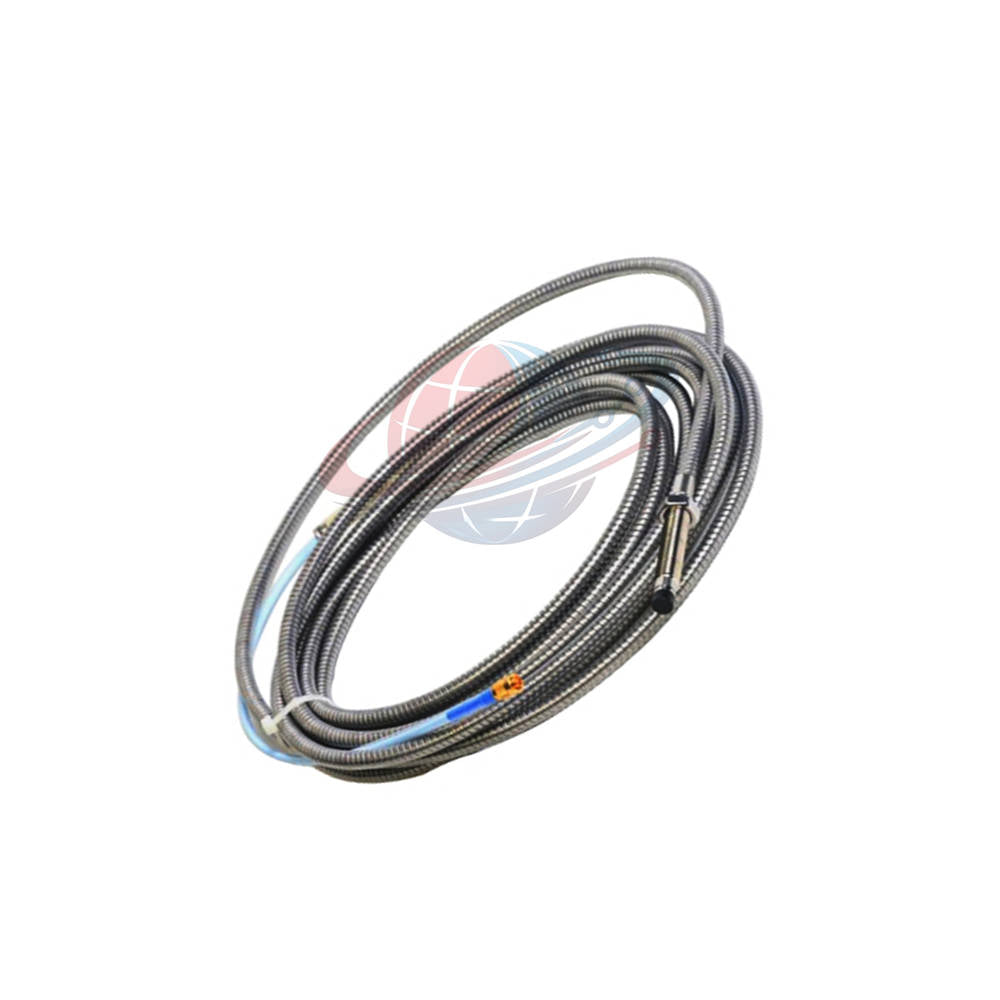

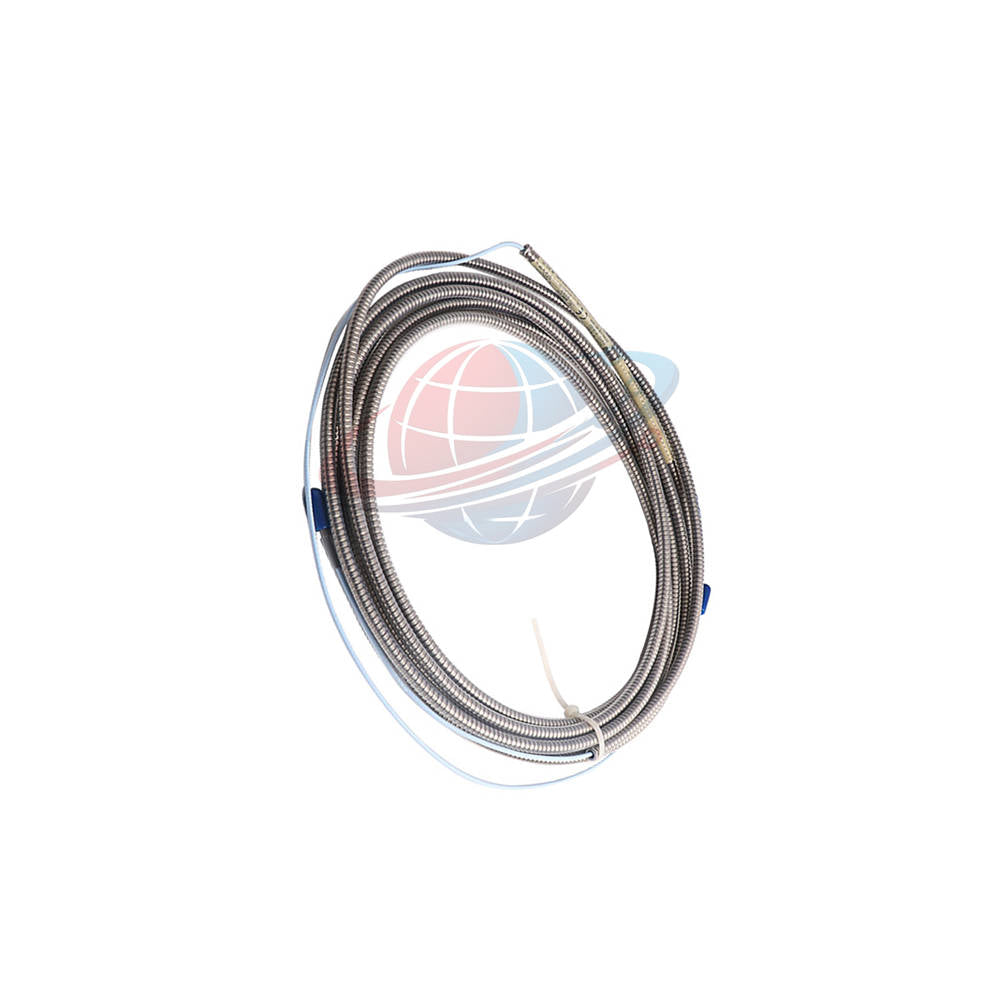

The 330130-030-01-00 is a heavy-duty extension cable engineered for the 3300 XL proximity transducer series. Designed to interconnect 5mm, 8mm, or XL 8mm proximity probes with proximitor sensors, this 3.0-meter assembly incorporates patented ClickLoc gold-plated connectors and ruggedized physical armoring to withstand severe industrial operating stresses.

Global PLC Spare HUB Review & Engineering Insight

Deploying vibration monitoring lines across high-temperature rotating skids frequently exposes signal pathways to severe mechanical abrasion and electromagnetic interference. Based on our field installation audits, choosing the armored variant of the 330130-030-01-00 effectively prevents jacket tearing and ground loops. Instrument engineers value the precision-matched 50-ohm output resistance and stable 69.9 pF/m capacitance, which guarantee signal integrity without phase distortion over long cable runs.

Configuration Breakdown (Suffix Specifications)

Technical Specifications Matrix

Target Equipment & Application Scenarios

• Radial vibration and shaft position monitoring on heavy steam turbines.
• Thrust position and axial displacement tracking on large centrifugal compressors.
• Industrial gas turbine rotor dynamics monitoring skids.
• High-speed centrifugal pump vibration diagnostics in petrochemical plants.

Advanced Diagnostic Capabilities

• Maintains high signal linearity and low phase shift across high-frequency vibration events up to 10 kHz.
• Patented CableLoc design provides 330 N (75 lbf) pull strength to safeguard terminal junctions.
• Resists humidity degradation with less than 3% Average Scale Factor shift under extreme moisture.

Fulfillment, Logistics & Warranty Terms

• Warranty Terms: Fully backed by a 12-month comprehensive replacement warranty.
• Global Express Delivery: Fast, secure worldwide transport via FedEx, UPS, and DHL.
• Order Turnaround: Guaranteed processing and dispatch within 24 to 48 hours.

Model Selection & Cross-Compatibility Guidance

When engineering replacement paths for proximity chains, length matching is critical to maintain calibration scaling factors. Compare your setup with alternative configurations:

• Model Comparison: For extended reach requirements, evaluate the alternative 330130-040-13-00 extension cable configuration, which features a 4.0-meter span and distinct connector/armor specifications. Ensure system total electrical length (probe plus extension) matches your proximitor calibration curve (typically 5m or 9m total systems).

Expert FAQ & Procurement Guide

Q: Can I use silicone tape instead of connector protectors if the joint is exposed to turbine oil?

A: No, factory guidelines explicitly recommend against using silicone tape in applications where the connection is exposed to turbine oil, as oil degradation can compromise electrical insulation.

Q: How does operating voltage above -23.5 Vdc impact sensor performance?

A: Operating at a more positive voltage than -23.5 Vdc can result in a restricted linear range and degraded signal accuracy.

Q: What is the purpose of the outer metallic armor on this specific part number?

A: The physical armor protects the internal coaxial line from heavy mechanical crushing, sharp metal shavings, and severe industrial wear.

Q: Procurement Guide: How do I verify that my replacement extension cable preserves system calibration?

A: Always verify that the total electrical length—combining the probe, the 3.0m extension cable, and the proximitor—matches your monitoring system's factory calibration setting (e.g., matching a 5-meter total loop).

Q: What environmental conditions are accounted for in the baseline accuracy specifications?

A: Baseline performance assumes an operating temperature between +18°C and +27°C, an AISI 4140 steel target, and a nominal -24 Vdc supply voltage.
