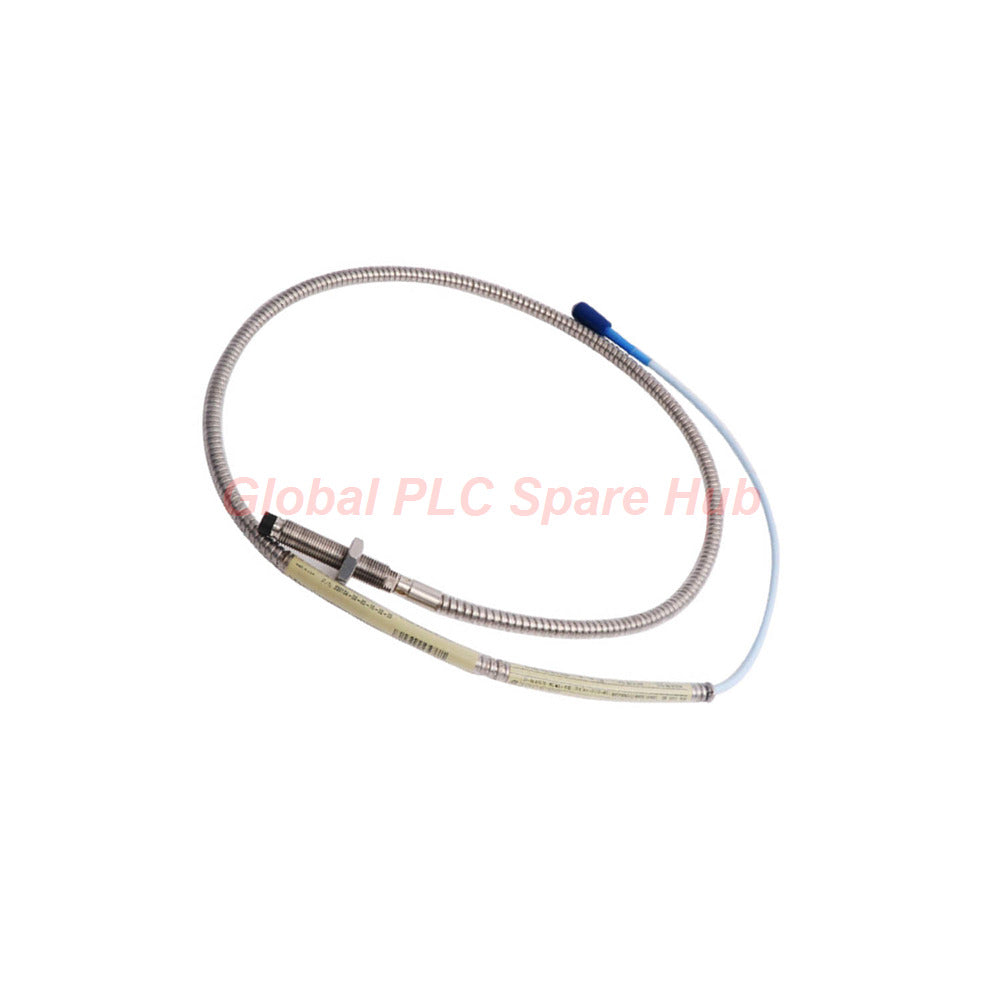

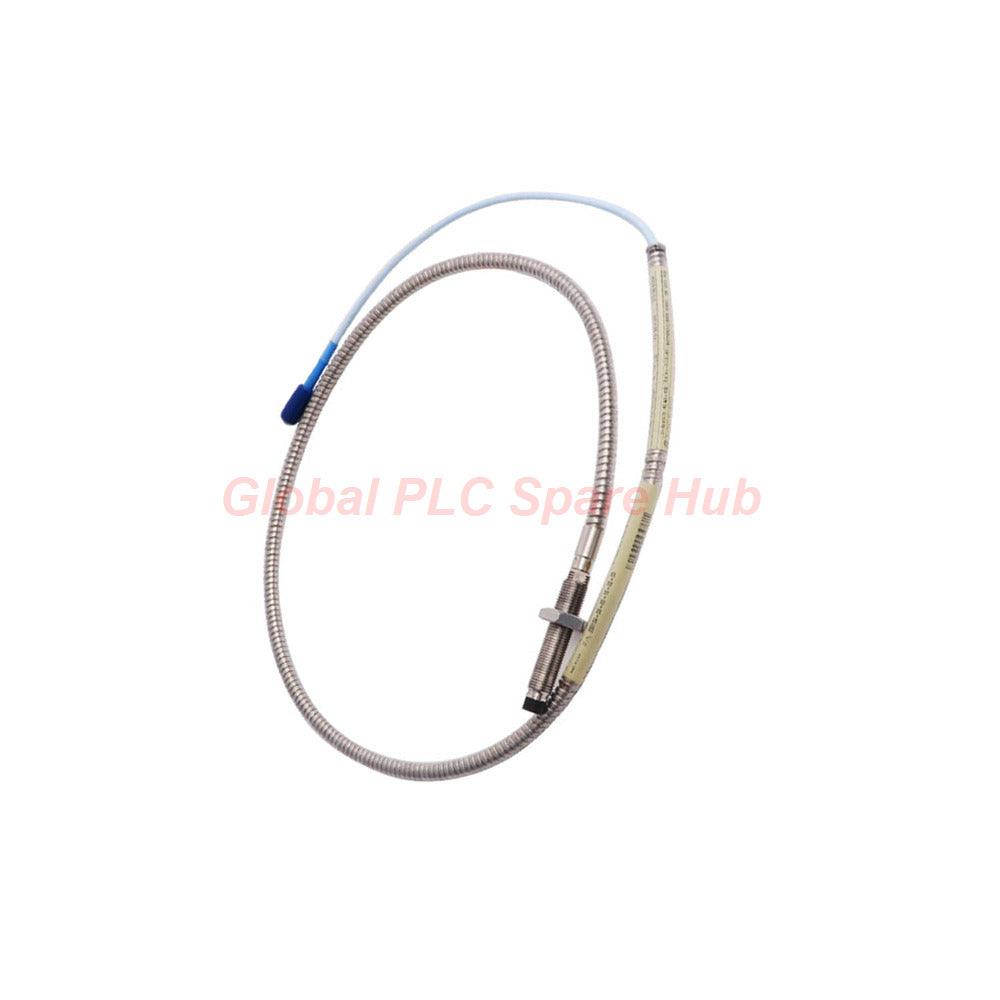

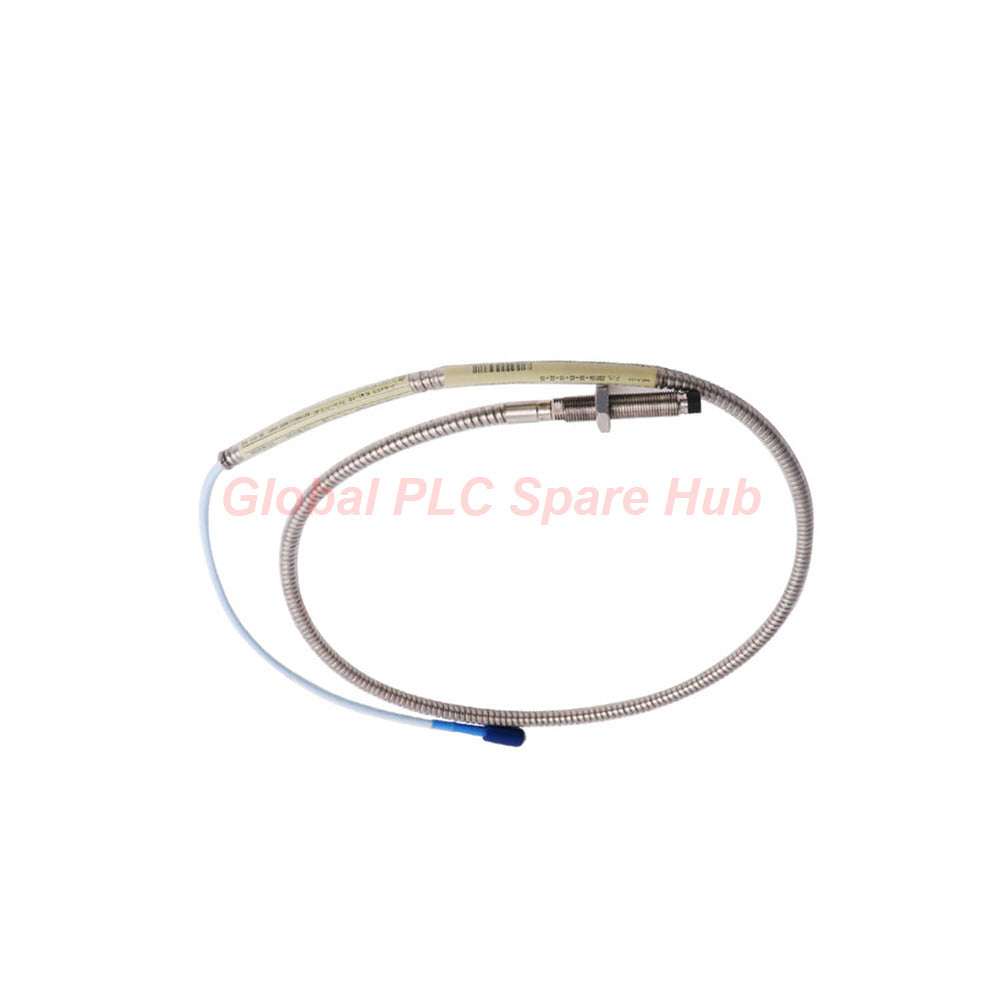

330104-07-14-05-01-00 Bently Nevada Probe 330104 Eddy Current

Engineering Overview

The Bently Nevada 330104-07-14-05-01-00 serves as a high-precision eddy current proximity transducer module within the continuous machinery monitoring 3300 XL Series. Designed for non-contact measurement of shaft vibration and axial position, this M10x1 threaded probe converts mechanical motion into stable electrical telemetry across critical rotating equipment trains.

Constructed with an corrosion-resistant AISI 303/304 stainless steel case and a Polyphenylene Sulfide (PPS) tip, the 330104-07-14-05-01-00 features high-durability stainless steel armor for aggressive industrial environments. Its ClickLoc coaxial connector and Viton O-ring seal provide fluid resistance, long-term stability, and complete interchangeability without manual system recalibration.

Part Number Configuration Breakdown

• Base Part Number: 330104
  • Designation: 3300 XL 8 mm Proximity Probe with M10 x 1 metric thread and protective cable armor.
• Unthreaded Length Option: -07
  • Designation: 70 mm unthreaded case length.
• Overall Case Length Option: -14
  • Designation: 140 mm total case length.
• Total Length Option: -05
  • Designation: 0.5 meter (1.6 feet) integrated cable length.
• Connector & Cable Type Option: -01
  • Designation: Miniature coaxial ClickLoc connector with built-in connector protector and standard cable.
• Agency Approval Option: -00
  • Designation: Standard uncertified hardware version (Agency approvals not required).

Technical Specifications

Target Equipment and Industrial Application Scenarios

The 330104-07-14-05-01-00 proximity sensor excels in critical turbomachinery asset protection systems:

• Radial shaft vibration measurement on high-speed steam and gas turbine bearings.
• Axial thrust position tracking inside heavy multi-stage centrifugal compressors.
• Phase reference pulse timing (Keyphasor) generation on power generation generator rotors.
• Differential expansion and shaft eccentricity diagnostics on industrial gearboxes and boiler feed pumps.

Advanced Asset Diagnostics and Condition Monitoring

Deploying the 3300 XL Series probe provides deep mechanical insights for reliability engineering teams:

• Delivers highly linear gap voltage telemetry for accurate orbit graph construction.
• Detects sub-micron shaft displacement changes to catch early journal bearing wear.
• Resists electromagnetic interference (EMI) from surrounding motors and high-current power cables.
• Maintains zero signal drift across broad operating temperature swings up to 232°C.

Global PLC Spare HUB's Insight

During a scheduled overhaul on an offshore compressor train, a client reported erratic gap voltage signals on their Bently Nevada 3300 XL system after replacing a damaged probe. Our diagnostic team discovered that oil had penetrated the coaxial junction due to a missing connector protector. By replacing the unit with a factory-sealed 330104-07-14-05-01-00 featuring the ClickLoc connector protector and internal Viton seal, we eliminated fluid ingress and restored reliable -24V DC gap readings immediately.

Global Shipping and Warranty Coverage

We deliver certified automation and machinery monitoring hardware globally under reliable commercial terms:

• 12-Month Warranty: Every probe is backed by a full 12-month replacement warranty starting on the date of delivery.
• 24-48 Hour Dispatch: In-stock sensors are tested, packaged, and dispatched within 24 to 48 hours.
• Express Logistics: Express global air shipping available via premier international carriers: FedEx, UPS, and DHL.

Selection and Mounting Procurement Guide

Verify these critical mechanical factors before finalizing your order for the 330104-07-14-05-01-00:

• Thread & Case Match: Ensure your bearing housing port matches the M10 x 1 metric thread with 70 mm unthreaded clearance and 140 mm total case length.
• System Length Matching: Confirm that the 0.5 m probe paired with your extension cable equals the total electrical length required by your 3300 XL Proximitor Sensor (typically 5 m or 9 m total system length).
• Target Metal Check: Standard calibration assumes an AISI 4140 steel target shaft. If monitoring non-standard metals like Monel or stainless steel, custom factory calibration factors apply.

Frequently Asked Questions

Question 1: What is the main advantage of the ClickLoc connector protector option on the 330104-07-14-05-01-00 probe?

The ClickLoc connector prevents coaxial latching connections from vibrating loose inside machine housings while keeping oil, moisture, and dirty industrial contaminants off the sensitive signal junction.

Question 2: Why is the total length of this probe option set to only 0.5 meters?

Short 0.5-meter probe leads keep the delicate coaxial connection inside a clean terminal junction box mounted on the machine casing, connecting to the Proximitor via a rugged 3300 XL extension cable.

Question 3: How do I set the correct initial physical gap voltage for this proximity probe during field installation?

Position the probe tip relative to the shaft using a feeler gauge or digital multimeter, setting the gap to approximately 1.27 mm (50 mils) to achieve the standard nominal target reading of -9.0 to -10.0 VDC.

Question 4: Can I splice or shorten the armored cable on the 330104-07-14-05-01-00 if it is too long?

No. Cutting or splicing proximity probe coaxial cables changes the circuit's total electrical resistance and inductance, which severely disrupts calibration and alters measurement accuracy.

Question 5: What causes gap voltage instability when installing a replacement probe on a journal bearing?

Instability usually stems from improper electrical grounding, running cable parallel to high-voltage lines, or exceeding the total matched cable length required by the Proximitor Sensor.
