330103-07-12-10-02-00 Bently Nevada Precision Proximity Sensor

330103-07-12-10-02-00 | 3300 XL 8 mm Probe Engineering Profile

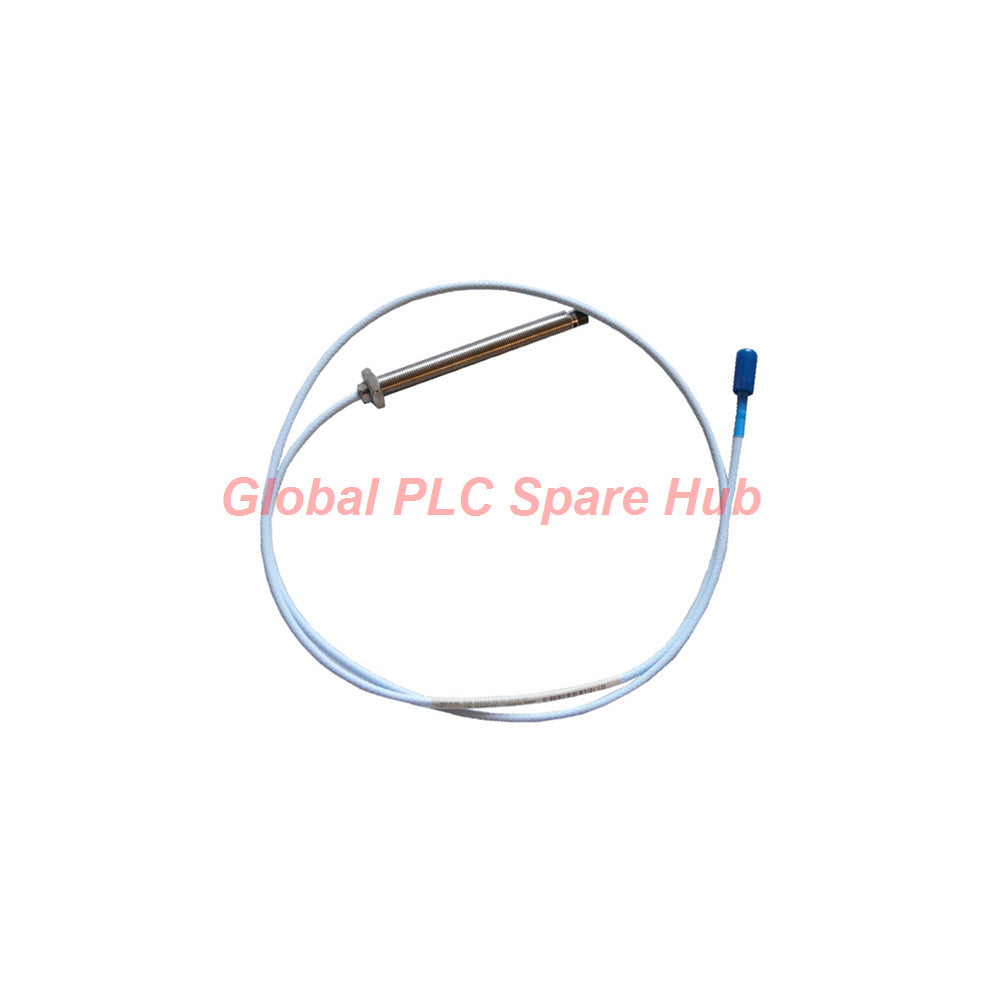

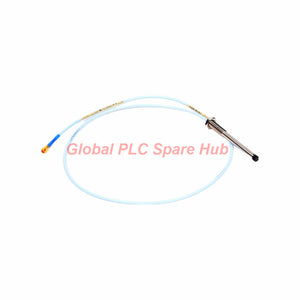

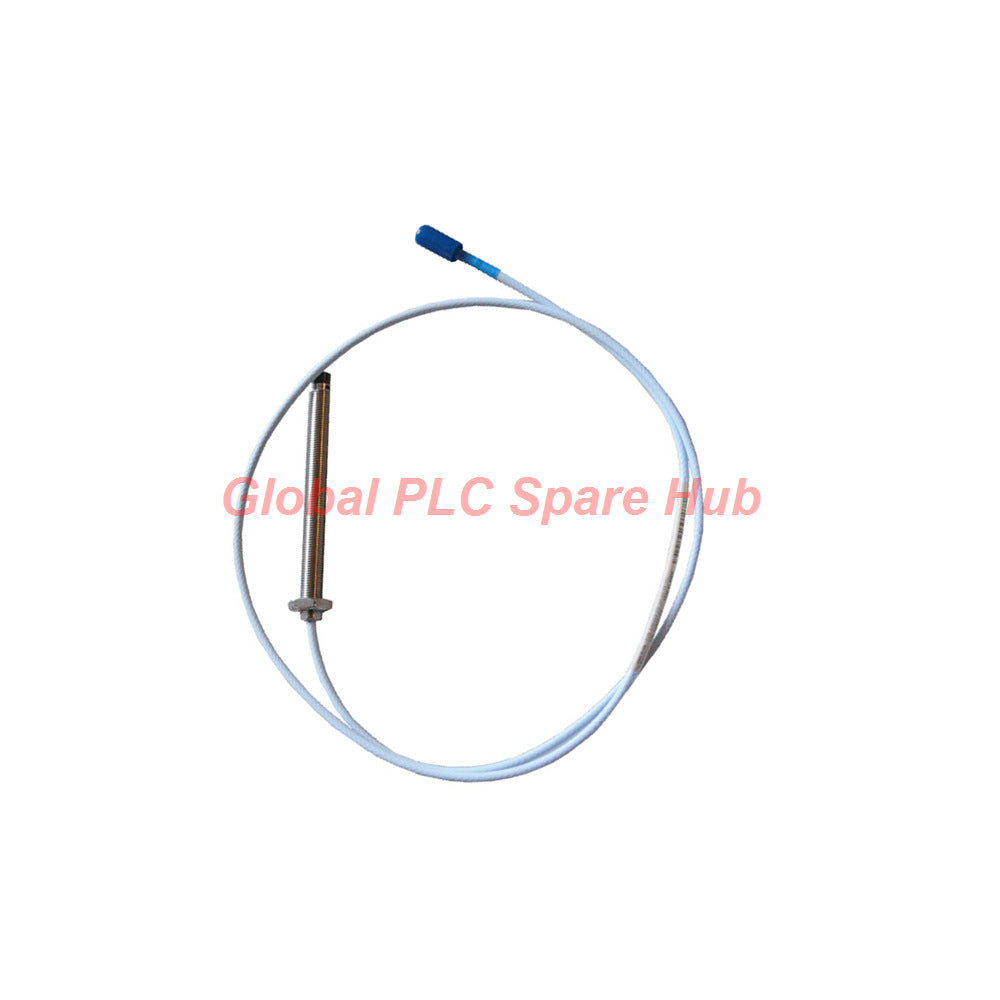

The Bently Nevada 330103-07-12-10-02-00 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of conductive targets in rotating machinery. It converts changes in probe-to-target distance into an electrical response for a compatible proximity monitoring system.

This configuration combines an M10 × 1 mounting thread, a 70 mm unthreaded section, a 120 mm overall case, and a 1.0 m standard cable. Its 2 mm linear range supports shaft vibration and displacement measurements when the complete transducer system is correctly configured.

Engineers can use this probe in machinery monitoring installations that require reliable shaft measurements, defined mounting geometry, and compatibility with the appropriate Bently Nevada Proximitor Sensor.

Ordering Code Architecture

Use this configuration tree to verify the complete part number before purchasing a replacement.

• 330103
  • 3300 XL 8 mm proximity probe
  • M10 × 1 thread
  • Without armor
• -07
  • Unthreaded length: 70 mm
• -12
  • Overall case length: 120 mm
• -10
  • Total probe cable length: 1.0 m (3.3 ft)
• -02
  • Miniature coaxial ClickLoc connector
  • Standard cable configuration
• -00
  • Agency approval option not required

Selection checkpoint: Confirm the mounting thread, case length, cable length, connector, and approval requirements. A matching base model does not guarantee that every configuration will suit the installed system.

Technical Performance Matrix

Technical note: The extended-temperature values apply to the specified extended-temperature probe version. Do not assume this standard-cable configuration supports those limits without verifying its exact construction.

Measurement Characteristics and Engineering Interpretation

• Linear range: The specified 2 mm range supports displacement measurements within the probe's defined operating interval.
• Gap adjustment: The recommended radial vibration gap is approximately 1.27 mm, corresponding to −9 VDC.
• Signal interpretation: The supplied voltage interval describes the specified linear region. Verify actual calibration against the complete transducer system.
• Scale factor: Use the manufacturer's applicable calibration data for the exact probe and Proximitor combination.
• Measurement resolution: The supplied specifications do not state a standalone resolution value. Resolution depends on the complete signal chain and monitoring electronics.
• Frequency response: Confirm the applicable manufacturer's response data before evaluating high-frequency vibration requirements.

Probe output depends on target material, geometry, gap, and the compatible transducer electronics. Use the specified target material and calibration method when comparing measurements.

Application Map | Equipment and Monitoring Objectives

These examples describe potential applications rather than universal compatibility. Confirm the machine manufacturer's requirements before selecting a probe for a specific installation.

Installation and Commissioning Sequence

1. Verify the mechanical interface. Confirm the M10 × 1 thread and 120 mm case length against the installation drawing.
2. Check the mounting depth. Observe the 15 mm maximum thread engagement and verify the available probe clearance.
3. Inspect the shaft target. Check surface condition, target material, runout, and the required sensing location.
4. Set the probe gap. Use the recommended −9 VDC reference for radial vibration when the specified transducer chain supports this procedure.
5. Route the cable. Avoid crushing, abrasion, sharp bends, and routing beside strong interference sources.
6. Connect the system. Verify the ClickLoc connector and compatible extension cable, Proximitor Sensor, and monitor.
7. Record commissioning data. Document static gap voltage, channel status, and machine operating conditions for future comparison.

Follow the manufacturer's installation drawing and the machine-specific safety procedure. Avoid excessive mechanical force during installation.

Maintenance Diagnostics | Practical Fault Isolation

Field example: A compressor channel shows a different gap voltage after a bearing inspection. The engineer should first verify probe position and cable connections. Next, compare the static reading with the commissioning record. Finally, correlate the vibration trend with machine speed and load. This sequence helps separate installation errors from actual operating changes.

Environmental Limits and Pressure Sealing

• The probe uses a PPS tip and a stainless steel case.
• A Viton O-ring seals differential pressure between the probe tip and case.
• The manufacturer does not pressure-test probes before shipment.
• Sustained exposure below −34°C (−30°F) may cause premature failure of the pressure seal.
• The specified humidity test produced less than a 3% change in average scale factor under its stated conditions.

Request a dedicated pressure-seal test when the application requires one. Confirm chemical compatibility, pressure conditions, and temperature limits before installation.

Certification and Hazardous-Area Considerations

The supplied part number ends in -00, which identifies an approval option that is not required for this ordered configuration. However, the 3300 XL probe family supports different installation approval arrangements under specified conditions.

The supplied documentation describes intrinsically safe installations using specified Zener barriers or galvanic isolators. It also describes nonincendive installations using the applicable installation drawing.

Do not treat family-level approval information as proof that this exact ordering code is approved for every hazardous area. Verify the equipment marking, system drawing, barrier selection, and site classification before installation.

Global PLC Spare HUB Review

For replacement planning, the key selection variables are the probe's physical reach, cable length, connector option, and calibrated measurement range. These variables determine whether the replacement matches the installed machinery monitoring system.

Consider a compressor where the existing probe uses a 70 mm unthreaded section and a 120 mm case. A replacement with a different case length may change the mounting position or prevent the probe from reaching its specified sensing location.

Another common maintenance issue occurs when technicians replace a probe but retain an unverified extension cable or Proximitor Sensor. The assembly may connect mechanically while producing an incorrect measurement response. Confirm the complete transducer chain before returning the channel to service.

Engineering recommendation: Treat the complete ordering code as the primary replacement reference. Validate the mounting dimensions, electrical configuration, calibration data, and environmental requirements before approving substitution.

Model Comparison and Selection Recommendation

Use the linked alternative below when comparing mounting dimensions and cable configuration. Confirm its full specification before approving it as a replacement.

Technical recommendation: Select the current model when the installed machine requires its 70 mm unthreaded section, 120 mm case, and 1.0 m standard cable. Consider the alternative only after confirming the complete dimensions, connector configuration, and approval requirements. Do not assume direct interchangeability from the shared 330103 prefix.

Packaging, Shipping, and Warranty

• Product: Bently Nevada 3300 XL 8 mm Proximity Probe, part number 330103-07-12-10-02-00.
• Packaging: New and original factory packing, subject to order confirmation.
• Warranty: 12 months, subject to confirmed seller terms.
• Shipping options: FedEx, UPS, and DHL.
• Order verification: Confirm stock, shipping destination, lead time, and the complete configuration before purchase.
• Accessories: Check whether the installed system requires a separate extension cable or other transducer components.

Frequently Asked Questions

1. Why should engineers check shaft material before selecting a proximity probe?

Eddy-current probe response depends on target material and geometry. A change in shaft material or target dimensions can affect measurement behavior. Confirm the target specifications and calibration requirements before replacing the sensor.

2. What records help engineers evaluate long-term probe performance?

Keep the original part number, installation dimensions, gap voltage, calibration data, and machine operating conditions. Consistent records help engineers identify gradual measurement changes and compare results across maintenance periods.

3. How should a team assess a replacement for a probe installed in a restricted space?

Measure the available insertion depth and clearance before ordering. Compare the unthreaded length, case length, cable exit, and connector access against the installation drawing. Confirm that maintenance staff can remove the probe safely.

4. Does the stated humidity performance guarantee identical readings in every humid environment?

No. The specification describes a defined humidity test with stated conditions and duration. Actual performance depends on the complete installation, temperature, contamination, and environmental exposure. Follow the manufacturer's operating limits and maintenance guidance.

5. What should buyers request when an application requires documented pressure integrity?

Request confirmation of the pressure-seal requirements and whether a dedicated test is available for the exact configuration. The supplied information states that probes are not pressure-tested before shipment. Confirm the test scope and acceptance criteria before ordering.

Request a Quote from Global PLC Spare HUB

Contact Global PLC Spare HUB for pricing, availability, and configuration assistance for the 330103-07-12-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe.

Include the complete part number, existing Proximitor Sensor model, cable arrangement, mounting dimensions, and installation requirements. These details help verify the correct configuration before purchase.
