330103-01-08-10-02-00 Bently Nevada 3300 XL Eddy Current Probe

Manufacturer: Bently Nevada
Product No.: 330103-01-08-10-02-00
Condition： In stock
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

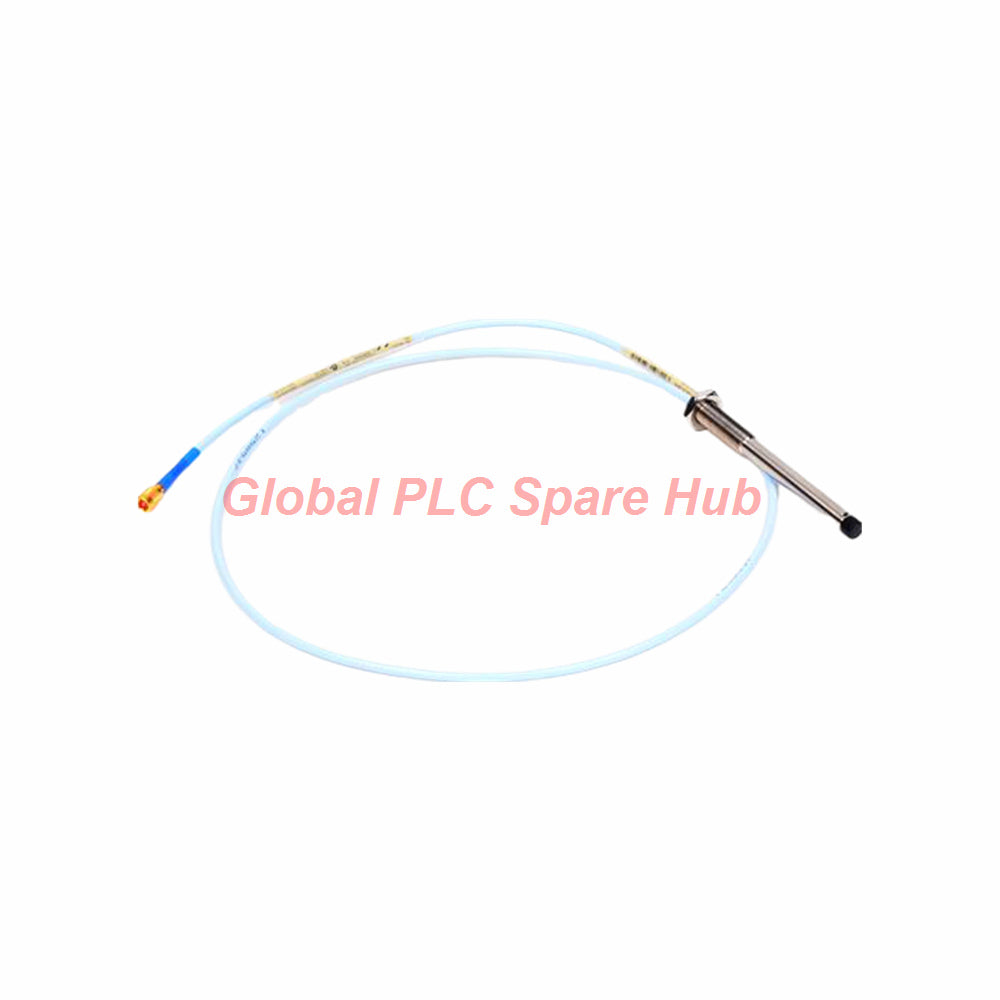

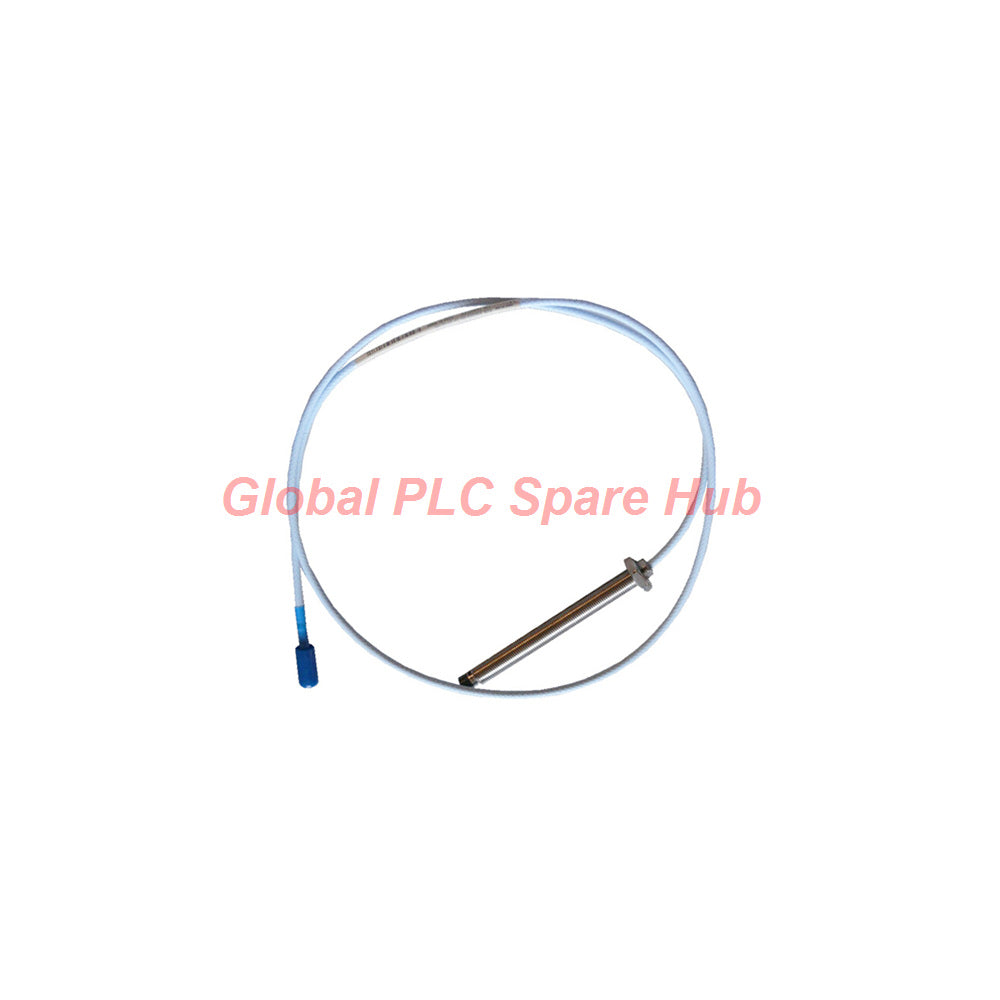

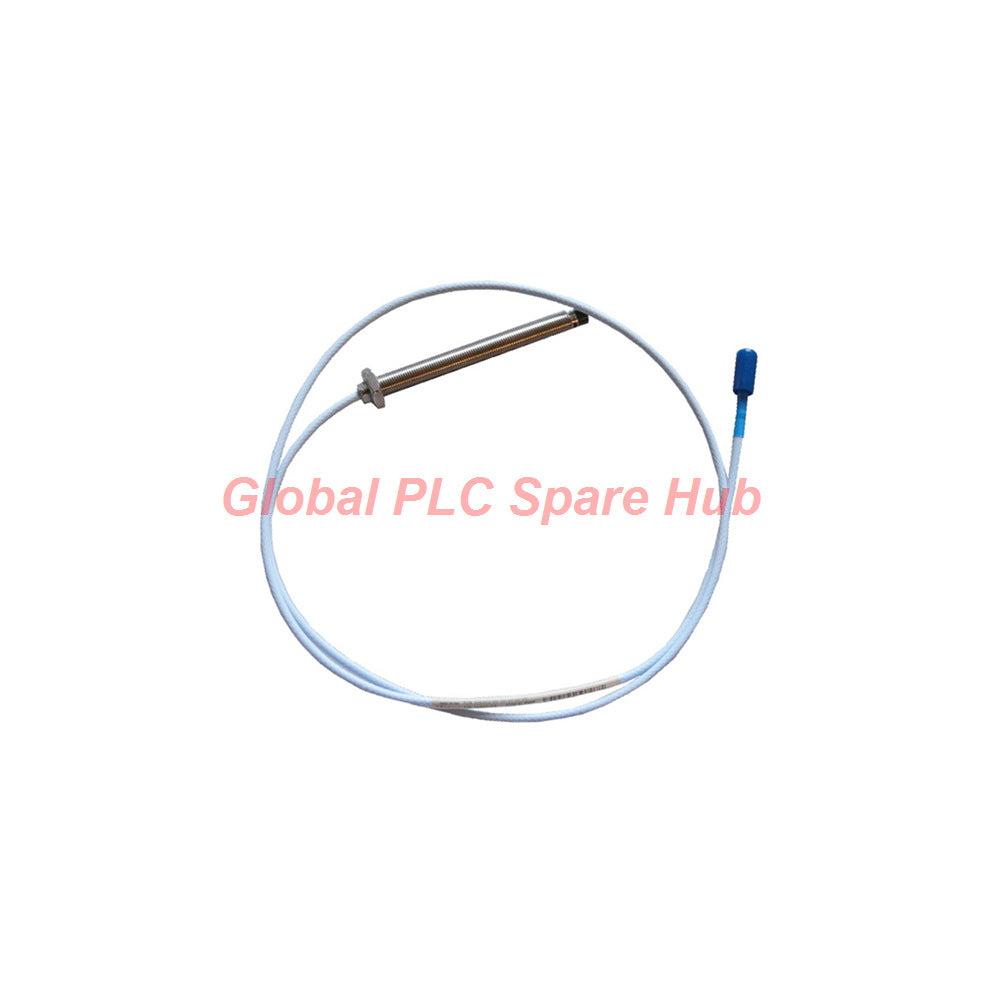

Bently Nevada 330103-01-08-10-02-00 3300 XL 8 mm Metric Proximity Probe

The Bently Nevada 330103-01-08-10-02-00 is a 3300 XL 8 mm metric proximity probe. It measures shaft displacement without mechanical contact. The probe supports vibration monitoring and shaft-position measurement in rotating machinery.

This configuration uses an M10 × 1 mounting thread, a 1.0 m integral cable, and a miniature coaxial ClickLoc connector. Its compact case supports installation where machinery clearance is limited.

Product Overview

Manufacturer: Bently Nevada
Model: 330103-01-08-10-02-00
Product family: 3300 XL 8 mm Proximity Probes
Probe type: Metric eddy-current displacement probe
Primary function: Non-contact shaft vibration and position measurement
Mounting thread: M10 × 1
Armor: Not included
Agency approval option: 00, approval not required

Technical Specifications

Brand	Bently Nevada
Model	330103-01-08-10-02-00
Series	3300 XL 8 mm
Measurement principle	Eddy-current proximity sensing
Linear range	2 mm (80 mils), from approximately 0.25 mm to 2.3 mm target gap
Recommended radial vibration gap	-9 Vdc, approximately 1.27 mm (50 mils)
Frequency response	Depends on the complete probe, Proximitor Sensor, monitor, and field wiring. Verify the system response curve for the installed configuration.
Sensitivity / scale factor	Use the matched 3300 XL Proximitor Sensor specification. This probe-only data does not state a numerical sensitivity.
Linearity	Specified operating linear range: 2 mm. Confirm system linearity against the applicable calibration data.
Resolution	System-dependent. The supplied probe data does not specify a standalone resolution value.
Probe cable length	1.0 m (3.3 ft)
Connector	Miniature coaxial ClickLoc, standard cable
Nominal DC resistance	7.59 ± 0.50 Ω, center conductor to outer conductor
Probe tip	Polyphenylene sulfide (PPS)
Probe case	AISI 303 or 304 stainless steel
Thread engagement	Maximum 15 mm
Operating and storage temperature	-52°C to +177°C (-62°F to +350°F), standard probe
Humidity resistance	Less than 3% average scale-factor change after testing at 93% relative humidity for up to 56 days
Field wiring	0.2–1.5 mm² (16–24 AWG); shielded three-conductor cable recommended
Maximum field wiring distance	305 m (1,000 ft) between Proximitor Sensor and monitor, subject to frequency-response limitations
Pressure sealing	Viton® O-ring seals differential pressure between probe tip and case. Probes are not pressure-tested before shipment.

Configuration Breakdown

330103: 3300 XL 8 mm probe, M10 × 1 thread, without armor
01: 10 mm unthreaded length
08: 80 mm overall case length
10: 1.0 m total cable length
02: Miniature coaxial ClickLoc connector with standard cable
00: Agency approval not required

Installation Guide

Confirm the probe thread, target clearance, and mounting geometry before installation.
Keep thread engagement within the specified 15 mm maximum.
Position the probe perpendicular to the measurement target when the application requires radial displacement measurement.
Set the initial gap using the matched Proximitor Sensor and the applicable system calibration.
Secure the cable away from hot surfaces, moving parts, and sources of electrical interference.
Use shielded field wiring and follow the monitor manufacturer's grounding instructions.

Commissioning and Maintenance

Verify the probe part number and cable configuration before energizing the system.
Check DC resistance when troubleshooting cable continuity. Compare readings with the specified nominal value.
Confirm the gap voltage and signal polarity using the compatible Proximitor Sensor.
Check vibration readings against baseline data after installation or machinery maintenance.
Inspect the connector, cable insulation, mounting threads, and sealing area during planned maintenance.
Investigate unstable readings before changing alarm or trip thresholds.

Compatibility Notes

The 330103-01-08-10-02-00 belongs to the Bently Nevada 3300 XL 8 mm probe family. Use it with a compatible 3300 XL 8 mm Proximitor Sensor and the appropriate machinery monitor.

Confirm the complete system configuration before replacement. Probe length, extension cable, Proximitor Sensor, connector type, and monitor settings affect system compatibility. Do not assume compatibility based on the probe family name alone.

Alternative Configuration Comparison

Compare the requested probe with this listed alternative:

Item	Requested model	Alternative model
Part number	330103-01-08-10-02-00	330103-00-04-10-01-00
Product family	3300 XL 8 mm metric probe	3300 XL 8 mm probe
Mounting thread	M10 × 1	Verify the alternative's full manufacturer configuration
Unthreaded length	10 mm	Verify against the alternative's part-number breakdown
Overall case length	80 mm	Verify against the alternative's part-number breakdown
Cable length	1.0 m	Verify against the alternative's part-number breakdown
Connector configuration	Miniature coaxial ClickLoc, standard cable	Verify connector and cable options before ordering

Technical recommendation: Select the alternative only after confirming its mounting dimensions, cable length, connector, and approval requirements. A similar series designation does not guarantee a drop-in replacement.

Typical Applications

Radial shaft vibration monitoring in turbines and compressors
Shaft displacement monitoring in pumps and motors
Axial position measurement when the installation supports the required target geometry
Machinery protection systems that use compatible 3300 XL monitoring hardware
Condition monitoring during commissioning, operation, and maintenance

Diagnostics and Field Experience

Global PLC Spare HUB Review: Probe installation errors can appear as unstable vibration signals. Engineers should check the physical gap, cable routing, and system compatibility before suspecting a monitor failure.

Example: fluctuating vibration readings. Inspect the connector and cable for loose connections. Confirm that the probe faces a suitable conductive target.
Example: unexpected gap voltage. Check the probe mounting position and verify the Proximitor Sensor configuration.
Example: intermittent signal during operation. Inspect cable routing near high-current conductors. Check connector seating and shielding.
Example: replacement probe gives different readings. Confirm the probe model, extension cable, target material, and calibration. Compare the new signal with the original baseline.

These checks provide practical troubleshooting guidance. They do not replace the manufacturer's commissioning procedures or machinery protection requirements.

Certifications and Hazardous-Area Use

This exact part number ends in option 00, which specifies that agency approval is not required. Do not assume that this configuration carries hazardous-area certification.

For hazardous locations, select a properly approved probe and use the specified barriers, isolators, and installation drawings. Verify the complete measurement loop against the site's classification and applicable regulations.

Packaging, Shipping, and Warranty

Packaging: Probe supplied in protective packaging. Confirm the included accessories and documentation with the order.
Warranty: 12-month factory warranty, subject to the seller's written terms.
Shipping methods: FedEx, UPS, and DHL.
Dispatch: Usually within 24–48 hours after order confirmation, subject to stock and processing conditions.
Order support: Contact Global PLC Spare HUB to confirm availability, delivery options, and configuration details.

Frequently Asked Questions

1. Can this probe measure shaft vibration directly?

Yes. It senses shaft movement without contact. A compatible Proximitor Sensor and monitor convert the probe signal into usable vibration data.

2. Can I replace another 3300 XL 8 mm probe with this model?

Not automatically. Compare the thread, case length, cable length, connector, and approval option. Confirm the complete system configuration before replacement.

3. What should I check if the vibration reading changes after probe replacement?

Check the installed gap, target surface, cable connections, and matching extension components. Confirm calibration and compare readings under similar operating conditions.

4. Is the probe suitable for hazardous-area installation?

This part number specifies no agency approval. Choose an approved configuration and follow the required barrier or isolator installation instructions for the classified area.

5. How should I choose between the requested model and the linked alternative?

Start with the installed mounting dimensions and required cable length. Then verify connector style, approval status, and compatibility with the existing Proximitor Sensor. Request a configuration check if the original probe label is unclear.
