330103-00-06-50-02-00 Bently Nevada Vibration Monitoring Probe 3300 XL

Product Overview

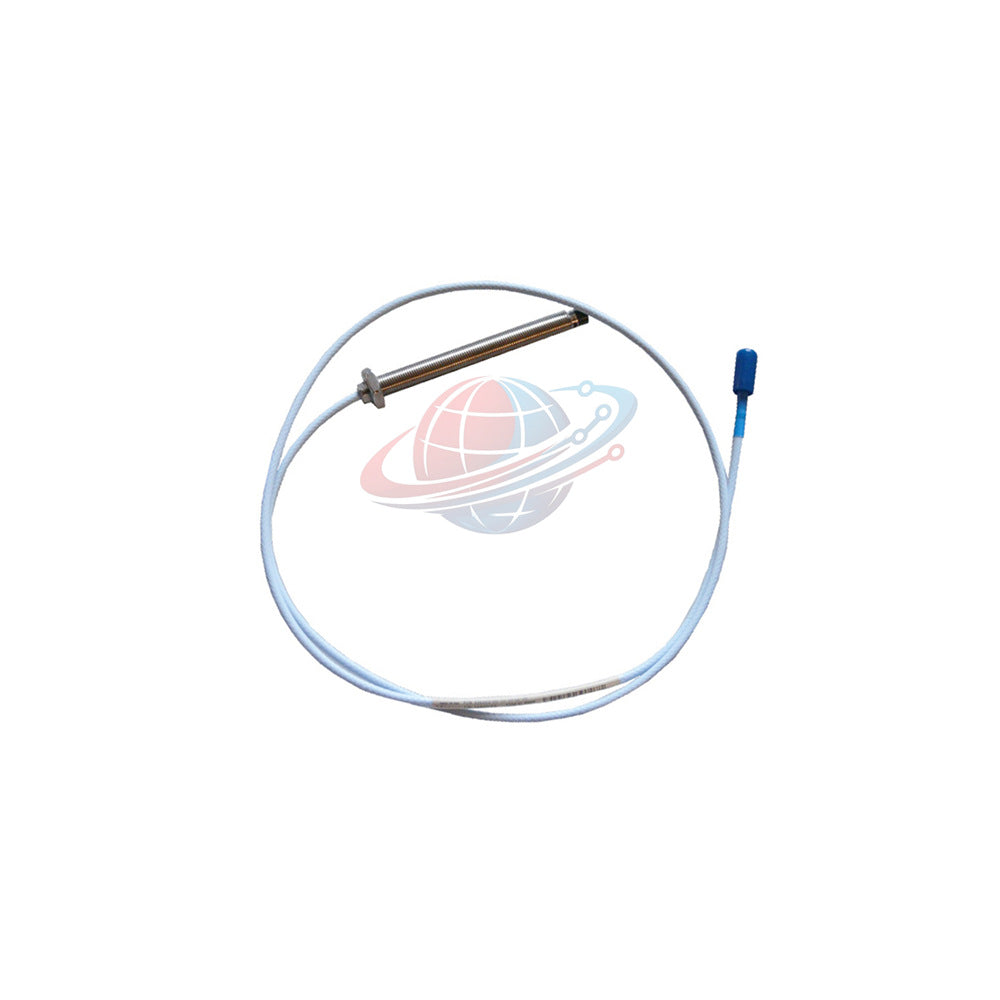

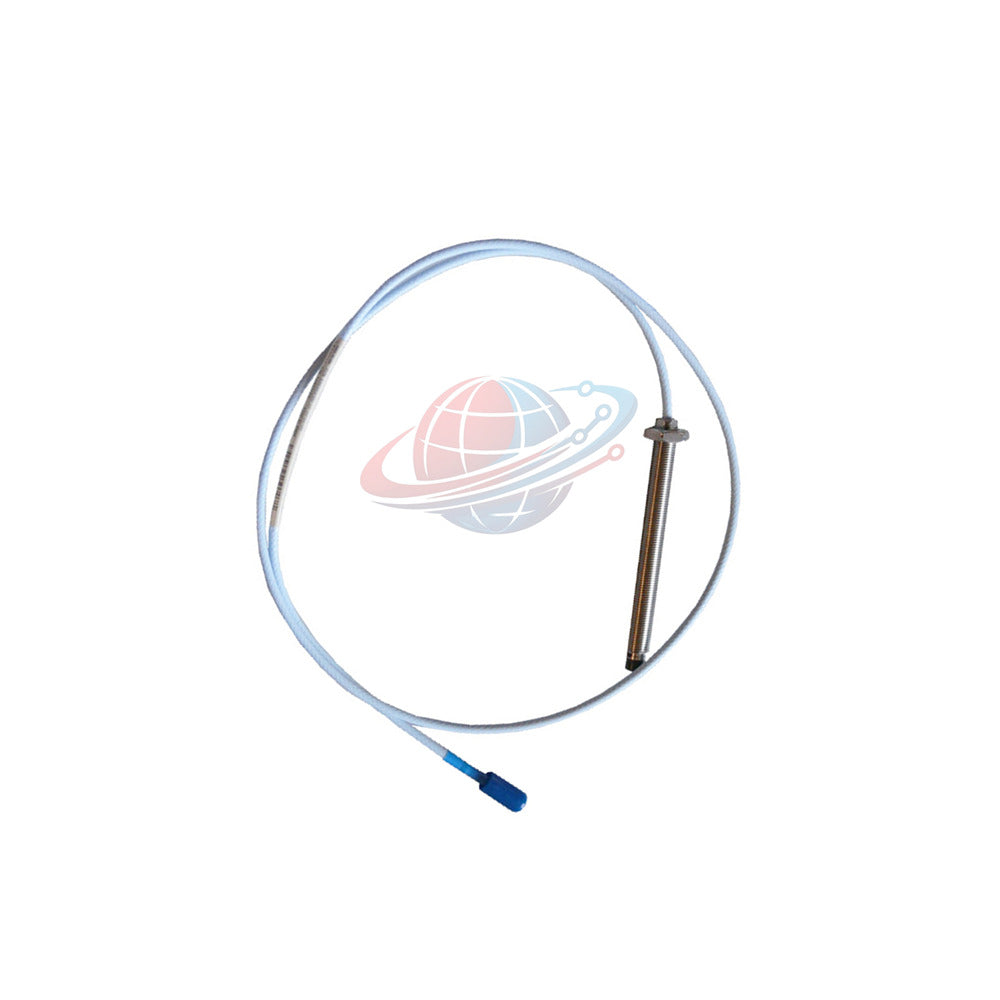

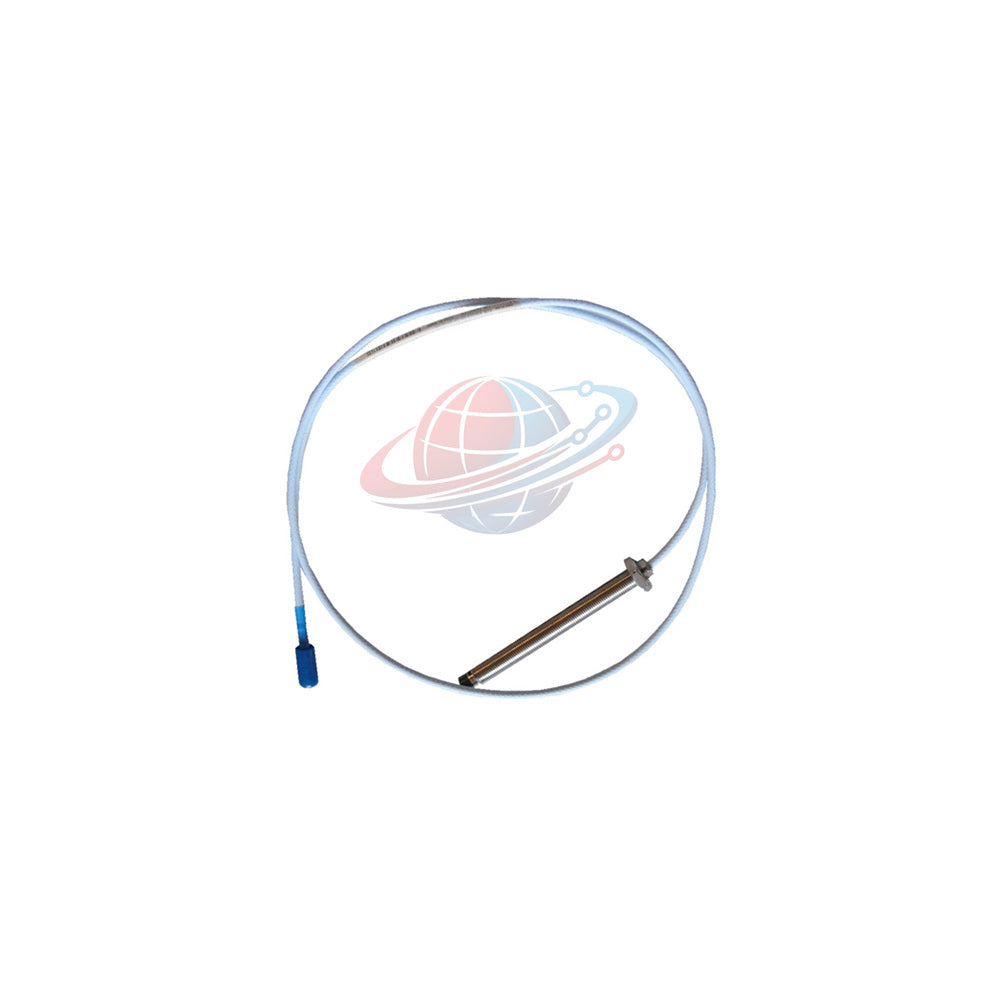

The 330103-00-06-50-02-00 is an advanced 8 mm metric proximity probe engineered as a core component of the industry-standard 3300 XL machinery diagnostic system. Manufactured by Bently Nevada, this high-precision sensor measures static and dynamic displacement, vibration, and shaft position in critical rotating equipment. Featuring a robust M10 x 1 threaded case without armor, a 60 mm unthreaded length, and a 5.0-meter integrated cable with a ClickLoc coaxial connector, the 330103-00-06-50-02-00 ensures reliable signal transmission to compatible 5-meter Proximitor sensors across demanding industrial environments.

Part Number Configuration Breakdown

The table below details the specific configuration options embedded within the 330103-00-06-50-02-00 part number string:

Technical Specifications

• Brand: Bently Nevada
• Series: 3300 XL (8 mm Proximity Probes, Metric)
• Model / Part Number: 330103-00-06-50-02-00
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Linear Range: 2 mm (80 mils), spanning from 0.25 mm to 2.3 mm (approx. -1 VDC to -17 VDC)
• Recommended Gap Setting: -9 VDC (approx. 1.27 mm / 50 mils)
• Nominal DC Resistance (R_PROBE): 8.73 ± 0.50 Ω (Center conductor to outer conductor)
• Standard Operating Temperature: -52°C to +177°C (-62°F to +350°F)
• Field Wiring Requirements: 0.2 to 1.5 mm² (16 to 24 AWG) shielded triad cable, max length 305 meters (1,000 feet)

Diagnostic Capabilities & Fault Monitoring

• Gap Voltage Verification: Provides continuous real-time DC voltage output corresponding to mechanical shaft gap, allowing immediate identification of excessive radial vibration or rotor displacement.
• Signal Integrity Tracking: High rejection against 60 Hz magnetic field interference ensures stable readings near large industrial motors and generators.
• Environmental Sealing Inspection: Incorporates a Viton O-ring seal designed to handle differential pressure between the probe tip and mounting case in pressurized machinery casings.

Recommended Applications & Compatible Equipment

• Target Machinery: Large steam turbines, industrial gas compressors, centrifugal pumps, boiler feedwater pumps, large electric motors, and hydro-turbines.
• Compatible Monitoring Hardware: Must be paired exclusively with a matched 3300 XL 5-meter Proximitor Sensor due to the fixed 5.0-meter cable impedance calibration.
• Industrial Sectors: Power generation facilities, oil and gas refineries, chemical processing plants, and heavy industrial manufacturing operations.

Global PLC Spare HUB's Insight

Commissioning a 5-meter probe system like the 330103-00-06-50-02-00 requires strict adherence to cable routing best practices. Because the cable length is permanently fixed at 5.0 meters, field technicians must carefully coil and secure excess slack away from high-voltage motor leads to prevent electromagnetic induction. Furthermore, when threading the M10 x 1 case into machinery brackets, do not exceed the 15 mm maximum thread engagement limit, and always verify that operating temperatures remain above -34°C during startup to preserve the Viton pressure seal integrity.

Model Selection & Technical Comparison

When evaluating alternative monitoring layouts for your machine train, consider how configuration parameters affect system performance. Below is a comparative technical selection based on a similar variant:

• 330103-00-08-10-12-05: This alternative configuration features an 80 mm case length (08), a 1.0-meter cable length (10), agency approvals included (12), and a specialized connector option (05). While the core 8 mm PPS tip and M10 thread remain identical to the 330103-00-06-50-02-00, the shorter 1.0-meter cable requires pairing with a 1-meter Proximitor sensor system and an external extension cable, making it ideal for compact terminal boxes where a 5-meter direct run is physically impractical.

Shipping, Warranty & Order Fulfillment

• Global Dispatch: Fast and secure worldwide shipping via FedEx, UPS, and DHL.
• Fulfillment Window: Orders are processed and dispatched within 24-48 hours from order verification.
• Warranty Coverage: Backed by a comprehensive 12-month warranty to guarantee long-term operational reliability in critical rotating machinery.

Frequently Asked Questions

Q: Why must a 5.0-meter probe like the 330103-00-06-50-02-00 only be paired with a 5-meter Proximitor sensor?

A: The electrical resonant frequency and capacitance of the 3300 XL system are precisely tuned to the exact physical length and resistance of the attached coaxial cable; mixing cable lengths alters the calibration curve and introduces severe measurement errors.

Q: What precautions are necessary when installing the probe in high-pressure compressor casings?

A: Ensure the Viton O-ring seal is properly lubricated and seated without pinching, and verify that differential pressure across the probe tip does not exceed factory design thresholds to prevent gas leaks or seal blowout.

Q: How does ambient temperature fluctuation affect the output of the 330103-00-06-50-02-00?

A: While the probe tip withstands temperatures up to +177°C, extreme thermal shifts can cause minor mechanical expansion in mounting brackets; using a stable locknut torque helps maintain your baseline -9 VDC gap setting.

Q: Can I shorten or splice the 5.0-meter integral cable if it is too long for my terminal housing?

A: No, altering, cutting, or splicing the coaxial cable will permanently disrupt the characteristic impedance (R_PROBE = 8.73 Ω) and invalidate the factory calibration, rendering the probe unusable.

Q: What are the primary diagnostic indicators that suggest a failing proximity probe installation?

A: Sudden shifts in gap voltage without mechanical load changes, erratic signal noise spikes on the monitoring display, or an open-circuit reading typically indicate moisture ingress at the ClickLoc connector or internal cable damage.
